H Beam Steel Grades Guide: ASTM, EN, and GB Standards Explained

In worldwide building and infrastructure industry, it is essential to choose the right structural materials for safety, long life and cost-effectiveness. Being the reputed H Beam Supplier, Know the Steel standards from Around the World - International Standards for Steel - ASTM (American), EN (European), GB (Chinese) - Engineers and purchasers need to have a clear understanding.

This guide provides a comprehensive breakdown of the most common steel grades used by Carbon Steel H Beam Manufacturers worldwide.

lokhandwala-traders-ms-h-beams

ASTM Standards (North America)

The American Society for Testing and Materials (ASTM) sets the benchmark for most projects in the Western Hemisphere.

ASTM A36 H Beam: The most widely used "mild steel" grade. At a minimum of 36 ksi (250 MPa), the yield strength is relatively high and it has good weldability and ductility which make it one of the best steels for general construction and bolted assemblies.

A572 H Beam (Grade 50): A High Strength Low Alloy (HSLA) steel. The higher yield strength (50 ksi / 345 MPa) of A572 H beam compared to A36 enables the use of lighter sections for the same load, thus saving weight of the overall project.

A992 H Beam: The Most used alternative for wide-flange beams in the US that you will find today. It is a unique chemistry, engineered for enhanced weldability and a narrower yield-to-tensile ratio for seismic applications.

EN Standards (Europe)

The European Standard (EN 10025 H Beam) uses a naming convention based on the minimum yield strength in Megapascals (MPa).

S235JR H Beam: The European grade of A36. It has a yield strength of 235 MPa. The "JR" designation is a result of the fact that the steel has been subjected to impact testing at room temperature (20°C).

S275JR H Beam: An intermediate structural steel (yield strength = 275 MPa). It is commonly utilised in bridge building and heavy equipment frames.

S355JR H Beam: High Strength S355JR Steel Beam is the most widely used grade of high strength beams in the EN catalog. With a yield strength of 355 MPa it is also the material of choice for high rise buildings and offshore structures where weight to strength ratios are critical.

GB Standards (China)

As China remains the world's largest producer, many Carbon Steel H Beam Suppliers follow the GB/T 11263 standard.

Q235 H Beam: Similar to S235JR and A36. The symbol "Q" in Q235 represents the yield point whereas 235 indicates the strength in MPa. It's also commonly used in the secondary buildings and telecommunication towers.

Q355 H Beam: Successor to the old Q345 grade, the is the high-strength staple of Chinese infrastructure. It is known as S355JR equivalent, which is widely utilized in pre-engineered steel buildings (PEB) and mega industrial plants.

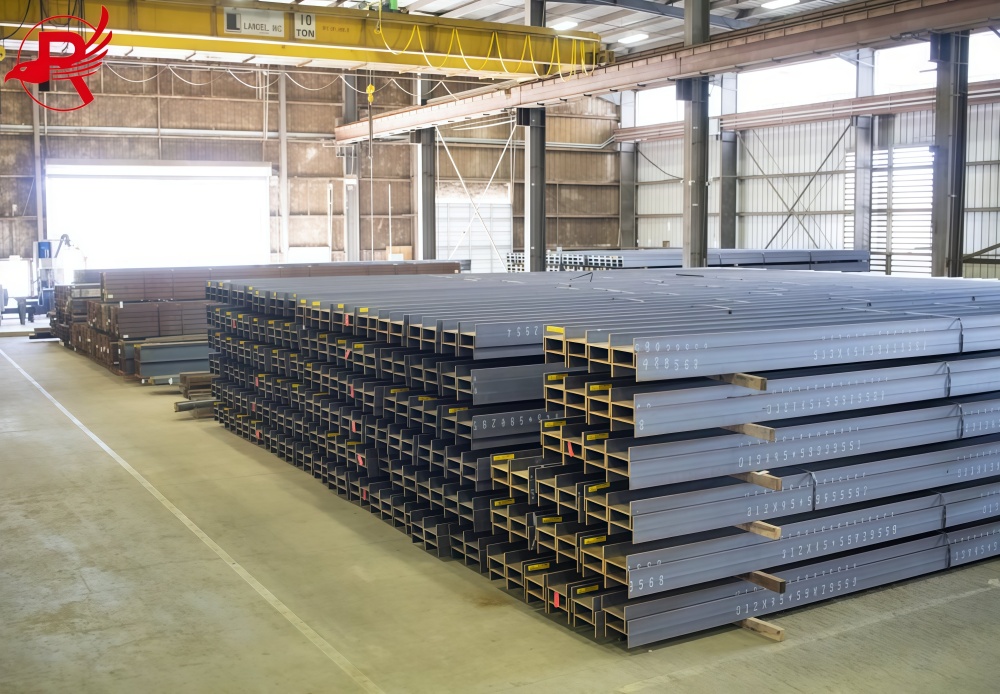

H Beam Factory Supplier

Why Choosing the Right H Beam Supplier Matters

To navigate these standards, you need a partner with cross-border certification expertise. Top Carbon Steel H Beam Manufacturers now offer Mill Test Certificates (MTC) indicating "Dual Certification;" a beam can be certified for both S355JR and Q355 at the same time.

Whether your warehouse is in Mexico, your bridge in the Philippines, Selecting the right grade for the job provides peace of mind in knowing the job will not only be structurally sound but also that you made the most of your material budget.

ASTM W Beam
EN HEA/HEB H Beam
GB H Beam
