Scaffolding Size Chart: Standard Dimensions and Load Capacities (2026)

As we see a larger-scale construction activity in the world in 2026, safety regulations and structural integrity are still at the top of the list for infrastructure, commercial and industrial works. Revised scaffold pipe dimension charts and load capacities standards are more and more consulted by the contractors, engineers and the procurement units to stay in line with international safety rules and the developing project needs.

Based on occupational safety standards that have been the basis for decades of regulatory enforcement, scaffolding systems shall be capable of supporting at least four times the maximum intended load, including workers, tools, and materials. This standard applies to all types of scaffolding systems: fixed, mobile, or made up of modular components, and will continue to be a key point of construction safety in 2026.

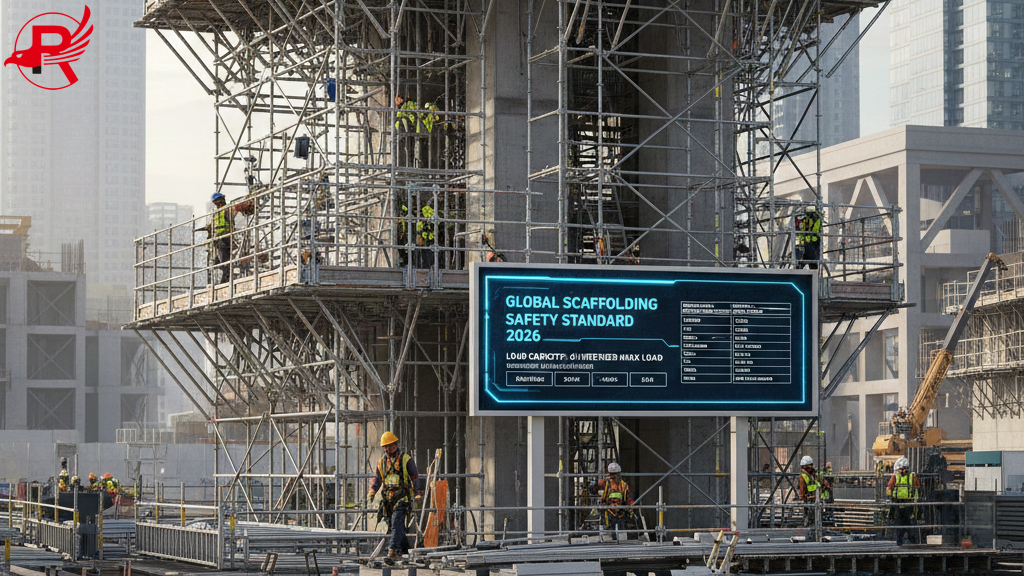

scaffold pipe

Standard Dimensions and Load Capacity Considerations

Platform Size and Width

1.Scaffold platforms must be a minimum 18 inches (about 46 cm) in width to provide workers with a safe working space.

2.The distance between the platform and the uprights should be no greater than 1 inch (about 2.5 cm) to avoid items falling.

Load Classification

The recommended dimensions and load tables in the appendix of the US OSHA standard show that different load levels have clear specifications:

Light load type: Can withstand a uniform load of approximately 25 lb/ft² (pounds per square foot).

Medium load type: Approximately 50 lb/ft².

Heavy load type: Approximately 75 lb/ft².

Special configurations also specify concentrated load distribution for single, two-person, and even three-person platforms.

Spacing Between Crossbar and Column

1.For tube and coupler scaffolds, the advice is that the spacing of the uprights should normally be the closer of either 4 ft × 7 ft or 6 ft × 6 ft (about 1.2 × 2.1 m or 1.8 × 1.8 m) to allow for stability and working convenience.

2.Horizontal rungs spacing is usually no more than 6 ft 6 in (about 2 m).

Practical Size Examples

Standards appear in the dimensions and load capacity of the traditional mobile scaffolding from the industrial scaffolding pipe suppliers the modular series are presented as follows:

1.The typical widths are between 840 mm and 1.5 m, and the length of the platform is about 1.8 m.

2.The rated load capacity of the platform is 2 KN/m2 (about 200 kg/m2) even at installation heights from 3.3 m to 6.5 m, which is the same load capacity for platforms of the same type.

Safety and Compliance Highlights

1.All platforms of scaffolds shall be fully planked to prevent tools or materials from falling.

2.Scaffolding arrangements over 125 ft (approx. 38 m) shall be prepared by a registered engineer in accordance with higher-level structural rules.

3.For employees working at heights greater than 10 ft (3 m), guardrails and fall arrest systems must be used.

Industry Observation

In the wake of global building activity growth, there is more focus on safety and harmonized dimensional and load requirement specifications for scaffolding. Key standards for 2026 include further emphasis on:

1.Mandatory safety factor and load capacity reliability;

2.Standardized structural dimensions and operating space;

3.Engineer certification and design guidelines required for high-rise and large-scale projects.

Royal Steel Group can supply a full range of scaffold pipes in all standard sizes and grades, providing contractors and suppliers with reliable, high-quality materials for every scaffolding project.
