Steel Sheet Piling Profiles: Comparison of Various and Applications

With global infrastructure constantly developing, the necessity to have adaptable and resilient foundation solutions is greater than ever. Steel Sheet Piles continue to be the backbone of marine works, flood protection and deep excavation. Whether working in the busy ports of asia or the urban regeneration projects in europe, choosing the correct profile and grade can mean the difference between the success of a project and a structural failure.

Understanding the Profiles: U vs. Z

When it comes to geometry, the industry is largely divided into two camps: U Type Sheet Piles and Z Type Sheet Piles.

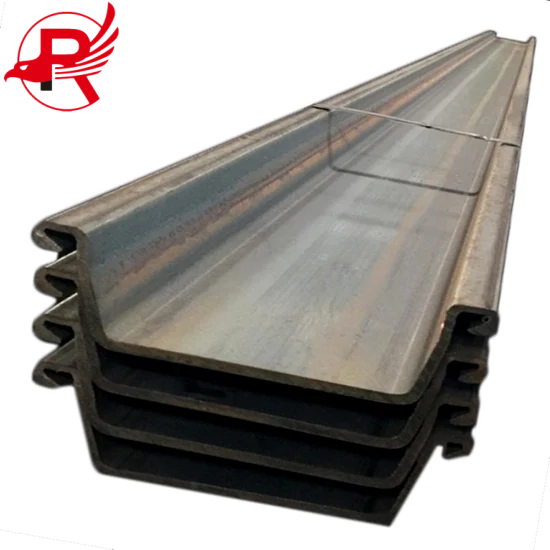

U Type Sheet Piles: Also known as the classic option, the U Type Sheet Pile is symmetrical and easy to handle. A popular option for city drainage, and small cofferdams, Type 2 Sheet Piles provide an efficient weight to strength ratio.

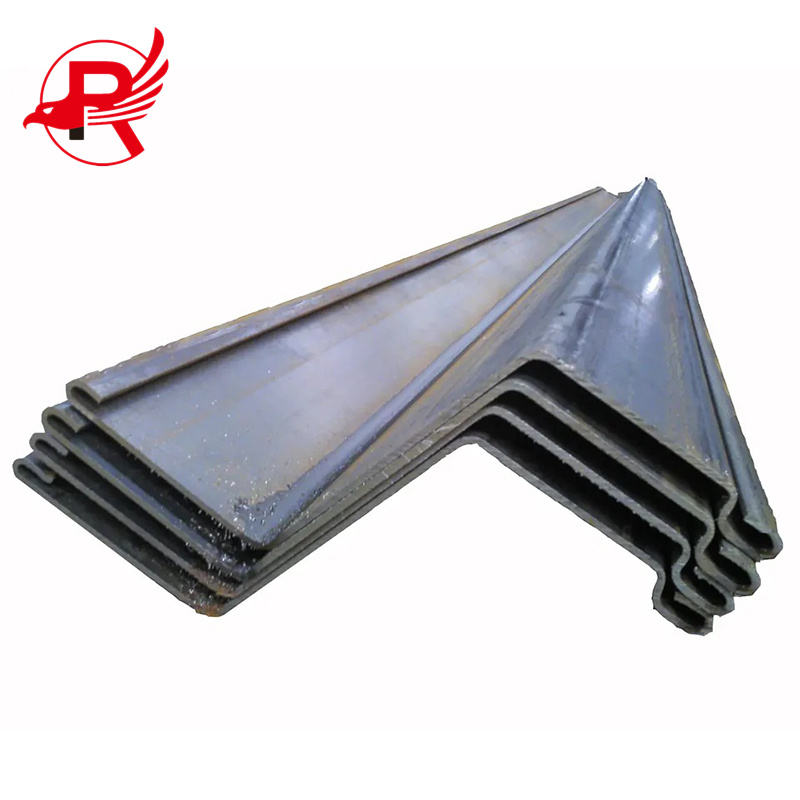

Z Type Sheet Piles: These are used for heavy duty applications. The “Z” shape places the interlocks at the wall’s outer fibers (the farthest surface away from the neutral axis), which dramatically increases the section modulus and bending capacity.

z-steel-pile04 (1)
Sheet-Pilemp4-mp4 (1)

Manufacturing Processes: Hot Rolled vs. Cold Formed

The method of production dictates the pile's performance in high-stress environments.

1.Hot rolled steel pile: Made at very high temperatures, these piles have tight, "Larssen" style interlocks that offer superior water tightness. It is what makes them the gold standard for permanent marine structures.

2.Cold Formed Steel Sheet Pile: It is made from Carbon Steel Sheet Pile which are roll formed at room temperature. They do have more flexible sizes but their interlocks are generally looser than in the hot-rolled types, which is why they are so suitable for temporary works or land-based retaining walls.

Global Standards and Material Grades

The chemistry defines the toughness of a S355JR Steel Plate Pile. Depending on the country and the engineering requirements, various standards prevail the market:

Standard Common Grade Characteristics
European (EN 10025) S355jr Sheet Pile High yield strength, excellent weldability, and impact resistance.
Japanese (JIS) Jis A5528 Grade A Steel Sheet Pile Strict manufacturing tolerances; widely used in coastal engineering.
High-Strength JIS Sy390 Steel Sheet Pile A higher grade (Sy390 Sheet Pile) used for deep excavations requiring maximum stiffness.

Practical Applications and Logistics

Whether a project requires a standard Steel Sheet Piles 6m length for a shallow trench or custom 20-meter lengths for a quay wall, the application dictates the pile choice:

Marine Environments: Hot Rolled Steel Pile sections are coated with high quality anti-corrosion coatings to resist the effects of saltwater.

Urban Construction: Cold Formed Steel Sheet Pile sections provide an economical solution for temporary shoring, that can be extracted and reused.

Flood Defense: Due to the interlocking design of the U Type Sheet Piles, the continuous barrier, which is necessary for levee reinforcement can be achieved.

Note: The grade should be appropriate for the service condition when you order your materials. Such as the S355jr grade is much adaptive for general use in temperate region in climate, while there may need some special alloys for areas with special needs like arctic or corrosive soil.
