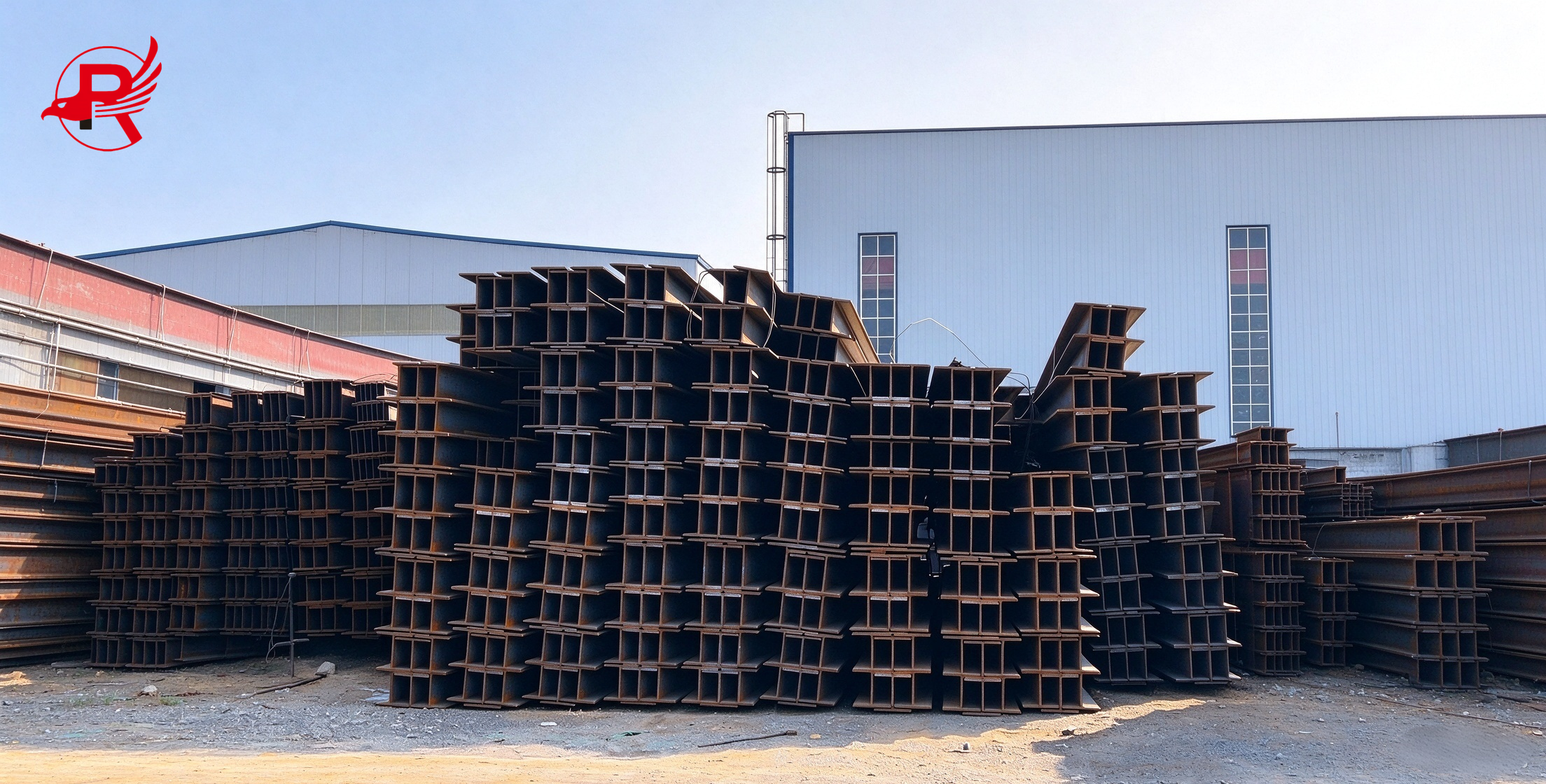

Why W Beams Are Becoming the Standard for Modern Multi-Story Commercial Buildings

Compared to traditional S-shaped steel with sloping flanges (American Standard Beams), W Beams have parallel and wider flanges. This geometric section design significantly increases the flexural section modulus and moment of inertia, enabling the components to exhibit extremely high flexural and lateral pressure resistance when facing complex vertical live loads and horizontal wind loads.

Under the mainstream ASTM A992 material standard, the minimum yield strength of W Beams reaches 50 ksi (345 MPa), and they have excellent yield-to-strength ratio control and good weldability. This allows architectural designs to select lighter sections without sacrificing safety redundancy, achieving the goal of "high strength, low self-weight".

Today’s office towers and mixed-use complexes require adaptable interiors and ample natural light. Wide flange beams deliver strong long-span load capacity, making it simple to build open office zones free of columns.

In a complete steel frame, W-shaped beams are mostly used as main and secondary beams, but they need to be used in combination with various types of steel and accessories.

1. Load-bearing columns: The main columns of the steel structure framework in modern buildings are usually made of heavy-duty H-shaped steel. There are also cases where square tube sections (HSS hollow steel) with higher load-bearing capacity are used.

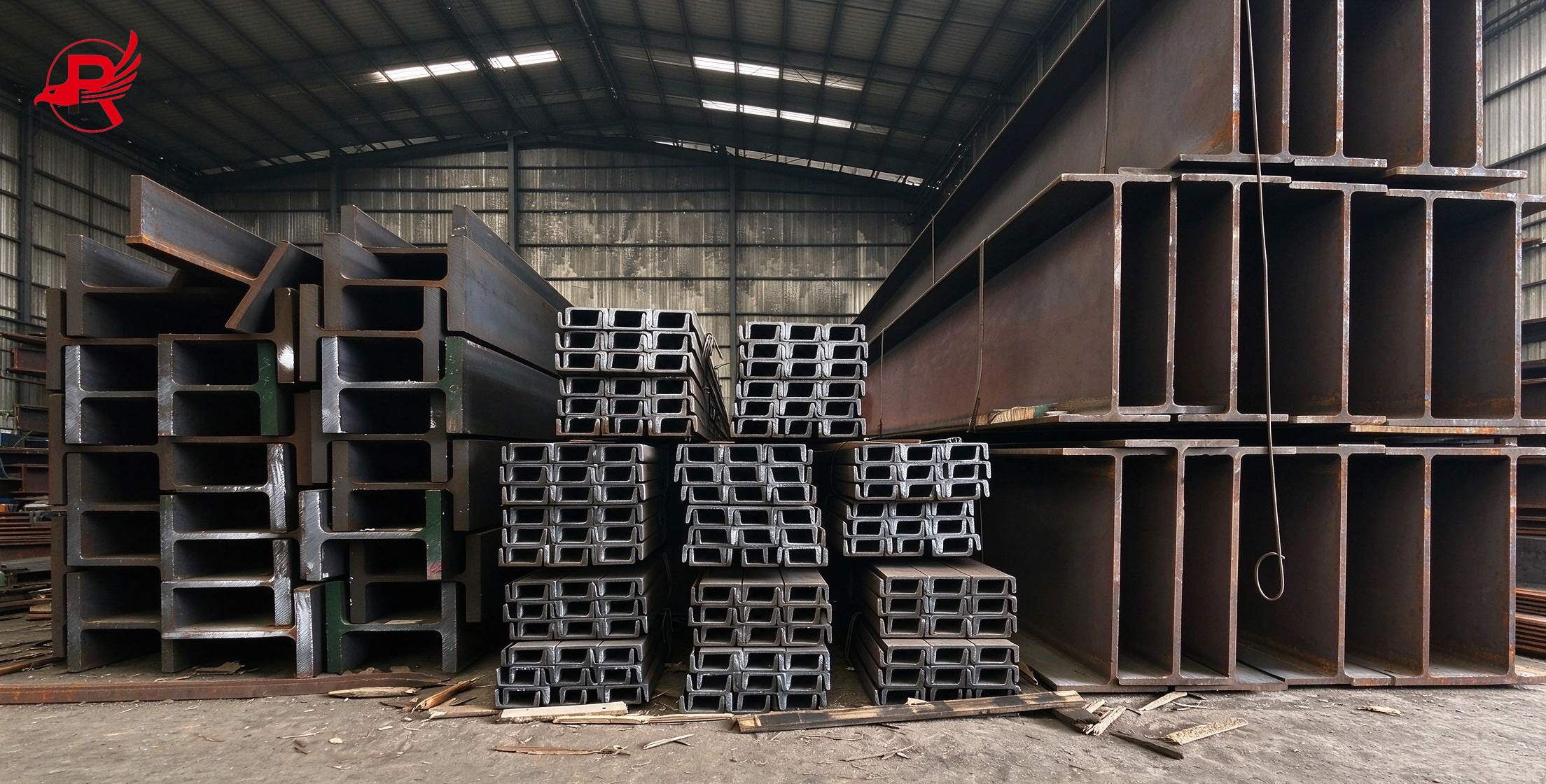

2. Secondary frames and auxiliary supports: These structures typically employ channel steel and angle steel for supporting the edges of floor slabs, the framework of walls, and for reinforcing areas such as holes.
