ASTM A36 Carbon Steel Angle | Hot Rolled Steel Angles Supplier for Structural Construction
PRODUCT OVERVIEW
ASTM A36 steel angle is the A36 carbon steel that forms the L-bent shape profile commonly known as angle iron. The plain L-shaped section has good strength and rigidity, and is easy to be formed and welded for building and creating machine and equipment.
As a professional metal angle supplier, Royal Steel Group provides hot rolled carbon steel angles with different sizes, thickness and length to satisfy diverse needs of structure and manufacture.
Product Detail
| Type | Equal & Unequal | Place of Origin | Tianjin, China |
| Standard | ASTM | Brand Name | Royal |
| Tolerance | ±1% | Application | Construction |
| Processing Service | Bending, Welding, Punching, Decoiling, Cutting, etc | Technique | Hot Rolled |
| Delivery Time | 7-15 days | MOQ | 25 Tons |
| Alloy Or Not | Non‑Alloy | Certificate | CE, ISO,MTC |
| Invoicing | By Actual Weight | Payment term | TT |
ASTM A36 Angle Steel Bar Chemical Composition
| Steel Grade | Styles | Carbon, max, % | Manganese, % | Phosphorus, max, % | Sulfur, max, % | Silicon, % |
| A36 | Steel Shapes | 0.26 | -- | 0.04 | 0.05 | ≤0.40 |
ASTM A36 Angle Steel Bar Mechanical Properties
| Steel Grade | Styles | Tensile Strength, ksi [MPa] | Yield Point, min, ksi [MPa] | Elongation in 8 in. [200 mm], min, % | Elongation in 2 in. [50 mm], min, % |
| A36 | Steel Shapes | 58 - 80 [400 - 550] | 36 [250] | 20 | 21 |
ASTM A36 Angle Steel Bar Size
A36 equal angle steel specification
A36 unequal angle steel specification
A36 equal angle steel specification
| Item | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) | Item | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) |
| EA36001 | 20 | 20 | 3 | 0.889 | EA36045 | 80 | 80 | 7 | 8.525 |
| EA36002 | 20 | 20 | 4 | 1.145 | EA36046 | 80 | 80 | 8 | 9.658 |
| EA36003 | 25 | 25 | 3 | 1.124 | EA36047 | 80 | 80 | 10 | 11.874 |
| EA36004 | 25 | 25 | 4 | 1.459 | EA36048 | 90 | 90 | 6 | 8.35 |
| EA36005 | 30 | 30 | 3 | 1.373 | EA36049 | 90 | 90 | 7 | 9.656 |
| EA36006 | 30 | 30 | 4 | 1.786 | EA36050 | 90 | 90 | 8 | 10.946 |
| EA36007 | 35 | 35 | 3 | 1.578 | EA36051 | 90 | 90 | 10 | 13.476 |
| EA36008 | 35 | 35 | 4 | 2.072 | EA36052 | 90 | 90 | 12 | 15.94 |
| EA36009 | 35 | 35 | 5 | 2.551 | EA36053 | 100 | 100 | 6 | 9.366 |
| EA36010 | 40 | 40 | 3 | 1.852 | EA36054 | 100 | 100 | 7 | 10.83 |
| EA36011 | 40 | 40 | 4 | 2.422 | EA36055 | 100 | 100 | 8 | 10.276 |
| EA36012 | 40 | 40 | 5 | 1.976 | EA36056 | 100 | 100 | 10 | 15.12 |
| EA36013 | 44 | 44 | 3 | 2.002 | EA36057 | 100 | 100 | 12 | 17.898 |
| EA36014 | 44 | 44 | 4 | 2.638 | EA36058 | 100 | 100 | 14 | 20.611 |
| EA36015 | 38 | 38 | 3 | 1.719 | EA36059 | 100 | 100 | 16 | 23.257 |
| EA36016 | 38 | 38 | 4 | 2.261 | EA36060 | 110 | 110 | 7 | 11.928 |
| EA36017 | 48 | 48 | 3 | 2.19 | EA36061 | 110 | 110 | 8 | 13.532 |
| EA36018 | 48 | 48 | 4 | 2.889 | EA36062 | 110 | 110 | 10 | 16.69 |
| EA36019 | 48 | 48 | 5 | 3.572 | EA36063 | 110 | 110 | 12 | 19.782 |
| EA36020 | 50 | 50 | 3 | 2.332 | EA36064 | 110 | 110 | 14 | 22.809 |
| EA36021 | 50 | 50 | 4 | 3.059 | EA36065 | 125 | 125 | 8 | 15.504 |
| EA36022 | 50 | 50 | 5 | 3.77 | EA36066 | 125 | 125 | 10 | 19.133 |
| EA36023 | 50 | 50 | 6 | 4.465 | EA36067 | 125 | 125 | 12 | 22.692 |
| EA36024 | 56 | 56 | 3 | 2.624 | EA36068 | 125 | 125 | 14 | 26.193 |
| EA36025 | 56 | 56 | 4 | 3.446 | EA36069 | 140 | 140 | 10 | 21.488 |
| EA36026 | 56 | 56 | 5 | 4.251 | EA36070 | 140 | 140 | 12 | 25.522 |
| EA36027 | 56 | 56 | 6 | 6.568 | EA36071 | 140 | 140 | 14 | 29.49 |
| EA36028 | 63 | 63 | 4 | 3.907 | EA36072 | 140 | 140 | 16 | 33.393 |
| EA36029 | 63 | 63 | 5 | 4.822 | EA36073 | 160 | 160 | 10 | 24.724 |
| EA36030 | 63 | 63 | 6 | 5.721 | EA36074 | 160 | 160 | 12 | 29.391 |
| EA36031 | 63 | 63 | 8 | 7.469 | EA36075 | 160 | 160 | 14 | 33.987 |
| EA36032 | 63 | 63 | 10 | 9.151 | EA36076 | 160 | 160 | 16 | 38.518 |
| EA36033 | 70 | 70 | 4 | 4.372 | EA36077 | 180 | 180 | 12 | 33.159 |
| EA36034 | 70 | 70 | 5 | 5.397 | EA36078 | 180 | 180 | 14 | 35.383 |
| EA36035 | 70 | 70 | 6 | 6.406 | EA36079 | 180 | 180 | 16 | 43.452 |
| EA36036 | 70 | 70 | 7 | 7.398 | EA36080 | 180 | 180 | 18 | 48.634 |
| EA36037 | 70 | 70 | 8 | 8.373 | EA36081 | 200 | 200 | 14 | 42.894 |
| EA36038 | 75 | 75 | 5 | 5.818 | EA36082 | 200 | 200 | 16 | 48.56 |
| EA36039 | 75 | 75 | 6 | 6.905 | EA36083 | 200 | 200 | 18 | 54.501 |
| EA36040 | 75 | 75 | 7 | 7.976 | EA36084 | 200 | 200 | 20 | 60.056 |
| EA36041 | 75 | 75 | 8 | 9.03 | EA36085 | 200 | 200 | 22 | 71.168 |
| EA36042 | 75 | 75 | 10 | 11.089 | Length = 6 - 12 meters SS400 or Q235 | ||||
| EA36043 | 80 | 80 | 5 | 6.211 | |||||
| EA36044 | 80 | 80 | 6 | 7.376 | |||||
A36 unequal angle steel specification
| Item No. | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) | Item No. | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) |
| UEA36001 | 30 | 20 | 3 | 1.14 | UEA36045 | 100 | 50 | 6 | 6.98 |
| UEA36002 | 30 | 20 | 4 | 1.49 | UEA36046 | 100 | 50 | 8 | 9.16 |
| UEA36003 | 40 | 20 | 3 | 1.38 | UEA36047 | 100 | 50 | 10 | 11.3 |
| UEA36004 | 40 | 20 | 3 | 1.8 | UEA36048 | 100 | 65 | 7 | 8.96 |
| UEA36005 | 40 | 25 | 4 | 1.97 | UEA36049 | 100 | 65 | 8 | 10.2 |
| UEA36006 | 45 | 30 | 4 | 2.3 | UEA36050 | 100 | 65 | 9 | 11.3 |
| UEA36007 | 45 | 30 | 5 | 2.82 | UEA36051 | 100 | 65 | 10 | 12.5 |
| UEA36008 | 50 | 30 | 5 | 3.02 | UEA36052 | 100 | 75 | 7 | 9.52 |
| UEA36009 | 50 | 30 | 6 | 3.58 | UEA36053 | 100 | 75 | 8 | 10.8 |
| UEA36010 | 50 | 40 | 4 | 2.77 | UEA36054 | 100 | 75 | 9 | 12.1 |
| UEA36011 | 50 | 40 | 5 | 3.42 | UEA36055 | 100 | 75 | 10 | 13.3 |
| UEA36012 | 50 | 40 | 6 | 4.03 | UEA36056 | 100 | 75 | 11 | 14.6 |
| UEA36013 | 60 | 30 | 5 | 3.43 | UEA36057 | 100 | 75 | 12 | 15.8 |
| UEA36014 | 60 | 30 | 6 | 4.06 | UEA36058 | 120 | 80 | 8 | 12.4 |
| UEA36015 | 60 | 30 | 7 | 4.68 | UEA36059 | 120 | 80 | 10 | 15.3 |
| UEA36016 | 60 | 40 | 5 | 3.83 | UEA36060 | 120 | 80 | 12 | 18.2 |
| UEA36017 | 60 | 40 | 6 | 4.54 | UEA36061 | 130 | 65 | 8 | 12.1 |
| UEA36018 | 60 | 40 | 7 | 5.24 | UEA36062 | 130 | 65 | 10 | 14.9 |
| UEA36019 | 65 | 50 | 5 | 4.43 | UEA36063 | 130 | 65 | 12 | 17.7 |
| UEA36020 | 65 | 50 | 6 | 5.26 | UEA36064 | 130 | 75 | 8 | 12.7 |
| UEA36021 | 65 | 50 | 7 | 6.08 | UEA36065 | 130 | 75 | 10 | 15.7 |
| UEA36022 | 65 | 50 | 8 | 6.88 | UEA36066 | 130 | 75 | 12 | 18.6 |
| UEA36023 | 75 | 50 | 5 | 4.83 | UEA36067 | 130 | 90 | 10 | 17 |
| UEA36024 | 75 | 50 | 6 | 5.75 | UEA36068 | 130 | 90 | 12 | 20.1 |
| UEA36025 | 75 | 50 | 7 | 6.65 | UEA36069 | 150 | 75 | 9 | 15.7 |
| UEA36026 | 75 | 50 | 8 | 7.53 | UEA36070 | 150 | 75 | 10 | 17.4 |
| UEA36027 | 75 | 50 | 9 | 8.4 | UEA36071 | 150 | 75 | 11 | 18.9 |
| UEA36028 | 75 | 55 | 5 | 5.04 | UEA36072 | 150 | 75 | 12 | 20.6 |
| UEA36029 | 75 | 55 | 7 | 6.93 | UEA36073 | 150 | 90 | 10 | 18.6 |
| UEA36030 | 75 | 65 | 6 | 6.49 | UEA36074 | 150 | 90 | 12 | 22 |
| UEA36031 | 75 | 65 | 8 | 8.48 | UEA36075 | 150 | 90 | 15 | 27.1 |
| UEA36032 | 75 | 65 | 10 | 10.5 | UEA36076 | 150 | 100 | 10 | 19.3 |
| UEA36033 | 80 | 40 | 6 | 5.51 | UEA36077 | 150 | 100 | 12 | 23 |
| UEA36034 | 80 | 40 | 8 | 7.21 | UEA36078 | 150 | 100 | 14 | 26.6 |
| UEA36035 | 80 | 60 | 6 | 6.49 | UEA36079 | 160 | 80 | 10 | 18.5 |
| UEA36036 | 80 | 60 | 7 | 7.5 | UEA36080 | 160 | 80 | 12 | 22 |
| UEA36037 | 80 | 60 | 8 | 8.48 | UEA36081 | 160 | 80 | 14 | 25.4 |
| UEA36038 | 80 | 65 | 6 | 6.73 | UEA36082 | 200 | 100 | 10 | 23.4 |
| UEA36039 | 80 | 65 | 8 | 8.82 | UEA36083 | 200 | 100 | 12 | 27.8 |
| UEA36040 | 80 | 65 | 10 | 10.9 | UEA36084 | 200 | 100 | 15 | 34.4 |
| UEA36041 | 90 | 65 | 6 | 7.22 | UEA36085 | 250 | 90 | 10 | 26.6 |
| UEA36042 | 90 | 65 | 7 | 8.32 | Material: ASTM A36 Length = 6 - 12 meters | ||||
| UEA36043 | 90 | 65 | 8 | 9.44 | |||||
| UEA36044 | 90 | 65 | 10 | 11.7 | |||||
Click the Button on The Right
Processing Services

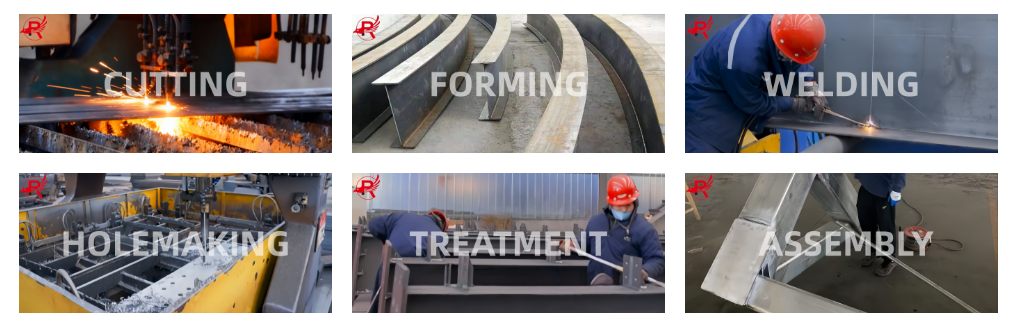

Royal Steel Group provides customized processing services for ASTM A36 Angle Steel Bar, including cutting, drilling, punching, welding, galvanizing, and surface treatment. With advanced equipment and strict quality control, we deliver precise steel fabrication solutions according to customer drawings and project requirements.
MAIN APPLICATION
ASTM A36 Angle Bar is widely used in construction, fabrication, and industrial projects due to its reliable strength, excellent weldability, and cost-effective performance.
Building Structures — Used for steel frames, supports, columns, and structural connections in commercial and industrial buildings.
Industrial Facilities — Commonly used in warehouses, workshops, manufacturing plants, and equipment support structures.
Bridges & Infrastructure — Applied in bridge components, structural supports, platforms, and other infrastructure projects.
General Steel Fabrication — Suitable for brackets, frames, stairways, towers, machinery bases, and reinforcement components.
Why Choose Royal Steel Group?
Reliable Steel Supply
We have established long-term cooperative relationships with the world’s top steel mills, enabling us to supply our global customers with stable products, consistent quality, and competitive prices.
Strict Quality Control
Every order undergoes comprehensive quality inspection, including dimensional checks, chemical composition analysis, and mechanical property testing, to meet international standards.
Compliant with International Standards
The products meet the following standards: ASTM, EN, JIS, BS, AS and GB. Certificates of mill tests and third party inspection reports are available upon request.
Custom Processing Services
You can get solutions tailor-made to your requirements like cutting, drilling, punching, welding, galvanizing, painting and fabrication customized services for your specific projects.
Fast Production and Delivery
Good production management and strong logistics support allow us to produce and deliver products to you on time and keep your projects moving.
Packaging & Shipping
Standard Export Packing: Steel angles bundled with strong steel straps, inner anti‑rust paper, waterproof wrapping for ocean long‑distance shipment. Suitable for full container load.
Loading & Delivery: Loaded by forklift, secure fixing inside container. FCL container shipment as main solution. LCL partial shipment available upon negotiation.
Shipping Documents: Commercial invoice, packing list, bill of lading, MTC mill test certificate. All documents ready for import customs clearance.
Lead Time: Stock items: 7‑10 working days. Custom processing orders: 15‑25 working days according to order quantity.
FAQ
Q1: What is ASTM A36 steel angle used for?
A: ASTM A36 steel angle is a general‑purpose structural steel, widely used for building frames, brackets, supports, trusses and various metal fabrication projects.
Q2: Can you provide mill test certificate (MTC)?
A: Yes, MTC mill test certificate will be supplied for each shipment as required for import clearance.
Q3: Do you accept custom cut‑to‑length?
A: We can cut steel angles to your required length. Please tell us leg size, thickness, length and total quantity in your inquiry.
Q4: What surface finishes are available?
A: Hot rolled black finish, pickled & oiled, hot‑dip galvanized anti‑rust treatment are optional.
