EN UPN UPE Channel Steel UPN80 UPN100 UPN120 UPN140 UPN160 UPN180 UPN200 Structural Steel Channel Supplier
Product Overview
EN UPN/UPE Channel Steel is popular hot rolled structural steel profile in a building construction, industrial framework, machinery industry and infrastructure projects in the shape of channel steel. Perfect load capacity, size precision and weld performance UPN and UPE channel are trusted solutions for multi variate steel structure applications.
Royal Steel Group offer the best quality UPN/UPE Channel Steel European Standard which is produced as per the EN 10025 norms. Materials of S235JR, S275JR are available, we can provide standard size or customized size, also cutting service and can support you to export around the world.
Product Detail
| Item | Details |
| Product Name | EN UPN / UPE Channel Steel |
| Standard | EN 10025 |
| Steel Grade | S235JR, S275JR |
| Type | UPN Channel / UPE Channel |
| Production Process | Hot Rolled |
| Length | 6m, 9m, 12m or Customized |
| Surface | Black, Painted, Galvanized |
| Certification | Mill Test Certificate (MTC), SGS/BV Inspection Available |
EN UPN/UPE Channel Size
| UPN channel steel dimensions | |||||
| Item | Depth (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) | Weight (kg/m) |
| UPN80 | 80 | 45 | 6 | 8 | 8.64 |
| UPN100 | 100 | 50 | 6 | 8.5 | 10.6 |
| UPN120 | 120 | 55 | 7 | 9 | 13.4 |
| UPN140 | 140 | 60 | 7 | 10 | 16 |
| UPN160 | 160 | 65 | 7.5 | 10.5 | 18.8 |
| UPN180 | 180 | 70 | 8 | 11 | 22 |
| UPN200 | 200 | 75 | 8.5 | 11.5 | 25.3 |
| UPE channel steel dimensions | |||||
| Item | Depth (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) | Weight (kg/m) |
| UPE80 | 80 | 40 | 4.5 | 7.4 | 7.05 |
| UPE100 | 100 | 46 | 4.5 | 7.6 | 8.59 |
| UPE120 | 120 | 52 | 4.8 | 7.8 | 10.4 |
| UPE140 | 140 | 58 | 4.9 | 8.1 | 12.3 |
| UPE160 | 160 | 64 | 5 | 8.4 | 14.2 |
| UPE180 | 180 | 70 | 5.1 | 8.7 | 16.3 |
| UPE200 | 200 | 76 | 5.2 | 9 | 18.4 |
Features of EN UPN/UPE Channel Steel
1.Great Rigidity and Performance
The UPN/UPE channel sections are made of high quality S235JR and S275JR structural steel, which guarantees high strength and stability for load applications.
2.Accurate Dimensions
The height, flange-width, thickness and straightness are consistent with reliable control of production, conform with Europe engineering standard.
3.Good processing performance
Can be welded, cut, drilled and bolted, to be suit for the customized steel structure processing.
4.Various Treatment On Surface
Also available in black, painted, or hot-dip galvanizing for superior protection against corrosion.
Surface Finish
Conventional Surfaces
Galvanized Surface
Spray Paint Surface
Application
EN UPN/UPE Channel Steel is the result of the high quality material and rigorous process, its high strength excellent stability and easy fabrication performance make it being the most popular material in construction and industry field.

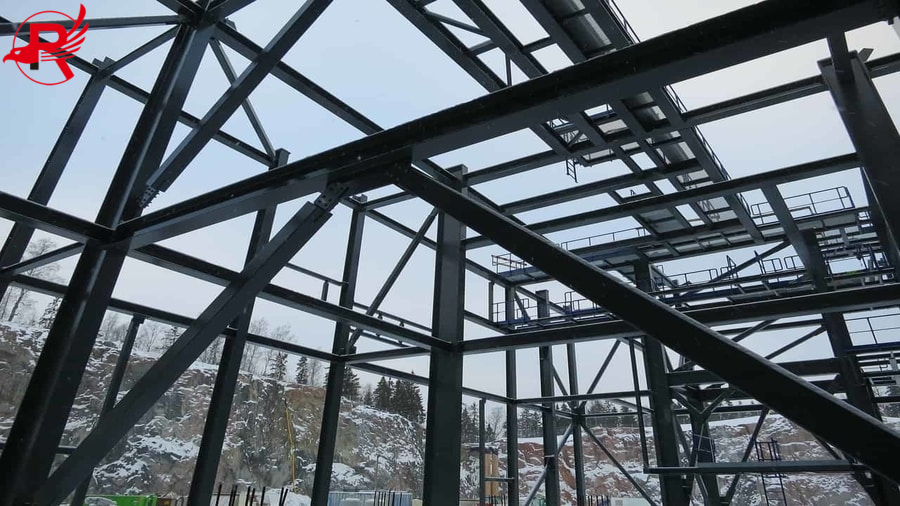

1.Construct Secondary Work & Supports: For secondary steelwork, walls, roof purlins, bracing and steelwork connections.

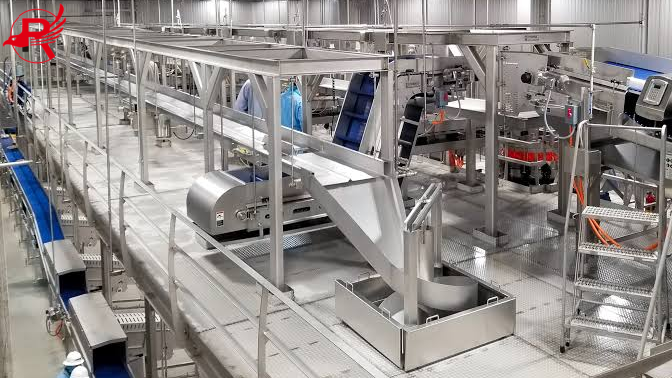

2.Industrial Equipment & Platform Construction Structures: It is used for machinery equipment bases, industrial platforms, manufacturing plant support structures, and heavy gate structural applications.

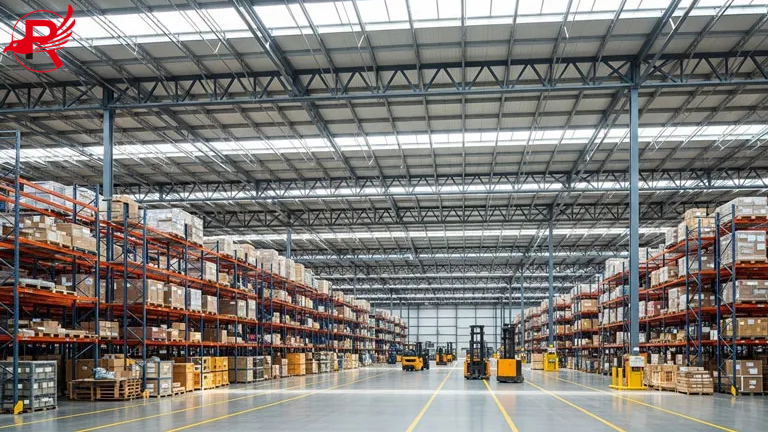

3.Warehouse & Storage Assembly: Mill-hardened steel is typically used as the the primary structural element in warehouse racking, storage systems, and steel frame building systems.

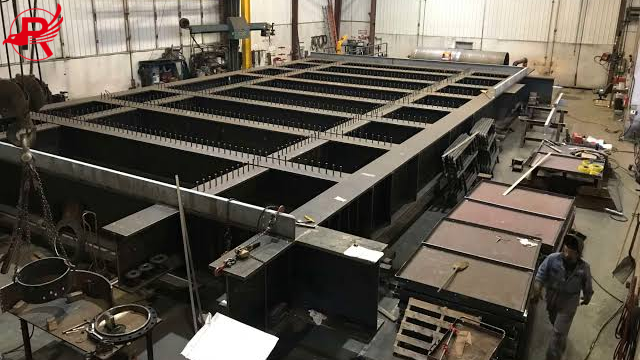

4.Engineering & Steel Fabrication Projects: For bespoke steel components, plant and machinery, and numerous other industrial and engineering solutions in which steadfast bearing load is critical.
Processing Services
Royal Steel Group is a professional EN UPN/UPE Channel Steel processing enterprise, capable of providing a variety of engineering and fabrication services of:
Cutting service – Precision cut to length to meet required lengths, drawings and project specification.
Drilling & Punching – Special hole patterns and joinery work for structural fixing.
Welding Fabrication – Custom structural steel fabrications and weldments.
Hot-Dip Galvanizing – Greater rust protection for outdoor and long-term use.
Surface Treatment Paint – Shot blast Other finishing options are available.
Customized Production - You can provide special sizes/profiles and customized solutions of fabrication.
Quality Control
Royal Steel Group has cutting edge quality control in the production and supplying process to guarantee the stability of EN UPN/UPE Channel Steel.
1.Inspection of Chemical Composition
Test steel grade of alloy elements to fulfill with en 10025 s235jr/s275jr.
2.Mechanical Property Testing
Perform tensile, yield and elongation tests to certify the structural performance.
3.Dimensional Tolerance Inspection
Test channel height, flange width, thickness, length and weight to meet product accuracy.
4.Straightness &Surface Checking
Before delivery, check for straightness, surface condition, quality of finishing.
5.Third-Party Inspection Support
Other 3rd party Inspections : BV, SGS, and other international Inspection agencies are supported for world project requirement.
No Compromise on the Quality Documentation
Our Advantages
Royal Steel Group is committed for global structural steel solution with professional manufacturing capability and international export experience.
1.Multi-Standard Customized Production
Customization of steel profiles production according to the requirements of ASTM (American Standard), EN (European Standard), AS/NZS (Australian Standard) and JIS (Japanese Standard).
2.Rigorous Quality Control & High Precision Manufacturing
The straightness, dimensions, chemical composition and material performance are fully inspected before shipment to guarantee accurate specification and the consistency of product quality.
3.Third-Party Inspection Support
Accept BV, SGS and other international third party inspection to comply with global engineering project.
4.Stable Supply & On-Time Delivery
Strong production capacity and supply chain managements guarantee the reliability of supply for oversea projects.
5.Global Technical Support & After-Sales Service
Our overseas project support, technical support and after sales services will keep your cooperation going smoothly.
6.Your Reliable Partner for the Global Buyers
Cater to procurement needs of engineering contractors, steel fabricators, distributors and industrial customers worldwide for high-end solutions in steel that are tailored to suit their requirements.
Packaging & Shipping
Professional export packaging includes:
Steel strap bundled packing
Waterproof protection
Container-friendly loading
Customized packing solutions
Available trade terms:
FOB / CIF / CFR / DDP / DDU
FAQ
Q1. Are you a manufacturer or supplier of UPN/UPE Channel Steel?
A: Royal Steel Group is a professional steel supplier and exporter with stable cooperation with qualified mills, providing EN standard structural steel products for global projects.
Q2. Can you supply UPN and UPE channels according to EN standards?
A: Yes. We supply EN 10025 UPN/UPE Channel Steel with common grades including S235JR and S275JR, meeting European structural steel requirements.
Q3. What is the difference between UPN and UPE channels?
A: UPN channels have tapered flanges and are widely used in traditional structural applications.
UPE channels feature parallel flanges, offering better connection performance and easier fabrication.
Q4. What are your available UPN/UPE channel sizes?
A: Common sizes include UPN80, UPN100, UPN120, UPN140, UPN160, and UPE200. Customized sizes are available upon request.
Q5. Can you provide customized lengths or processing?
A: Yes. We support cutting, drilling, punching, welding, galvanizing, and customized fabrication according to customer drawings.
