In the international procurement of construction and industrial engineering, ASTM A36 Steel Channel has emerged as one of the indispensable core profiles in the global steel structure system. From the secondary structure supports of industrial buildings in North America to the wall beams and equipment platforms of large-span warehouses in Latin America, ASTM A36 channel steel is widely used.
However, for international engineering contractors (EPC) and bulk steel purchasing managers, relying solely on the procurement of a single type of steel section often fails to meet the complex engineering requirements. In actual projects, channel steel usually needs to work in conjunction with heavy H-Beams, structural steel angles, HSS, etc., as the main steel sections, and be combined with C/Z-shaped steel purlins, beam-column joint plates (Gusset Plates), and high-strength bolts, etc., to jointly form a stable structural system.
I. ASTM A36 American Standard Channel Steel Common Specifications and Theoretical Weight Table
In the American standard and international engineering practices, channel steel is mainly divided into American Standard Channel Steel (C Profiles) and American Standard Parallel Wing Channel Steel (MC Profiles). The following is a table comparing the specifications and theoretical weights of the most commonly used ASTM A36 American Standard Channels or engineering procurement:
| Designation | Depth d (in / mm) | Flange Width b<sub>f</sub> (in / mm) | Web Thickness t<sub>w</sub> (in / mm) | Theoretical Weight (lb/ft) | Theoretical Weight (kg/m) |
| C3 × 4.1 | 3.00 / 76.2 | 1.41 / 35.8 | 0.170 / 4.32 | 4.10 | 6.10 |
| C4 × 5.4 | 4.00 / 101.6 | 1.58 / 40.1 | 0.184 / 4.67 | 5.40 | 8.04 |
| C6 × 8.2 | 6.00 / 152.4 | 1.92 / 48.8 | 0.200 / 5.08 | 8.20 | 12.20 |
| C8 × 11.5 | 8.00 / 203.2 | 2.26 / 57.4 | 0.220 / 5.59 | 11.50 | 17.12 |
| C10 × 15.3 | 10.00 / 254.0 | 2.60 / 66.0 | 0.240 / 6.10 | 15.30 | 22.77 |
| C12 × 20.7 | 12.00 / 304.8 | 2.94 / 74.7 | 0.282 / 7.16 | 20.70 | 30.81 |
| C15 × 33.9 | 15.00 / 381.0 | 3.40 / 86.4 | 0.400 / 10.16 | 33.90 | 50.45 |
Calculation Tips: The numbers in the model codes directly represent their core parameters. For example, in "C6 × 8.2", the 6 indicates a nominal height of 6 inches, and 8.2 indicates a theoretical weight of 8.2 pounds per foot. During bulk shipping billing and inspection, the tolerance of the factory weight must comply with the ASTM A6 / A6M standard.
II. Collaborative Application of Channel Steel with Other Profiles and Steel Structure Components
In modern prefabricated pyramid and industrial buildings (PEB), channel steel is rarely used alone but serves as a "bridge" connecting the main structure with the enclosure system:
1.Combined with H beams and square or rectangular tubes (HSS): Heavy-duty H-shaped steel and large-diameter square or rectangular tubes are often used as main load-bearing columns and main beams, while channel steel is commonly used as lateral support between the main beams or as connections for secondary beams, effectively preventing lateral torsional instability of the main beams.
2.Combined with angle steel and gusset plates (Gusset Plate): In roof trusses and wind-resistant support systems, double channel steel back-to-back or channel steel combined with equilateral angle steel are locked with bolts through numerically controlled drilling of the gusset plates, providing extremely high axial tensile and compressive stiffness with a relatively low self-weight.
3.Supported by C/Z-shaped steel roof trusses: In roof and wall enclosure systems, channel steel is commonly used as purlin cleats and edge fascia for ensuring the flat installation of roof panels and wall panels.
III. Core of Procurement Inspection: How to Correctly Interpret and Verify the MTC Material Sheet
The factory inspection certificate (Mill Test Certificate, abbreviated as MTC) is the sole legal basis for determining the qualification of ASTM A36 channel steel. MTC in accordance with EN 10204 3.1 standards must focus on verifying the following three indicators:
1. Chemical composition analysis (Chemical Composition)
STM A36 is a type of carbon structural steel. Generally, for STM A36, the manganese (Mn) content should be moderate, and the carbon (C) content should be controlled to no more than 0.25%. Moreover, it is worth noting that when you purchase, you also need to pay attention to the contents of these impurities such as silicon (Si), sulfur (S), and phosphorus (P).
2.Mechanical property verification (Mechanical Properties)
When purchasing ASTM A36 channel steel, the yield strength should also be taken into consideration.
| Item | Standard Requirement |
| Yield Strength (fy) | ≥36 ksi (≈250 MPa) |
| Tensile Strength (fu) | 58–80 ksi (400–550 MPa) |
| Elongation (2-inch gauge length) | ≥20~21% |
3.Surface anti-corrosion and heat number traceability (Heat Number & Galvanizing)
Heat number traceability: The heat number (Heat No.) on the MTC must be completely consistent with the physical spray code or steel stamping on the surface of the channel steel, angle steel, or H-shaped steel to ensure "one-to-one correspondence".

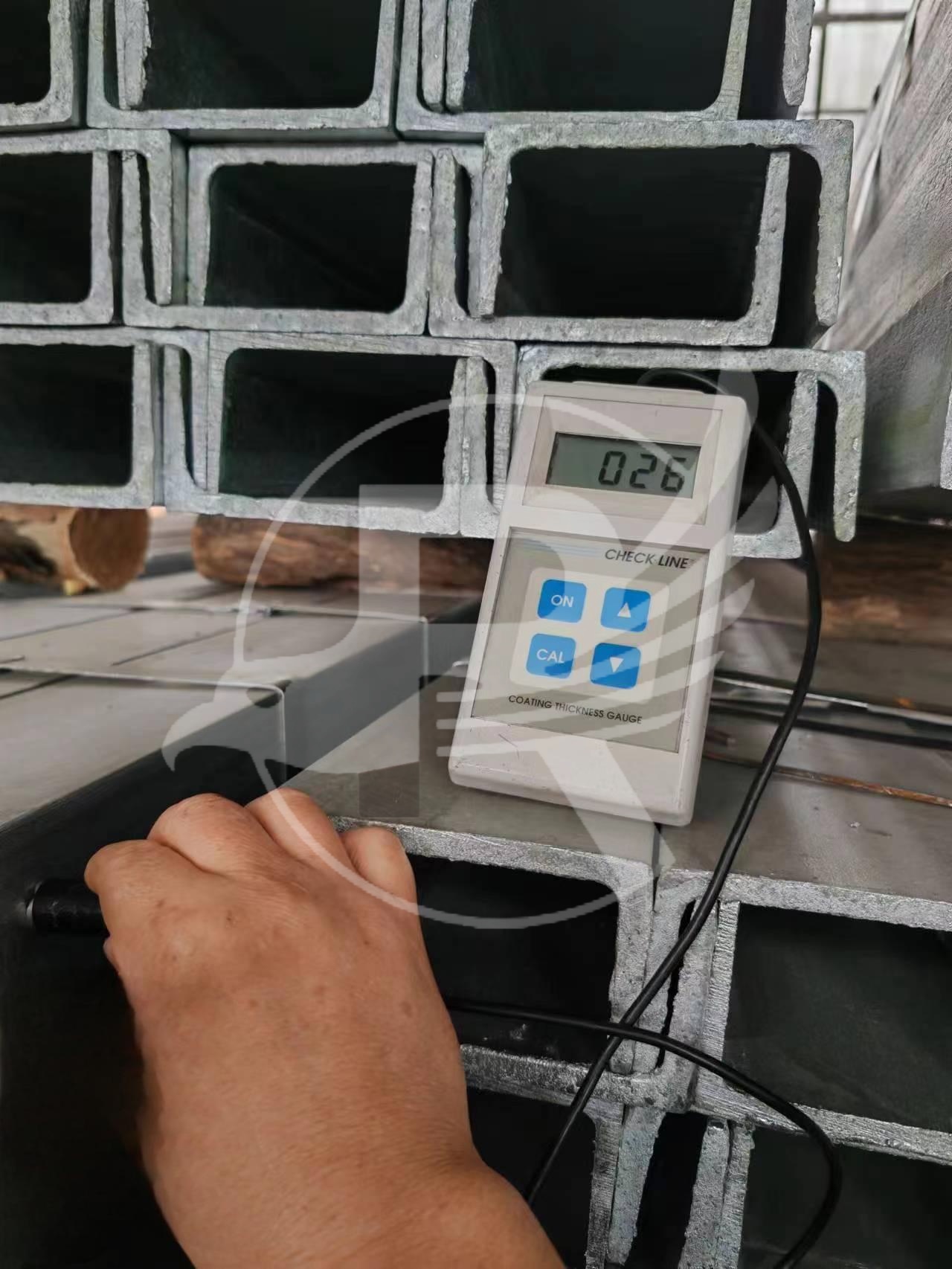

Heat treatment certificate: If your project involves components such as photovoltaic power station supports, outdoor equipment platforms, etc., which are used in outdoor construction, the channel steel required for purchase must undergo heat treatment. Moreover, the required material certification (MTC) must include a zinc layer thickness test report that complies with the ASTM A123/ISO 1461 standard, and it is also required that the average zinc layer thickness should not be lower than 85 micrometers.
IV. Summary and Cross-border Procurement Suggestions
When purchasing ASTM A36 channel steel, it is not limited to comparing the price per ton of raw materials, but should also attach importance to the factory prefabrication capabilities and supporting services of the supplier. You can choose Royal Group. Not only can we supply channel steel and other profile products, but we can also offer services such as CNC precision drilling, chamfering, trimming, and hot-dip galvanizing. Moreover, we have dedicated engineers who can provide you with Tekla 3D modeling.It can efficiently complete most processes before the products are manufactured, significantly reducing the labor costs and assembly time at overseas construction sites. Feel free to contact our international trade experts at any time to obtain the latest product catalog and exclusive project quotations!
