C Channel vs C Purlins: Key Differences in Structural Steel

The basis upon which every great job is built in structural steel is technical accuracy. For engineers, contractors, and buyers, deciding between C Channels and C Purlins is a simple yet very important decision. Even though they have very similar "C" shapes, they differ in engineering characteristics, manufacturing methods, and uses.

China Royal Steel as a major global manufacturer and distributor is able to offer both hot rolled channel and cold formed purlins with superior quality. Here's a technical analysis of the major differences, to guide you in making the best choice for your next steel building project.

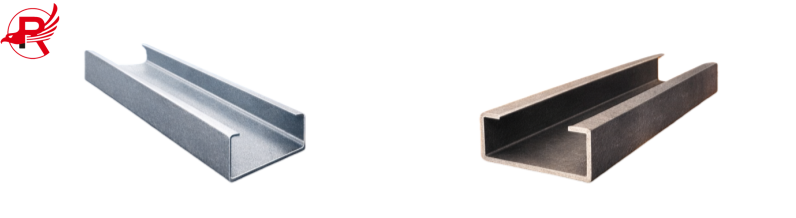

c-channel2

Manufacturing Process: Hot-Rolled vs. Cold-Formed

The most fundamental difference lies in how these profiles are made:

C Channels (Hot-Rolled): They are made in a rolling mill at a high temperature. This production method yields thicker walls for rounded inner corners (fillets) and a typical “heavy” feel. They are commonly regulated by standards like ASTM A36 or EN 10025 S235JR/S355JR.

C Purlins (Cold-Formed): These purlins are manufactured by roll forming thin sheets of galvanized or black steel at room temperature. They have Sharp, crisp angles but are thinner and lighter. These are commonly found in steel construction for light gauges.

Technical Specifications and Dimensions

Feature C Channel (Hot-Rolled) C Purlin (Cold-Formed)
Wall Thickness Usually 5mm to 15mm+ Usually 1.5mm to 3.2mm
Weight High (Heavy-duty) Low (Lightweight)
Inner Profile Tapered flanges with rounded corners Uniform thickness with sharp bends
Material Grade Carbon steel (A36, Q235B, S355JR) Galvanized or Cold-rolled strip (S275GD, Q235)

Connection Methods

Channels are most commonly joined via heavy-duty welding or high-strength bolting through thick flanges.

Purlins are almost exclusively bolted using pre-punched holes. Because the material is thin, welding can often cause "burn-through" unless performed by highly skilled technicians.

Conclusion: Which One Do You Need?

When it comes to structural loads, or racks for industrial equipment, Hot-Rolled C Channels offer the best in strength and durability. But for the secondary frame work in a steel warehouse or home roof, Cold-Formed C Purlins provide an affordable, straightforward installation.

China Royal Steel is a one stop shop for all types of structural steel profiles. Whether you need ASTM A36 H-Beams, U-type sheet piles, or bespoke Steel Channels, we have the technical know-how and the supply chain robustness to deliver on a global scale from US to Southeast Asia.
