China U Shaped Steel Sheet Pile​: Why Global Buyers Choose Royal Steel Group

Overseas contractors and importers are changing their procurement patterns in the face of changing carbon regulations, particularly the EU CBAM (Carbon Border Adjustment Mechanism) rules. More and more buyers are opting for EN standard steel sheet piles from trusted Chinese suppliers, and Royal Steel Group is a trusted partner for international U shaped steel sheet pile projects. Our U steel sheet piles are used in waterfront projects, deep foundation pits, cofferdams, river bank reinforcement and flood defence works in all countries.

China Royal Steel U type steel sheet pile

Two Production Processes: Hot Rolled & Cold Formed U Sheet Piles

We supply both hot rolled and cold formed U shaped steel sheet piles to fit different engineering scenarios and budget demands.

Hot rolled U sheet piles: Produced under high-temperature rolling, featuring high section modulus, strong rigidity, superior interlock tightness and long service life. Ideal for permanent marine structures, heavy-load retaining walls and deep excavation projects.

Cold formed U sheet piles: Cold-bent forming at ambient temperature, cost-effective with flexible dimension customization. Suitable for temporary shoring, flood barriers and light earth retention projects.

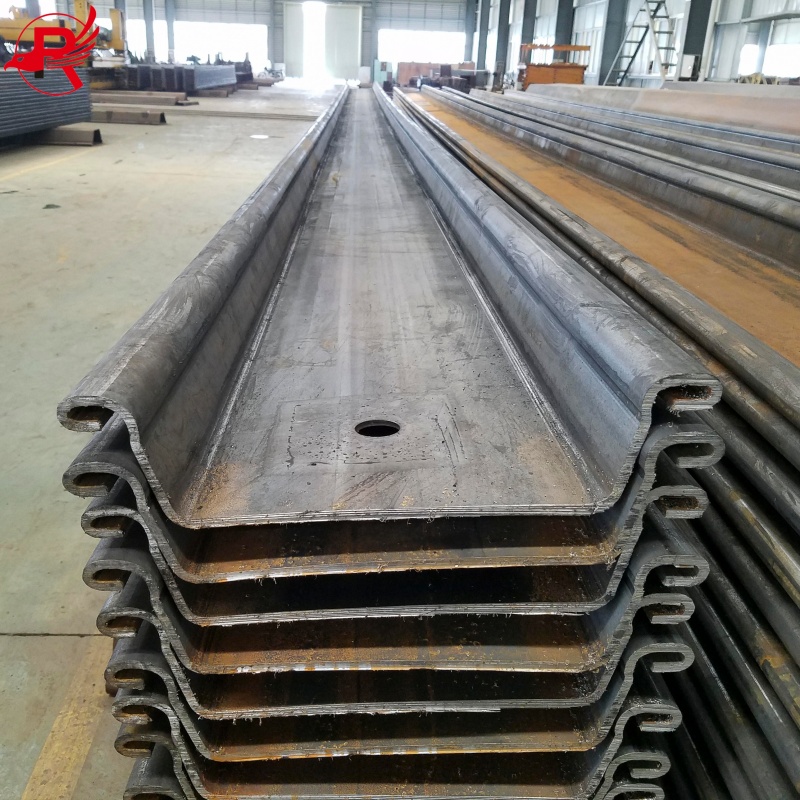

U-type-sheet-steel-pile

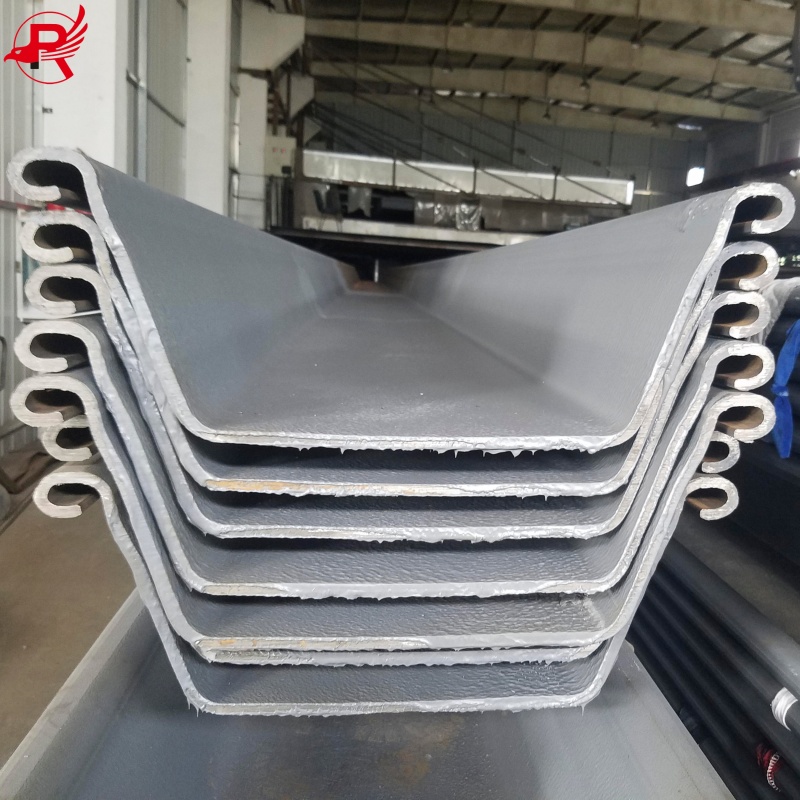

U-Type-Sheet-pile

Global Compliance: ASTM, EN, JIS and GB Standards

Our U shaped steel sheet piles strictly follow mainstream international and Chinese specifications.

ASTM: For North American infrastructure and marine engineering projects

EN: Meet European construction codes for EU and Middle East projects

JIS: Comply with Japanese industrial standards for Japan and Southeast Asian markets

GB: Chinese national standard for domestic and projects accepting GB specifications

Full material test certificates, mill reports and third-party inspection documents can be provided to satisfy local engineering approval requirements.

Material & Structural Advantages of Our U Sheet Piles

High Strength Steel: Stable mechanical properties, good toughness and bending resistance.

Optimized U Profile: High section modulus and bending strength for reliable retaining and cofferdam structures.

Strong Interlocking: Secure interlocks help improve water tightness and reduce seepage.

Easy Driving: Smooth interlock surfaces reduce installation resistance and piling costs.

Custom Sizes: Available in different widths, heights, thicknesses and custom lengths to meet project requirements.

U Shaped Steel Sheet Pile Dimension & Technical Parameter Table

Size Width Height  Thicknes  Single meterial  Sectional area/meter
Width*Height mm mm mm Sectional area Theoretical weight  Moment of inertia  Section modulus Sectional area Theoretical weight  Moment of inertia  Section modulus
  W1 H1 t     Ix Wx     Ix Wx
        cm2 kg/m cm4 cm3 cm2 kg/m2 cm4 cm3
U400×85 400 85 8 45.21 35.5 598 88 113 88.7 4500 529
U400×100 400 100 10.5 61.18 48 1240 152 153 120.1 8740 874
U400×125 400 125 13 76.42 60 2220 223 191 149.9 16800 1340
U400×150 400 150 13.1 74.4 58.4 2790 250 186 146 22800 1520
U400×160 400 160 16 96.9 76.1 4110 334 242 190 34400 2150
U400×170 400 170 15.5 96.99 76.1 4670 362 242.5 190.4 38600 2270
U500×200 500 200 24.3 133.8 105 7960 520 267.6 210.1 63000 3150
U500×225 500 225 27.6 153 120.1 11400 680 306 240.2 86000 3820
U600×130 600 130 10.3 78.7 61.8 2110 203 131.2 103 13000 1000
U600×180 600 180 13.4 103.9 81.6 5220 376 173.2 136 32400 1800
U600×210 600 210 18 135.3 106.2 8630 539 225.5 177 56700 2700
U750×205 750 204 10 99.2 77.9 6590 456 132 103.8 28710 1410
750 205.5 11.5 109.9 86.3 7110 481 147 115 32850 1600
750 206 12 113.4 89 7270 488 151 118.7 34270 1665
U750×220 750 220.5 10.5 112.7 88.5 8760 554 150 118 39300 1780
750 222 12 123.4 96.9 9380 579 165 129.2 44440 2000
750 222.5 12.5 127 99.7 9580 588 169 132.9 46180 2075
U750×225 750 223.5 13 130.1 102.1 9830 579 173 136.1 50700 2270
750 225 14.5 140.6 110.4 10390 601 188 147.2 56240 2500
750 225.5 15 144.2 113.2 10580 608 192 150.9 58140 2580

Why Global Buyers Select Royal Steel Group

Royal Steel Group is a professional China-based steel export enterprise specializing in infrastructure steel products.

Our strengths:

1.One-stop supply covering hot rolled & cold formed U sheet piles under ASTM, EN, JIS, GB standards

2.Complete technical documentation, MTC and third-party inspection support

3.Customized sizes, flexible MOQ

4.Professional export team for quotation, technical consultation and global logistics arrangement

5.Technical support to help clients select suitable grades and profiles for their project

We welcome global contractors, trading companies and engineering firms to send inquiries for specification sheets and project quotations.
