Common H Beam Standards, Grades & Specifications Used in Southeast Asia

With the continued surge in urbanization and infrastructure construction in Southeast Asia, standardization of the steel profile supply chain has become crucial for cost reduction and efficiency improvement in the construction industry. Due to historical evolution and diverse investment sources, the Southeast Asian market currently exhibits a diverse landscape where Japanese Standards (JIS), European Standards (EN/BS), American Standards (ASTM), and Chinese National Standards (GB) coexist.

H-beams are stored in the warehouse

Core standards, steel grades, and specifications

1.Japanese Standard (JIS) and Chinese Standard (GB)

Standards and Steel Grades: JIS G3101 SS400 and GB/T 11263 Q235B/Q355B H Beam are the mainstays of the market.

Common Specifications: Widely utilize H-beams by using narrow flanges (example: JIS H-Beams 100×50mm~400×200mm) and square wide flanges( for example: 200×200mm~400×400mm) with thickness of the web 4.5mm to 21mm.

2.European Standard (EN) and British Standard (BS)

Standards and Steel Grades: In Singapore and Malaysia, EN 10025 S275JR / S355JR H Beam is strictly enforced.

Common Specifications: HEB and HEA profiles are popular profiles. Available in sizes from HEA 100 to HEA 600 W- profile with broad flanges and excellent resistance to bending and torsion (ideal for use in very tall, high load bearing buildings).

3.American Standard (ASTM)

Standards and Steel Grades: ASTM A6/A6M A992 is specified for oil and gas and heavy industry projects.

Common Specifications: Uses imperial W-beam (e.g., W4×13 to W24×132). The A992 specification imposes extremely stringent parameters on chemical composition (carbon equivalent CE ≤ 0.47%) and tensile yield ratio ($ ≤ 0.85).

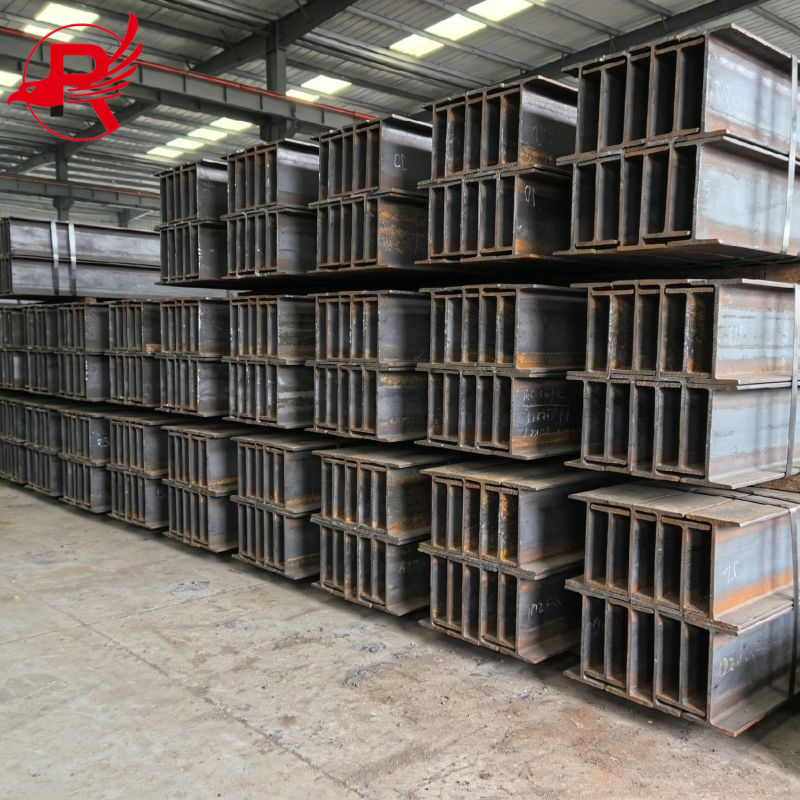

H-beams were stacked together

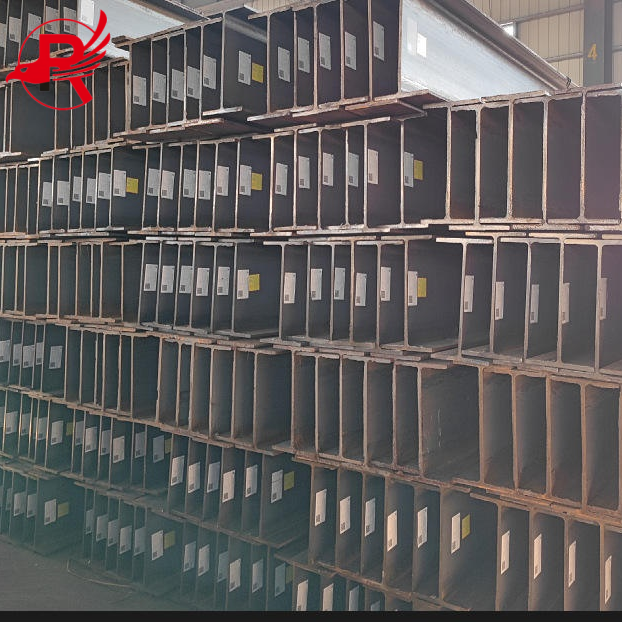

H-beams were stacked together

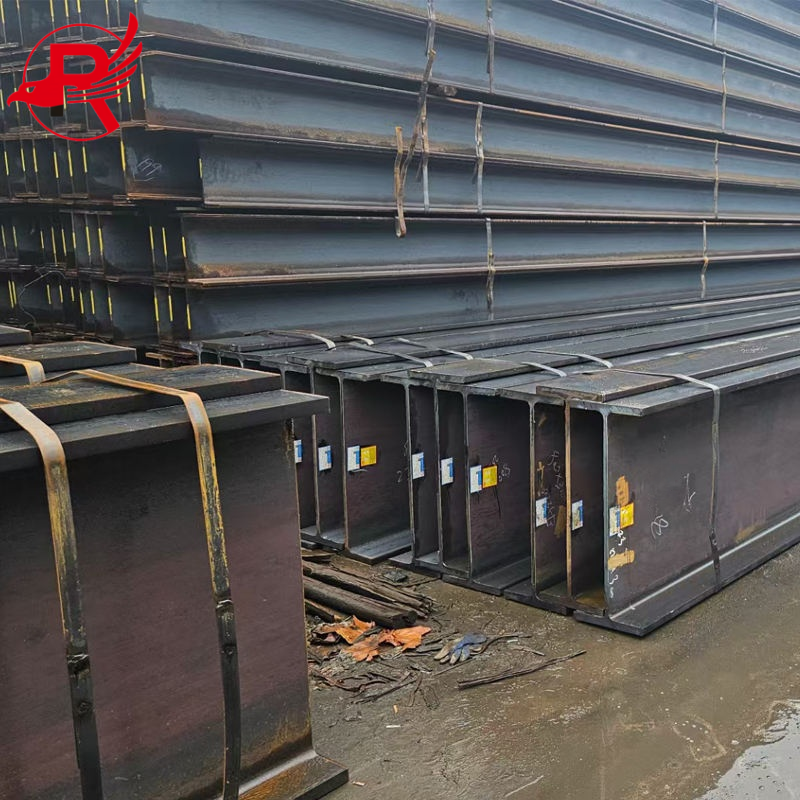

H-beams were stacked together

Localization Access and Procurement Trends

Entry into specific markets requires passing stringent dimensional and material specification reviews:

Singapore: Requires Building and Construction Authority (BC1) certification, with strict traceability requirements for steel chemical composition and impact performance specifications.

Malaysia: Mandatory compliance with MS EN standards and obtaining SIRIM/CIDB (COA) certification.

Indonesia: Must pass SNI 0329 dimensional tolerance and mechanical property testing.

Localization Access and Procurement Trends

Being one of the top H Beam manufacturers and suppliers in the world, China Royal Steel provides good quality H-beam in line with the above mentioned standards of the Japanese, European, American and Chinese standards. To meet the strict import requirements of the Southeast Asian countries, All H-beams for export are accompanied by full and traceable Material Certificates (MTC) and are compatible with the dual- certification system and meets the requirement of local specification such as Singapore BC1, Malaysia SIRIM/CIDB, ​​and Indonesia SNI. With its fast-paced cross-border supply chain and rich multinational experience, China Royal Steel strives to offer high-strength, tailored, one-stop solutions for infrastructure construction in Southeast Asia.
