Exporting Large-Span Steel Structure Buildings to Latin America: Shipping Optimization & Fast Assembly Guide

Recently, with the development of the near-shore outsourcing trend in the Americas, the manufacturing industry in Central and South America has also undergone restructuring and development. For instance, in countries such as Mexico, Colombia, and Chile, there has been an explosive growth in the demand for large-span industrial plants with steel structures, high-rise logistics warehouses, agricultural product processing workshops, and large-scale mining facilities.

In this market, Royal Group and other global steel structure suppliers deliver pre-engineered steel buildings (PEB). These structures stand out to local EPC contractors and industrial property developers, thanks to strong seismic and wind resistance, heavy load capability, efficient space layout and solid cost advantages.

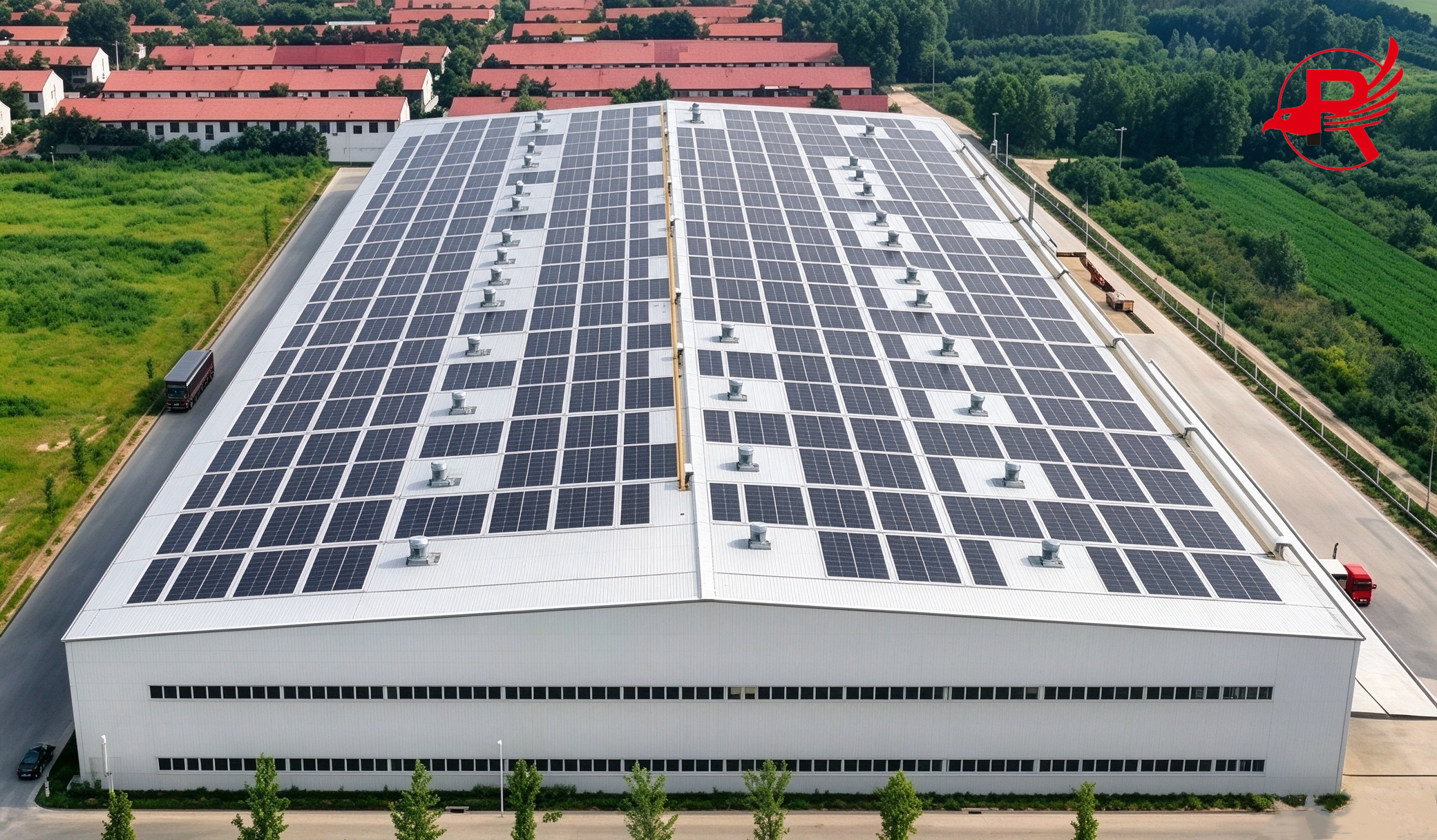

Steel Structure Warehouse

However, in the actual implementation of large-span steel structure projects in Latin America, cross-border supply chains often face numerous severe challenges: high shipping costs due to market fluctuations, difficulties in smoothly loading extremely long and wide components into standard containers, and high rental costs for large lifting equipment at construction sites in Latin America, as well as a shortage of skilled workers leading to low construction efficiency. How to integrate shipping optimization and on-site rapid assembly concepts at the design and manufacturing front not only relates to cost control but is also the key to whether the entire project can be successfully delivered on schedule.

I. Material selection and steel structure component matching for large-span factories in Latin America

When conducting the structural deepening design of large-span factories, rational selection and matching of the main and secondary frames of steel structures and various types of sections are the foundation for achieving lightweight structures, improving the safety coefficient of wind and earthquake resistance, and reducing transportation costs. Royal Group, during its long-term service in the Central and South American market, based on the complex geographical and climatic environment of the region, has developed a set of efficient and highly compliant component matching scheme:

1. Primary structural members (Primary Structural Members)

For large-span factories over 30 meters without central columns, the main frames mostly use high-strength H-beams and I-beams as main beams and columns. To fully comply with building codes in high seismic zones in Central and South America (such as the Pacific Ring Volcanic Seismic Belt in Chile and Peru) and hurricane-prone areas along the Caribbean coast, the main load-bearing components generally use high-strength low-alloy steel that meets ASTM A572 Grade 50 standards. Compared to ordinary A36 carbon steel, its yield strength has increased by nearly 40%, which can reduce steel consumption by approximately 15%–20% while ensuring the overall stiffness and seismic accuracy of the structure, thereby significantly reducing the overall transportation load and foundation engineering costs.

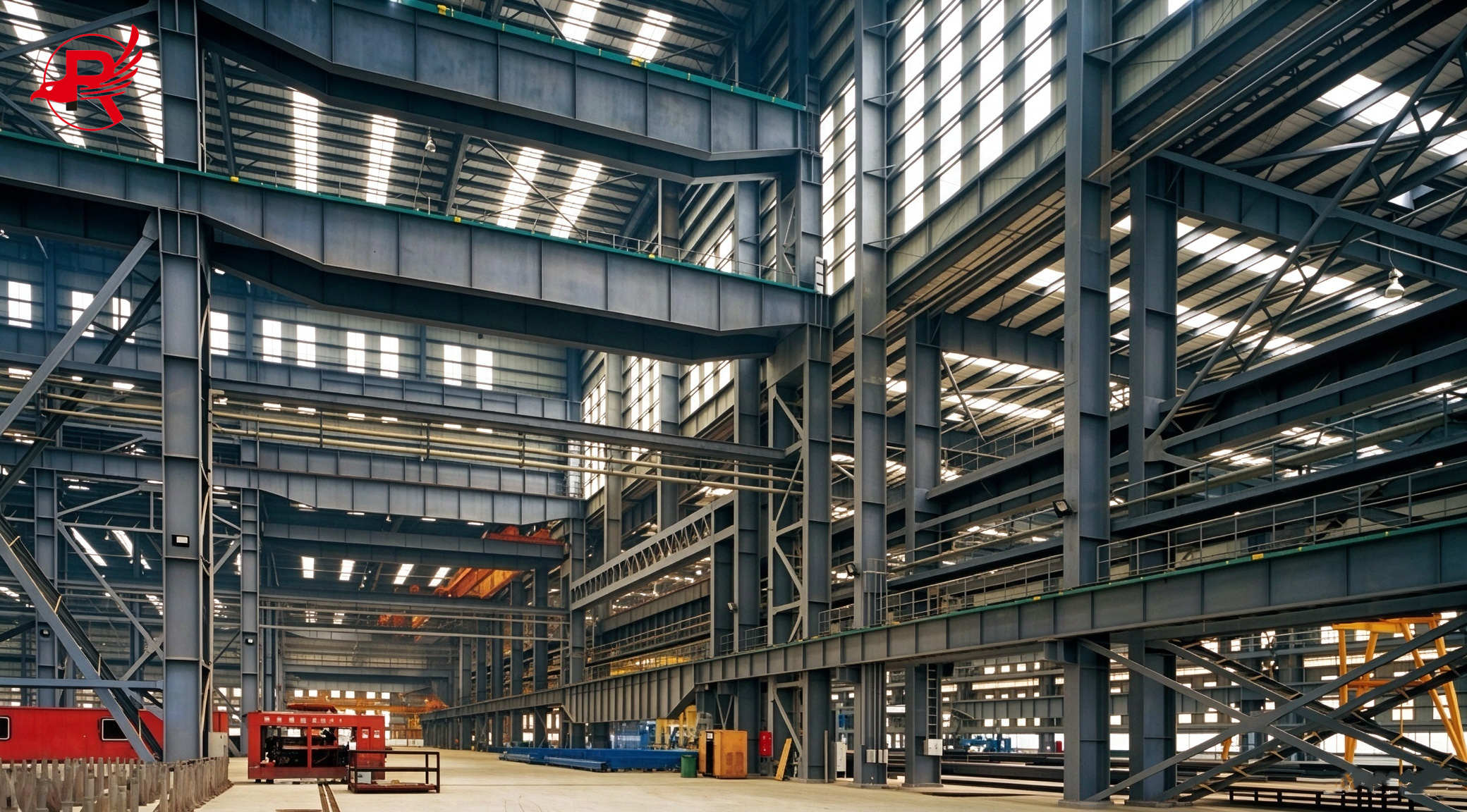

Steel Structure Factory Building

2. Secondary support systems and auxiliary sections (Secondary Framing & Profiles)

Roof and wall support systems widely use high-galvanized C-shaped steel (Z275g/m²) and Z-shaped steel purlins to effectively resist the erosion of high salt spray and humid hot climate in Latin America. To enhance the lateral stability and torsional resistance of the main frame, column support systems, scissors braces, skylight frames, and tie rods made of angle steel, channel steel, and HSS steel tubing need to be equipped.

3. Connectors and enclosure components (Hardware & Envelope Components)

Enclosure systems are matched with pressure-treated colored steel plates or high-density PU/rock wool sandwich panels; The connection system is composed of high-strength bolt kits (8.8/10.9 grade) that comply with ISO 1461 anti-corrosion standards, high-precision node plates, and embedded parts. Royal Group provides a complete factory-level material certificate (MTR) in accordance with EN 10204 3.1 to ensure that each bolt and each steel plate can pass the strict review of local inspection and supervision departments in Latin America.



II. Breaking Through the Bottleneck of Sea Transportation: Container Loading Optimization Plan

When steel structure components are transported across the ocean to Latin America, they mainly rely on 40-foot high-cube containers (40HQ Containers) for sea transportation. If there is a lack of consideration for the matching of logistics capacity during the early design stage, it is very likely to cause serious waste of container internal space and even the need to switch to expensive break-bulk ships (Bulk Cargo Ships) due to the excessive length and width of the components, resulting in a doubling of transportation costs.

1. 11.8-meter Segmentation Control Method (Precision Length Splice)

The net length inside a 40HQ container is approximately 12.03 meters. To reserve safety clearance for loading and handling and to prevent the cabinet door from getting stuck, the technical team of Royal Group, during the deepening design of large-span main beams and steel columns, will use advanced three-dimensional modeling software to conduct precise bolt splicing segmentation (Field Splice) in the minimal mechanical bending moment blind area, strictly controlling the net length of each steel structure component to within 11.8 meters. This enables the originally extremely long large-span components to be smoothly loaded into standard containers, completely eliminating the additional cost of bulk cargo transportation.

2. Nesting and Mixed Loading of Heavy and Light Cargo (Nesting & Cargo Balance)

For C-shaped steel, Z-shaped steel, and channel steel, the packing team adopts the "nesting" packing method with mouths facing each other and alternating up and down, maximizing the compression of the useless space within the components. During the container loading operation, a strict "heavy-light mixed loading strategy" is implemented: heavy H-shaped steel and steel plates are laid flat at the bottom of the container to lower the center of gravity and level the bottom of the container, while the middle and upper space and edge gaps are filled with lighter angle steel, square tubes, roof trusses, and accessory boxes, achieving "dual loading" of the container's load capacity and utilization rate, and directly saving more than 15% of maritime transportation costs.

III. Factory Pre-Assembly (Trial Assembly) and On-Site Rapid Assembly

Given the current situation in Latin American construction sites, where the rental cost of lifting equipment is expensive, the penalty for project delays is high, and the technical skills of on-site workers vary, Royal Group adheres to the rigorous concept of "solving problems before leaving the factory", and through the full-process factory pre-control, it safeguards the rapid assembly of the Latin American site:

1. 100% Factory Pre-Assembly of Key Nodes: Before the anti-corrosion coating of the components, the manufacturing plant will conduct 100% on-site physical pre-assembly of main beam-column connection nodes, large-span roof truss connection points, and complex support nodes. Technicians use high-precision laser measuring instruments to strictly verify the alignment degree of the bolt holes and the welding deformation, resolutely preventing the embarrassing situation of "bolt holes not aligning, on-site secondary cutting or on-site welding" after the goods arrive at the Latin American.

2. Advanced Corrosion Protection and Dual-Language Digital Coding: In response to the high salt and high humidity conditions during long-distance maritime transportation, all the surface of the profiles are treated with high-grade anti-corrosion fluorocarbon paint or hot-dip galvanizing (ASTM A123 / ISO 1461) as per the requirements. At the same time, Royal Group applies a unique digital code that resists water erosion to each H-beam, C-shaped steel roof truss, and connecting components. The code is sprayed on the components and a bilingual (English, Chinese, Spanish) list of components and installation drawings are provided with the package. This standardized design enables the local construction teams in Latin America to achieve seamless and precise installation like "building with building blocks", reducing the on-site construction period by more than 30%.

IV. Comparison Table of Core Steel Structure Components and Maritime Optimization

Component Category Profiles & Material Types ASTM / International Standard Traditional Transport & Assembly Pain Points Royal Group Shipping & Loading Solution
Main Load Bearing Frame H Beams, I Beams, Welded Box Columns ASTM A572 Gr.50 / A36 Oversized length cannot fit into containers; heavy single pieces drive high break bulk shipping fees Precision split design within 11.8 m; high strength steel cuts weight by 20%; laid flat at container bottom as base
Secondary Support System C Purlins, Z Purlins, Channel Steel ASTM A653 Galvanized / A36 Takes up space yet weighs little; large unusable void left inside containers Face to face nesting bundle; placed in upper container layer; enables mixed loading of heavy and light items
Seismic Bracing & Tie Rods Angle Steel, Square Tubes / Seamless Pipes ASTM A36 / A500 Small scattered parts in large quantity; highly prone to collision damage over long ocean transit High strength steel band packing; protective sleeves at ends; precisely fills container gaps
Connections & Cladding Gusset Plates, High Strength Bolts, Color Coated Steel Sheets ISO 1461 Anti corrosion / Grade 8.8 Bolts Unclear packing list causes on site confusion and missing parts; severely slows erection speed Fumigation free wooden cases and pallets packed by zone; each parcel with QR code and English / Spanish packing list

Conclusion

The successful export of large-span steel structure factories to Latin America is far more than a simple product transaction; it is a comprehensive engineering service that encompasses "mechanical deep design - meticulous manufacturing - containerized assembly optimization - seamless on-site assembly". By selecting high-strength profiles that comply with ASTM A572 standards, combined with a 11.8-meter segmented packaging strategy and 100% factory pre-assembly control, relying on Royal Group's well-established global supply chain system and localized services in Latin America, enterprises can help customers in Central and South America significantly reduce over 15% of cross-border shipping and construction costs, while ensuring the highest safety level of the project and significantly shortening the construction period. In the highly competitive Latin American engineering market, this enables the establishment of an irreplaceable supply chain competitive advantage.
