How Modular Steel Structure Speed Up Industrial Construction in Central America

With the adjustment and reconfiguration of global supply chains, Central America has also begun to adjust its factory locations, and the trend of near-shoring outsourcing has become increasingly evident. For instance, countries such as Guatemala, Costa Rica, Mexico, and El Salvador have started to build a large number of infrastructure projects and industrial properties. As the number of projects increases, many local project contractors want to shorten the construction period, improve the building's seismic resistance, and reduce costs. Therefore, prefabricated modular steel structures and their related building materials have become common choices for data centers, technology factories, large logistics warehouses, and industrial parks.

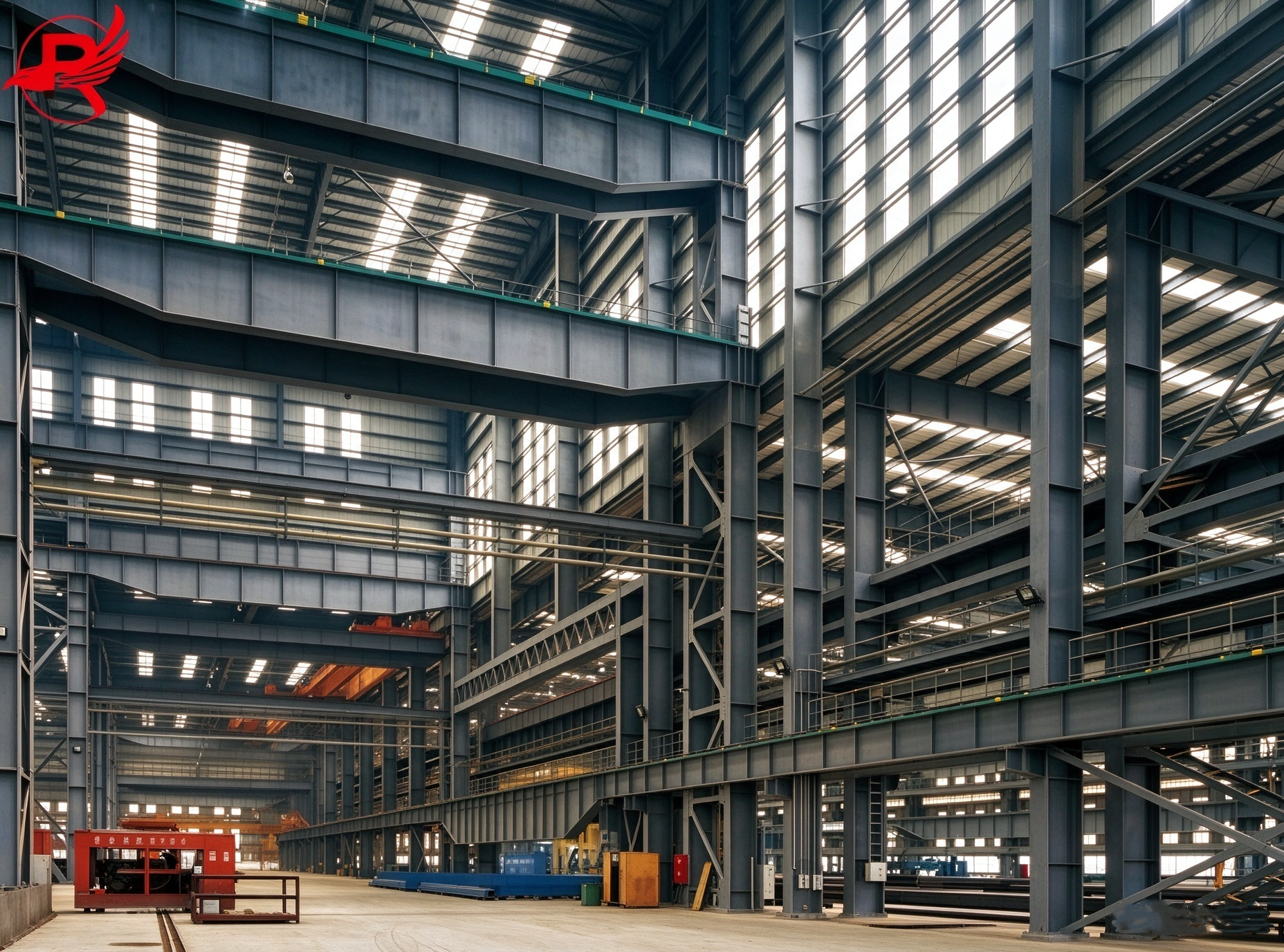

Steel Structure

I. Nearshore Outsourcing and Infrastructure Upgrading Drive the "Construction Speed Revolution"

Traditional cast-in-place concrete buildings not only have a long construction period but are also highly vulnerable to the frequent rainy season weather in Central America and the shortage of local skilled labor. In recent years, the expansion of the Costa Rica Medical Device Manufacturing Park, the advancement of the western port logistics hub in El Salvador, and the construction plans for logistics outlets along the border road in Guatemala have imposed extremely high requirements on the delivery speed of various industrial buildings and cross-border logistics facilities.



The modular steel structure adopts an intensive construction mode of "high-precision standardized prefabrication in the factory + rapid on-site assembly". The overall on-site construction period can be shortened by 40% - 50% compared to before. International steel service providers such as Royal Group have been continuously supplying a complete set of steel structure components that comply with American standard ASTM, European standard EN, and Japanese standard JIS to the Central and South American markets. From scheme optimization, material supply to on-site assembly, they have achieved smooth connection throughout the EPC process, becoming an important force in promoting the "acceleration of construction transformation" in the local area.

II. Comparative Analysis of Modular Steel Structure and Traditional Concrete Buildings

To visually demonstrate the significant advantages of the modular steel structure and its complete set of supporting components in modern industrial buildings, the following is a comprehensive comparison of two typical structural forms in the construction of industrial buildings in Central America:

Evaluation Dimension Traditional Cast in Place Concrete Structure Prefabricated Modular Steel System
Average Construction Duration 10–14 months 4–6 months (overall schedule reduced by about 50%)
Main Materials and Section Composition Cement, ordinary rebar, site mixed concrete Heavy W Beam, ASTM A500 rectangular hollow sections, C/Z steel purlins, color coated cladding panels
Seismic and Climate Resilience Heavy self weight, relatively low ductility Light weight, high ductility, effectively absorbs seismic stress, well suited for Pacific Rim seismic zones
Site Labor and Construction Dependence Very high (requires large crews for site formwork, shoring and concrete pouring) Low (relies on factory high precision prefabrication and site high strength bolt standardized assembly)
Environmental, Recycling and Certification Generates large volumes of site construction waste, almost non recyclable 100% recyclable, aligns with ISO/LEED international green building low carbon certification

III. Multi-material Co-operation: Constructing a High-Strength Industrial Building Framework

A complete set of modular industrial buildings relies on the precise collaboration of various steel profiles and structural components. During the construction of the main framework, ASTM A500 Grade B/C structural square and rectangular tubes and ASTM A572 / A992 W-Beam (wide-flange I-beams) undertake the most critical load-bearing functions of beams and columns, ensuring that there are no excessive columns in the large-span factory buildings, thereby significantly enhancing the utilization rate of industrial logistics space.



In the roof and wall enclosure systems, high-strength C-shaped and Z-shaped steel trusses (Purlins), channel steel (U Channel / C Channel), combined with high-corrosion-resistant painted steel plates (PPGI/PPGL), provide excellent wind resistance and waterproofing performance for the factory buildings. On the high-altitude operation platforms, fire-fighting channels, and equipment maintenance walkways within the factory, the combination of hot-dip anti-slip steel grating and zigzag-shaped steel grating stair treads strictly ensures the safety of industrial production. Moreover, in the embankment flood control projects of coastal ports and low-lying infrastructure sites, Larson steel sheet piles with high retention strength also play an indispensable role as foundation support.

IV. Strict Compliance with Standards: Ensuring Seismic Resistance and High Salt Spray Corrosion Resistance

Central America is located in the Pacific Ring of Fire seismic zone, and Panama, Belize, and the coastal areas of the Caribbean are facing severe natural environments such as high salt spray, high humidity, and hurricane disturbances. Therefore, local engineering regulatory authorities and multinational owners have set strict requirements for the technical indicators of modular steel structure components.

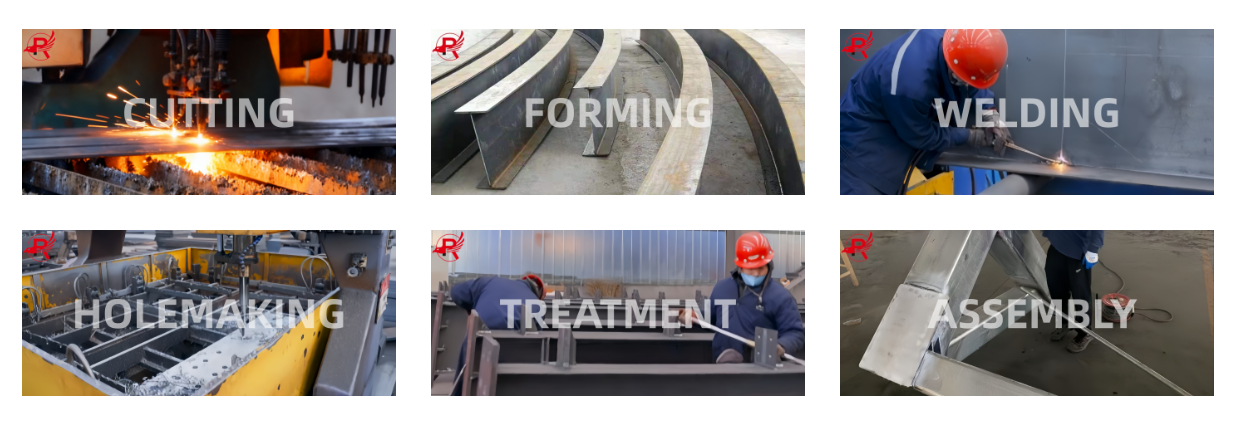

Steel Structures

In response to these complex operational requirements, professional suppliers such as Royal Group have implemented strict quality control processes in their production stages. Whether it is the control of the yield strength of square tubes and profiles, or the use of thick zinc layer hot-dip galvanizing and fluorocarbon/epoxy zinc-rich anti-corrosion spraying processes on industrial steel grating and profiles, they strictly adhere to international standards. This not only ensures that the structure has excellent plastic deformation and energy absorption capabilities when encountering high seismic intensity earthquakes, but also guarantees that industrial buildings in coastal areas have a maintenance-free corrosion life of over 25 years in a high-salt spray environment.

V. Industry Outlook

Industry analysts point out that with the continuous deepening of the radiation effect of the "Mexico Plan" and the full implementation of the cross-border trade facilitation policies in Central and South America, the demand for high-quality, standardized prefabricated steel structures and their supporting profiles in the Central and South American market will continue to maintain a strong double-digit growth rate. Companies like Royal Group have injected strong momentum into the upgrading of industrial infrastructure in Central and South America through deep local services and global supply chain integration. They have also set an industry benchmark for the modularization and green transformation of the global construction manufacturing industry.
