Driven by the strong demand for industrial plant construction, large data center expansions, and ground-based photovoltaic power stations in the current world, high-quality steel profiles such as Strut Channel, H Beam, HSS structural square and rectangular tubes, and Z purlin have become the core framework of modern prefabricated buildings and energy-saving load-bearing frames.
On the construction site, prefabricated punched C-shaped steel, combined with high-strength bolts, column foot base plates, and seismic support Steel Angle and other steel structure components, can achieve rapid assembly without any drilling or welding on site, perfectly solving the industry pain point of high labor costs in North American construction sites.
As a professional supplier of heavy-duty profiles and large-scale steel structure systems, RoyalGroup has always focused on producing corrosion-resistant profiles and structural components that meet strict standards such as ASTM A36, ASTM A572 Gr.50, ASTM A123, and AISC, providing one-stop direct supply services to global engineering contractors.
I. Common Profile Specifications and Wall Thickness Selection Matrix
In the field of prefabricated steel structures and photovoltaic support systems, the requirements for profile cross-sectional shape and load-bearing capacity vary significantly depending on the structural location. Slot C-shaped steel is mainly used for secondary structures and installation tracks, while H-shaped steel and square tube are more commonly used for main columns and load-bearing beams. By combining spring nuts, embedded node plates, and high-strength bolts, a high-precision modular load-bearing system can be quickly constructed.
In North American projects, the wall thickness of profiles is often labeled in Gauge (Ga) or millimeters (mm). The following table summarizes the selection parameters for mainstream profiles and associated steel structure components
Comparison Table of Core Steel Profiles and Structural Components Parameters
| Product Category / Model | North American Spec (Inches) | Wall Thickness / Section (Gauge/mm) | Standard Length | Anti-Corrosion Finish | Core Engineering Applications |

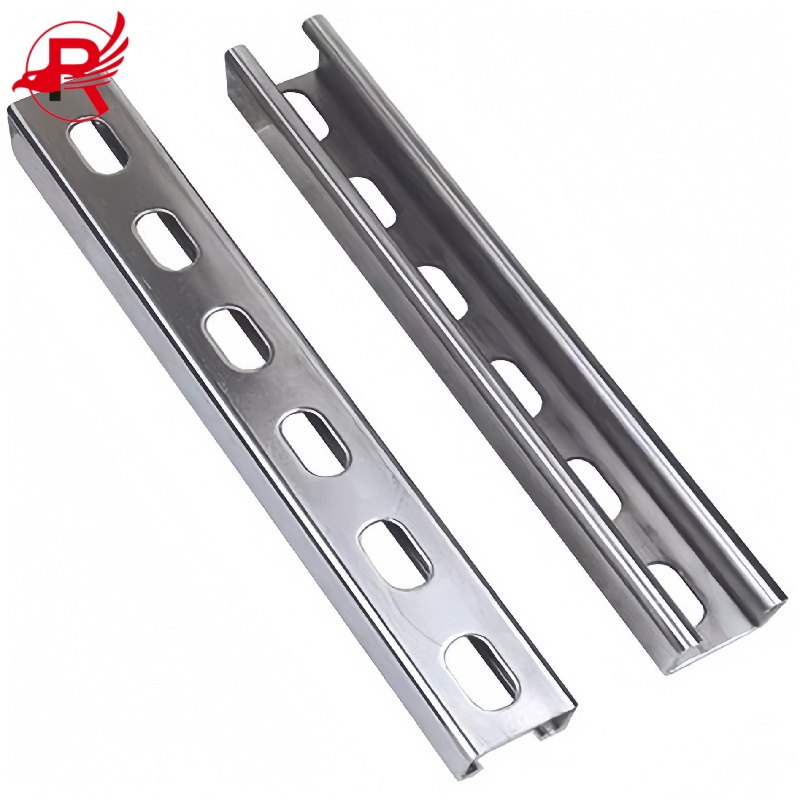

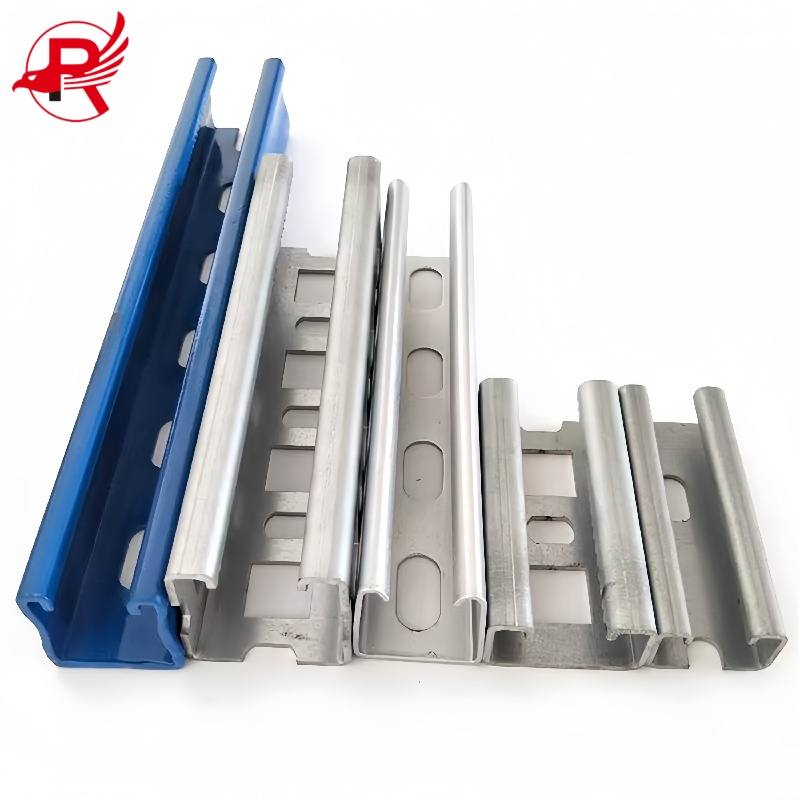

| 41×41 mm Slotted C Channel | 1-5/8"×1-5/8" Strut Channel | 12Ga (2.5mm) / 14Ga (2.0mm) | 10ft (3.05m) / 20ft (6.1m) / Custom | Hot-Dip Galvanized (HDG) / Zinc-Aluminum-Magnesium (ZAM) | PV secondary beams, seismic supports for data center MEP piping and cable trays |
| 41×21 mm Shallow C Channel | 1-5/8"×13/16" Strut Channel | 14Ga (2.0mm) / 16Ga (1.5mm) | 10ft (3.05m) / 20ft (6.1m) | Pre-Galvanized / Powder Coated / Stainless Steel | Confined spaces, short-span rails for rooftop PV, suspended hangers |
| 41×82 mm (Double Back-to-Back C Channel) | 1-5/8"×3-1/4" Combination | 11Ga (3.0mm) / 12Ga (2.5mm) | 20ft (6.1m) / 24ft (7.3m) | Heavy-Duty HDG / High-Corrosion-Resistant ZAM | Heavy-duty primary support columns, PV mounting in high-wind / high-snow regions |
| W6×9 / W8×13 American H-Beam | ASTM A992 Wide Flange Beams | Flange/web per ASTM AISC specs | 20ft / 40ft (12m) / Custom Long | Painted / Hot-Dip Galvanized (≥85μm) | Ground-mount PV driven piles, main structural beams of industrial plants |
| HSS Rectangular / Square Tube (e.g. 100×100) | ASTM A500 Gr. B/C Steel Tubing | 3.0mm – 6.0mm (1/8" – 1/4") | 20ft (6.1m) / 40ft (12.2m) | Hot-Dip Galvanized / Matte Spray Paint | Data center rack frames, heavy-duty columns for warehouse and logistics centers |
| Steel Accessories: Base Plates / Gusset Plates | Custom Steel Base & Gusset Plates | 6.0mm – 20.0mm (1/4" – 3/4") | Precision Cut to Drawing | Hot-Dip Galvanized / Self-Healing ZAM | Anchoring H-beam and C-channel columns to ground concrete foundations |
Note: The long opening dimensions of the C-shaped steel are usually 11×25 mm or 14×28 mm, which perfectly match the American standard M10/M12 and 3/8", 1/2" high-strength bolts and connecting parts.
II. Advanced Anti-corrosion Techniques for Adverse Environments
Since photovoltaic power stations and outdoor industrial steel structures typically need to have a maintenance-free service life of over 25 years, the surface anti-corrosion performance of profiles and accessories is of utmost importance:
1. New Zinc-Aluminum-Magnesium Coating - The Preferred Upgrade for Photovoltaic Profiles
Compared to traditional galvanization, the zinc-aluminum-magnesium profile has an astonishing self-healing anti-corrosion function at the cutting edge of the slit C-shaped steel and the cutting surface of the Z-shaped steel. The magnesium ions in the coating can automatically generate a dense protective film, with an anti-salt spray corrosion ability that is 3-5 times that of ordinary hot galvanization, making it extremely suitable for deserts, agricultural photovoltaic complementation, and coastal high-salt spray environments.
2. Heavy-duty Hot-Dip Galvanizing
It strictly complies with the ASTM A123 standard, with the zinc coating thickness reaching 65-85 μm or more. It provides a robust physical zinc layer barrier for the main beams of H-shaped steel, large-diameter HSS square tubes, and heavy-duty column foot base plates, effectively resisting chemical erosion.
3. Pre-galvanizing and powder coating processing
This is an economical anti-corrosion solution with high surface finish. It is widely used in indoor MEP pipeline systems, HVAC ventilation pipelines, and cable trays and other indoor support structures in data centers.
III. High-frequency Procurement Application Scenarios and Multi-Rod Material Collaboration
In actual engineering projects, a single type of steel bar often fails to meet the complex load-bearing requirements. The collaborative combination of multiple steel types and steel structure components is the key to achieving efficient project implementation:
1. Ground and commercial roof photovoltaic support systems
In large-scale ground photovoltaic power stations, the American Standard W beam is often used as pile driving columns; Z-purlin and Slotted C Channel are used as main roof beams and diagonal support brackets. The pre-drilled holes in the slotted C-shaped steel can effectively absorb the thermal expansion and contraction stress caused by temperature differences, and in combination with the pressure blocks/side pressure blocks in the photovoltaic components, it can help construction contractors reduce more than 15% of on-site installation labor hours.
2. Modern data centers and industrial buildings
In the explosive growth of data centers and nearshore outsourcing buildings in North America, HSS structural tubes and heavy I-beams form the main building framework; while 41x41 American Standard C-shaped channel steel is widely used as ceiling grid, high-density server cabinet hangers, and seismic support for HVAC pipes.
3. Prefabricated building substructures and connection nodes
As the wall beams and door/window opening reinforcement frames in prefabricated light steel buildings, C channel and Z purlin provide a balance of lightweight and high flexural strength. By combining with node plates processed by CNC laser cutting, seismic angle brackets, and ASTM A325/A490 high-strength bolts, the seismic and wind resistance performance of the entire steel structure system is significantly improved.
IV. Why choose RoyalGroup as your steel structure supply chain partner?
Integrated profile supply chain, one-stop service: With high-precision cold bending forming, continuous automated punching, and heavy-duty H-beam/floor beam supply chain, it can achieve one-stop procurement from profiles to the destination country.
Precise measurement and secondary processing, significantly reducing on-site waste: Supports precise cutting according to project construction drawings, welding base plates, and customizing punching spacings, reducing on-site cutting labor.
Global local services, overseas branches established in multiple countries: Overseas branches and local service teams are set up in the United States, Guatemala, etc., providing fast customs clearance support, local after-sales and warehouse responses, making cross-border procurement more worry-free.
Compliance certifications are complete, complete MTR attached to the goods: Products can provide material tracking reports, fully meeting North American ASTM, AISC and ISO quality system specifications.
