1. Building Dimensions and Layout
The warehouse size should be determined according to storage capacity, equipment arrangement and future expansion plans.
Typical parameters include:
Width: 15m – 60m+
Length: Customized according to project requirements
Eave Height: 6m – 15m+
Column Spacing: 6m – 9m
Roof Slope: 5% – 15%
A clear-span design can maximize usable interior space and improve operational efficiency.
2. Structural System Design
Common structural systems include:
Portal Frame Structure
Multi-Span Steel Structure
Heavy-Duty Industrial Steel Frame
Crane-Supported Steel Structure

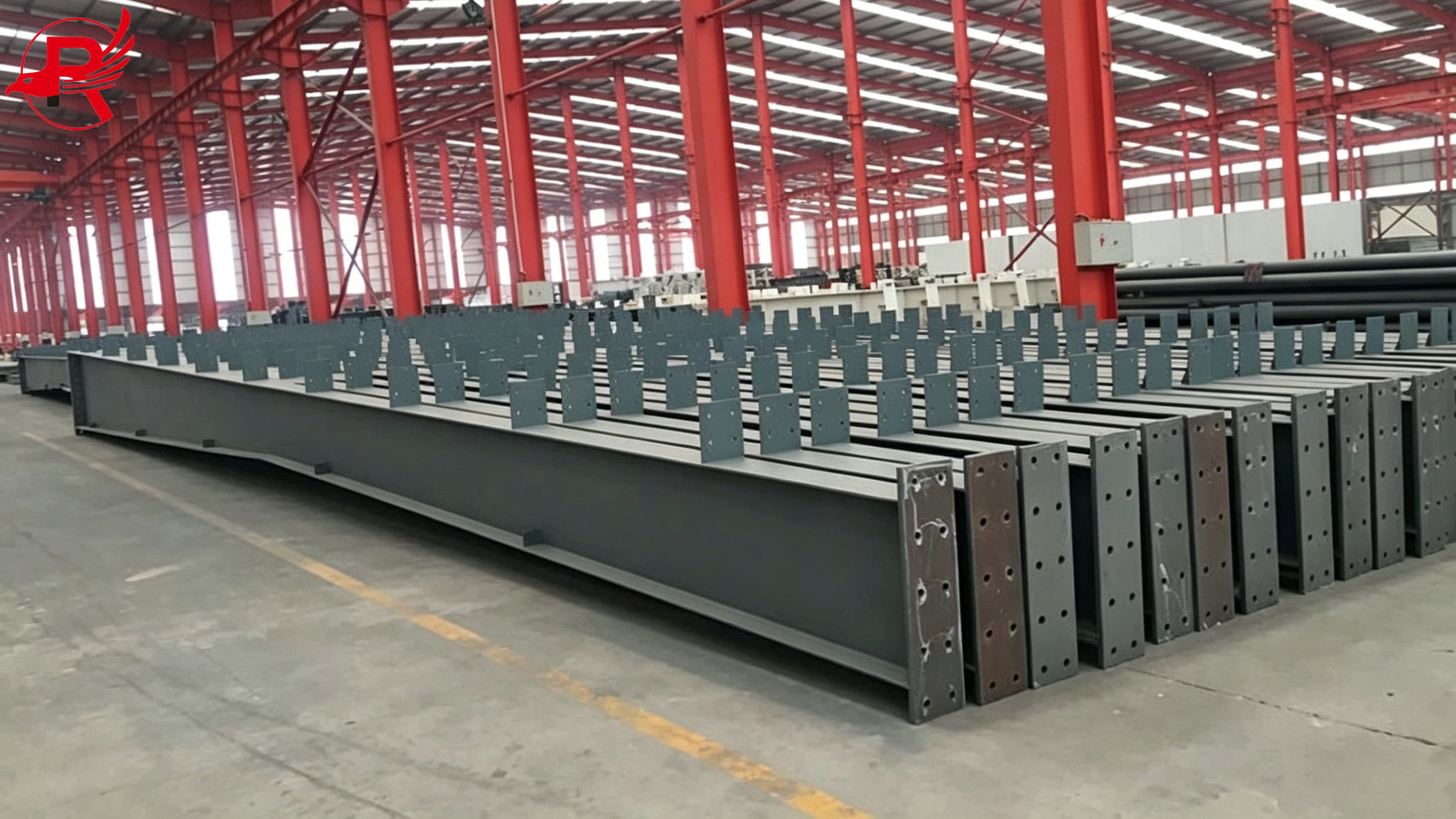

High-strength steel materials such as Q235B, Q355B, ASTM A36,ASTM A572 Grade 50 and ASTM A992 are widely used for columns, beams and bracing systems.
3. Roof and Wall Cladding Options
Different cladding materials can be selected based on climate and insulation requirements:
Single Steel Sheet
Sandwich Panel (PU, PIR, Rock Wool, EPS)
Corrugated Steel Panel
Insulated Composite Panel
Insulated panels provide excellent thermal performance and energy savings for warehouses in hot or cold regions.
4. Wind and Seismic Resistance
Steel structure warehouses can be engineered according to local building codes and environmental conditions.
Design factors include:
Wind Load
Snow Load
Seismic Load
Rainfall Drainage Requirements
This ensures long-term structural safety and reliability.
5. Loading and Operational Requirements
The design should consider:
Forklift Operations
Heavy Equipment Storage
Mezzanine Floors
Overhead Cranes
Truck Loading Bays
Automated Warehouse Systems
Customized solutions improve workflow efficiency and reduce operational costs.
