Serrated Steel Grating: North American Factory Walkway Safety Solution with Custom Drawing Fabrication

In the North American region (the United States, Canada, and Mexico), the safety of operations in industrial plants, petrochemical parks, shipyards, and mining sites has always been the top priority for enterprises and engineering contractors. Especially in the Great Lakes region and the northern part of Canada during the harsh winter with icy and snowy weather, or in complex operation environments such as oil refineries and food processing plants with oily and slippery media, traditional flat metal floors and ordinary walkways are prone to cause personnel slip accidents, posing significant risks to the safety management and compliance audits (compliance with OSHA industrial safety standards) of enterprises.

As a global leading steel manufacturing and export enterprise, Royal Group has meticulously developed the anti-slip serrated steel grating, which, with its outstanding physical grip performance, extremely high bearing stiffness, and excellent corrosion resistance, has become the preferred industrial safety solution for factory walkways, elevated platforms, high-altitude maintenance channels, and drainage cover plates in North American factories.

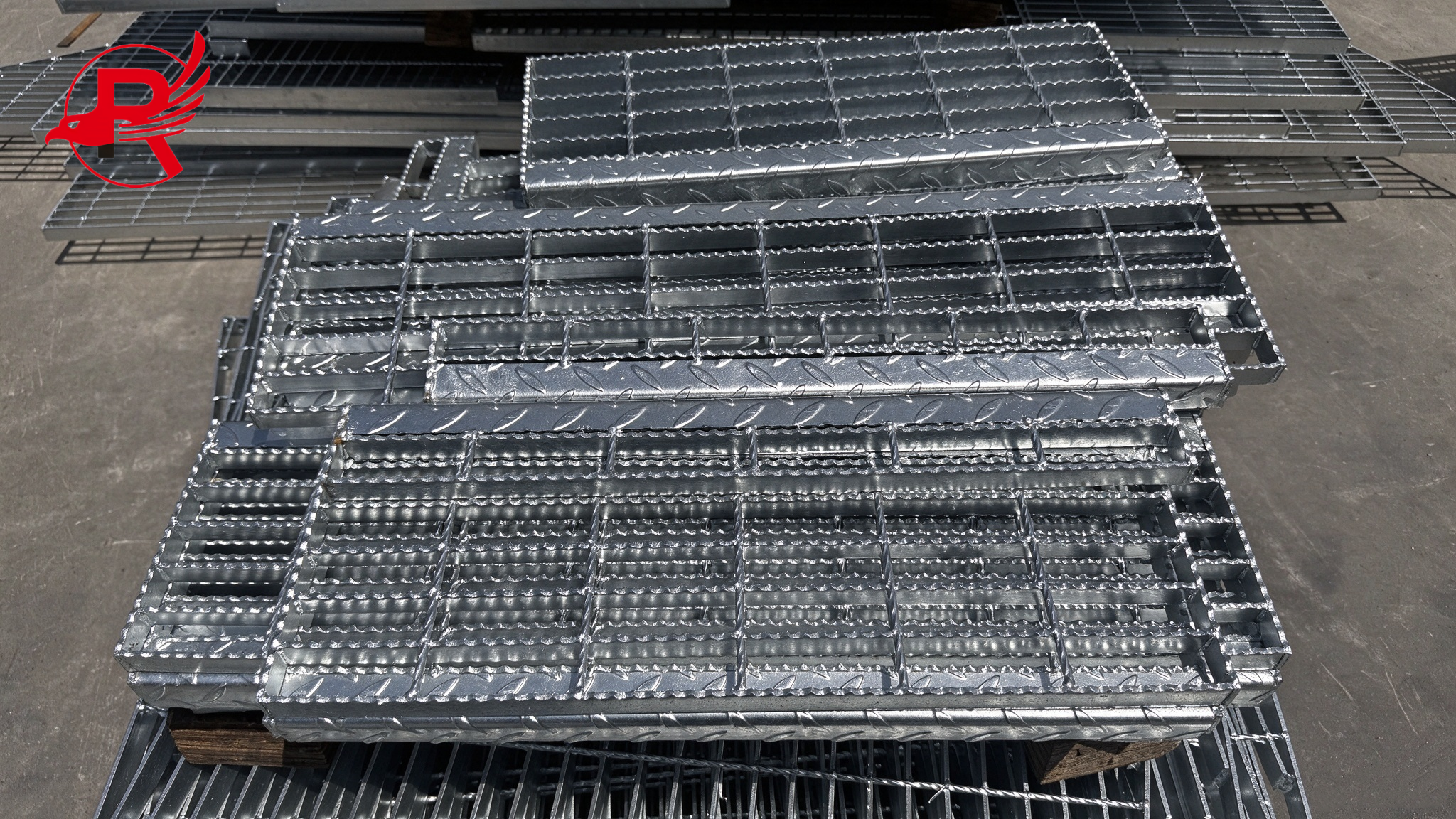

Serrated Steel Grating1

I. Why is the anti-slip serrated steel grating the preferred solution for factory walkways in North America?

1. Outstanding Anti-Slip Protection

The Royal Group uses a high-precision cold rolling toothing process to produce uniform teeth on the flat steel. These teeth can penetrate the ice layer, water, and sticky oil stains on the surface of the board. They enhance the friction coefficient of the sole in inclined channels and high-altitude platforms, effectively preventing slipping.

2. Highly transparent openings, excellent drainage performance

This grille is an open type grille. Its perforated structure has an opening rate of approximately 70%. During the rainy season, rainwater, snowmelt in winter, as well as mud and some industrial waste can all pass through the openings and quickly leak down. This effectively resolves the safety hazards for pedestrians caused by the formation of ice layers due to snow melting and freezing, or by the accumulation of debris on the walkways.

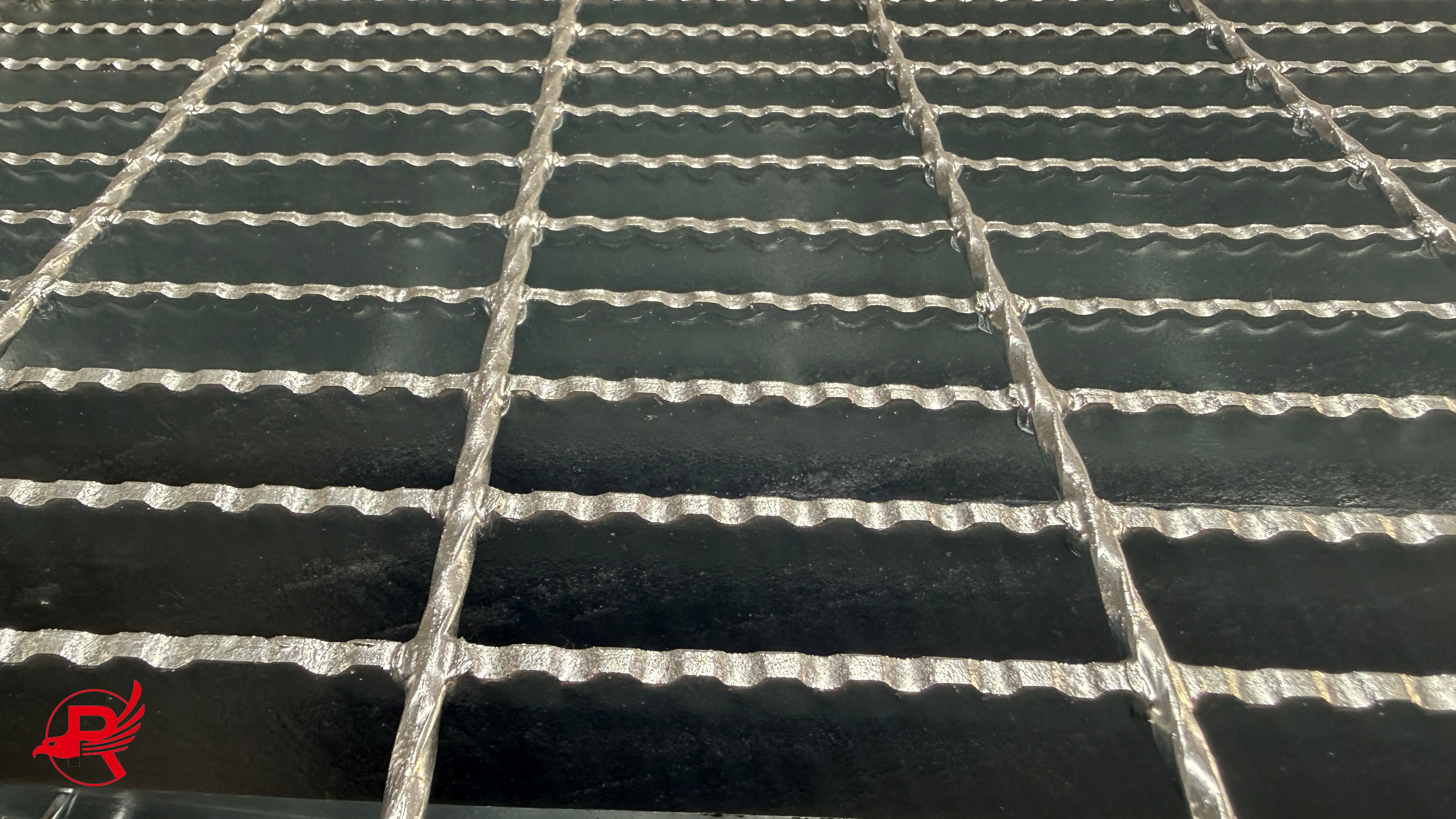

Serrated Steel Grating2

3.Corrosion-resistant, durable

This anti-slip serrated steel grating is usually made by welding high-quality low-carbon steel or stainless steel. Usually, a hot-dip galvanizing process is also applied to the surface. The galvanizing standard generally follows the ASTM A123 / EN ISO 1461 standard. For other cases where customers have special requirements, the galvanizing will be carried out strictly according to the customer's requirements. The thick and uniform zinc layer generated is sufficient to withstand the harsh cold environment in North America, as well as extreme conditions such as salt fog and acid rain. Under normal circumstances, the structure of such products can be used for 20 to 30 years.

II. Support for customized engineering drawings: Seamless connection from design deepening to installation

To meet the strict building codes and on-site rapid construction requirements of North American projects, Royal Group provides a one-stop custom fabrication service based on drawings (Custom Fabrication based on Drawings):

1. Precise cutting and processing of irregular shapes and holes: Our technical team can directly interface with the CAD or Tekla 3D construction drawings provided by the customer, complete precise cutting, pipe and avoidance opening processing, skirting plate welding, and edge banding (Banding) treatment in the factory, ensuring that the products can be quickly aligned and installed upon arrival at the site, significantly reducing the high labor cutting and construction costs on-site in North America.

2. Strictly following international standards: The product design and manufacturing process strictly comply with North American ASTM A1011, ANSI/NAAMM (MBG 531), and OSHA industrial walkway standards.

3. Complete supply of steel structure and profiles: In addition to the anti-slip serrated steel grating, Royal Group, with its strong comprehensive manufacturing capabilities, can provide "one-stop" steel structure components for industrial buildings and platform systems:

• H-beam/W-beam (Wide Flange Beam, ASTM A36 / A572 Gr.50): As the main load-bearing beams and columns for the platform's large-span structure;

• C/Z purlins & UPN/UPE/C-channels: Used for auxiliary support of walkways, secondary beams, and edge protection;

• Anti-slip steel stairs: Equipped with serrated anti-slip front guard plates (Checkered Nosing) and bolted side plates to ensure the safety of the up and down stairways;

• Handrails & A500 square/rectangular tubing: Combined with structural square and round tubes to construct a complete platform safety guardrail system.



III. Comparison Table of Common Factory Walkway Steel Grating Specifications

Specification Type Common Flat Bar Size (Inches/mm) Recommended Mesh Spacing Typical Applications Matching Steel Structure & Components (Royal Steel Supply Chain)
Standard Anti-slip 1" × 3/16" (25×5mm)1-1/4" × 3/16" (32×5mm) 19-W-4 (1-3/16" center-to-center) Plant maintenance walkways, elevated equipment platforms, pedestrian bridge decks C-channel / channel steel support beams, A500 structural square tube handrails
Heavy-duty Anti-slip 2" × 1/4" (50×6mm)2-1/2" × 1/4" (60×6mm) 15-W-4 or 19-W-4 Forklift traffic aisles, mining loading ramps, heavy equipment maintenance zones ASTM A992 W-shape main beams, heavy UPN channel steel
Anti-slip Stair Tread 1-1/4" × 3/16" (32×5mm) With checkered plate nosing Indoor/outdoor industrial steel ladders, tower and storage tank inspection stairs Stringer channel, angle connectors, galvanized handrail tubing

IV. Factory Direct Supply and Global Delivery Assurance for North American Projects

As a comprehensive steel enterprise group with extensive international engineering service experience, Royal Group has established branches and service networks in multiple key markets in the Americas and globally. We not only provide cost-effective factory price direct supply to North American buyers, engineering contractors (EPC), and steel structure processing plants, but also offer secondary deepening of technical drawings, strict quality inspection before shipment, certification by third-party testing institutions (SGS/BV), and safe packaging of shipping containers throughout the entire process.

Whether it is the expansion of manufacturing plants in the Midwestern United States, outdoor mining platforms in the oil sands area of Canada, or logistics parks and infrastructure construction in Mexico and Central America, Royal Group's anti-slip serrated steel grating and complete steel structure solutions have always been your reliable partner for high quality and high compliance.
