Sheet Pile vs. Soldier Pile Walls: Key Differences, Costs & Applications

For shoring of excavations, earth retention systems and substructure works, sheet pile walls and soldier pile walls are competing options for the civil and foundation engineer to evaluate. When you compare the underlying differences, real-world costs, and ideal use cases, you can reduce project risk and total cost of ownership through the construction phase.

Sheet pile walls are formed when interconnecting steel sheets are vibrated into the soil and interlocked to form a continuous, water-tight steel barrier. Soldier piles walls (soldier pile and lagging systems) are composed of vertical steel soldier piles which are spaced apart with timber or steel lagging between them to retain the soil, it doesn’t have the full continuous sealing.

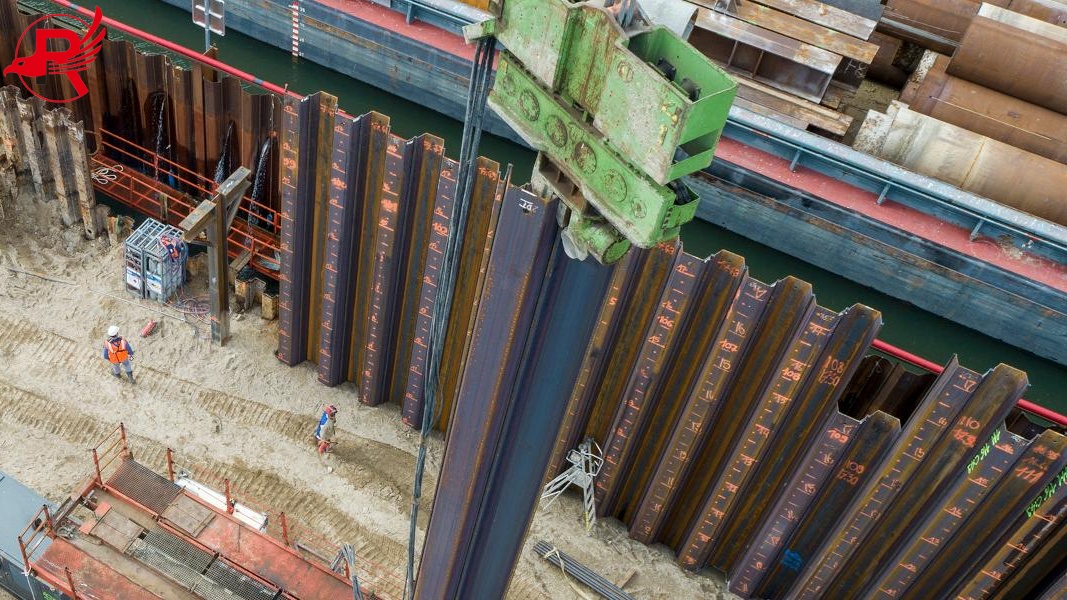

sheet pile

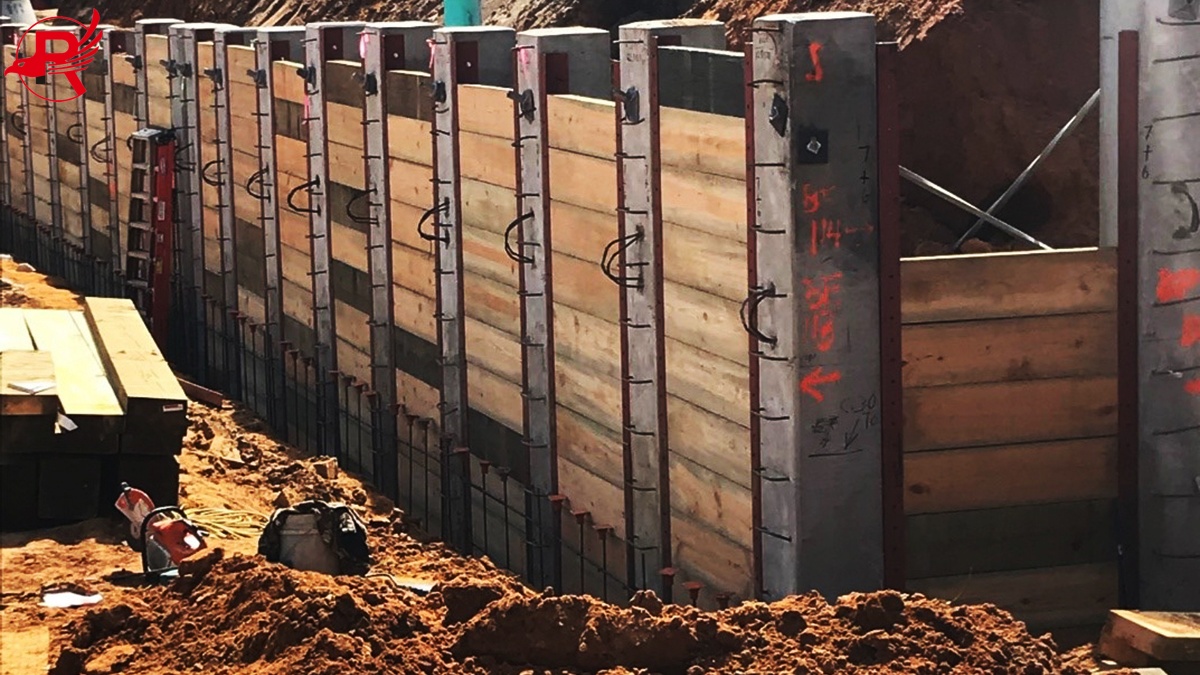

soldier pile wall

Core Structural & Performance Differences

Sheet Pile Walls

Interlocking joints provide effective water tight sealing and are suitable for high water table conditions.

Quick to install, no waiting for concrete to cure; steel sheet piles can be recycled for temporary work.

Vibration and noise are produced during installation; not so practical in bedrock or stony soil conditions.

Soldier Pile Walls

Open lagging permits the natural flow of groundwater behind the wall， which is not suitable for water bearing soils.

Ductile for deep excavations, adaptable to existing underground services on-site.

Good in stiff, mixed and rocky ground conditions, commonly used in conjunction with tie-back anchors for deeper cuts.

Cost Overview

The price depends on depth of soil, type of steel, labour and the local market. For shallow-medium temporary works, steel sheet pile systems can often provide a competitive solution due to re-use of material. For deep, dry-ground city excavation, soldier pile walls may be more cost effective overall, though more labor is required on site to install the lagging. Where control of the ground water is necessary, sheet piles prevent the additional dewatering costs associated with soldier-pile work.

Typical Field Applications

Sheet Pile Wall Applications:

Cofferdams, waterfront quay walls, flood defence barriers, river bank protection, temporary excavation shoring in soft soil and high‑water‑table zones, bridge pier foundation support.

Soldier Pile Wall Applications:

Urban deep basement excavation, top‑down construction projects, dry‑site retaining works, roadway slope stabilisation, sites with numerous existing underground utilities.

How to Make the Right Selection

Use sheet pile walls if you need water tightness, quick installation, temporary or reusable shoring or work on or near water. Choose soldier pile walls for deep dry ground work, rocky soil, sites with complex utility crossings, and where the highest standards of watertight performance are not necessary.

For the contractors, engineers and steel purchasers understanding sheet pile vs soldier pile, steel sheet pile dimensions, sheet pile wall design and soldier pile walls systems will enable them to maximize structural performance and project cost effectively.

Royal Steel Group offers U-shape and Z-shape steel sheet piles in a range of sizes and grades and can tailor production to the needs of infrastructure, marine, foundation and soil retention projects.
