Steel Sheet piles are structural profiles with interlocking edges that are driven into the ground to form a continuous wall. Sheet piling can be used in both temporary and permanent construction projects to retain soil, water, and other materials.

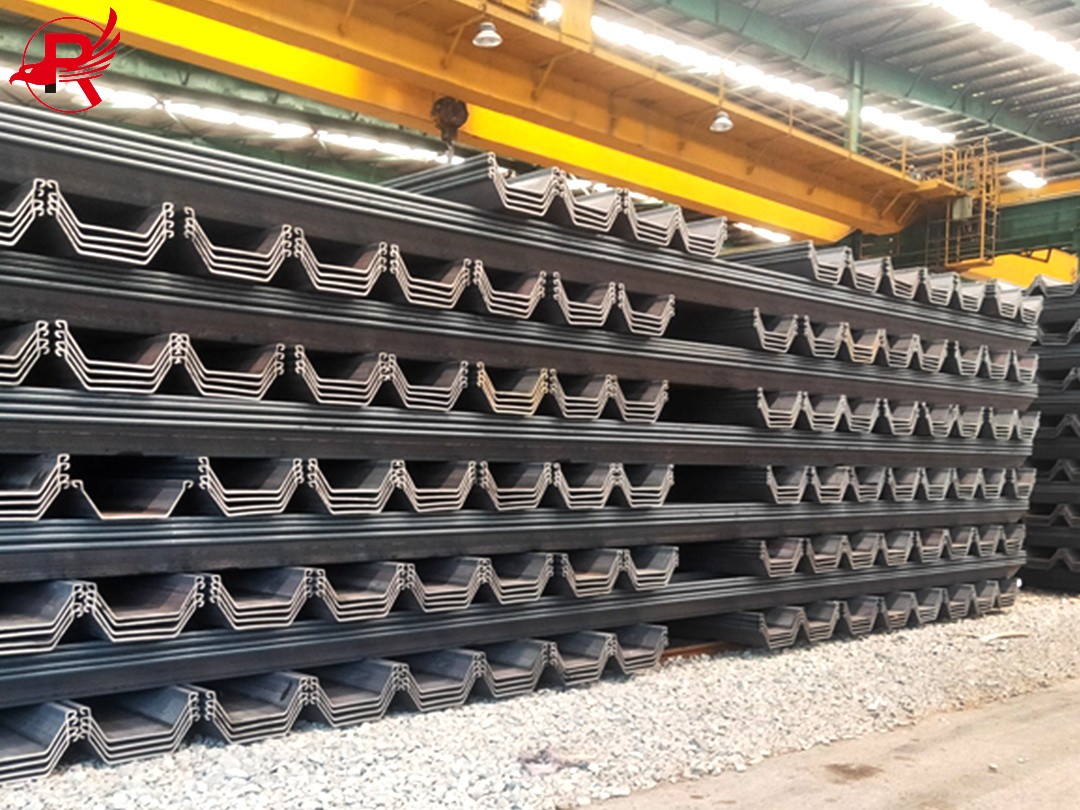

400X100 U Sheet pile

Standards,sizes and production processes

1. Standards for U-type Steel Sheet Piles

ASTM:A36,A328,A572,A690

JIS:Sy295,Syw295,Sy390

EN:S235,S270,S275,S355,S355gp,S355jo,S355jr,

GB:Q235,Q235B,Q355,Q355B

ISO:ISO9001,ISO14001

2. Sizes for U-type Steel Sheet Piles

U-type sheet piles come in different profiles depending on bending moment resistance, interlock type, and section modulus. Typical ranges:

Length: 6–18 m (customized up to 24 m or more)
Thickness: 6–16 mm
Width (effective): 400–750 mm per pile
Height (depth): 100–380 mm
Section Modulus (Wx): ~400 – 4000 cm³/m
Moment of Inertia (Ix): ~80,000 – 800,000 cm⁴/m
Weight: 40 – 120 kg/m² of wall (varies by profile)

型号(Type) 跨度 / 宽度 (Width) (mm) 高度 / Height (mm) 厚度 (Wall Thickness) (mm) 截面面积 (cm²/m) 单根重量 (kg/m) 截面模数 (Section Modulus cm³/m) 惯性矩 (Moment of Inertia cm⁴/m)
Type II 400 200 ~10.5 152.9 48 874 8,740
Type III 400 250 ~13 191.1 60 1,340 16,800
Type IIIA 400 300 ~13.1 ~186 ~58.4 1,520 22,800
Type IV 400 340 ~15.5 ~242 ~76.1 2,270 38,600
Type VL 500 400 ~24.3 ~267.5 ~105 3,150 63,000
Type IIw 600 260 ~10.3 ~131.2 ~61.8 1,000 13,000
Type IIIw 600 360 ~13.4 ~173.2 ~81.6 1,800 32,400
Type IVw 600 420 ~18 ~225.5 ~106 2,700 56,700
Type VIL 500 450 ~27.6 ~305.7 ~120 3,820 86,000

3.Production processes for U-type Steel Sheet Piles

The manufacturing of U-type sheet piles mainly follows hot rolling or cold forming:

Hot Rolled U-type Sheet Piles

Process:

(1). Raw material: steel billet reheated in furnace (~1200 °C).
(2). Hot rolling through specialized sheet pile rolls to form U profile.
(3). Cooling, straightening, cutting to required lengths.
(4). Interlock finishing & inspection.
Features:

Higher strength and tighter interlocks.
Better water-tightness.
Heavier sections possible.
Common in Europe, Japan, and China.

Cold Formed U-type Sheet Piles

Process:

(1). Steel coils uncoiled and leveled.
(2). Cold bending/forming by a continuous roll-forming machine at room temperature.
(3). Cutting to required lengths.
Features:

More economical, flexible in length.
Wider section choices.
Slightly looser interlocks (less water-tight).
Common in North America and China.

U steel sheet pile

Application

1. Ports and Water Conservancy Projects

Ports and Wharves: Used for wharf retaining walls, berth walls, and dock cofferdams.

Revetments and Breakwaters: Used to prevent scouring and landslides on coasts, riverbanks, and lakes.

Docks and Locks: Used as temporary or permanent soil/water retaining structures.

2. Foundation and Underground Engineering

Pit Support: Used for temporary or permanent support in excavation pits for subways, underground garages, tunnels, and pipeline corridors.

Retaining Walls: Support soil in soft soil layers or sites with uneven elevation.

Waterstop Curtains: Used in conjunction with grouting or sealing materials to prevent seepage in underground projects.

3. Flood Control and Emergency Engineering

Flood Control Dikes: Used for embankment reinforcement and river channel seepage control.

Emergency Engineering: Rapidly construct temporary protective walls in emergency situations such as floods and landslides.

4. Industrial and Energy Projects

Power Plants/Waterworks: Water retaining and revetment at cooling water inlets and outlets. Oil, Gas, and Chemical Facilities: Used for anti-seepage and foundation reinforcement of liquid storage tank foundations.

5. Transportation and Municipal Engineering

Bridge Engineering: Used for cofferdam support during bridge pier construction.

Roads and Railways: Used for retaining roadbed slopes and preventing landslides.

Urban Infrastructure: Used for temporary retaining walls during pipeline and subway construction.

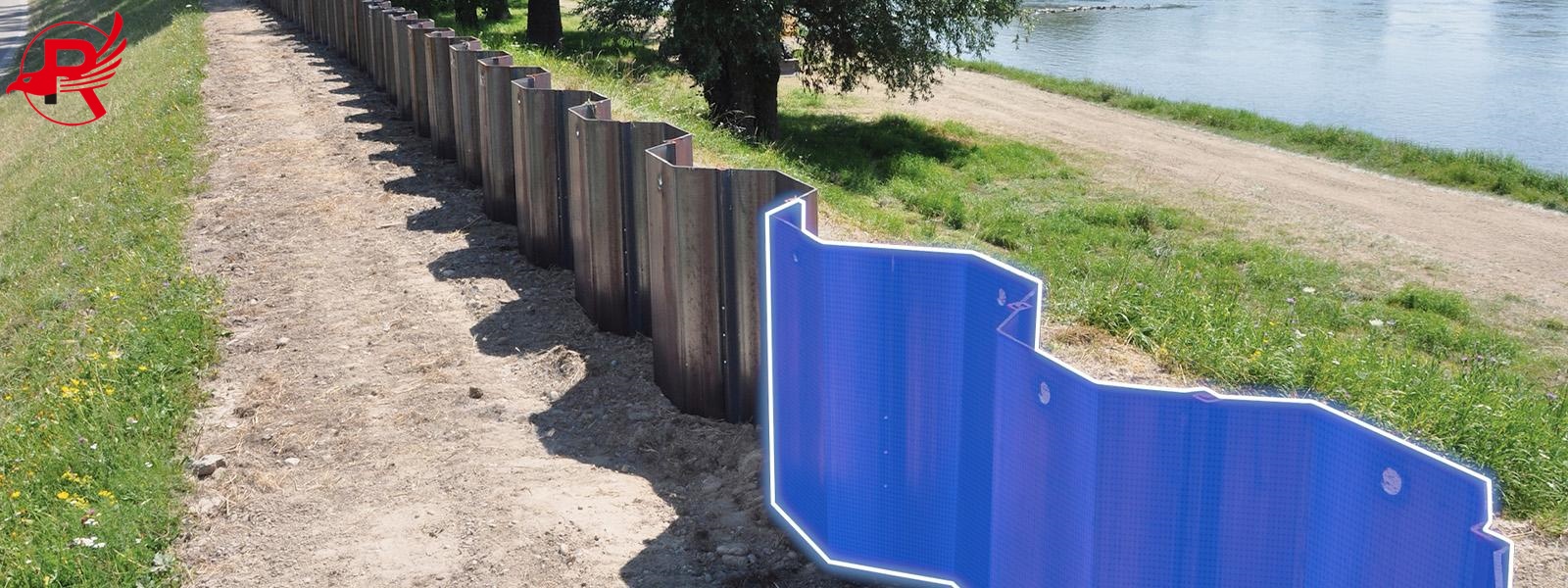

Application of U Steel Sheet Pile
