Steel Columns and Steel Frames Using W Beams: Common Specifications Overview

However, an efficient and safe modern steel structure system cannot be accomplished by a single component. During the actual implementation of the project, the W Beam usually needs to be systematically combined with various structural steel types such as H-beams, large-diameter square and rectangular tubes (SHS/RHS), C/Z-type steel purlins and structural steel plates . Accurately understanding the naming rules of the W Beam, its common specifications and parameters, as well as its combination application with other structural types, is not only a prerequisite for ensuring project quality and building safety, but also the first step for cross-border purchasing managers and project managers to effectively control the overall project cost.



I. What is W Beam? How is it related to H-shaped steel?

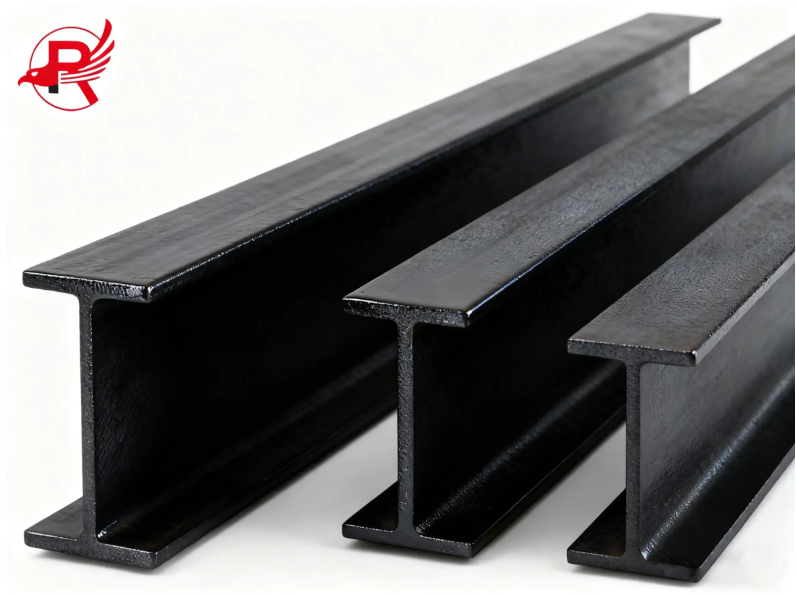

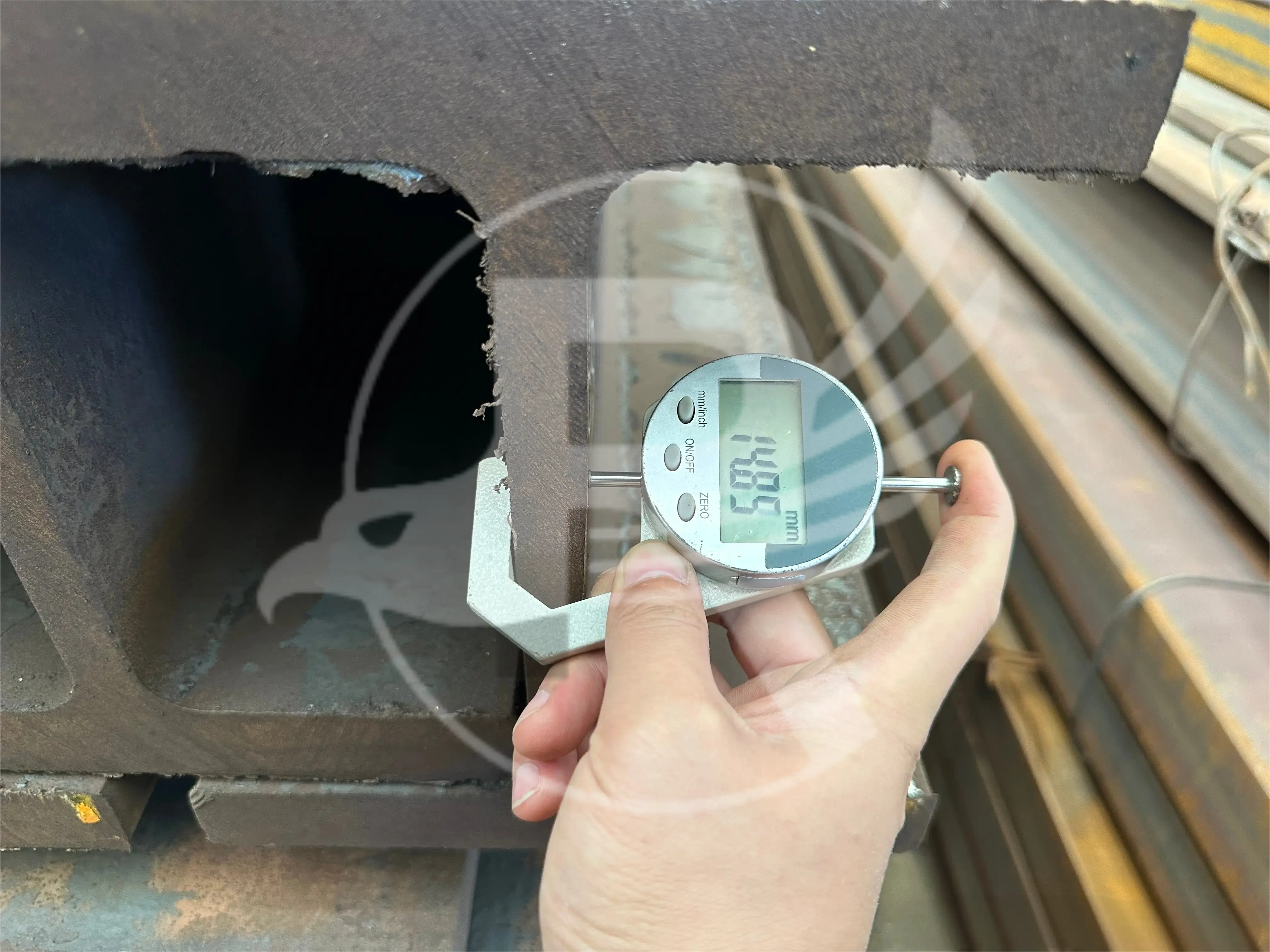

W Beam belongs to the core product of the American Standard Steel (ASTM) system. The "W" in its name represents Wide Flange. In international engineering procurement and on-site construction, W Beam is often referred to together with the broad category of H-shaped steel (H-Beam) as wide-flange steel sections. However, the American Standard W Beam has its own unique and strict design specifications in terms of the parallelism of the flange inner and outer sides, the aspect ratio of the cross-section, and the naming rules:

1.For steel columns: When the height-to-width ratio of W Beam is close to 1:1 (that is, the cross-sectional height is similar to the flange width, such as common models W10x49, W12x65, etc.), its moment of inertia and bending resistance on the strong axis (X-axis) and weak axis (Y-axis) are relatively balanced, which can effectively resist axial pressure and lateral loads from multiple directions, making it very suitable for use as high-capacity steel columns or core columns of the frame.

2.For steel beams and main frames: When the cross-sectional height is significantly greater than the flange width (such as W18x35, W24x55, etc. for deep-section models), its bending section modulus is extremely large, mainly bearing the large-span horizontal loads, and is often used as main beams, secondary beams, or crane beams, significantly reducing the beam weight and improving space utilization.

3.Systematic coordination with other profiles: In the complete construction of a steel frame, W Beam mainly performs the function of the main beam and column framework; while galvanized square tubing or rectangular tubes (RHS) are often used for column support or shear wall frames due to their closed cross-section's anti-torsion advantage; C/Z steel serves as the secondary roof and wall purlin system; thick steel plates are precisely cut and punched to form connection node plates (Gusset Plate) and base plates, achieving a tight connection of the entire building system.



II. Comparison of W Beam and Common Structural Steel Sections Specifications

In the American Standard ASTM system, the specification naming of W Beam is labeled as W [nominal height] x [weight per foot] (for example, W12x65 indicates that the nominal cross-sectional height of this type of steel is approximately 12 inches, and the theoretical weight per foot is 65 pounds). The following summarizes several of the most common W Beam specifications in industrial and commercial building steel frames, as well as their typical pairing scenarios with other complementary structural steel sections in actual engineering projects:



III. Key Considerations for Purchasing Steel Columns and Steel Frames

1.Material Grade:

Currently, the most commonly used and mandatory recommended standard material for American Standard W Beam and H-shaped steel is ASTM A992 (yield strength up to 50 ksi / 345 MPa). It not only has excellent yield strength and tensile strength, but also has excellent welding performance and seismic toughness; while square tubes/rectangular tubes (HSS) are widely adopted as ASTM A500 Grade B/C; steel plates for node connections and ordinary angle steel/slot steel are often used as ASTM A36. During the procurement process, it is necessary to strictly verify the design drawings requirements.

2.One-stop Package Sourcing for Multiple Materials：

Complex steel structure projects often involve dozens of different specifications of W Beams， square tubes， galvanized pipes， C/Z-shaped steel， and node steel plates. If overseas projects purchase steel separately, the costs of communication, packaging and logistics will remain high. As the source manufacturer, Royal Group can provide all types of structural steel, along with one-stop processing services including fixed-length cutting, drilling, pre-assembly, hot-dip galvanizing and anti-corrosion painting, helping customers simplify their supply chain and shorten the on-site construction time.
