Steel Sheet Piles: How to Choose the Right Type, Grade and Length for Your Project

In Central and South America, with the rapid progress of Mexico's "Plan Mexico", the expansion of the Panama Canal, the port logistics parks in Chile and Peru (such as Qian Kai Port), as well as the flood control corridors in Colombia and Guatemala, steel sheet piles have become the core building materials for local water conservancy flood control, marine engineering, and deep foundation pit support. The terrain and geology in Central and South America are diverse, including both high-salinity coastal ports and high-seismicity Pacific coastal areas. How to scientifically select the cross-sectional type, steel grade, and length of steel sheet piles according to the local engineering practices in Latin America? This article provides you with a procurement and selection guide that conforms to the engineering standards of Latin America.

I.Section Type Selection: U-shaped (Larson) vs Z-shaped vs Combined Wall

Based on the construction habits and equipment conditions of local contractors in Latin America, the steel sheet piles are mainly divided into the following three main types:

1. U-shaped steel sheet pile (Larson steel sheet pile / U-Piles)

Characteristics: The lock opening is located on the neutral axis, with good symmetry, and is easy to be driven in and removed later. Its standardized lock opening interlocking design can effectively reduce the risk of foundation pit leakage during the rainy season in Latin America.

Applicable scenarios: Underground pipeline excavation in Central and South American cities, small and medium-sized temporary cofferdams and river reinforcement projects. In Latin American municipal projects with sensitive budgets and multiple reuse requirements, it has an extremely high cost-effectiveness.

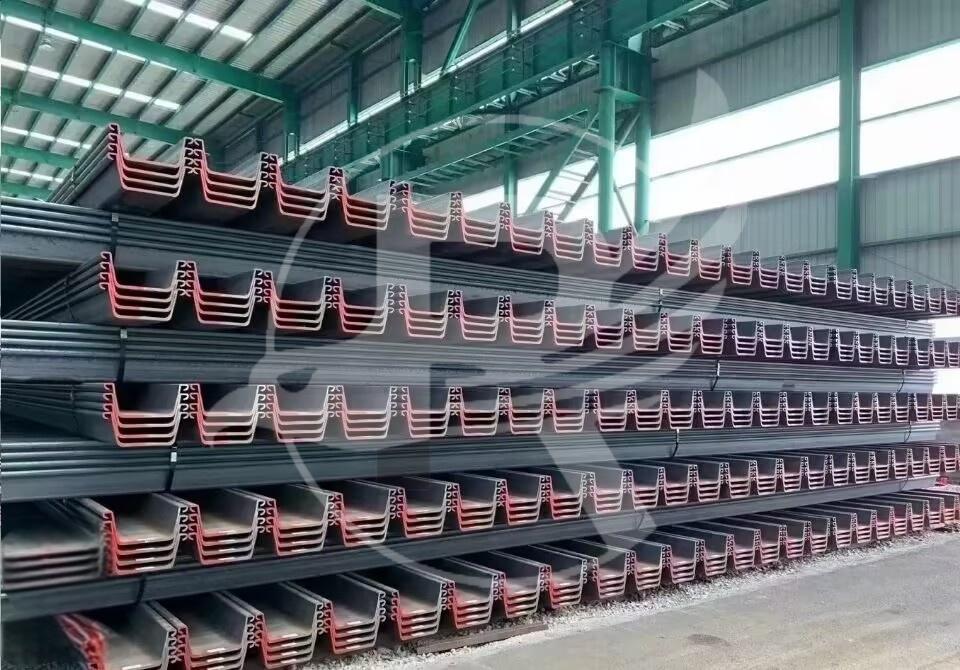

U Steel Sheet Piles

2. Z-shaped steel sheet pile (Z-Piles)

Characteristics: The lock opening is located on the outermost section of the cross-section, with higher bending section modulus (Section Modulus) and structural stiffness. The continuous symmetrical geometric distribution can exert excellent tensile performance, significantly reducing the steel usage per unit area.

Applicable scenarios: Deep-water piers in coastal areas of Chile, Peru and Mexico, high-head flood control dams and deep foundation pit projects in high-seismic environments. It is highly suitable for permanent protective structures with strict requirements for wall displacement.

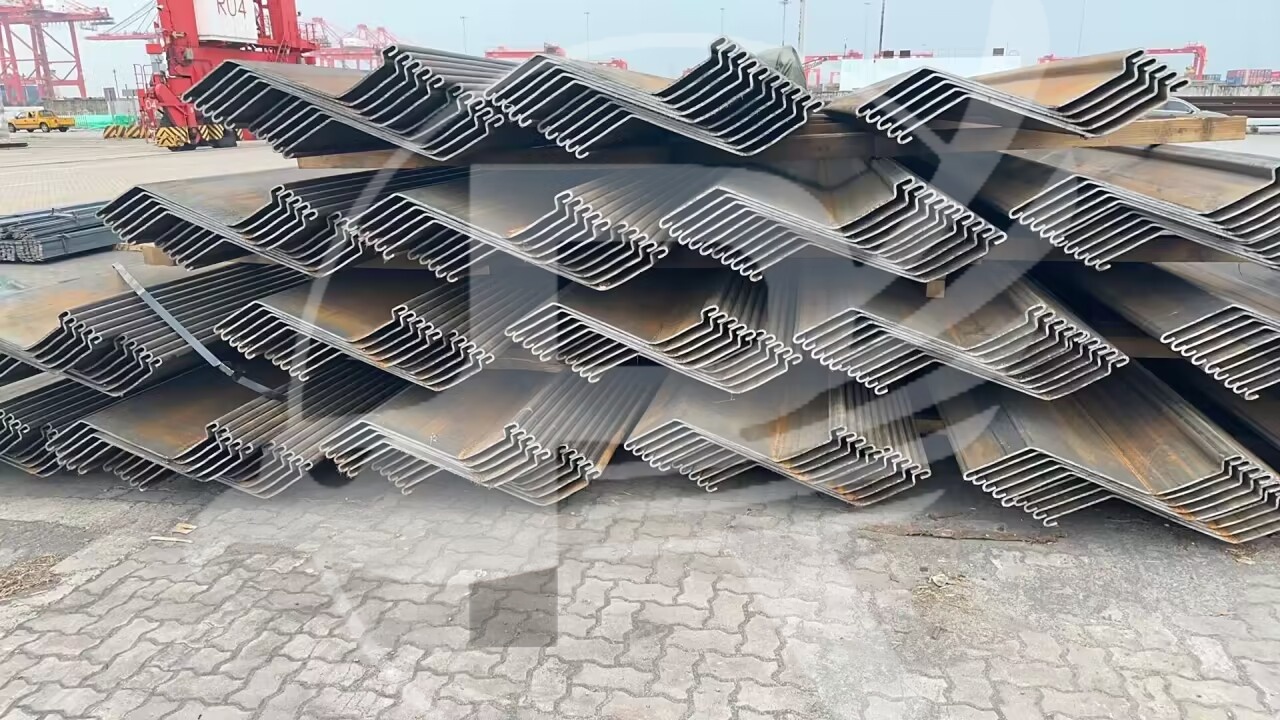

Z Steel Sheet Piles

3. Combined Locking Wall (HZ / Tubular Combined Wall)

Features: If steel sheet piles are combined with heavy steel pipes or American standard W-shaped steel (W Beam / W Flange) for construction, when they are assembled together, the bending stiffness and bearing capacity of the structure are significantly enhanced, making the structure more stable.

Application scenarios: For example, large logistics terminals along the Panama Canal, deep-water port projects in the Caribbean Sea, etc., which can meet the high-load construction requirements brought by deep water environments, heavy equipment, and complex geological conditions.

II. Steel Grade and Material Selection: Matching the American Standard System and Latin American Climate Environment

In the Latin American region, engineering designs generally follow the standards of the American Society for Testing and Materials (ASTM) or the European Standard (EN). When selecting materials, both the mechanical properties of the materials and their marine corrosion resistance must be taken into consideration.

1. For regular foundation pits and temporary supports: It is recommended to prioritize ASTM A572 Grade 50 (or EN 10248 S270GP/S355GP). This type of material has excellent weldability and toughness, is easy to be cut on-site, and fully complies with the processing habits of the mainstream contractors in Latin America.

2. For coastal areas with high salt content and high seismicity: It is recommended to use high-strength steel grades (such as ASTM A572 Grade 60/65 or S430GP), and equip with corrosion-resistant coatings or sacrificial anode protection. High yield strength materials can reduce the section thickness and lower the transportation costs of bulk shipping containers and bulk carriers.

III. Length and Embedded Depth Calculation: Ensuring Seismic and Flood Stability

In the Latin American region, there are many hurricanes, heavy rains and earthquakes. The driving depth (D) and cantilever height (H) of the steel sheet piles must be calculated through rigorous geological surveys and structural calculations:

1. For deep foundation construction, strict compliance with the construction standards for anti-overturning, anti-sagging, and anti-piping is required. The soil in the Caribbean coast and the Amazon basin is relatively soft. For such sites, the depth of steel sheet pile insertion is generally set at 1.5 to 2.0 times the cantilever height, which can effectively prevent soil slippage caused by heavy rainfall.

2. Formwork and Shipping Restrictions: The length of a single steel sheet pile exported to the Latin American market is mostly 12m to 24m. For deep foundation pits, it can be extended through on-site lock opening welding. During the procurement process, it is necessary to confirm that the welding quality certificates provided with the goods meet the requirements of the AWS D1.1 standard.

IV. Common Steel Sheet Pile Specifications and Comparison with Latin American Engineering Selections

To facilitate the rapid assessment by the procurement team for the Central and South American projects, the following table summarizes the technical indicators and application focuses of the common specifications:

Sheet Pile Type Common Steel Grade Bending Section Modulus Range (cm³/m) Main Application Scenarios Companion Structural Steel / Components
U Type (Larssen) ASTM A572 Gr.50 / S270GP 600 – 3200 Municipal excavation in Latin America, temporary river cofferdams Wale beam (W shape / H shape steel), internal steel struts
Z Type (High Modulus) ASTM A572 Gr.60 / S355GP 1400 – 4600 Deep water ports along the Pacific coast, high seismic flood walls Wale systems, high strength tie rods / anchor assemblies
Combined Sheet Pile Wall ASTM A572 Gr.65 / S430GP > 5000 Deep sea terminals in the Caribbean, heavy mine revetment Heavy steel pipe, American standard W shape steel, slip resistant steel grating platforms

V. Collaborative Procurement with Steel Structures and Other Profiles

Latin American clients and general contractors are increasingly favoring "one-stop procurement" (One-Stop Procurement). Steel sheet piles usually require coordinated design and installation with structural steel and various steel structural components:

1. Abutments and support systems: Behind the steel sheet pile wall, horizontal abutments (Waler) made of American standard W-shaped steel (W Beam) need to be configured. Multiple W-shaped steel abutments and the internal support framework work together to safely distribute lateral pressure and significantly enhance the overall support stiffness of the foundation pit.

2. Platforms and maintenance access: On the top of port wharfs or cofferdams, steel grating and steel grating stairs with anti-slip and water-permeable properties are usually laid. High-quality steel grating and steel staircase components provide a safety barrier for water-side operations, fully complying with the OSMA construction safety standards in Latin America.

3. Anchorage system integration: Integrating steel sheet piles with rear anchoring plates, steel pipe piles, and connection components ensures precise matching of dimensions with American standard threads, significantly reducing on-site secondary processing costs.

Summary

When selecting the appropriate sheet piles for projects in Central and South America, it is necessary to not only precisely match the local geology and seismic resistance standards, but also consider the US standards certification (ASTM), maritime logistics and customs clearance convenience. The astute Latin American procurement team, when formulating the plan, will comprehensively evaluate the compatibility of the sheet piles with the surrounding W-shaped steel, platform steel grating plates and other supporting steel structure components. Under the premise of ensuring that the project quality complies with the regulations of Latin American countries, they will maximize the reduction of overall procurement and construction costs.
