U Channel Steel Standard Sizes and Applications: A Practical Guide

U channel steel is a common structural steel profile that is strong, versatile, and provides good load bearing performance. Also called channel steel or C-channel steel, it has a U-shaped cross section which brings exceptional support and is pretty simple to make and install.

As more construction and industrial projects demand durable and affordable structures materials, knowing U channel steel standard sizes and applications can enable purchasers，engineers and contractors to find the profile that best fits their needs.

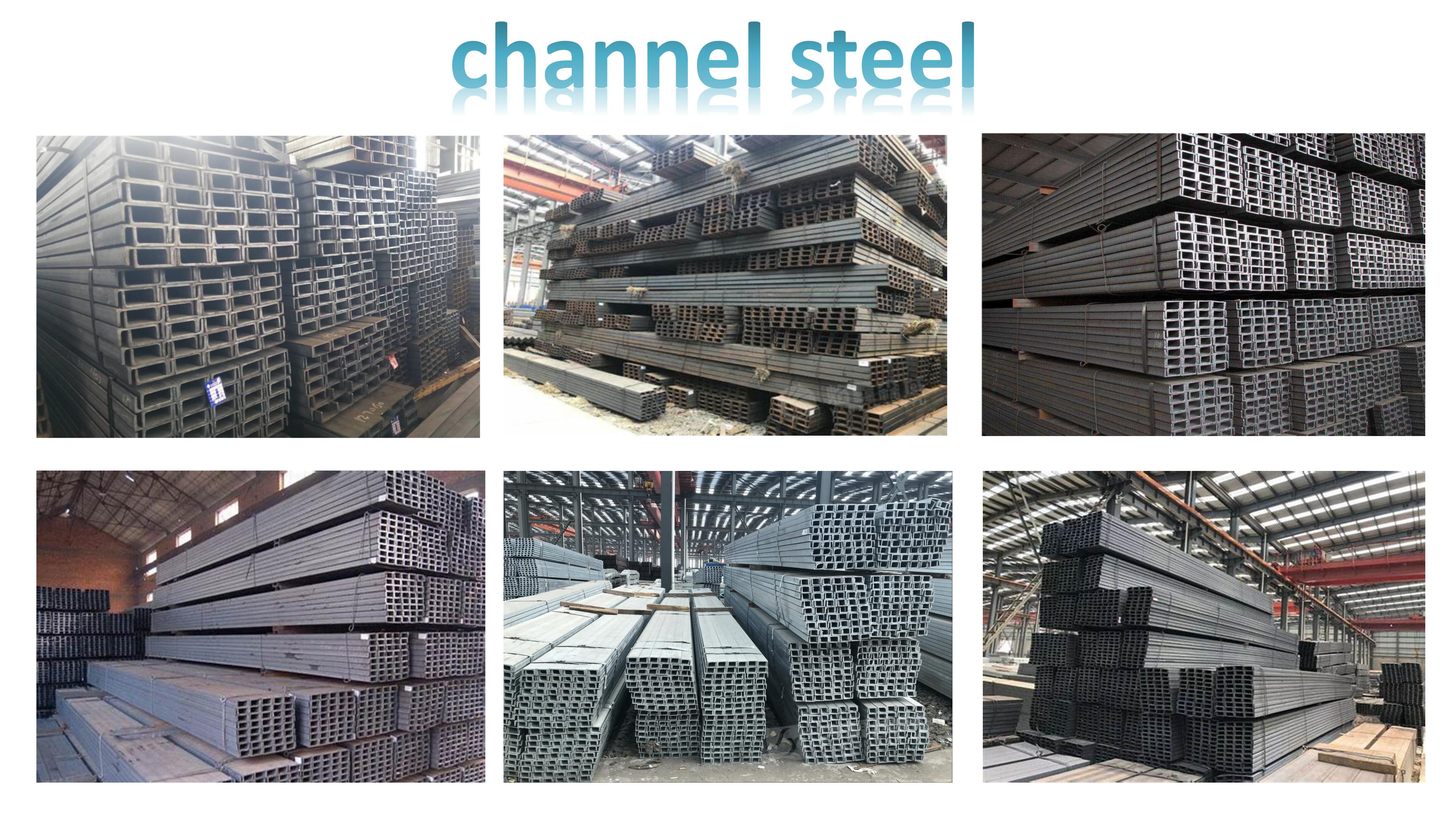

Channel-steel (1)

What Is U Channel Steel?

U channel steel is a type of hot-rolled or cold-formed steel with two parallel flanges connected by a flat strip called the web. Its cross-sectional profile is U-shaped which gives it strong resistance to bending and can be used as a supporting member or framing element.

Common materials are carbon steel, structural steel, galvanized steel depending on working environment of the project and performance requirement.

Typical grades include:

ASTM A36/ASTM A572 Grade 50/EN S235JR/EN S275JR/EN S355JR/JIS SS400/Q235B/Q355B

U Channel Steel Standard Sizes

U channel steel comes in a variety of sizes to suit different loading conditions. Buyers need to pay attention to the following major parameters: height, flange width, web thickness, flange thickness and length of the size.

Standard sizes of channel steel are available can be used from small sections for light fabrication to large channels for heavy-duty building.

UPN channel steel dimensions
Item Depth (mm) Flange width (mm) Web thickness (mm) Flange thickness (mm) Weight (kg/m)
UPN80 80 45 6 8 8.64
UPN100 100 50 6 8.5 10.6
UPN120 120 55 7 9 13.4
UPN140 140 60 7 10 16
UPN160 160 65 7.5 10.5 18.8
UPN180 180 70 8 11 22
UPN200 200 75 8.5 11.5 25.3
UPE channel steel dimensions
Item Depth (mm) Flange width (mm) Web thickness (mm) Flange thickness (mm) Weight (kg/m)
UPE80 80 40 4.5 7.4 7.05
UPE100 100 46 4.5 7.6 8.59
UPE120 120 52 4.8 7.8 10.4
UPE140 140 58 4.9 8.1 12.3
UPE160 160 64 5 8.4 14.2
UPE180 180 70 5.1 8.7 16.3
UPE200 200 76 5.2 9 18.4

Click the button on the right

Download the complete EN UPN/UPE Channel Steel Standard Sizes PDF in mm

CLICK HERE

Key Applications of U Channel Steel

1.Building Structures: U channel steel is suitable for structural framing, secondary support, roof systems, wall framing, and more in commercial and industrial buildings.

2.Industrial Facilities: Channel steel is often employed as the structural support and framing elements in factories, warehouses, workshops, and equipment racks.

3.Machinery and Equipment: Machinery bases, equipment frames, support brackets, and even manufacturing structures frequently utilize U channel steel.

4.Infrastructure Projects: Channel steel may be used in buildings, including bridges, platforms, walkways, transportation centers, and other infrastructure buildings.

5.Steel Fabrication: U channels are the most preferred ones among steel fabricators as they can be easily converted into tailor-made structural components.

How to Choose the Right U Channel Steel

When purchasing U channel steel, buyers should evaluate several factors:

1. Load requirements: Select the appropriate section size according to the expected structural load.

2. Steel grade: Higher-strength grades may be required for demanding structural applications.

3. Dimensions: Check web height, flange width, thickness, and overall length.

4. Applicable standard: Confirm whether the project requires ASTM, EN, JIS, or GB specifications.

5. Surface treatment: Galvanized or coated channel steel can provide additional corrosion protection for outdoor or humid environments.

6. Fabrication requirements: Consider whether the channel needs cutting, drilling, welding, or other processing before delivery.

U Channel Steel from Royal Steel Group

Royal Steel Group supplies U channel steel in multiple sizes, grades, and international standards for construction, industrial, infrastructure, and fabrication applications.

Customized dimensions, lengths, surface treatments, and processing services can be provided according to project requirements. Material certificates and quality inspection documents can also be supplied for export projects.

For buyers comparing U channel steel standard sizes and applications, selecting the correct steel grade, dimensions, standard, and surface treatment is essential for achieving the required structural performance and service life.

Royal Steel Group provides channel steel solutions for international construction and industrial projects, supporting customers from material selection through processing and delivery.
