News - U Type vs Z Type Sheet Pile: Which One for Your Project?

In the global infrastructure and marine construction industry today selecting the right steel sheet pile system is a key factor for project safety, cost efficiency and performance the entire project life. A lot of applications use the standard solutions that are U Type Sheet Piles and Z Type Sheet Piles for water front structures, flood protection and earth retention systems for deep excavations.

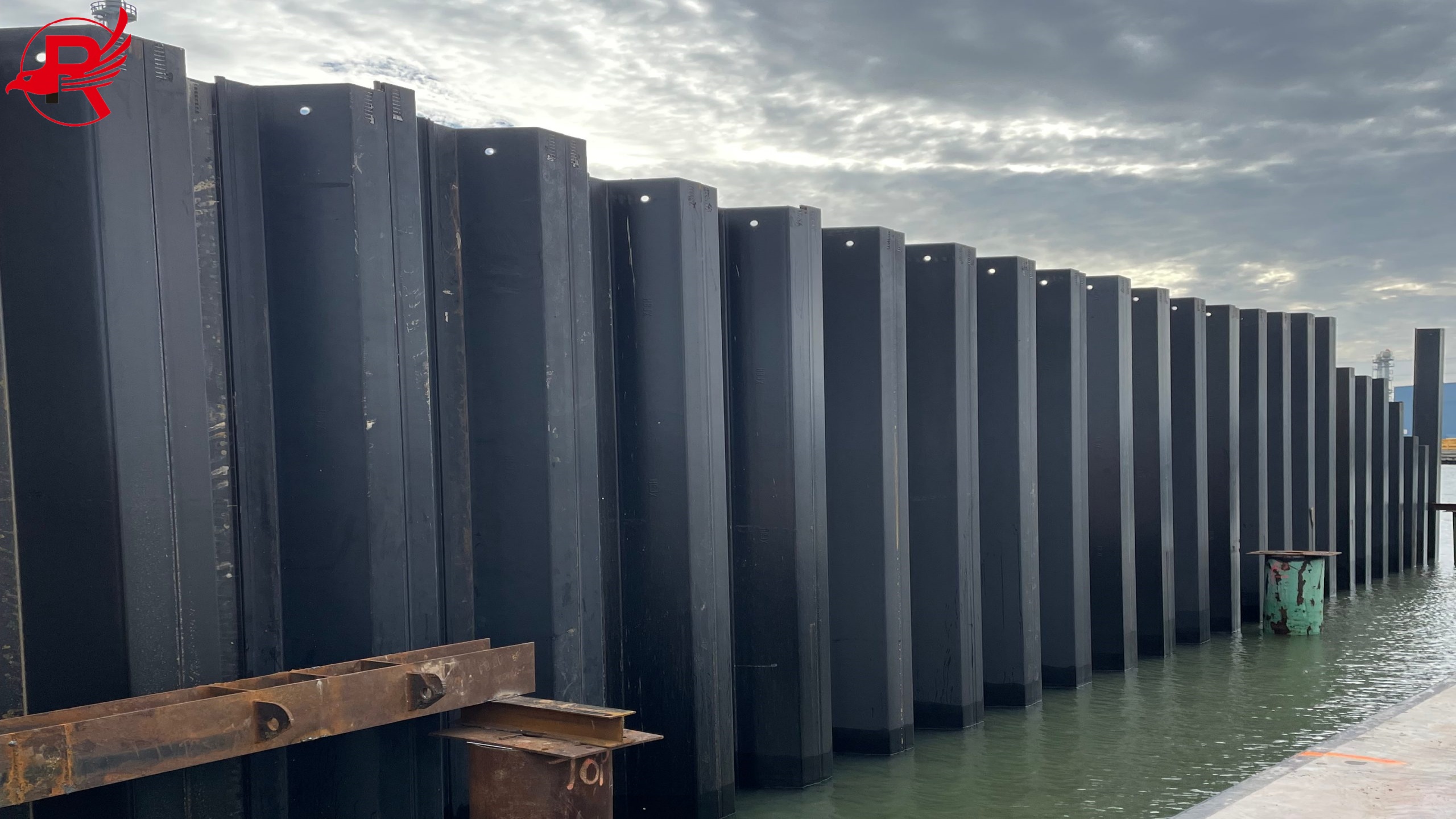

Steel sheet pile Flood control application

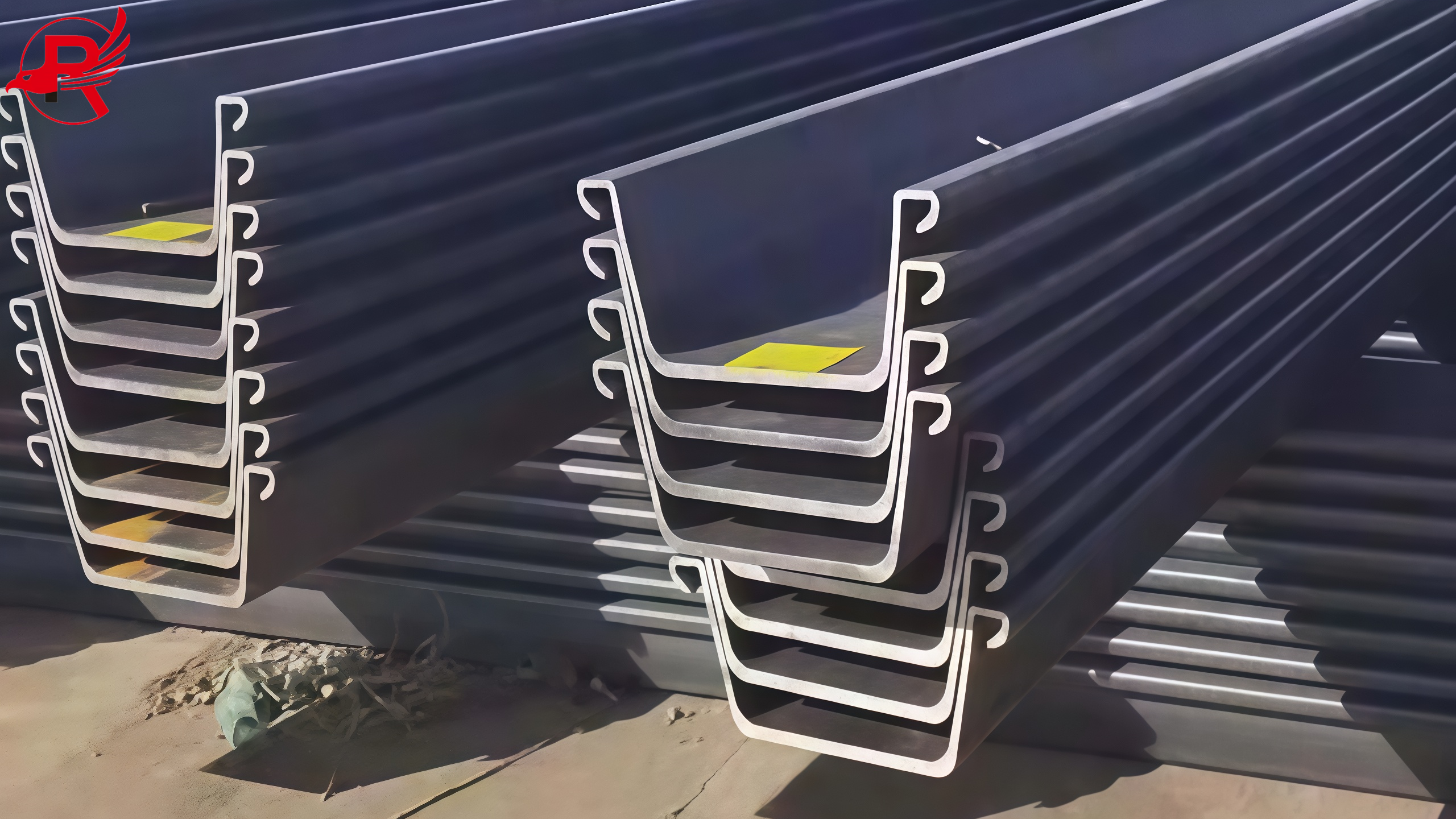

U Type Sheet Piles: Flexible & Cost-Effective Solution

U-Type Sheet Pile ( Larssen sheet piles) Larssen sheet piles are known for their symmetrical orientation and flexible interlock system. Hence, they are best suited for temporary retaining walls, cofferdams and shallow foundation suport. Contracting companies favor the U piles since they can be installed easily and are reusable for multiple projects, they are cost-effective in small-medium scale works. Typical standards are EN 10248 and JIS A5528 Sy390 Steel Plate Pile , providing bearable mechanical performance and long life.

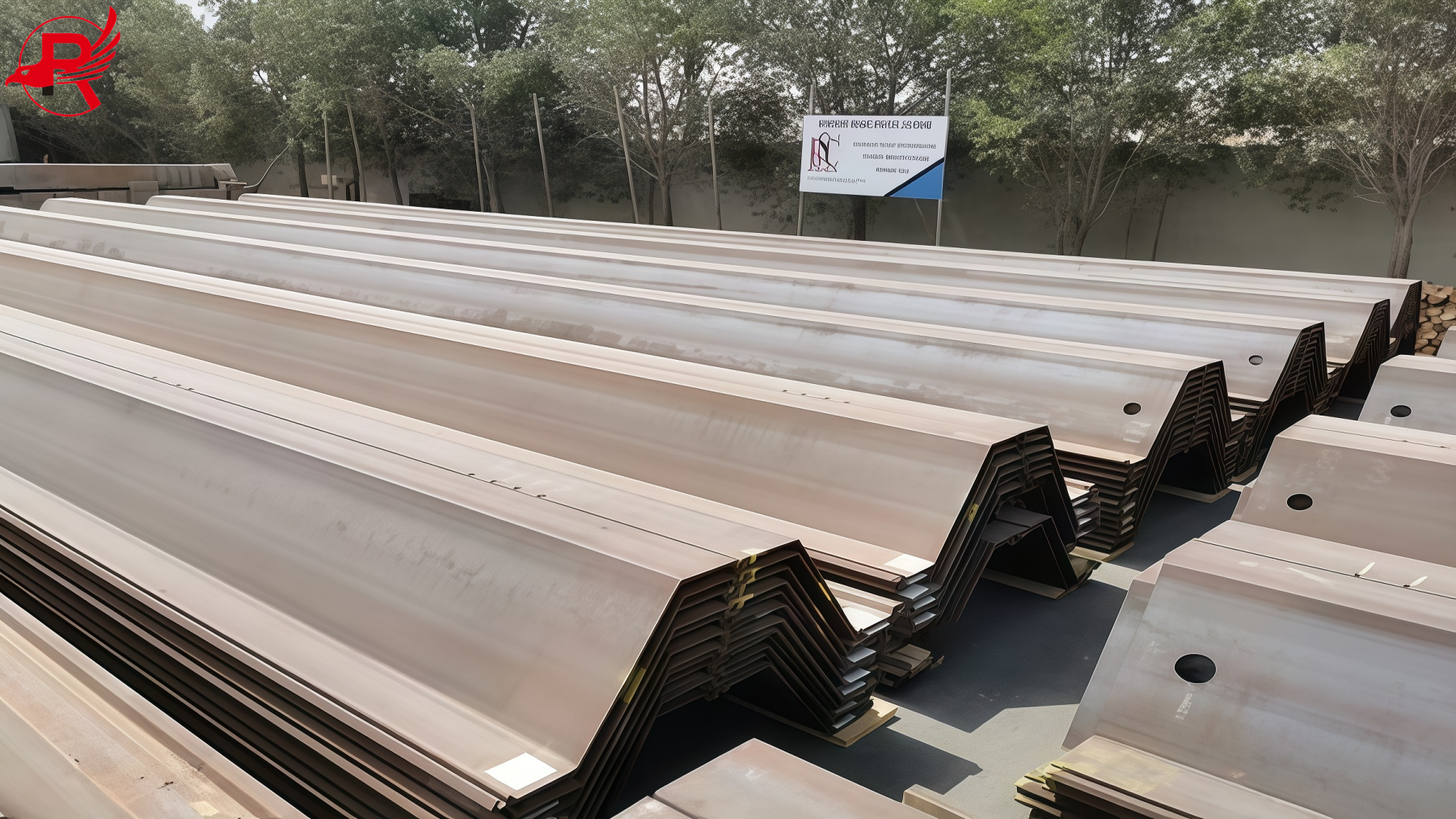

Z Type Sheet Piles: High Strength for Heavy-Duty Projects

However, Z Type Sheet Piles have a continuous web and the two flanges are offset, which results in higher section modulus. This design attribute makes them advantageous to be used in deep foundations, port construction and marine engineering on large scale. Products like AZ sheet piles (AZ12–AZ36) have good bending resistance and steel consumption is low, hence they are very efficient for long retaining walls and heavy load applications.

Strength vs Cost Efficiency: The Core Decision Factor

In terms of cost and performance, U-shape piles generally have lower initial cost and are easier to handle, Z-type piles have higher strength and use less material in large projects which provides better economy in the long term. In areas such as Southeast Asia, the Middle East and Latin America, growth in demand for both types remains strong on the back of port expansion, flood control system and energy infrastructure development.

How to Choose the Right Sheet Pile for Your Project

In the final analysis selection of U Type and Z Type Sheet Pile depends on the depth of the project, the load, the soil conditions and on the expenditures. To engineers and contractors, these distinctions are the key to maximizing structural and investment performance.

Future Trends: Standards & Sustainability

With the changing global construction practices, quality carbon steel sheet piles, superior corrosion protection and compliance to ASTM, EN and JIS standards are still the key in achieving long service life under severe exposure conditions.
