What is U-Channel Steel?

U-channel steel, also known as U shaped channel, continues to be one of the most popular structural steel sections for world building, machine and plant, and infrastructure work. Royal Steel Group structural experts noted in the most recent are technical brief that hot-rolled U-Channel steel is the preferred choice of the industry engineers and contractors for its exceptional resistance to bending, a wide range of sizes, and an economical and reliable load bearing solution.

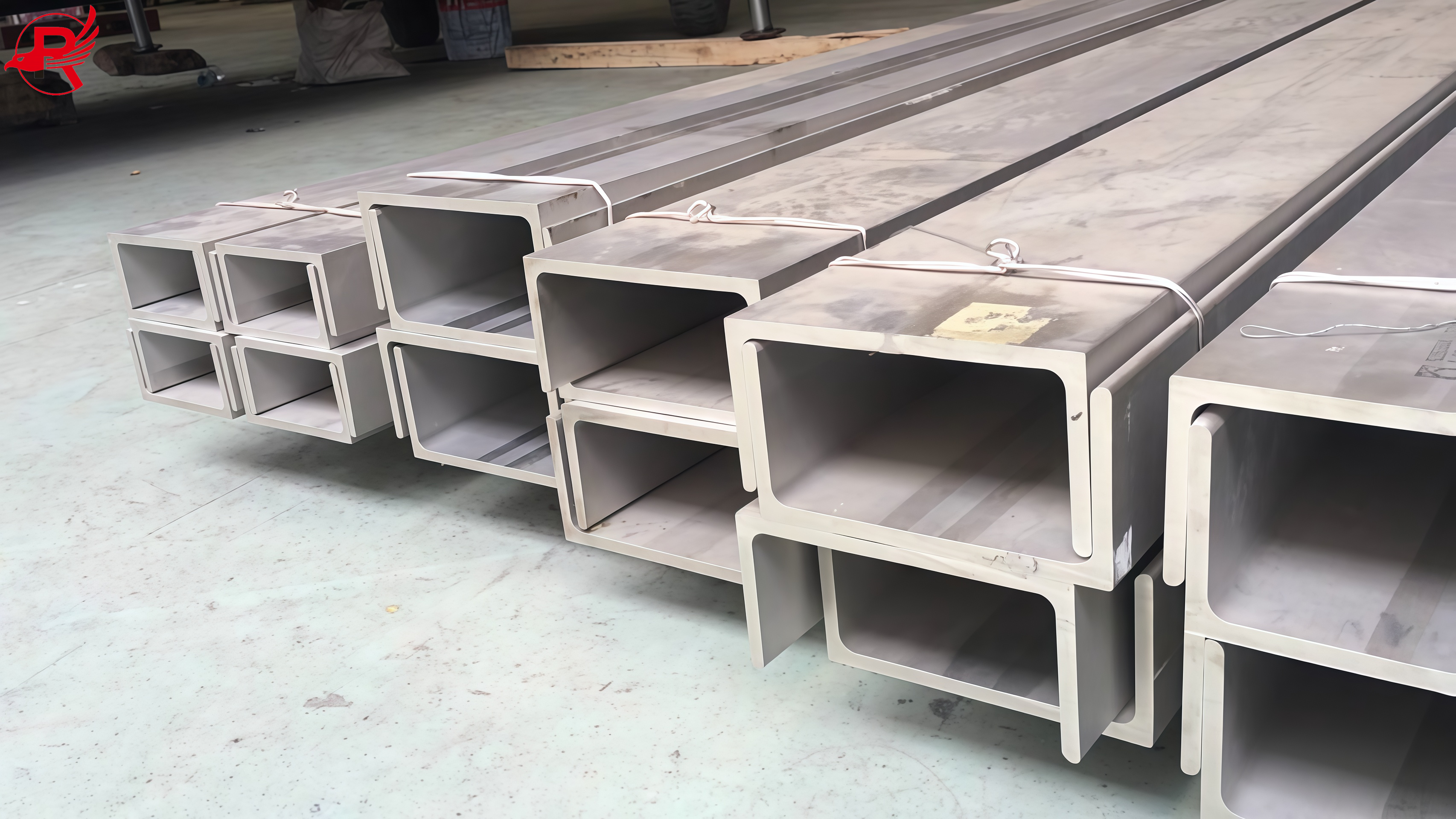

u-channel-steel

What Exactly Is U-Channel Steel?

U-channel steel is a flat strip of steel that has been bent into the shape of a U. One flat web base and two equal vertical flanges on both sides make up the U-shaped cross section of the channel. This form provides excellent anti-compression and anti-bending performance which is why it is one of the main building materials for bearing construction.

Differences in regional standards distinguish types of U-channels:

North America: U-channel and C-channel are sometimes used interchangeably on the job site.

European standards: Distance between flanges for UPE parallel flange U-channel steel is based on UPN tapered flange C-channel steel according to flange dimension and rolling process, which introduces the method of difference from T series.

Core Characteristics of Hot Rolled U-Channel Steel

As ligneous steel in structural steel, u-shaped steel possesses 4 core benefits:

1.High mechanical strength: Withstand heavy vibration and heavy load in the manufacture of bridge, factory frame, vehicle body.

2.High tolerance to the environment: Resistant to the effect of extreme temperature condition, erosive outdoor weather and mild chemical attack.

3.Fully Size Control:Full range in GB standard, ASTM standard JIS standard and BS standard from5# to 40# u-channel for custom project necessities.

4.Simple secondary processing: HRS material can be cut, weld, punch and galvanized for tailored building frame.

Standard Carbon U-Channel Steel Specifications Overview

Global manufacturers produce U-channel steel under unified international standards, including GB, ASTM, JIS, EN UPE/UPN series. Common steel grades include Q235, Q345, A36, SS400 and S235JRG1, with tensile strength ranging from 420 MPa to 485 MPa.

Popular EN standard sizes and unit weight (kg/m) for reference:

Item Depth (mm) Flange width (mm) Web thickness (mm) Flange thickness (mm) Weight (kg/m)
UPN80 80 45 6 8 8.64
UPN100 100 50 6 8.5 10.6
UPN120 120 55 7 9 13.4
UPN140 140 60 7 10 16
UPN160 160 65 7.5 10.5 18.8
UPN180 180 70 8 11 22
UPN200 200 75 8.5 11.5 25.3

Item Depth (mm) Flange width (mm) Web thickness (mm) Flange thickness (mm) Weight (kg/m)
UPE80 80 40 4.5 7.4 7.05
UPE100 100 46 4.5 7.6 8.59
UPE120 120 52 4.8 7.8 10.4
UPE140 140 58 4.9 8.1 12.3
UPE160 160 64 5 8.4 14.2
UPE180 180 70 5.1 8.7 16.3
UPE200 200 76 5.2 9 18.4

Key Advantages of U-Channel Steel for Industrial & Building Projects

Superior Rigidness: U-profile is effective in minimizing warping and sagging deformation under heavy weight, suitable for long-span support beams.

Wide range uses: Suitable for civil constructions, bridge beams, truck chassis, metal furniture, workshop machinery brackets and outdoor structural frames.

Long Lifespan: The raw carbon steel can be hot-dip galvanized in order to enhance the rust-resistance performance for the projects near coast or in moist environment.

High cost effectiveness: U-channel steel have an equivalent bearing capacity as the I-beam and hollow structural tubes at significantly reduced material and processing costs.

Steel U Channel Suppliers and Manufacturers

Looking for trusted steel U channel suppliers and manufacturers? Royal Steel Group offers high quality hot rolled and galvanized u channel steel that meets GB, ASTM, EN, JIS and other standards. With the accumulation of more than ten years of production experience, our factory keeps the full stock of all types of standard U channel, and can provide customized services, precision cutting, surface anti-rust treatment and rapid global door to door delivery. We cater to engineering contractors, metal fabricators and machine manufactures throughout Europe, South East Asia, North America and Latin America, who rely on us to provide one-stop structural steel solutions to meet a variety of building and industrial project specifications.
