Wide Flange Beam: Dimensions, Types and Applications

Wide flange beams (W‑beams) are the most common hot-rolled section used in North American commercial, industrial and infrastructure construction. With parallel‑flange H-shape geometry, these profiles provide superior strength-to-weight for floor joists, column beams, bridge beams and industrial steel construction. Nominal sizes can be used for rough calculations but designers and contractors often refer to a wide flange beam dimensions chart in order to relate nominal sizes with actual section properties to design works that are AISC compliant. ASTM A992 continues to be the dominant grade for US building steel, with ASTM A36 and A572 Grade 50 also being available for special-load conditions.

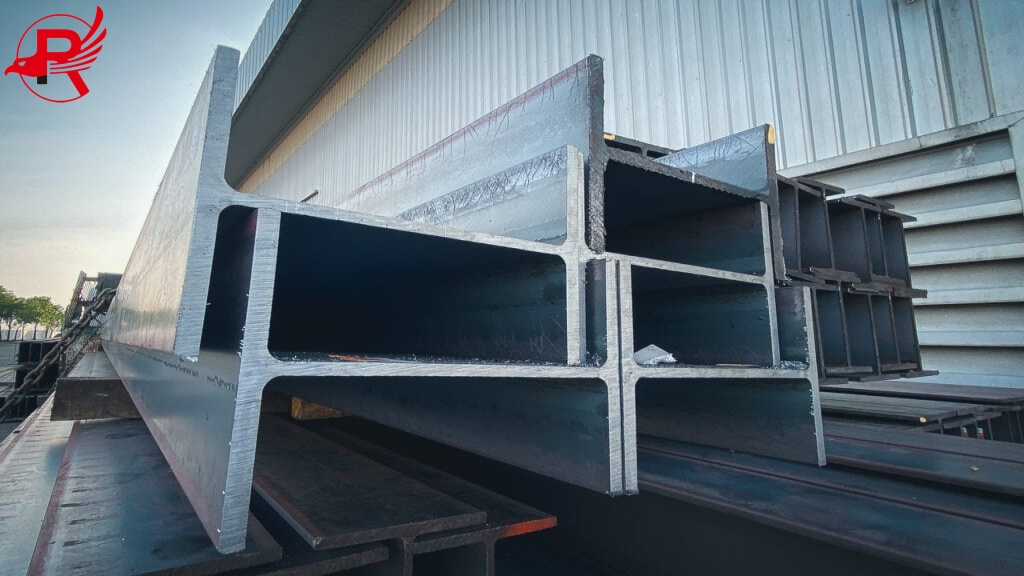

w flange beam

Key W‑Beam Dimensions for US‑Specified Projects

Design engineers routinely call out light, medium, and Heavy W-section in a variety of building plans. Most commonly requested dimensions are w14 x 99, w8x10, w8x15, w12x19, w12x35, w10x12, w8x40, w10x45 and w24x84. You can convert US beam designations, for example lb/ft in W-shape = Weight/Length = lb/ft. Full W beam dimensions chart Meanings of parameters in standard w shape are: depth of section (D), flange width (B), web thickness (t_w), flange thickness (t_f), volume of cross section (V) and moment of inertia (I).

Light sections such as w8x10 and w10x12 suit low‑load secondary framing;

Mid‑range profiles including w12x19, w12x35, w8x15 handle typical floor beams;

Heavier grades w8x40, w10x45, w14 x 99 and w24x84 apply to multi‑story columns, long‑span girders and heavy industrial supports.

View the Complete W Beam Specifications Table

Main Types of Wide Flange Beams

Wide flange beams for the US At present there are two main types of production of wide flange beams: hot-rolled W-shapesand W-shapes formed by welding.

Hot-rolled ASTM W-beams are produced at the mill according to the ASTM A6 standard in sizes ranging from light w8x10 up to heavy w24x84 and bigger profiles, having homogeneous metalsructure and dimensional tolerances to facilitate fast-track construction.

Built-up welded wide flange beams are fabricated to order when non-standard depth or flange width or extra heavy loads are required, they are extensively utilized in long-span warehousing roofs and bridge parts.

Material grades: ASTM A992 is the default for most US building frames; A572‑50 for high‑strength infrastructure; A36 for general‑purpose secondary steelwork.

Typical Real‑World Applications

Building Structures: Employed for columns, floor joists, roof rafters and primary building frame work in commercial, industrial and residential applications.

Bridges & Infrastructure: Frequently used in bridges as a girder, highway structures as support beams, pedestrian bridges as components.

Industrial Facilities: It is good for warehouses, factories, workshops and steel-frame construction with high load-bearing requirements.

Mezzanine & Platform Systems: Used for mezzanine floors, elevated platforms, equipment platforms, and heavy-duty industrial floors.

Crane & Heavy-Duty Structures: Used for crane support system, equipment frame, and other high or heavily static or dynamic loaded structure.

Transportation Projects: Used in railway buildings, highway buildings, terminals, and transport.

Sourcing Reliable W Beam Suppliers for US‑Bound Projects

Royal Steel Group is a w beam supplier to fabricators, contractors, and project owners based in the United States.

We provide US‑based localized services:

1.Full set of MTC test reports following American project standard.

2.AISC applicable wide flange beams size chart data reference, adaptable container based bulk pack.

3.Surface treatment choices such as shot blasting and primer paint.

4.Preshipment third party inspection like SGS or BV upon the demand.

Royal Steel Group retains consistent mill relationships to accommodate project containing orders. Contact our structural‑steel technical team for a quotation, datasheet or the full size list of wide flange beams for your next US construction project.
