ASTM A36 Steel Shear Tab Connection Plate
PRODUCT DETAIL
Our shear plates are made from ASTM A36 steel plate that is high quality and can be precision cut and drilled based on your connection drawings. Standard and tailored sizes can be provided to satisfy different structural connection demands.
PRODUCT SPECIFICATION
| Item | Specification |
| Product Name | Shear Tab / Shear Connection Plate |
| Material | ASTM A36 |
| Standard | ASTM / AISC |
| Manufacturing | Laser/Plasma Cutting, Drilling, Fabrication |
| Bolt Holes | Precision-drilled according to connection design |
| Size | Standard and Custom Sizes |
| Thickness | Customizable according to engineering requirements |
| Surface | Black / Painted / Galvanized upon request |
| Connection Type | Simple Shear Connection |
| Quality Control | Dimensional, Hole Position & Material Inspection |

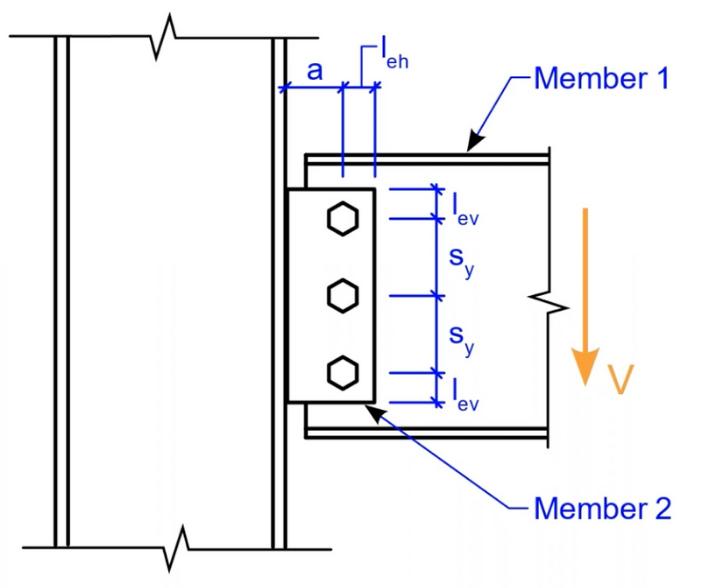

What Is a Shear Tab

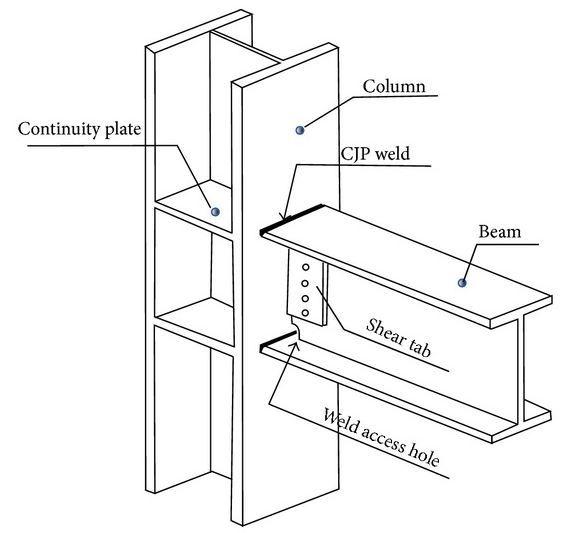

A shear tab is a plate that is welded to the shape of a structural support and then bolted to the end of a beam. It is mainly intended to transfer vertical shear loads and at the same time to allow the accommodation of specified structural movements in the beam connection.
Because of their simplicity, efficiency, and cost-effectiveness, shear tabs are widely used in steel framed buildings to connect beams.
KEY FEATURES
ASTM A36 Steel: Ideal strength and weldability for structural applications.
Precision Bolt Holes: Hole diameter, spacing and edge distances can be manufactured to match approved connection drawings.
Made-to-Order Fabrication: Width, length, thickness, hole pattern and configuration can be made-to-order.
Uniform Dimensions: Light dimensional control ensures field installation.
Fabrication for Your Project: Shop ready for the fabricator, steel contractor and structural steel project.
AISC Based Production: Made to accommodate connection designs using AISC applicable requirements.
APPLICATION
1.Beam-to-Column Connections: Shear tabs are the preferred method for attaching structural beams to steel columns in commercial and industrial construction.
2.Beam-to-Beam Connections: They can make simple shear connections between tertiary and secondary beams.
3.Warehouse & Industrial Buildings: Applicable to steel warehouse, steel factory, steel workshop and other steel frame buildings.
4.Commercial Buildings: Frequently found in office buildings, malls, and multi-level steel structures.
5.Mezzanine & Platform Structures: Fasteners are suitable for the secondary beam connections in mezzanine flooring, equipment platforms, and industrial platforms.
6.Structural Steel Fabrication: Perfect for the steel fabricator that needs to have connection plates pre-cut and pre-drilled for shop fabrication and field assembly.
Custom Shear Tab Fabrication
Royal Steel Group supports custom shear tab manufacturing based on engineering drawings. Customers can provide beam sizes, connection details, bolt specifications, hole patterns, plate thickness, and required quantities.
We can customize:
Plate length and width
Plate thickness
Bolt hole diameter
Hole quantity and spacing
Edge distance
Weld configuration
Surface treatment
Packaging and labeling
QUALITY CONTROL
Each shear tab can be inspected throughout the fabrication process, including:
Raw Material → Plate Cutting → Hole Drilling → Dimensional Inspection → Surface Inspection → Final Packing
Material certificates and third-party inspection services for example SGS or BV also can be provided as per project need.
WHY CHOOSE ROYAL STEEL GROUP?
Materials to Meet ASTM Standards - Shear tabs are made from ASTM A36 steel, ensuring predictable mechanical properties and weldability.
Custom Fabrication – We can produce plates in custom sizes, thicknesses, bolt-hole patterns and dimensions based on your connection drawings.
Precision Manufacturing - Sophisticated cutting and drilling techniques guarantee precise dimensions and hole placement.
Quality Control Strict – Before delivery, the material, dimension, hole position, surface roughness and final products are tested.
AISC-Responsive Manufacturing – We produce components to meet American structural steel connection needs.
Full documentation - MTC inspection reports packing lists and more project document are available upon request.
Dependable Export Service - Expert packaging, shipping coordination, and project assistance for global steel building projects.
Project & Bulk Orders – Steel fabricators, contractors, distributors, and big construction are you looking for Nationwide delivery, please call us.
FAQ
Q1: What material are your shear tabs made from?
A: Our standard shear tabs are manufactured from ASTM A36 steel plate. Other structural steel grades can be considered according to project requirements.

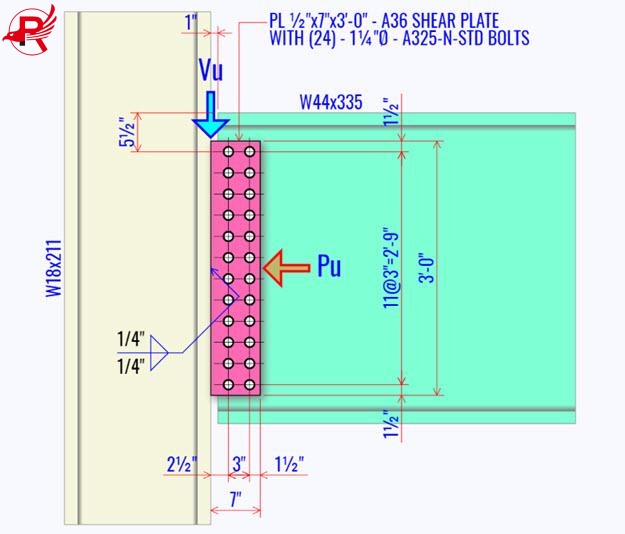

Q2: Can you manufacture shear tabs according to drawings?
A: Yes. We can manufacture shear tabs according to customer-approved drawings, including plate dimensions and bolt-hole patterns.
Q3: Can the bolt holes be customized?
A: Yes. Hole diameter, quantity, spacing, and location can be customized to match the connection design.
Q4: Are shear tabs suitable for beam-to-column connections?
A: Yes. They are commonly used for simple shear beam-to-column connections and other approved structural shear connections.
Q5: Can you provide material certificates?
A: Yes. We can provide Mill Test Certificates (MTC) and arrange third-party inspection when required.
Q6: Do you supply small quantities?
A: Yes. Both standard orders and large project quantities can be supported, subject to production requirements.
