ASTM Certified Prefab Steel Structure Cow Barn & Horse Stable
APPLICATION

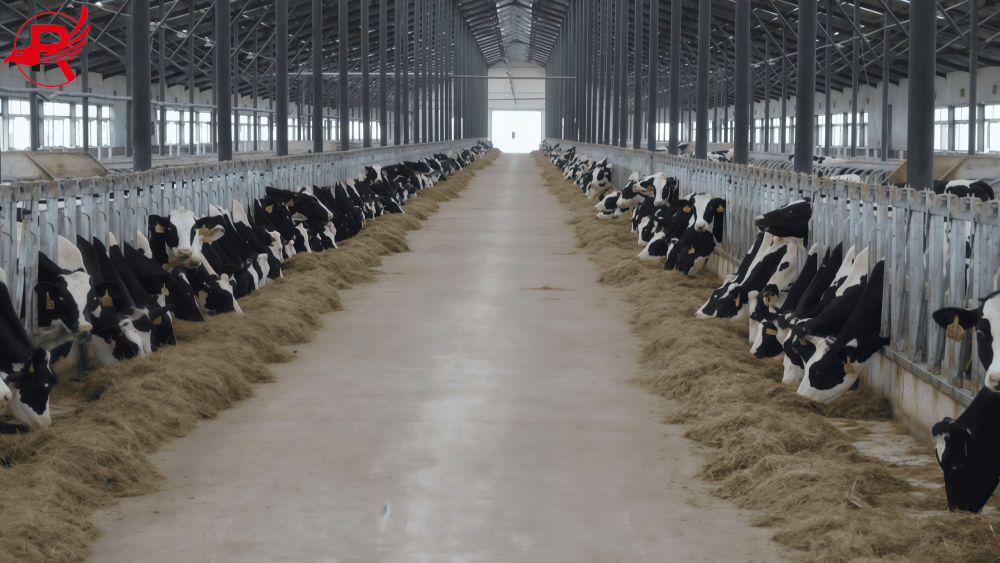

Livestock Farms & Animal Shelters: Used for cow barns, horse stables, poultry houses, and other livestock facilities with good ventilation and durability.

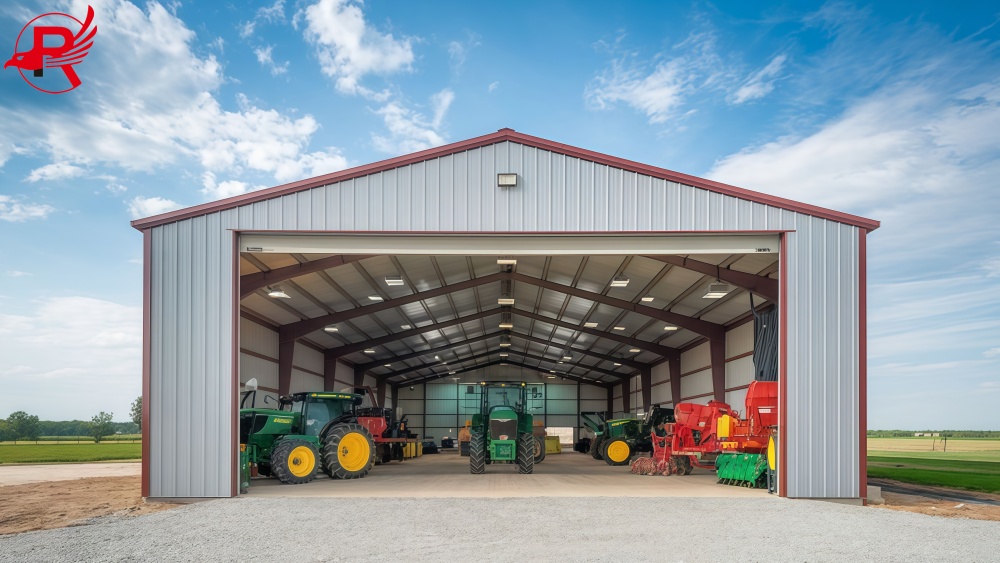

Agricultural Storage Buildings: Features a large, open-plan design, making it suitable for storing feed, grain, agricultural equipment, and agricultural machinery.
Industrial Warehouses & Workshops: Applied in factories, workshops, and storage warehouses requiring fast construction and high load capacity.

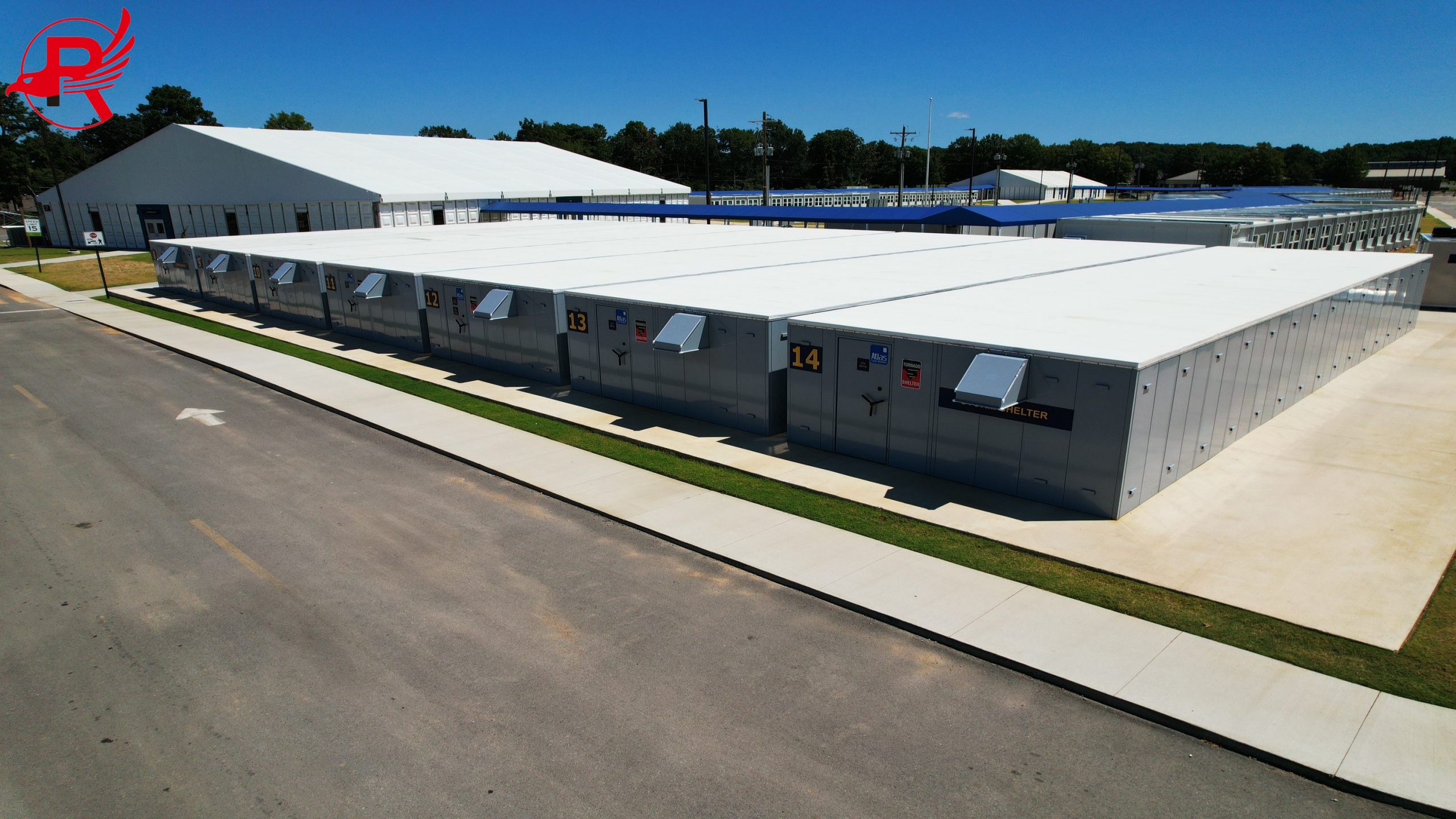

Commercial & Temporary Shelters: Used as parking sheds, equipment shelters, exhibition spaces, and temporary buildings for various industries.
PRODUCT DETAIL
| Main Frame Material | Specification / Grade | Function | Features |
| Primary Steel Frame | A36 / A572 / A992 H Beam or Box Column | Main load-bearing structure | High strength, stable support, long service life |
| Secondary Structure | C Purlin / Z Purlin (Galvanized Steel) | Roof and wall support | Lightweight, corrosion resistant, easy installation |
| Roof Panel | Color Steel Sheet / Sandwich Panel | Roof covering and insulation | Weather resistance, thermal insulation optional |
| Wall Panel | Steel Cladding / Sandwich Panel | Wall enclosure | Durable, heat insulation, customizable thickness |
| Bracing System | Round Steel Bar / Angle Steel | Structural stability reinforcement | Improves wind and seismic resistance |
| Connection Components | High-Strength Bolts & Fasteners | Structural assembly | Easy installation and secure connection |
| Surface Treatment | Painted / Hot-Dip Galvanized (HDG) | Corrosion protection | Suitable for humid and agricultural environments |
| Ventilation Components | Ridge Vent / Louvers / Windows | Air circulation | Improves livestock comfort and barn environment |
| Door System | Sliding Door / Rolling Door | Access for livestock and equipment | Flexible operation and large opening size |
| Drainage System | Gutter & Downpipe | Rainwater discharge | Prevents water accumulation and extends service life |
STEEL STRUCTURE 3D DESIGN
We provide professional 3D drawing design services for steel structure projects, including cow barns, horse stables, warehouses, workshops, and agricultural buildings. Based on your dimensions, layout requirements, local climate conditions, and load standards, our engineering team delivers customized 3D models and structural solutions.
The service includes 3D renderings, structural layout plans, material lists, connection details, and installation guidance, helping customers visualize the project before production and optimize construction efficiency. Customized designs support faster installation, reduced costs, and improved project accuracy.
STEEL STRUCTURE PROCESSING
| Processing Method | Machines Used | Description |
| Cutting | CNC plasma cutters, CNC flame cutting machines, hydraulic shears | Precision cutting of ASTM standard steel plates and structural sections for columns, beams, roof frames, and stable components, ensuring accurate dimensions and smooth edges. |
| Forming | CNC press brake, cold bending machines, rolling machines | Forming purlins, wall panels, roof trims, gutters, and curved structural components used in livestock shelters and equestrian facilities. |
| Welding | Submerged arc welding (SAW), CO₂ gas shielded welding, manual arc welding | SAW applied for heavy H-beams and main structural frames; CO₂ welding for light-gauge sections; manual welding for connection plates and customized stable accessories. |
| Hole Making | CNC drilling machines, hydraulic punching machines | High-precision drilling and punching for bolt holes, ensuring fast on-site assembly and accurate alignment of prefab barn structures. |
| Surface Treatment | Shot blasting machine, sand blasting equipment, grinding tools, hot-dip galvanizing line | Surface cleaning, weld seam finishing, anti-rust treatment, and optional hot-dip galvanizing to enhance corrosion resistance in humid farm environments. |
| Assembly | Assembly platforms, laser measuring tools, alignment jigs | Pre-assembly and dimensional inspection of steel frames, roof systems, and support structures before shipment to ensure efficient installation on site. |
STEEL STRUCTURE TESTING
Salt Spray Test: Analyzes the corrosion resistance of a coated sheet steel when subjected to a neutral salt fog test in accordance with ISO 9227, with consideration of marine or saline environments for rusting development and coating long-term stability.
Adhesion Test: Tests the strength of the bond between the coating and steel substrate and confirms that the coating will remain securely attached without blistering, flaking or delaminating when exposed to mechanical or environmental stress.
Humidity & Heat Resistance: Assesses the performance of the coating in a high temperature and humidity environment, comprises of testing for blistering, rusting & stability in tropical conditions of wet atmosphere in nature.
UV Aging Test: This test method imitates the long-term ultraviolet radiation exposure to determine weathering resistance such as discoloration, chalking, cracking and surface damage of coating.
Film Thickness Test: The DFT is measured to provide assurance that the coating has been applied evenly and in accordance with the requirements of protection to obtain a uniform corrosion resistance.
Impact Strength Test: Tests the ability of a coating to resist a sudden mechanical impact without cracking, peeling or losing adhesion when exposed to an external force or subjected to a deformation.
CATTLE BARN DESIGN

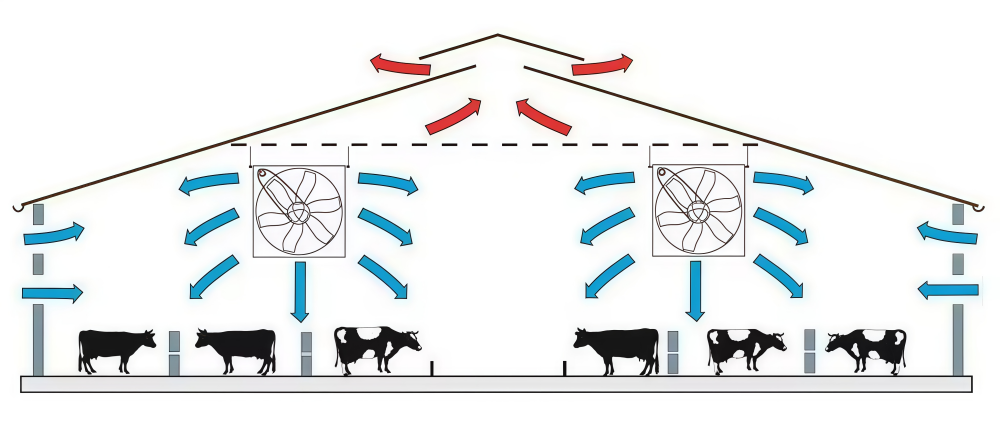

The heat generated by livestock naturally rises. If it cannot be dissipated from the building, the heat condenses on the cold roof surface, increasing humidity and making the bedding damp and cold. This creates a suitable environment for bacterial growth.
This not only increases the risk of disease in livestock but also exacerbates heat stress, severely impacting productivity, especially milk production, and also affecting fertility, abortion rates, and calf birth weight.
Installing a livestock barn ventilation system provides a continuous supply of fresh air, mitigating the effects of heat stress and helping to maintain and improve livestock productivity.
SURFACE TREATMENT
PACKAGING AND SHIPPING
Steel components are carefully packed using steel bundling, protective wrapping, and reinforced wooden or steel frames to prevent deformation, surface damage, and coating scratches during handling and transport. Critical parts such as bolts, connectors, and accessories are packed in labeled waterproof cartons for easy identification and installation on site.
For shipping, all prefabricated steel structures are loaded into containers or bulk vessels depending on project size. Proper lifting points and loading plans are used to ensure stability and safety during transportation. Each shipment is secured to minimize movement, protect structural integrity, and ensure safe delivery to international project sites.
WHY CHOOSE OUR STEEL STRUCTURES?
Quality Assurance
We are ISO9001-2015 certified and have a complete Quality Control (QC) and Quality Assurance (QA) department. Every product must undergo an IQC-LQC-FQC-QA process to meet quality requirements.
Professional Team
We have a professional team of engineers, all graduates of mechanical engineering programs with 20 years of engineering experience.
Design Capabilities
They are capable of optimizing and improving existing product processes to reduce costs and improve quality, and can also design product structures to ensure their safety and stability.
Service
We are ISO9001-2015 certified and have a complete Quality Control (QC) and Quality Assurance (QA) department. Every product must undergo an IQC-LQC-FQC-QA process to meet quality requirements.
Comprehensive Equipment
We offer OEM and ODM services for parts and assemblies, as well as one-stop sourcing services, saving customers time and costs.
Ready to start your project?
FAQ
Q1.What kind of customer service do you provide?
A: We offer comprehensive customer service, including basic design, supporting facilities procurement, and the option to dispatch installation guidance.
Q2. How about the customer reviews of your company?
A: We are proud to have received consistently high five-star reviews from our customers, which stand as a testament to our commitment to quality and service.
Q3. What is your quality inspection process like?
A: Our strict quality inspection process ensures that every product meets the highest standards of excellence. From raw materials to finished goods, each stage is meticulously inspected to guarantee superior quality.
Q4. Can you send engineers or a whole team to install my project?
A: We will give detailed installation drawings for free. We can send engineers as an installation director or a team upon request.
Q5. Do you accept container loading inspection?
A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Q6. Do you offer designing service for us?
A: Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial buildings like office mansions, super markets, auto dealer shops, shipping malls, 5-star hotels.
Q7. What is the delivery time?
A: Delivery time depends on order quantities. In general, the delivery time to the nearest seaport in China will be 30 days after receiving the deposit.
Q8. How can I get a quotation for my projects?
A: You can contact us by email, whatsapp and so on 24*7 and you will get a reply within 8 hours.
Q9. What certifications has your company passed?
A: Our company has passed professional certifications such as ISO 9001, CE, and SGS, ensuring that our products and services meet international standards.
