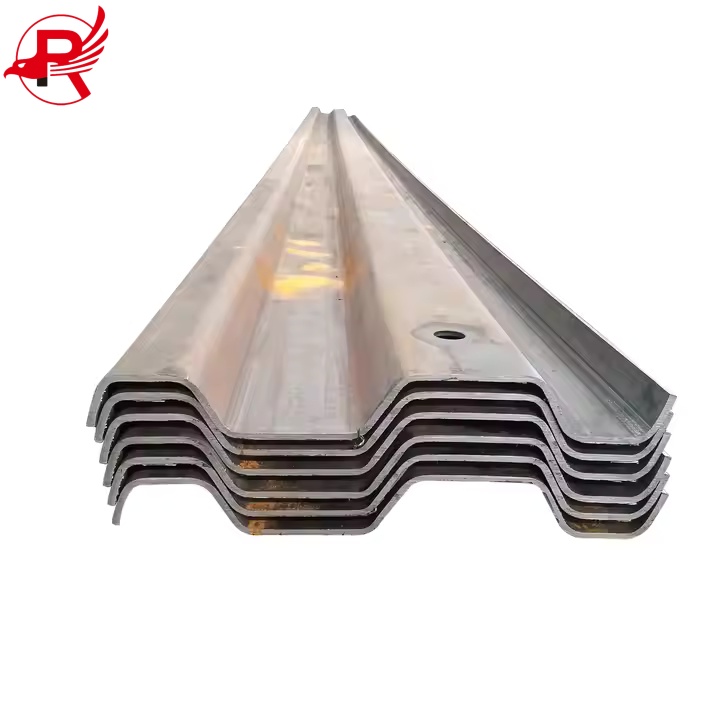

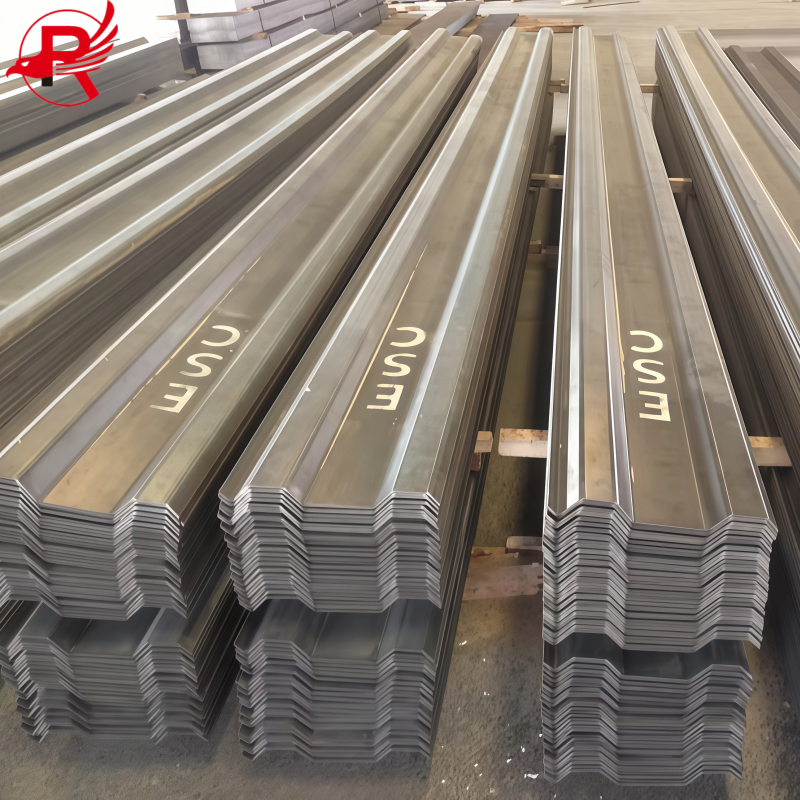

Colding Rolled GB Q235B Q270B Q355B Trench Sheet Pile
Product Detail
| Steel Grade | Q235B / Q270B / Q355B | Width | 400–600 mm |
| Standard | GB | Length | 4–12 m (custom available) |
| Type | Cold Rolled Trench Sheet Pile | Delivery Time | 7–20 Days |
| Thickness | 3–12 mm | Certificates | ISO9001 / CE / SGS |
GB Trench Sheet Pile Chemical Composition
| Steel Grade | C | Si | Mn | S | P | Others |
| Q235B | ≤0.20 | ≤0.35 | 0.30–0.70 | ≤0.045 | ≤0.045 | Cr+Ni+Cu≤0.30 |
| Q270B | ≤0.24 | ≤0.35 | 0.35–1.20 | ≤0.045 | ≤0.045 | Cr+Ni+Cu≤0.30 |
| Q355B | ≤0.24 | ≤0.55 | 1.00–1.60 | ≤0.035 | ≤0.035 | Nb+V+Ti≤0.22; Cr+Ni+Cu≤0.70 |
GB Trench Sheet Pile Mechanical Properties
| Steel Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Impact Test |
| Q235B | ≥235 | 370–500 | ≥26 | ≥27 J at 20℃ |
| Q270B | ≥270 | 410–540 | ≥22 | ≥27 J at 20℃ |
| Q355B | ≥355 | 470–630 | ≥21 | ≥34 J at 20℃ |

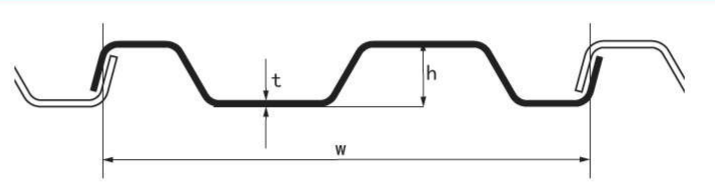

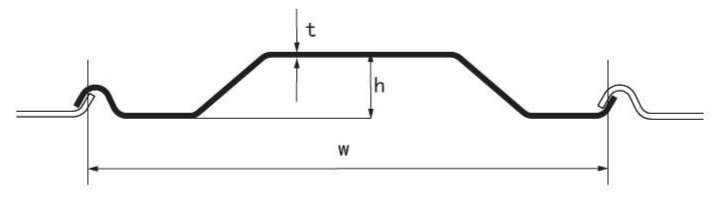

GB Trench Sheet Pile Size
| Section | Dimensions | Mass | Per meter of wall | ||||
| Width | Height | Thickness | Single pile |
Wall | Modulus of Section |
Moment of Inertia |
|
| w | h | t | W | I | |||
| mm | mm | mm | Kg/m | kg/m2 | cm3 | cm4 | |
| GPT600-6 | 600 | 78 | 6 | 37.5 | 62 | 184 | 722 |
| GPT600-7 | 600 | 79 | 7 | 44.5 | 74.1 | 232 | 835 |
| GPT600-8 | 600 | 80 | 8 | 50 | 83 | 237 | 955 |
| GPT600-9 | 600 | 81 | 9 | 55.53 | 92.55 | 263 | 1072 |
| Section | Dimensions | Mass | Moment of inertia | Modulus of Section | |||
| Width | Height | Thickness | Per pile | Wall | |||
| w | h | t | |||||
| mm | mm | mm | kg/m | kg/m2 | cm4/m | cm3/m | |
| GPT 330-3 | 330 | 34 | 3 | 9.72 | 29.45 | 68 | 40 |
| GPT 330-3.5 | 330 | 34.5 | 3.5 | 11.34 | 34.36 | 79 | 46 |
| GPT 330-4 | 330 | 35 | 4 | 12.96 | 39.29 | 91 | 52 |
| GPT 330-4.5 | 330 | 35.5 | 4.5 | 14.53 | 44.04 | 103 | 57 |
| GPT 330-5 | 330 | 36 | 5 | 16.09 | 48.76 | 114 | 63 |
| GPT 400-4 | 400 | 37 | 4 | 15.62 | 39.05 | 100 | 49 |
| GPT 400-5 | 400 | 49 | 5 | 18.52 | 46.3 | 208 | 84 |
| GPT 400-5.5 | 400 | 49.5 | 5.5 | 20.37 | 50.92 | 229 | 91 |
| GPT 400-6 | 400 | 50 | 6 | 22.23 | 55.57 | 250 | 99 |
| GPT 500-5 | 500 | 49 | 5 | 22.45 | 44.9 | 215 | 86 |
| GPT 500-6 | 500 | 50 | 6 | 26.94 | 53.88 | 258 | 101 |
| GPT 742-5 | 742 | 91 | 5 | 33.79 | 45.54 | 745 | 163 |
| GPT 742-6 | 742 | 92 | 6 | 40.9 | 54.66 | 893 | 194 |
| GPT 742-6.5 | 742 | 92.5 | 6.5 | 43.72 | 58.9 | 967 | 209 |
| GPT 742-7 | 742 | 93 | 7 | 47.03 | 63.4 | 1042 | 224 |
| GPT 742-7.5 | 742 | 93.5 | 7.5 | 50.3 | 67.8 | 1116 | 239 |
| GPT 742-8 | 742 | 94 | 8 | 53.56 | 72.18 | 1197 | 254 |
| GPT 742-9 | 742 | 95 | 9 | 60.26 | 81.21 | 1346 | 283 |
| GPT 880-4 | 880 | 152 | 4 | 41.2 | 46.8 | 1897 | 261 |
| GPT 880-6 | 880 | 154 | 6 | 61.9 | 70.3 | 2858 | 382 |
| GPT 880-8 | 880 | 156 | 8 | 84.6 | 96.1 | 3890 | 510 |
| Note: The above table shows only part of our available sizes. We offer more than 1,000 different sizes in total. Our machines can be adjusted to produce any custom width, height and thickness. If the size you require is not listed, please feel free to contact us for a tailored solution. | |||||||
Download Full Catalog

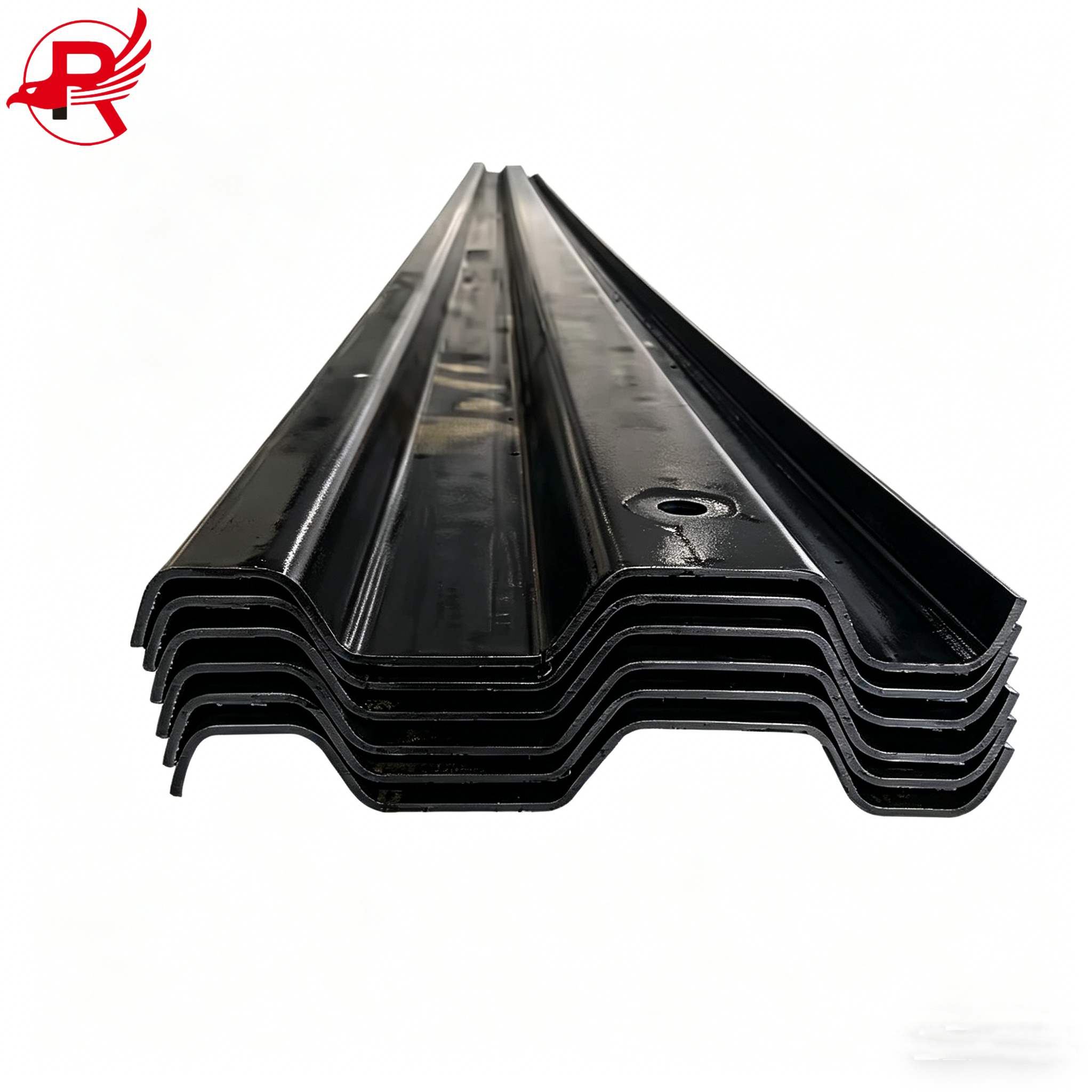

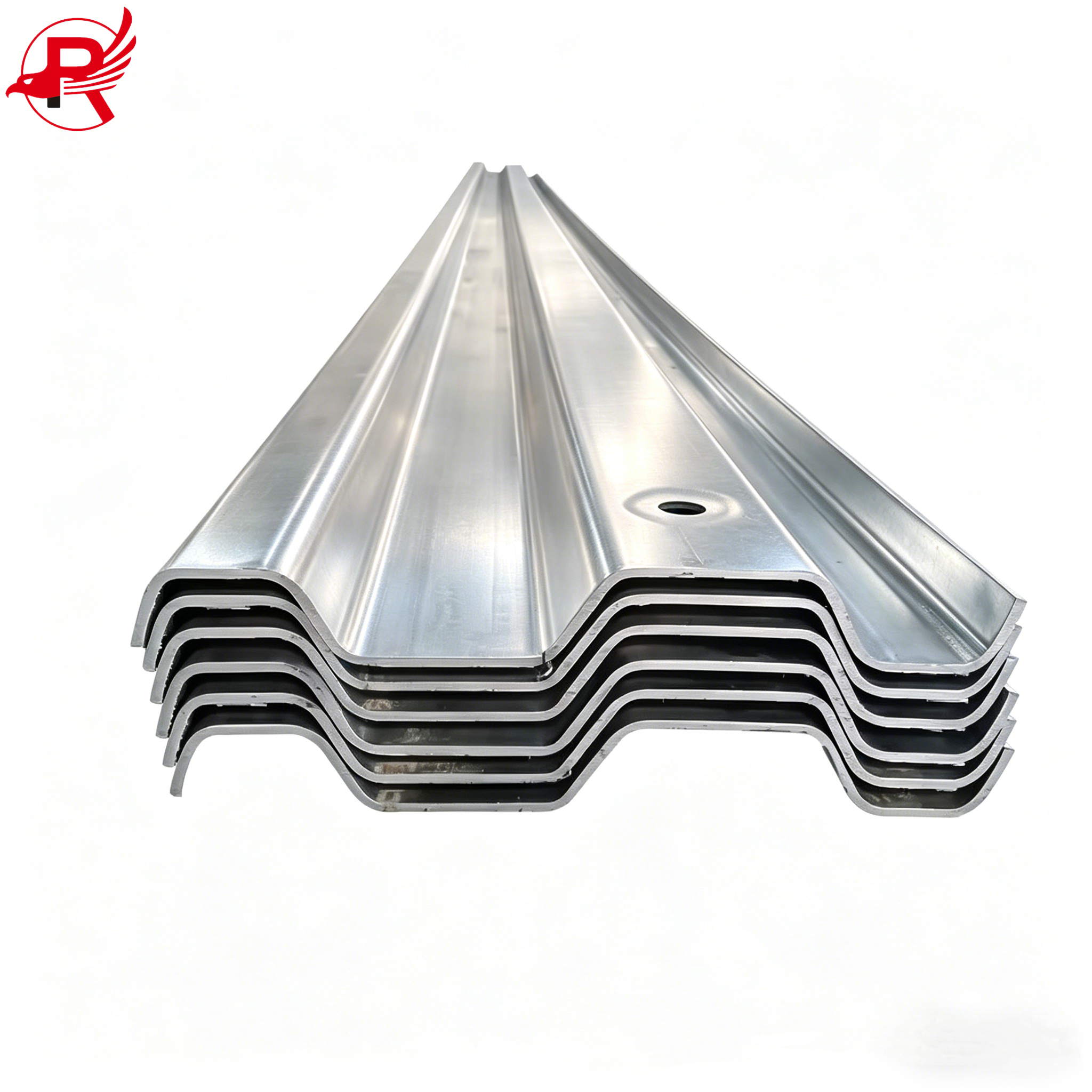

GB Trench Sheet Pile Surface
APPLICATION

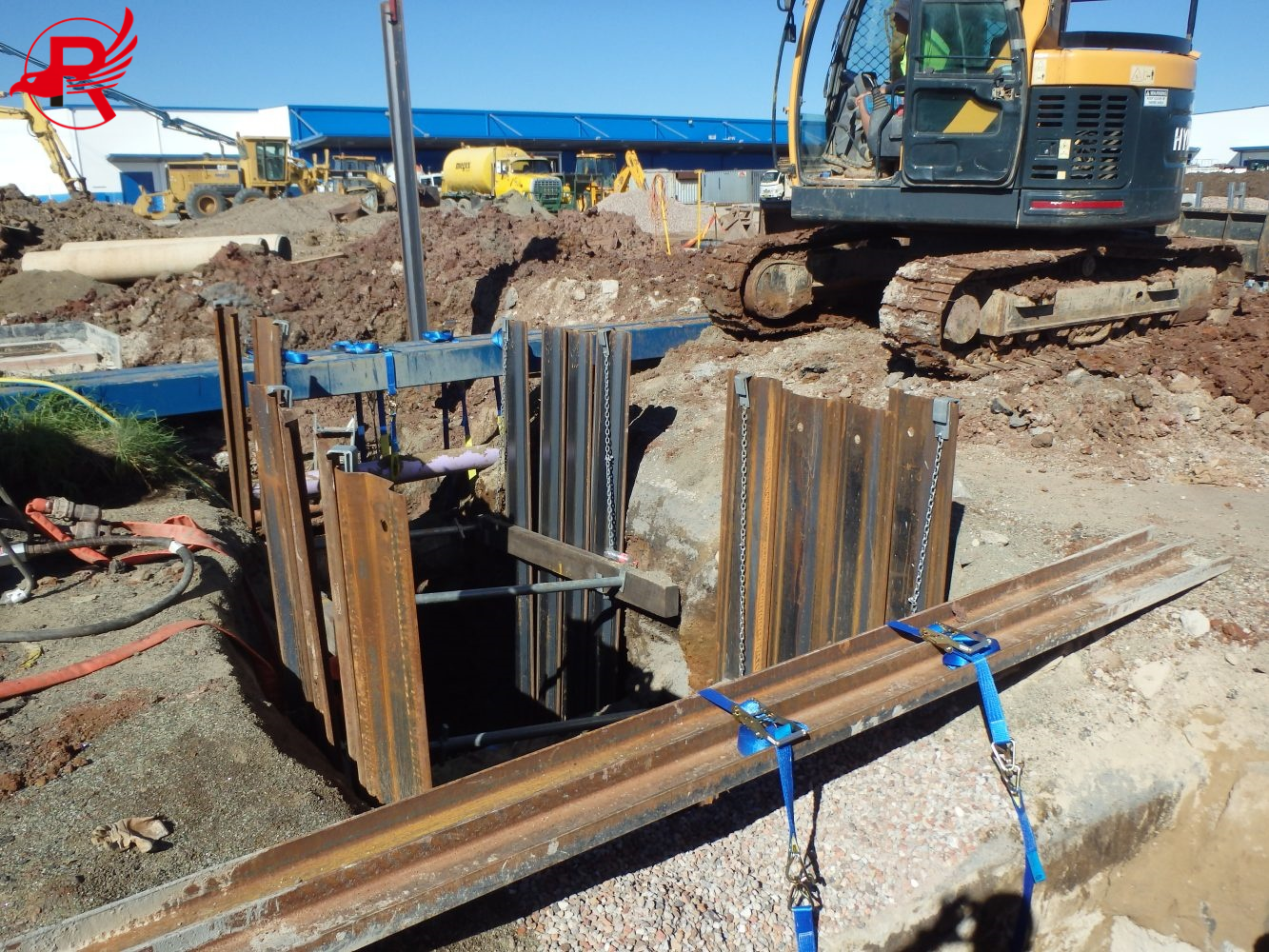

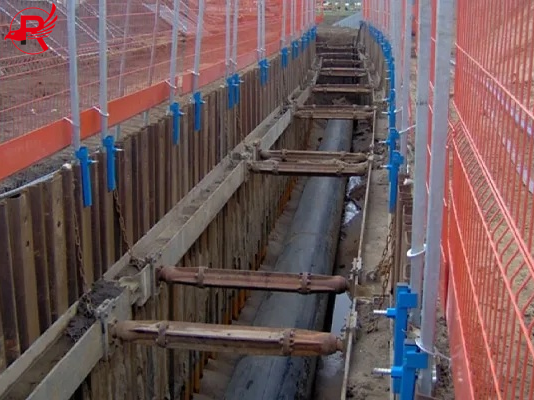

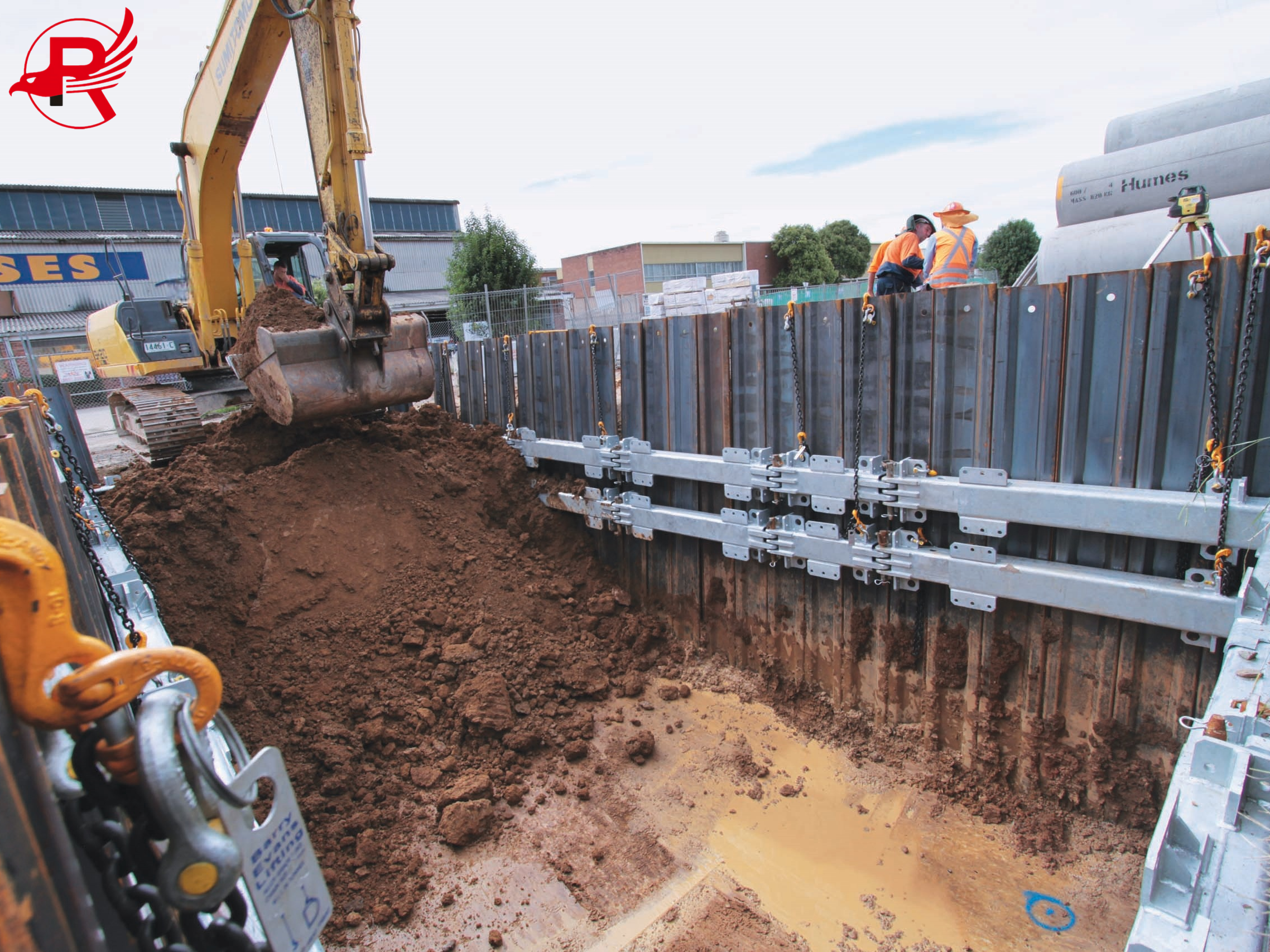

Municipal Trench Support: Provide safe sidewall retaining for trenches during pipeline, cable and utility laying.
Foundation Pit Bracing: Temporary earth-retaining for small and medium foundation pits to ensure excavation safety.
Riverbank & Waterway Protection: Stabilize riverbanks, prevent collapse and form water cutoff structures in water conservancy projects.
Temporary Earth Retaining & Cofferdams: Quickly build temporary retaining and water-blocking structures with reusable performance.
Trench Sheet Piles Advantage
1.Our lightweight trench profile sheet pile features a simple overlapping connection. It is designed for quick installation and repeated reuse, making it ideal for projects with low to medium load requirements such as pipeline laying.
2.The actual number of reuses depends on the sheet pile length and its on-site working conditions.
3.This type of sheet pile is especially popular in the Middle East, Australia and other regions with relatively soft soil conditions.
4.In addition, we provide customers with one-stop services including sheet pile design, structural calculation, cost estimation and construction guidance.
PACKAGING AND SHIPPING
Our trench sheet piles are securely bundled with strong steel straps to ensure stability during long-distance transportation and prevent scratches or deformation.
Each bundle is clearly labeled with product specifications, quantity, steel grade and batch information for easy identification.
The packaging is well suited for container shipping, bulk cargo and land transport, ensuring safe delivery to ports and job sites.
We can also provide protective end caps to protect sheet pile edges and interlocks during loading and transit.
Flexible loading plans are available to meet different delivery schedules and customer requirements.
FAQ
Q1. Can the products be reused many times?
A: Yes. They can be driven and extracted easily without deformation, so they can be reused many times under normal construction conditions.
Q2. Can you produce non-standard sizes?
A: Yes. We have more than 1,000 sizes and can customize width, height and thickness according to your requirements.
Q3. What is your typical delivery time?
A: Generally 7–20 days after receiving the deposit, depending on order quantity and production schedule.
Q4. Do you provide design and calculation services?
A: Yes. We can supply sheet piling design, structural calculation, construction suggestions and cost budget for free.
Q5. What packaging and shipping methods do you use?
A: Products are bundled with steel strips, suitable for container and bulk shipping. Protective caps are available to avoid damage during transit.
