Fast Installation Prefabricated Steel Structure Warehouse Building
APPLICATION
Portal Frame Structure: Most common type of industrial building
Main components: H-shaped steel columns + H-shaped steel beams
Features: Large span (up to 30–60m), economical steel consumption
Applications: Factories, warehouses, logistics centers, workshops
Steel Truss Structure: Suitable for large-span roofs
Main forms: Triangular trusses, space trusses
Features: Rational stress distribution, material saving, large span
Applications: Stadiums, airports, exhibition halls, roof structures
Light Gauge Steel Structure / LGS: Mainstream Lightweight Housing
Main materials: Cold-formed thin-walled steel (C-shaped steel, U-shaped steel)
Features: Lightweight, quick prefabricated construction, good thermal insulation performance
Applications: Villas, guesthouses, modular housing
Light Steel Frame Structure: Commercial and Office Buildings
Main components: Steel columns + steel beams + floor decking
Features: Stable structure, suitable for multi-story designs, short construction period
Applications: Office buildings, commercial buildings, schools, dormitories
PRODUCT DETAIL
| Steel Structure Building/Warehouse/Poultry | ||||

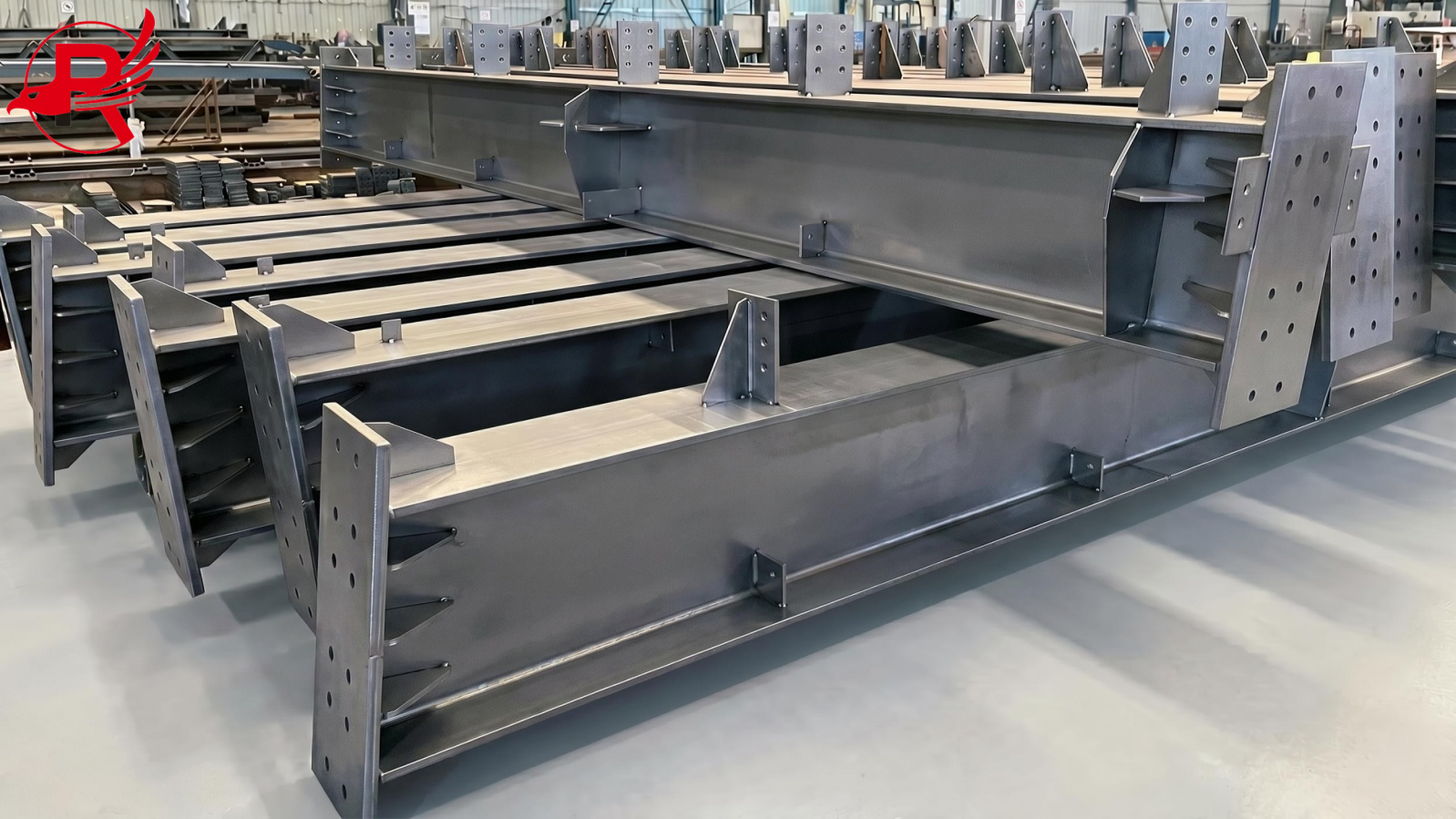

| 1. Main Framing | Welded/ Hot rolling H section column and beam | |||
| Column | A36,A572 and A992 H section steel | |||
| Beam | A36,A572 and A992 H section steel | |||
| 2. Secondary Framing | ||||
| Purlin | A36 and A572 Z and C sections purlin | |||
| Knee brace | A36 and A572 angle steel, galvanized | |||
| Tie bar | A36 and A572 round steel,painted | |||
| Bracing | A36 and A572 round steel, galvanized | |||
| 3. Roof and Wall panels | Steel sheet and insulated sandwich panels | |||
| Single steel sheet | 0.5/0.6/0.7 color steel sheet | |||
| Sandwich panel | EPS/PU/Fiber glass wool/ rock wool sandwich panel | |||
| 4. Steel Decking Floor | V-688 Decking floor | |||
| 5.Structural subsystem | Canopies, Fascias, Partitions, etc. | |||
| 6.Mezzanines, Platforms | H beam | |||
| 7.Other Building Accessories | Sliding Doors, Roll Up Doors, Windows, Louvers, etc. | |||
STEEL STRUCTURE DESIGN
CAD Drawing Design-1
CAD Drawing Design-2
CAD Drawing Design-3
STEEL STRUCTURE PROCESSING
1. Cutting
Machines Used: CNC Plasma Cutters, CNC Flame Cutting Machines, Hydraulic Shears
Description: Precision cutting of steel plates and structural components. Plasma and flame cutting are suitable for thick steel plates, while hydraulic shearing ensures smooth edges and accurate dimensions for thinner materials.
2. Forming
Machines Used: CNC Press Brakes, Cold Bending Machines, Rolling Machines
Description: Used for shaping steel components such as purlins, gutters, flashing trims, curved beams, and cylindrical structural parts with high dimensional accuracy.
3. Welding
Machines Used: Submerged Arc Welding (SAW), Manual Arc Welding, CO₂ Gas Shielded Welding
Description: SAW is commonly used for H-beams and H-columns, while manual welding is applied to connection plates and reinforcement parts. CO₂ welding ensures clean and strong welds for thin-walled steel sections.
4. Hole Making
Machines Used: CNC Drilling Machines, Hydraulic Punching Machines
Description: CNC drilling provides highly accurate bolt hole positioning for structural assembly. Hydraulic punching is suitable for standard hole patterns and efficient batch production.
5. Surface Treatment
Machines Used: Shot Blasting Machines, Sand Blasting Equipment, Grinding Tools, Hot-Dip Galvanizing Line
Description: Surface preparation removes rust, scale, and contaminants. Grinding improves weld appearance, while hot-dip galvanizing provides long-term corrosion resistance for structural steel components.
6. Assembly
Machines Used: Assembly Platforms, Laser Measuring Tools, Alignment Jigs
Description: Pre-assembly of steel columns, beams, trusses, and bracing systems is performed to verify dimensions, fit-up accuracy, and structural integrity before shipment.
STEEL STRUCTURE TESTING
1. Salt Spray Test
Standard(s): ASTM B117, ISO 11997-1
Purpose: Evaluates corrosion resistance of galvanized and coated steel products, particularly for coastal, humid, and marine environments common in Central America and tropical regions.
2. Adhesion Test
Standard(s): ISO 2409 / ASTM D3359 (Crosshatch), ISO 4624 / ASTM D4541 (Pull-Off)
Purpose: Measures the bonding strength between the coating and steel substrate to prevent peeling, flaking, or coating failure during service.
3. Humidity & Heat Resistance Test
Standard(s): ASTM D2247 (40°C / 95% Relative Humidity)
Purpose: Assesses coating performance under high-temperature and high-humidity conditions, ensuring resistance to blistering, cracking, and moisture penetration.
4. UV Aging Test
Standard(s): ASTM G154
Purpose: Simulates long-term sunlight exposure to evaluate resistance to fading, chalking, discoloration, and coating degradation caused by ultraviolet radiation.
5. Film Thickness Test
Standard(s): ASTM D7091 (Dry Film Thickness), ASTM D1212 (Wet Film Thickness)
Purpose: Verifies that coating thickness complies with project specifications and provides adequate corrosion protection.
6. Impact Strength Test
Standard(s): ASTM D2794 (Drop Hammer Impact Test)
Purpose: Evaluates the coating’s resistance to mechanical damage during handling, transportation, installation, and storage.
These testing procedures ensure that steel structures, steel pipes, H-beams, sheet piles, and other fabricated steel products maintain excellent durability and long-term performance in demanding project conditions.
SURFACE TREATMENT
PACKAGING AND SHIPPING
All components of the steel structure are packed with the tight export standard to ensure the safety and quality during transportation. Materials are processed with anti-rust and wrapped with waterproof before delivery to avoid the damage from rust and wet.
I beams, columns, purlins and main structural elements are banded tightly with steel straps and packed in a way that the package itself is resistant to any stacking and loading pressure. Each part is also labeled with identification numbers for quick and the easy on-site installation.
We apply optimized container loadings solutions (20ft/40ft container or flat rack) according to products size. All goods are well secured in the containers to maintain its stability and safe during the transportation at sea.
FCL, LCL, Bulk.order FLEXIBLE SHIPPING OPTIONS We provide you with flexible best shipping options for efficient and dependable delivery to your project sites worldwide.
WHY CHOOSE OUR STEEL STRUCTURES?
1.Customized Engineering Solutions
Our experienced engineering team provides customized design and fabrication services based on project drawings, loading requirements, local building codes, and environmental conditions.
2.Strict Quality Control
Every component undergoes comprehensive inspections, including material verification, dimensional checks, welding inspections, coating thickness testing, and final assembly verification before shipment.
3.Corrosion Protection Options
We offer hot-dip galvanizing, anti-rust primer coating, and industrial paint systems to enhance corrosion resistance and extend service life in marine, coastal, and industrial environments.
4.Easy Installation & Cost Savings
Prefabricated steel components are manufactured for quick on-site assembly, reducing construction time, labor costs, and overall project investment.
5.Global Project Experience
Our steel structures have been exported to Southeast Asia, the Middle East, Africa, South America, and North America for warehouses, workshops, industrial plants, logistics centers, commercial buildings, and infrastructure projects.
6.Your Reliable Steel Structure Partner
From design and fabrication to packaging and global delivery, China Royal Steel provides one-stop steel structure solutions with competitive pricing, dependable quality, and professional technical support for international construction projects.
Ready to start your project?
FAQ
Q1: Can you provide customized steel structure designs?
A: Yes. We offer customized design, detailing, and fabrication services based on project drawings, building dimensions, loading requirements, and local building codes.
Q2: Can your steel structures withstand high wind and seismic conditions?
A: Yes. Our engineering team can design steel structures according to local wind loads, snow loads, and seismic requirements to ensure structural safety and reliability.
Q3: What information is required for a quotation?
A: Please provide building dimensions (length, width, height), design drawings (if available), wind load, snow load, seismic requirements, and project location for an accurate quotation.
Q4: How long is the production lead time?
A: Production time typically ranges from 15 to 45 days depending on project size, fabrication complexity, and order quantity.
Q5: Do you provide installation guidance?
A: Yes. We can provide installation drawings, assembly manuals, and online technical support to assist with on-site construction.
Q6: What certifications can you provide?
A: We can provide Mill Test Certificates (MTC), ISO 9001 certification, and third-party inspection reports from SGS, BV, or TUV upon request.
