Heavy Duty Steel Grating Trench Drain System with Floor Grates for Industrial Applications

Short Description:

Heavy Duty Steel Grating Trench Drain System is a high-strength drainage and flooring solution designed for industrial, commercial, and infrastructure applications. Manufactured from premium carbon steel or galvanized steel, these steel grating panels, drain grates, and metal flooring grates provide excellent load-bearing capacity, corrosion resistance, and long service life.

Standard: ASTM,EN,JIS,GB

Opening Size: Customized size

Corrosion Resistance: Hot-dip galvanizing, Painted/Powder Coating

Applications: Industrial plants, warehouses, chemical platforms, outdoor walkways, pedestrian bridges, stair treads

Quality Certification: ISO 9001

Payment Terms: T/T

Delivery Time: 7–15 days

Send email to us WhatsApp

Product Detail

Product Tags

Product Detail

Item	Details
Product Name	Heavy Duty Steel Grating
Material	Carbon Steel, Stainless Steel, Galvanized Steel
Manufacturing Type	Welded Steel Grating / Press Locked Grating
Surface Treatment	Hot Dip Galvanized, Painted, Powder Coated
Bearing Bar	Flat Bar / I Bar / Serrated Bar
Cross Bar	Twisted Bar / Round Bar
Surface Type	Smooth or Serrated
Application	Drainage System, Flooring, Stair Treads, Platforms
Standards	ASTM, EN, DIN, JIS Standards Available

Check the Latest Stock and Prices

Chemical Composition & Mechanical Properties

Chemical Composition (Q235B Galvanized Steel)

Element	Carbon (C)	Manganese (Mn)	Phosphorus (P)	Sulfur (S)
Max Content	≤0.20%	≤1.40%	≤0.045%	≤0.045%

Mechanical Properties

Yield Strength	Tensile Strength	Elongation	Cold Bending Performance
≥ 235MPa	370–500MPa	≥ 26%	No crack, no deformation

Steel Grating Main Features

1. High Load-Bearing Capacity

Heavy duty steel grating is designed to withstand heavy traffic, machinery loads, and demanding industrial environments. The welded structure provides excellent strength and stability, making it suitable for forklift areas, production facilities, platforms, and walkways.

2. Excellent Corrosion Resistance

Surface treatments such as hot dip galvanizing create a protective zinc coating that improves corrosion resistance and extends service life. Galvanized metal grates and drain grates perform well in wet environments, outdoor areas, and industrial facilities exposed to chemicals or moisture.

3. Efficient Drainage Performance

The trench drain system and channel drain grates are designed to quickly collect and discharge surface water, reducing water accumulation and improving workplace safety. The open grid design allows excellent drainage while preventing debris buildup.

4. Customizable Design Options

ROYAL GROUP provides customized steel metal grating solutions according to project requirements, including:

1.Different grating bar sizes
2.Various load capacities
3.Customized panel dimensions
4.Serrated or smooth surface options
5.Welded or press-locked grating types
6.Hot dip galvanized, painted, or untreated surfaces

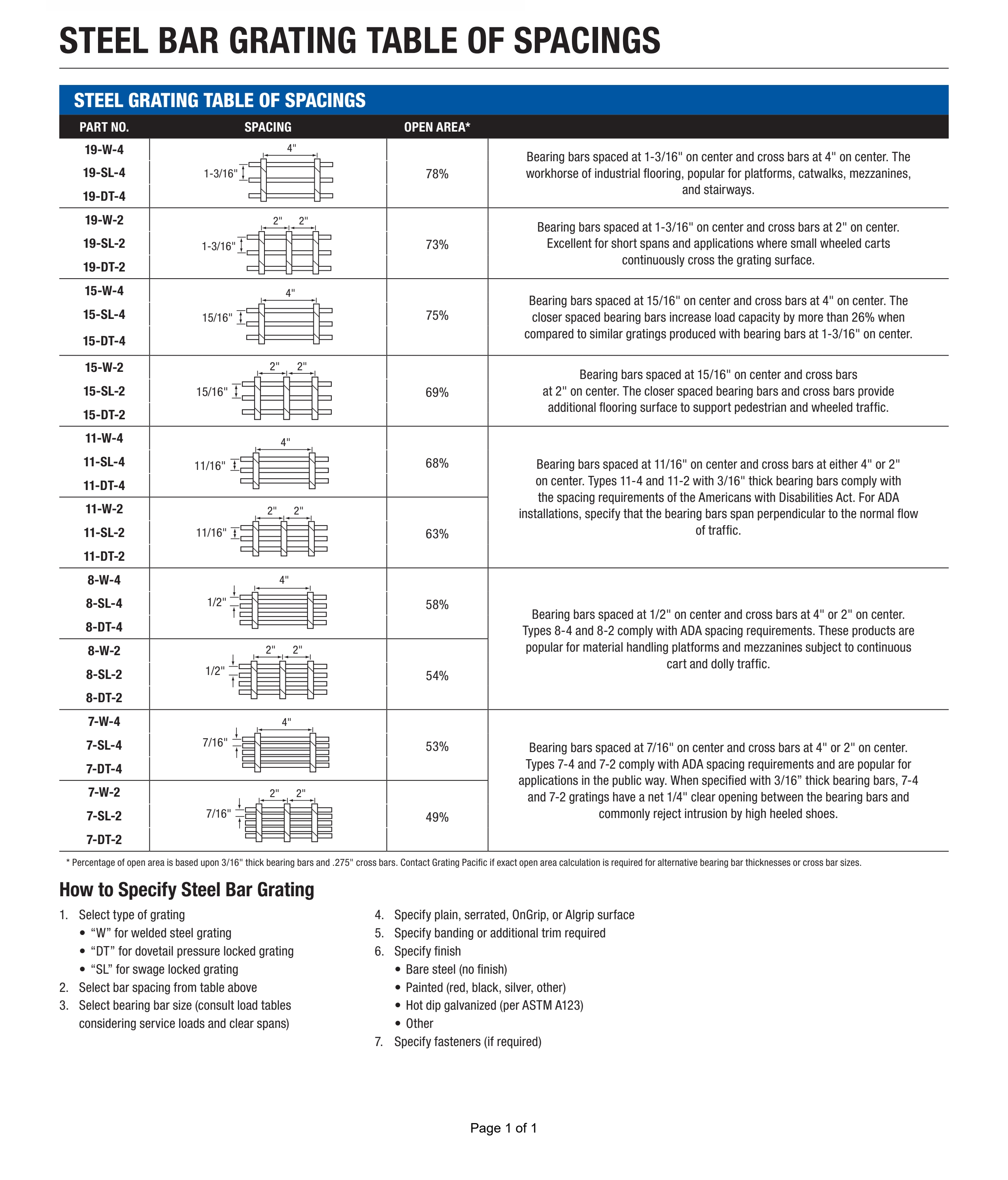

Steel Grating Common Size

Click the button on the right

Download the complete size chart of steel grating.

CLICK HERE

Surface Finish

D91F426C_45e57ce6-3494-43bf-a15b-c29ed7b2bd8a (1)

907C9F00_6b051a7a-2b7e-4f62-a5b3-6b00d5ecfc4a (1)

Initial Surface

Galvanized Surface

Painted Surface

Application

Industrial Drainage Systems: Steel trench drain grates are widely used in factories, workshops, warehouses, and processing plants to provide effective water drainage solutions.

Steel Stair and Platform Systems: Metal stair grating and steel stair treads offer a durable, slip-resistant surface for industrial stairs, maintenance platforms, and access walkways.

Industrial Flooring Solutions: Flooring grates and metal grates are commonly installed in power plants, chemical plants, mining facilities, and manufacturing areas due to their strength and ventilation performance.

Infrastructure Projects: Heavy duty drain grate systems are suitable for roads, bridges, airports, parking facilities, and public infrastructure requiring reliable drainage and load resistance.

Our Advantages

1.Professional Steel Grating Manufacturer
Over 15 years of export experience serving customers in more than 100 countries and regions.

2.Strict Quality Control
Manufactured in accordance with international standards with comprehensive inspections to ensure consistent quality and performance.

3.Custom Manufacturing
Available in customized sizes, bearing bar spacing, surface treatments, and load capacities to meet project requirements.

4.Hot-Dip Galvanized Protection
Excellent corrosion resistance for long service life in industrial, marine, and outdoor environments.

5.Fast Production & Global Delivery
Stable production capacity, sufficient inventory, and efficient worldwide shipping ensure on-time delivery.

GET A QUOTE WITHIN 24 HOURS

Packaging & Shipping

Steel grating products are packed with steel straps and protective materials to prevent damage during transportation. Customized packaging methods are available according to export requirements.

ROYAL GROUP provides global supply solutions for steel grating, trench drain systems, metal grates, drain covers, and industrial flooring products, supporting construction and engineering projects worldwide.

FAQ

Q1: What is heavy duty steel grating used for?

A: Heavy duty steel grating is widely used in industrial flooring, trench drain systems, platforms, walkways, steel stairs, bridges, ports, warehouses, factories, power plants, and municipal drainage projects where high load capacity and durability are required.

Q2: What materials are available for steel grating?

A: Steel grating is commonly manufactured from carbon steel, galvanized steel, and stainless steel. The material can be selected based on the project's load requirements, environmental conditions, and corrosion resistance needs.

Q3: What is the difference between trench drain grates and channel drain grates?

A: Both products are designed for drainage systems. Trench drain grates are typically used in larger industrial or municipal drainage channels, while channel drain grates are commonly used in commercial buildings, parking lots, sidewalks, and residential drainage applications.

Q4: Why choose hot dip galvanized steel grating?

A: Hot dip galvanized steel grating provides excellent corrosion resistance by forming a protective zinc coating. It significantly extends the product's service life and reduces maintenance costs, making it ideal for outdoor and corrosive environments.

Q5: Is steel grating suitable for heavy vehicle traffic?

A: Yes. Heavy duty steel grating is specifically designed to support forklifts, trucks, heavy equipment, and industrial machinery. The appropriate bearing bar size and load class can be selected according to project requirements.
