Hot Sale Steel Structure Building Prefab Warehouse Workshop Industrial Steel Frame Building Manufacturer China Supply
APPLICATION
Steel Structure Warehouse:It is commonly applied globally for the construction of logistics centers, storage warehouses, etc. This is because the steel structure warehouses have large-span interiors without columns, short construction periods, and higher cost-effectiveness after being put into use. Therefore, steel structure is given priority in engineering construction.
Application of steel structure factories: Due to the fact that the interior space of steel structure buildings can be very spacious and it is very convenient for on-site installation, and it is also very convenient for large-scale or renovation work in the future. Therefore, it is very suitable for the construction of factories for production and processing, etc.
Steel Structure Industrial Plant: Used in factories, power plants, and heavy industrial facilities. Steel structures provide high load-bearing capacity and excellent durability for demanding environments.
Steel Structure Commercial Building: Applied in shopping malls, exhibition halls, office buildings, and retail centers. Steel structures allow modern architectural designs and efficient use of space.
PRODUCT DETAIL
| Steel Structure Building/Warehouse/Poultry | ||||
| 1. Main Framing | Welded/ Hot rolling H section column and beam | |||
| Column | A36,A572 and A992 H section steel | |||
| Beam | A36,A572 and A992 H section steel | |||
| 2. Secondary Framing | ||||
| Purlin | A36 and A572 Z and C sections purlin | |||
| Knee brace | A36 and A572 angle steel, galvanized | |||
| Tie bar | A36 and A572 round steel,painted | |||
| Bracing | A36 and A572 round steel, galvanized | |||
| 3. Roof and Wall panels | Steel sheet and insulated sandwich panels | |||
| Single steel sheet | 0.5/0.6/0.7 color steel sheet | |||
| Sandwich panel | EPS/PU/Fiber glass wool/ rock wool sandwich panel | |||
| 4. Steel Decking Floor | V-688 Decking floor | |||
| 5.Structural subsystem | Canopies, Fascias, Partitions, etc. | |||
| 6.Mezzanines, Platforms | H beam | |||
| 7.Other Building Accessories | Sliding Doors, Roll Up Doors, Windows, Louvers, etc. | |||
STEEL STRUCTURE DESIGN
CAD Drawing Design-1
CAD Drawing Design-2
CAD Drawing Design-3
Royal Steel Group offers customized steel structure solutions for warehouses, workshops, factories, commercial spaces, aircraft hangars, logistics centers, and infrastructure equipment. Our professional engineers use the latest structural design, 3D modeling, and detailing software, bringing engineering excellence and manufacturing intelligence to each project.
Our Royal Group will provide precise drawings based on customer requirements for projects, or use the drawings provided by customers to precisely control material wastage, helping you save both construction time and overall cost. From the initial drawing plans, engineering design, structural component production to delivery to various parts of the world, Royal Group always offers reliable steel structure solutions.

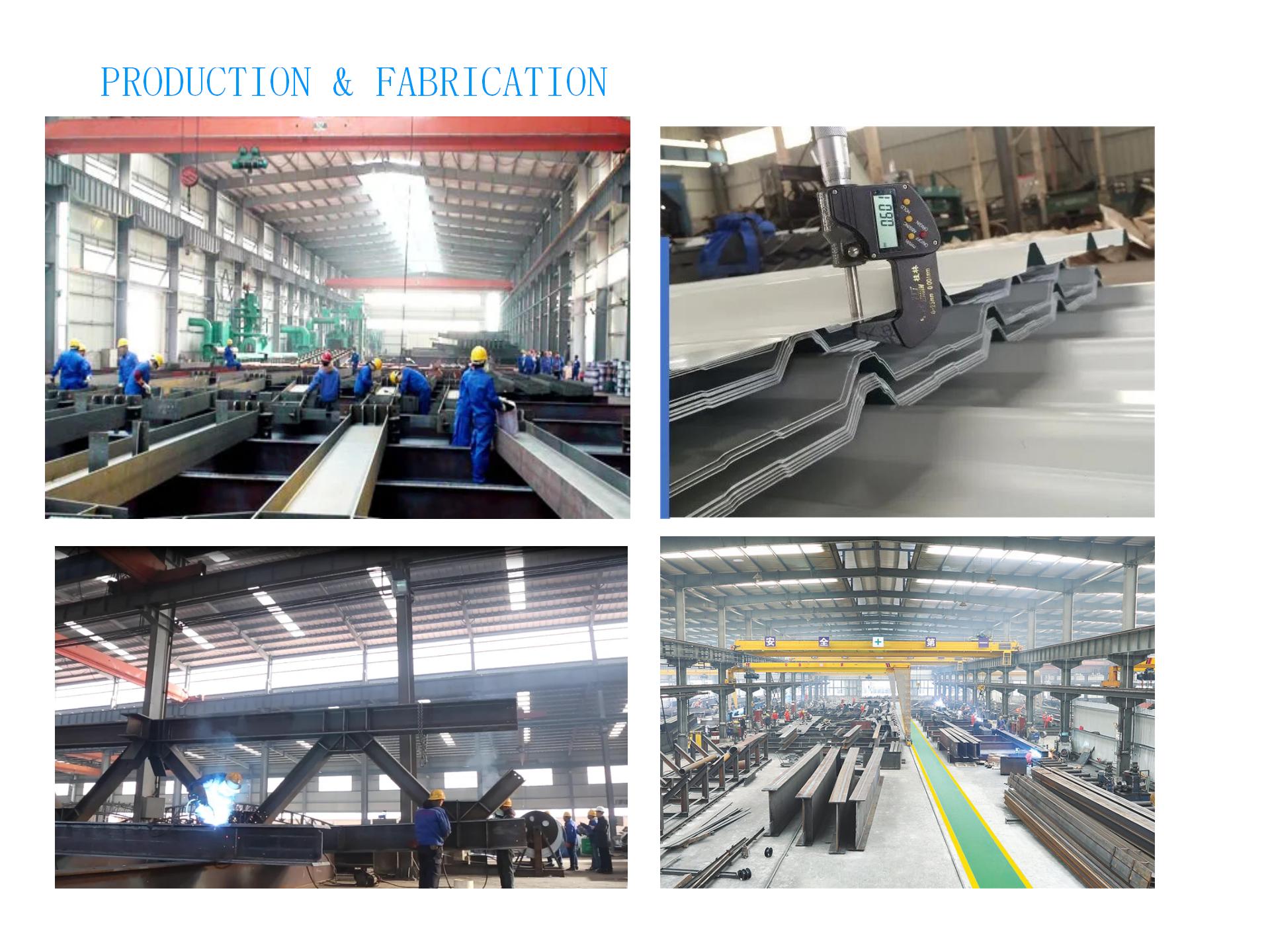

STEEL STRUCTURE PROCESSING
Equipment: CNC plasma cutting machine, CNC flame cutting machine, hydraulic shearing machine
Steel plates and section steel are precisely cut according to the drawings. Thick plates are cut using plasma / flame cutting, while thin plates are sheared using hydraulic cutting. The cutting surface is smooth and the dimensions are accurate.
Equipment: CNC bending machine, cold bending machine, roll forming machine
Roof trusses, gutters, flashing components, arc-shaped beams, and circular-section components can be manufactured. The finished products have stable dimensions and high precision.
Equipment: Arc welding equipment, manual arc welding, carbon dioxide gas shielded welding
H-beams, steel columns, trusses and various connecting components are fabricated using mature welding techniques. All weld seams comply with international standards to ensure the overall structure's safety and stability.
Equipment: CNC drilling machine, hydraulic hole punching equipment
The processing of bolt holes and connection openings is precise. The alignment between components is smooth, reducing the difficulty of on-site assembly.
Equipment: Abrasive blasting machine, sandblasting device, hot-dip galvanizing production line
The rust and oxide scale on the steel surface are removed. If rust and corrosion prevention usually have two options available: painting or hot-dip galvanizing.
Equipment: Generally includes assembly platforms, laser measuring tools, positioning fixtures, etc.
Before shipment, we will conduct pre-assembling and dimensional accuracy checks, verifying the alignment accuracy and weld quality to meet the project requirements of the customers.
STEEL STRUCTURE TESTING
The steel structures, steel pipes, steel coils, and steel structural components provided by our Royal Steel Group will be rigorously verified in accordance with international standards based on customer requirements, ensuring they meet customer needs and facilitating the successful implementation of infrastructure projects for customers all over the world.
1. Salt Spray Test
Standard: ASTM B117 / ISO 11997-1
This standard is used to evaluate the corrosion resistance of steel after processes such as galvanization and painting, ensuring it can withstand strong corrosive environments such as those found at coasts and on the sea, as well as in high humidity conditions.
2. Coating Adhesion Test
Standard: ASTM D3359 / ASTM D4541 / ISO 2409 / ISO 4624
This test determines the adhesion strength of the protective coating to the steel substrate, preventing peeling of the coating during use, thereby achieving the effect of long-lasting protection for the steel.
3. Wet Heat Aging Test
Standard: ASTM D2247
This test exposes the steel to high-temperature and high-humidity conditions to verify the stability of the paint film and moisture resistance, ensuring that the steel can cope with complex and harsh weather conditions.
4. UV Resistance Test
Standard: ASTM G154
This test subjects the steel products to accelerated UV aging simulation to verify the performance of the coating in resisting fading, chalking, and cracking.
5. Coating Thickness Measurement
Standard: ASTM D7091 (Dry Film) / ASTM D1212 (Wet Film)
This is used to accurately measure the thickness of the coating, meeting the indicators required by customer projects and ensuring the anti-corrosion effect of the project.
6. Coating Impact Resistance Test
Standard: ASTM D2794
This test is used to evaluate the size of the impact resistance of the coating, providing full protection to the steel structural components throughout.
Quality Assurance
Royal Group strictly controls the quality throughout the process, supplying high-performance steel structures, steel pipes, steel coils, steel plates, and structural steels to meet the strict requirements of overseas construction, energy, infrastructure and industrial projects.
SURFACE TREATMENT

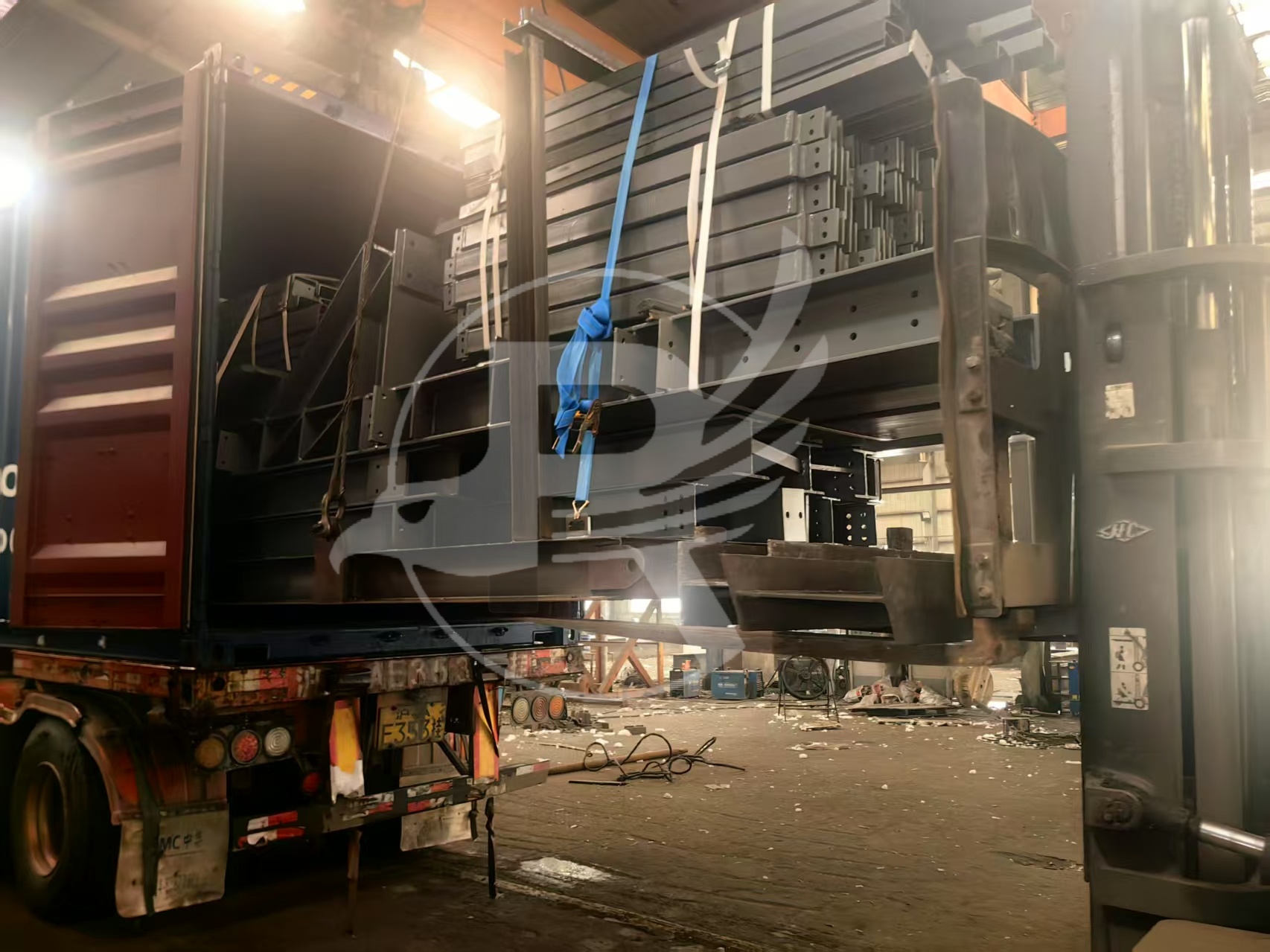

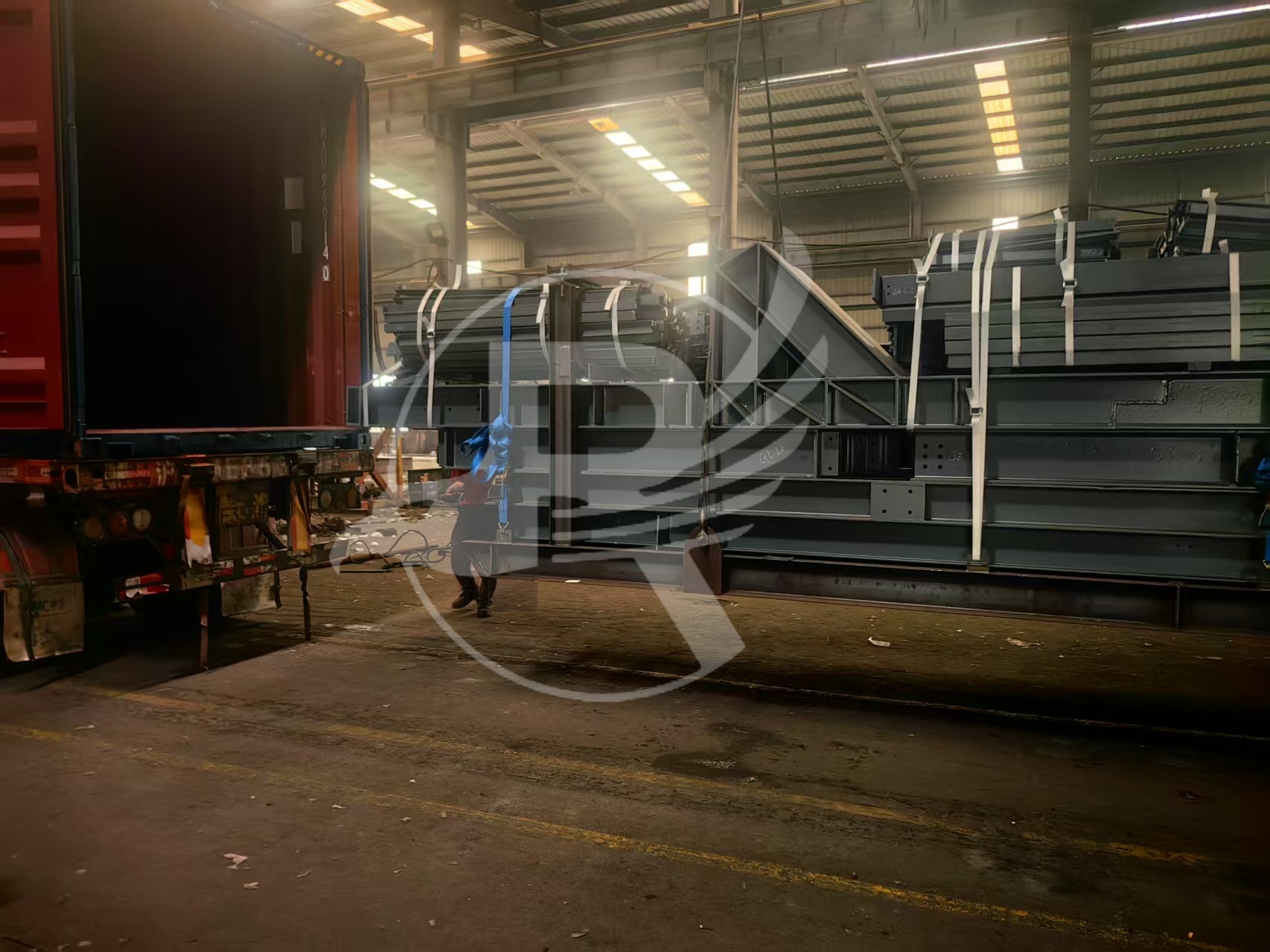

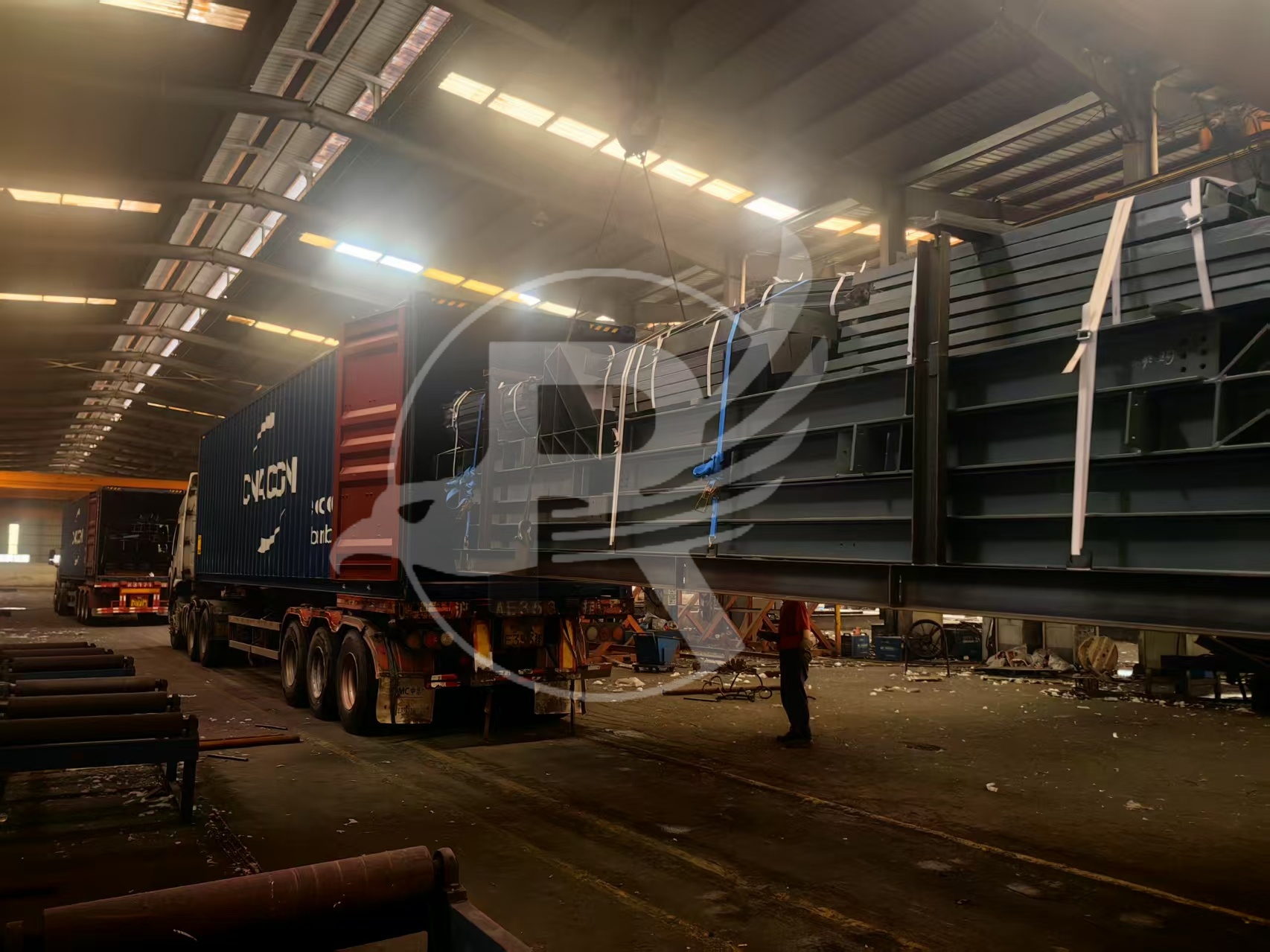

PACKAGING AND SHIPPING
We are well aware of the difficulties in handling heavy steel structure logistics. We adopt industrial packaging standards and mature loading schemes to ensure that the components are delivered intact to the project site and can be installed immediately upon arrival.
Professional packaging plan
1.Main steel frame (H-shaped steel, steel columns):
Use high-strength packaging straps for bundling, add wooden pads or rubber pads in the middle of the components to prevent steel from damaging the coating.
2.Secondary components, roof components:
Bundle them together, add protective covers at the ends to resist transportation impacts and prevent component deformation.
3.Roof and wall enclosure panels:
Wrap with PE protective film, neatly stack on wooden pallets / steel pallets, and cover with waterproof and rainproof fabric on the outside.
4.Small hardware connection parts:
Mark and encapsulate bolts, nuts, and small connection plates separately, and store them in thick moisture-proof wooden boxes.
Identification labels: Each package is given a waterproof label. The material number and BIM model, as well as the packing list, are all corresponded, making it convenient for on-site counting.
International logistics support: Capable of handling various trade methods such as FOB, CIF, CFR, DDP, and DDU, and flexibly matching the payment and delivery models for each project.
WHY CHOOSE OUR STEEL STRUCTURES?
Royal Steel Group is a reliable global supplier of steel structure buildings, capable of providing one-stop overall solutions for industrial, commercial and various infrastructure projects. From engineering design, component production to global delivery, we always customize high-performance and cost-effective steel structure engineering products based on the actual needs of the client's projects.
1. Personalized engineering customization plans
The company has a senior engineering design team that can conduct exclusive optimization designs for different scenarios such as storage warehouses, industrial plants, commercial buildings, hangars, agricultural facilities, logistics parks, etc. Each project will achieve the optimal balance between structural strength, usage functions and cost.
2. High-quality raw material guarantee
All structural steel materials use high-quality raw materials that meet international standards, with strong bearing capacity, high dimensional accuracy, and good overall structural stability, which can meet the performance requirements for long-term safe use of buildings.
3. Advanced manufacturing production processes
We rely on modern production lines and advanced CNC processing equipment. The processing accuracy of the steel structure components is precise. The products we produce are of high quality and reliability, significantly reducing the total construction period for our customers.
4. Strict quality control throughout the process
The steel structure components we provide for our customers will all undergo strict quality inspections, such as size verification, non-destructive testing of welds, paint film inspection and anti-corrosion performance tests, to ensure that the products delivered to the customers are of reliable performance and can meet all the requirements of your various engineering projects.
5. Efficient production and global delivery
Relying on a mature production management system and years of export experience, we offer stable supply and short delivery periods, and can safely deliver to all parts of the world, fully adapting to the progress requirements of large, medium, and small-scale various engineering projects.
Ready to start your project?
FAQ
Q1: Which industries are suitable for steel structure buildings?
A: The application scenarios of steel structure buildings are very extensive. They can be used in industrial production plants, storage warehouses, logistics centers, agricultural supporting buildings, energy projects, and various commercial supporting facilities.
Q2: What materials does steel structure mainly consist of?
A: The core materials include H-beams, I-beams, steel columns, C/Z-type steel purlins, structural steel plates, as well as the sandwich panels used for walls and roofs, and all the complete supporting building materials.
Q3: Is installation technical support provided?
A: Full technical support is provided throughout the process. We will provide complete and detailed installation drawings, online technical guidance, and if necessary, arrange on-site engineers to assist with on-site construction coordination.
Q4: Why choose us as the supplier of steel structures?
A: We have over 15 years of experience in exporting steel structure projects overseas. The material quality is solid, the design is professional and mature, the delivery speed is fast, and the price advantage is obvious. We can also provide a complete set of export supporting services.
