ASTM A992 W Beams Drive North American Logistics Hubs and Data Center Construction

With the rapid expansion of the global digital economy, the deployment of artificial intelligence (AI) supercomputing clusters, and the continuous upgrading of cross-border logistics supply chains, the North American region (the United States, Canada, and Mexico) is experiencing a new round of industrial and commercial infrastructure construction boom. According to the American Steel Institute (AISC) and the latest market tracking data, modern data centers, large prefabricated warehousing logistics hubs, and automated sorting centers have become the core engines driving the growth of structural steel demand. Against this backdrop, W Beam based on the ASTM A992 specification， with its outstanding yield strength， strictly controlled yield-to-strength ratio， and excellent welding performance， firmly holds the core position in the selection of heavy-duty main load-bearing frames.

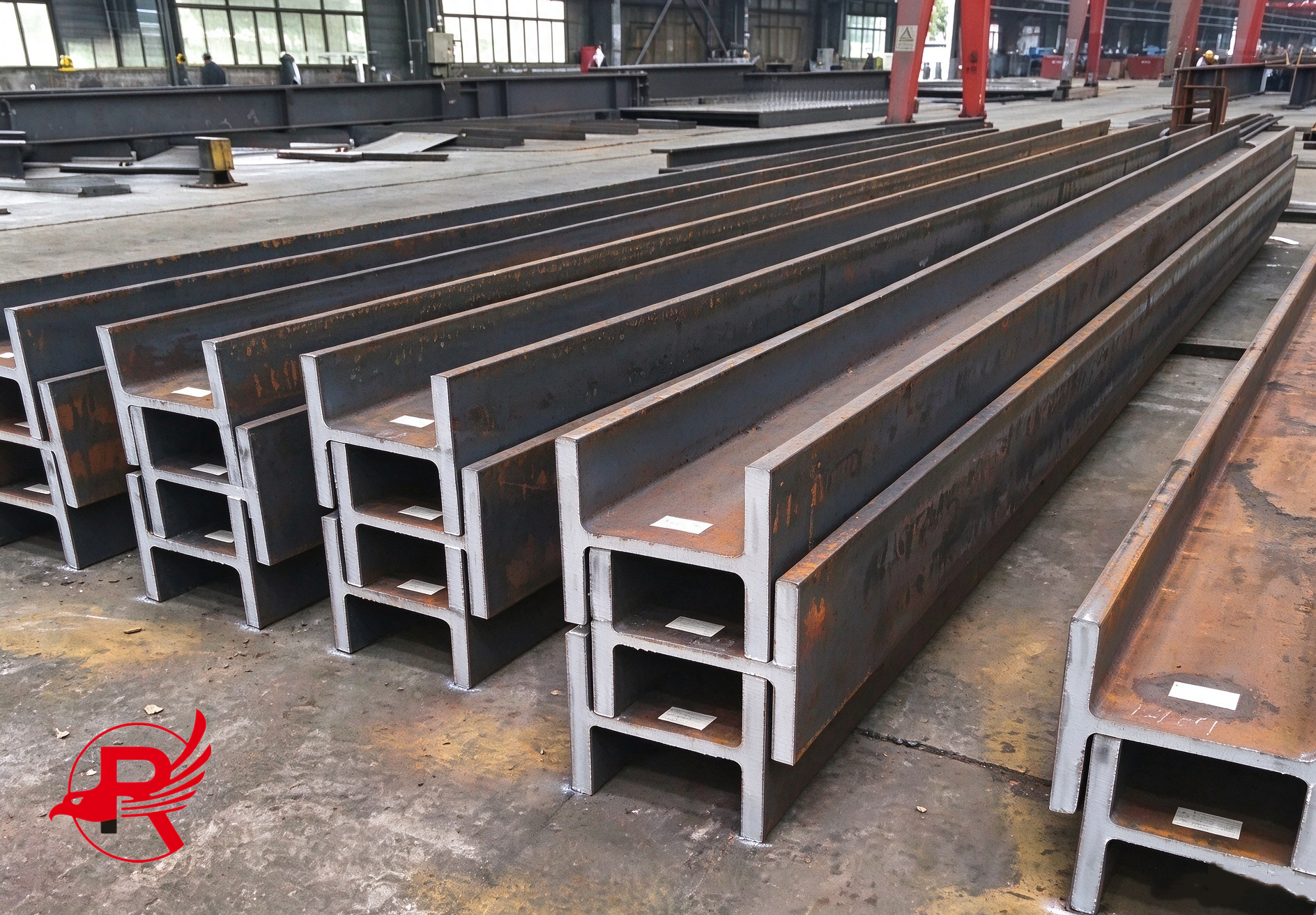

W Beam

I.Why is ASTM A992 W Beam chosen as the preferred material for large-span buildings in North America?

In the construction of modern ultra-large-scale data centers and automated logistics warehouses, the building structure not only needs to bear huge static loads - such as hundreds of high-density server racks, heavy power transformers, diesel generators, and water-cooled cooling systems - but also must achieve an extremely large clear-span space to maximize the efficiency of indoor equipment placement and the passage of automated logistics machinery.



ASTM A992 is currently the mainstream standard material for high-end building structural steel, with performance far superior to the traditional A36 mild steel. The material's yield strength can reach 345 MPa, and the tensile strength is within 450 MPa. The yield-strength ratio is strictly controlled below 0.85, providing greater overall structural safety margin. When a steel factory produces A992 W steel, in order to make the A992 W steel have a lighter weight and stronger load-bearing capacity, it will add specific proportions of trace alloy components such as vanadium and niobium. At the same time, the seismic, wind resistance and impact resistance properties of this steel are also enhanced. Therefore, this type of steel is more suitable for high-load and high-standard construction scenarios such as data centers and large warehouses.



Moreover, this material has a low carbon equivalent and excellent welding performance. Whether it is factory prefabricated welding or on-site rapid connection, no complex preheating treatment is required. The construction error rate is high and the forming speed is fast. Commonly used W8x31 and W12x26 standard beams, as well as W14x90 and W16x89 heavy-duty columns, have become the core load-bearing materials for industrial buildings, computer rooms, and logistics hubs in North America, thanks to this stable performance system.

II. Standard American W-Section Steel (Wide Flange I-Beam) Common Specifications and Engineering Applications Comparison Table

Below are the common W-shaped steel specifications internationally. These can be used as a reference for purchasing personnel and project general contractors when selecting materials and comparing them.

W Beam Section Series Core Material Grade Key Section Characteristics Typical Applications
W8 / W10 Series (e.g. W8x31, W10x33) ASTM A992 / A36 Lightweight, flat and smooth flanges, easy to cut, drill and fabricate Roof support beams, secondary floor beams, equipment platform brackets
W12 / W14 Series (e.g. W12x26, W14x90) ASTM A992 (yield strength ≥ 50 ksi) Excellent depth to width ratio, high bending section modulus, balanced load bearing performance Main load bearing columns for data centers, long span beams for logistics warehouses, large span workshop frames
W16 / W18 Series (e.g. W16x89, W18x35) ASTM A992 High bending stiffness, suitable for concentrated loads and dynamic vibration Heavy transformer base beams in equipment rooms, main beams for mezzanine floors
W21 and above, Heavy Series (e.g. W24x68, W30x90) ASTM A992 / A572 Gr 50 Very large section moment of inertia, excellent deflection control under long span conditions Heavy clear span beams for logistics hubs, bridge approach support girders, base columns for super high rise structures

III. Synergistic Effect: Multi-dimensional Integration of Profiles, Pipes, Steel Plates and Structural Components

Apart from the W Beam serving as the main framework, the construction of modern data centers and logistics hubs is a highly integrated steel structure engineering project. To meet the requirements of prefabricated rapid construction (Fast-track Construction), engineering contractors usually need to purchase a variety of American, European and Japanese standard profiles and processed components in a bundled manner to achieve the optimal mechanical performance combination of each part of the structure:

1.Square tube (ASTM A500 Grade B/C, Q355B):

With its closed cross-section providing high torsional stiffness, it is widely used in roof support trusses, elevated corridors, secondary support of columns, and prefabricated glass curtain wall frame systems.

2.Structural steel plates (ASTM A572 Gr 50 / A36 / Q355):

Used to manufacture node connection plates (Gusset Plates), column base bearing plates (Base Plates), beam-column splicing plates, and large-span welded box-type beams, ensuring efficient transfer of critical node loads.

3. Steel grating and stair:

Made by press-welded galvanizing process, they are ideal materials for multi-level equipment inspection walkways in data centers, cold aisle ventilation platforms in cold aisles, and slip-resistant and safe fire-fighting stairs.

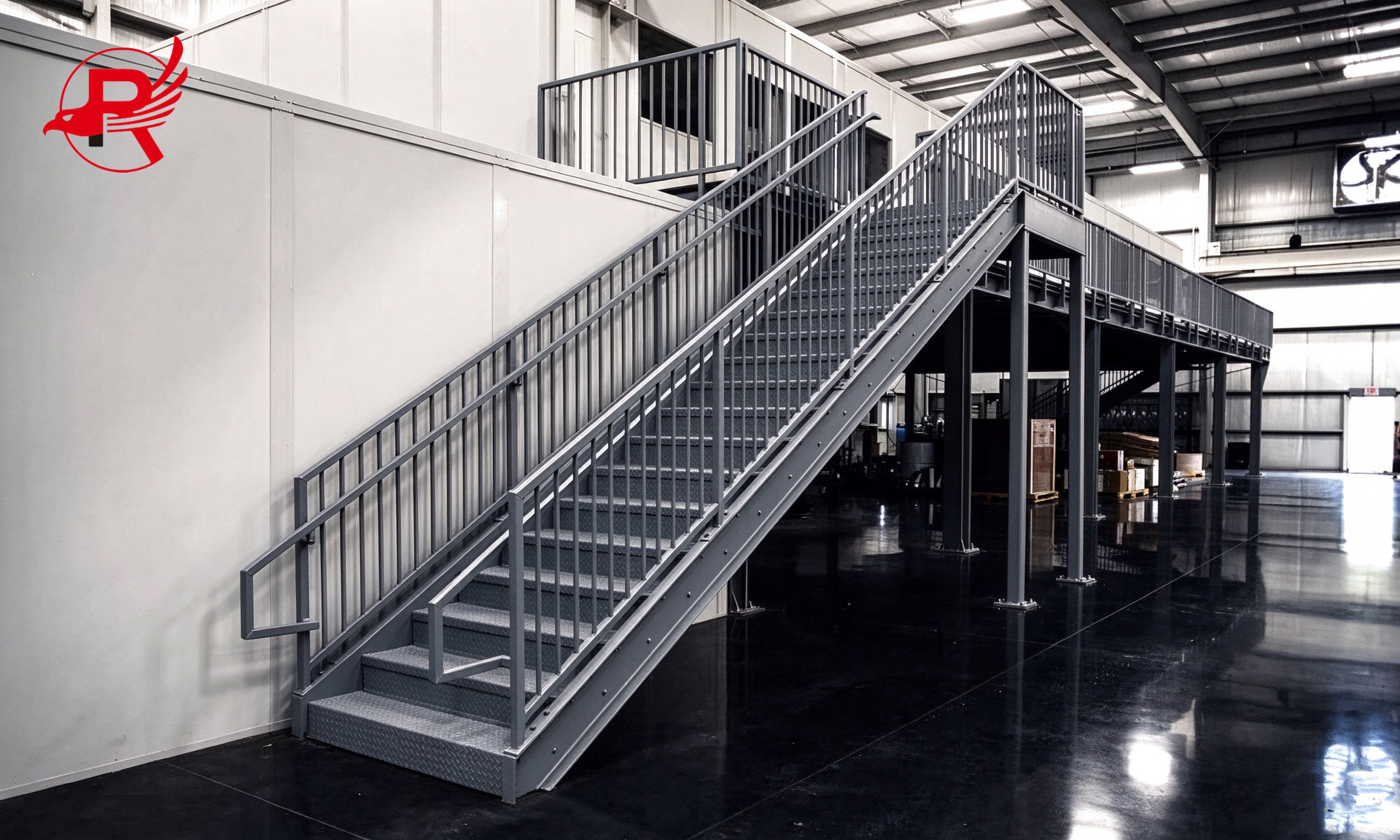

Steel Grating Stair

4.Steel sheet piles for foundation pits and coastal projects:

In coastal logistics hub docks, riverbank data center foundation pit support, and underground waterproofing projects, U-shaped/Z-shaped steel sheet piles (such as SY295, SY390, Q355B materials) play an irreplaceable role in dike, retaining wall, and efficient water-stop functions.



5.Prefabricated steel components:

These steel structural components have undergone drilling, galvanizing and other treatments in the factory in advance. Therefore, they can be directly assembled at the customer's construction site without the need for on-site design and drilling. This saves a lot of time.

IV. Supply Chain Trends and One-stop Procurement Solutions

In the face of issues such as fluctuations in international steel prices, tight shipping space, and tight construction schedules, major EPC engineering general contractors in North America and globally are re-adjusting their procurement supply chains. Selecting steel comprehensive export service providers that have multiple country standards certifications (American Standard ASTM/AISC, European Standard EN, Australian Standard AS/NZS, Japanese Standard JIS) and excellent processing capabilities has become a key to ensuring project delivery on schedule and controlling project budgets.



Mature steel suppliers not only provide large quantities of pre-cut rolled ASTM A992 W Beams in both spot and futures markets, but also offer a complete set of processing services including CNC cutting, precise drilling, lock head processing, robot welding, and surface anti-corrosion treatment. As a globally trusted steel supply chain partner, Royal Group is leveraging this "original steel supply + factory pre-processing and deep processing" integrated model to significantly reduce the secondary processing costs and waste rate at overseas construction sites, shortening the construction period by more than 20%. By locking in stable factory prices and optimizing container and bulk cargo ship maritime logistics, quality steel partners are injecting continuous momentum into the construction of global digital infrastructure and modern logistics facilities.
