How to Select W Beam Sizes for North American Structural Steel Projects

In the construction boom of commercial real estate, heavy industrial plants, large logistics storage centers, and nearshoring manufacturing bases in North America (the United States, Canada, and Mexico), the precast steel structure system with a main framework of American standard wide flange W-shaped steel beams (W Beams ) holds an absolute dominant position. Due to the extremely high safety requirements for buildings in the North American region, all projects strictly follow the design specifications of AISC (American Steel Construction Association) and the material standards of ASTM A992 / ASTM A572 Grade 50 from the design stage. For EPC contractors, steel structure fabricators, and overseas purchasing managers, selecting the structural type is not just about picking individual steel beams, but rather a process of comprehensive and systematic matching of the main structural beams, support columns, secondary beams, enclosure structures, and node connection components.

Among various type of steel products, W12 (nominal depth of the section approximately 12 inches) and W14 (nominal depth of the section approximately 14 inches) are the two most frequently used and purchased mainstream specification series in the North American market. They can serve as load-bearing columns for high-rise buildings and industrial platforms, as well as main beams for large-span frameworks. This article will start from the design logic of the combined structure, the differences in section characteristics, and the centralized purchasing practices of the supporting steel structure components, to provide you with a comprehensive and practical compliance guide.

I. Application of W12 and W14 in Steel Structure Frame and Their Combination with Standard Components

1. W12 Series: Combination of Multi-story Frame Columns, Secondary Beams, and ASTM A500 Square Sections

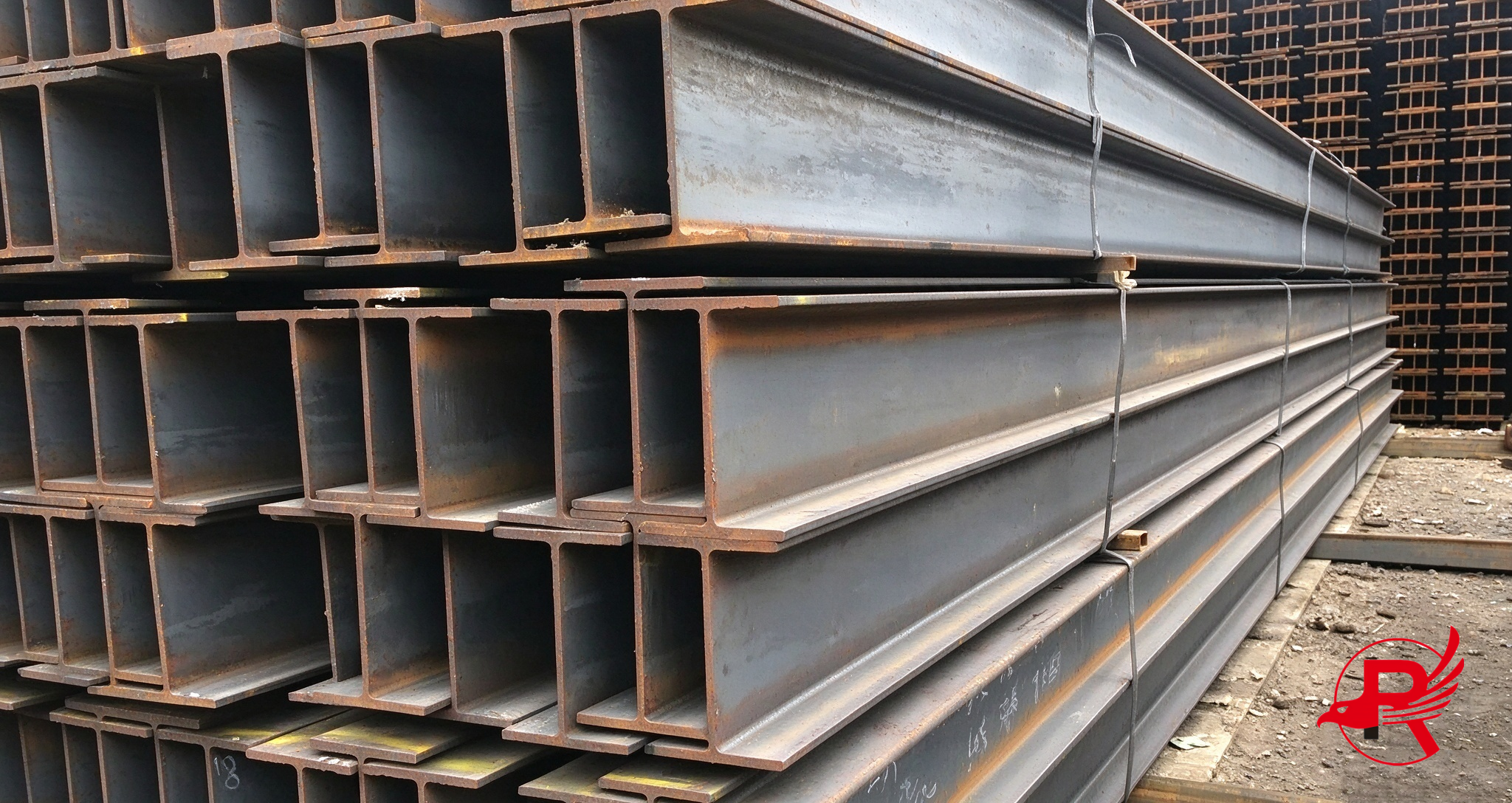

W12 Beam

Main Frame System: The W12 series (such as W12x26 to W12x170) features an excellent aspect ratio and flange width, and is suitable for medium-span main beams in multi-story commercial buildings, prefabricated warehousing and logistics centers, and industrial equipment structural platforms. It can also serve as the optimal specification for multi-story frame columns (Columns). Due to its relatively compact section size, it significantly enhances the internal clear space utilization of the building and effectively reduces the construction area for subsequent coating and fireproofing layers.

Complementary Components and Profiles: In the overall lateral support system, the W12 main frame is typically combined with ASTM A500 Grade B/C square sections (Hollow Structural Sections - HSS) as vertical and horizontal support trusses (Bracing Systems). The wall and roof enclosure parts are often fixed with cold-formed C/Z-shaped steel purlins. In the construction of composite floor slabs, the top of the W12 steel beams are welded with shear studs (Shear Studs / Headed Studs), and a metal deck (Metal Decking) is laid on top and concrete is poured to form a highly efficient and synergistic composite floor slab.



2. W14 Series: Integration of Heavy-duty Main Frame and Heavy-duty Profiles

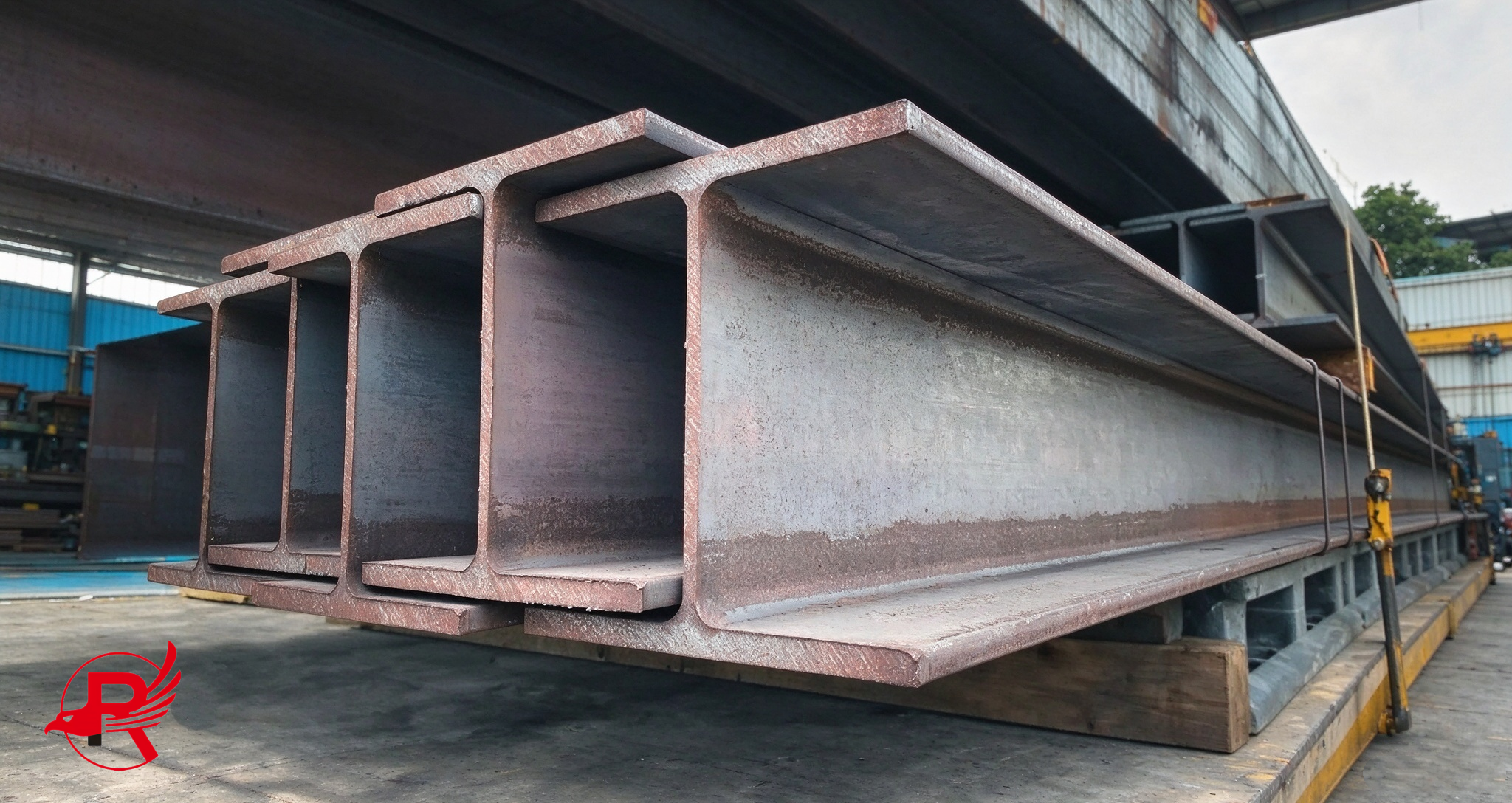

W14 Beam

Main Frame System: The W14 series (such as W14x22 to W14x730) with higher section bending modulus (Section Modulus) and moment of inertia is the absolute choice for heavy industrial plant main columns, seismic frame columns of high-rise buildings, and large-span roof trusses. Under the same weight per foot, W14 has stronger bending performance and deflection control ability than W12, making it highly suitable for heavy-duty projects that need to bear heavy overhead cranes or large-span column-free spaces.

Complementary Components and Profiles: The profiles used in combination with W14 are more diverse, including American standard I-beams (I-Beams / S-Beams), channel steel (C-Channels / MC-Channels) for secondary beams, and structural angles for truss node connections. On operation platforms and pedestrian walkways in factories and energy projects, high-capacity serrated anti-slip steel gratings and stair treads, safety handrails and guardrails are widely configured to ensure high safety in industrial production.



II. Core Specification Parameters and Selection Comparison Table

The following is the common W12 and W14 specification parameters under the ASTM A992 standard, along with their typical component relationships in steel structure projects, which is convenient for the purchasing team to quickly check when compiling the BOM list:

Designation Depth (in) Weight per Foot (lbs/ft) Flange Width (in) Area (in²) Matching Structural Components
W12 × 26 12.22 26 6.49 7.65 C purlins, ASTM A36 gusset plates
W12 × 53 12.06 53 10.00 15.60 A500 HSS column bracing, anchor bolts
W14 × 30 13.84 30 6.73 8.85 Z purlins, metal decking
W14 × 90 14.02 90 14.52 26.50 Heavy angle/channel connections, steel grating stairs

III. Four Core Concerns of North American Buyers in the Full Steel Structure Procurement

For procurement directors and engineering contractors targeting the North American market, merely having qualified structural sections is no longer sufficient to meet competitive demands. Companies like Royal Group, which are providers of steel structure production and supply chain services, all recommend: To assemble all the main structural components such as W-shaped steel beams and HSS square and rectangular tubes, along with connection pieces like node plates and pre-installed anchor bolts, in one package for a complete and compliant delivery.Only in this way can the client's project successfully clear customs and complete the third-party engineering inspection.

1. Material standards and seismic performance (ASTM A992, meeting AISC specifications)

It is well known that the North American market generally has strict and rigid requirements for the main structural steel. Usually, ASTM A992 steel is preferred, referring to steel with yield strength Fy = 50 ksi and tensile strength Fu = 65 ksi, and its yield-to-strength ratio should not exceed 0.85. It is highly ductile and is fully suitable for some engineering designs that require high seismic resistance levels. Generally, connection plates and embedded parts are more likely to choose ASTM A36 or A572 Gr50 steel. Moreover, all factory-processed steel products are required to come with a complete set of steel manufacturer's material certificates MTC. At the same time, these documents must comply with the EN 10204 3.1 standard and clearly indicate the furnace batch number and various mechanical property test data.

2. Prefabrication and Tolerance Control (Prefabrication & ASTM A6)

The local labor costs in North America are high, so construction parties vigorously promote factory prefabrication (Off-site Fabrication). Steel products must strictly follow the dimensions and geometric tolerances of ASTM A6 standards. In this context, Royal Group provides customers with intelligent post-processing services with precise tolerance control, completing CNC precise welding of steel connection plates (Gusset Plates), precise cutting of high-strength bolt holes, beveling of the ends, and spraying of anti-corrosion primer before leaving the factory, significantly shortening the on-site assembly cycle.

3. Origin Compliance and USMCA Rules Certification

With the deep implementation of the USMCA and stricter customs compliance inspections, steel, steel pipes, and structural components sent to the United States, Mexico, and Canada must provide clear "Melted and Poured" origin traceability certificates. This is to ensure that the steel can meet the requirements stipulated in the regional trade agreement throughout the entire process of smelting, casting and rolling. It is also to enable the service customers to avoid tariff risks rationally and with solid evidence, in order to prevent any problems for the purchasing customers during the customs clearance process.

4. Surface anti-corrosion treatment and transportation protection

For these supporting components such as W-shaped steel beams, steel plates, square and rectangular tubes, and steel grating plates, the specific working conditions and environmental scenarios of the engineering project (such as salt spray in the seaside environment, high corrosion in industrial areas, etc.) should be considered to flexibly choose heat-dip galvanizing or high-performance epoxy zinc-rich primer for the surface anti-corrosion treatment of the steel. During the loading stage of containers or bulk carriers, these complete steel components will be categorized and bundled with high-strength steel straps. Some even use wooden pallets for isolation, and some small steel components may be equipped with protective covers to prevent the surface from being scratched or damaged. All these measures are to ensure that the goods are delivered intact to the designated ports of the customers, such as Houston, Los Angeles, Vancouver, Manzanillo, etc., which are the core major ports in North America after the ocean direct transportation.
