Structural C Channel Purchase Guide: ASTM, Dimensions, Weight and Applications

Those who are familiar with construction projects will know that whether it is prefabricated steel structure, logistics warehouses, large-scale venues, or new energy supporting projects, Structural C Channel is an indispensable type of profile. Of course, it cannot exist alone; it will be combined with I-beams, angle bars, steel grilles and other types of profiles in actual construction to form a steel structure, jointly constituting the load-bearing system in common construction projects. Structural C channel is relatively lightweight and easy to be punched and cut, and is mostly used for secondary structure support, pipeline supports, enclosure frameworks and maintenance platform frames. Various steel structural components can be pre-processed and manufactured in factories according to project requirements, and are mainly connected with bolts on-site, reducing on-site welding operations. The entire set of combined components can meet various building load requirements, featuring reliable bearing capacity and good spatial adaptability. They are widely used in building enclosure systems, equipment supports, corridor supports and outdoor steel structure bases.

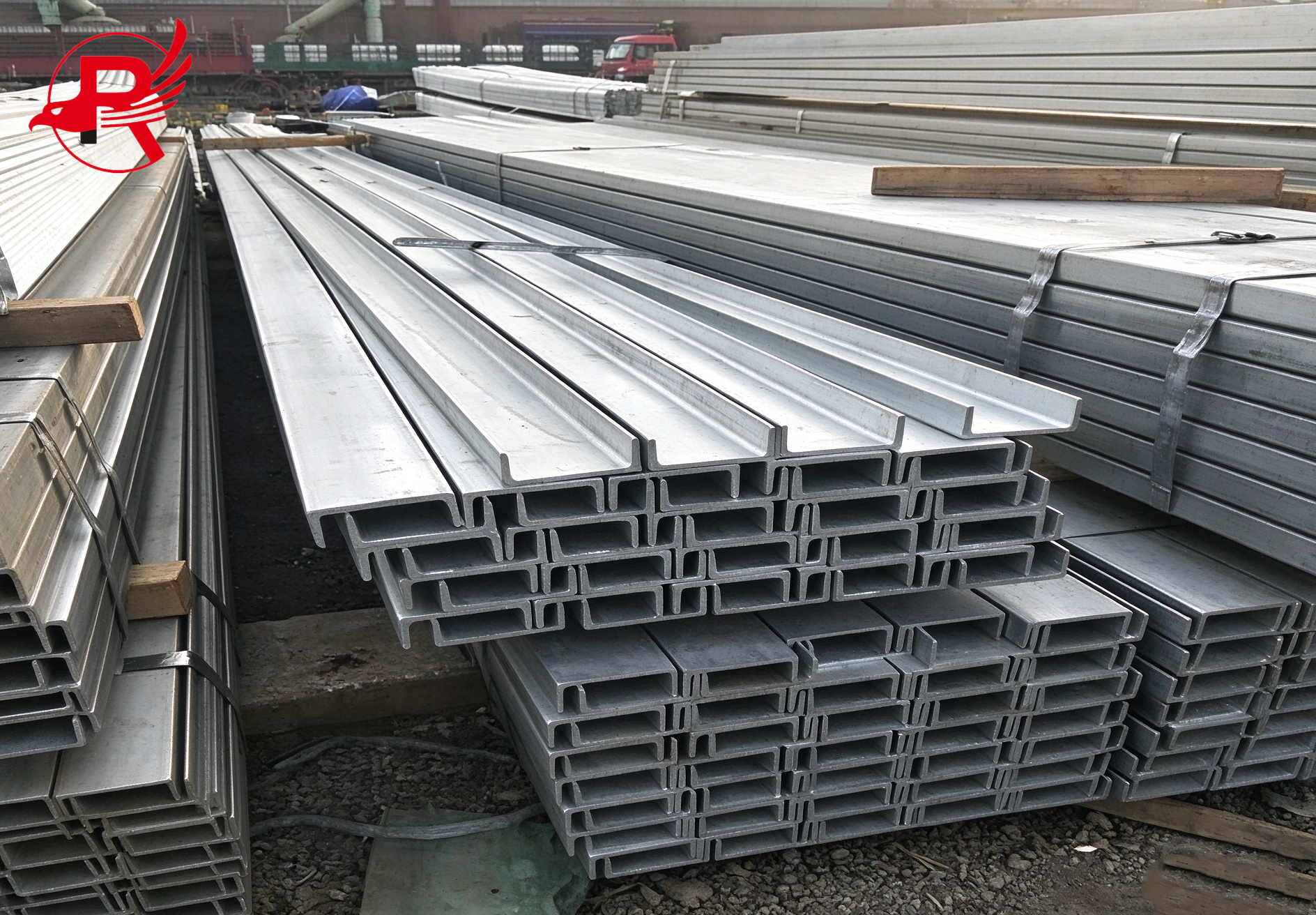

C Channel

When purchasing high-quality C-shaped channel steel, not only should the physical and mechanical indicators of the product be considered, but also the execution standards, surface treatment processes, theoretical weight calculation, and systematic coordination with other steel structure components need to be clarified. As a professional steel production and international trade exporter, Royal Group has been committed to providing high-quality C-shaped channel steel and one-stop steel structure solution packages for global customers, helping your projects progress efficiently. Below, we provide a comprehensive analysis covering material selection, size tables, application scenarios, and procurement considerations.

I. Common ASTM Standards and Material Characteristics

For international engineering projects (especially those in the US market and those exported to North America, Latin America, the Middle East, and Southeast Asia, etc.), when purchasing C-shaped channel steel, there are strict specifications and requirements for material standards and mechanical properties. Selecting the right steel grade is essential to ensure the structural stability, corrosion resistance and load-bearing safety. At the same time, under the premise of ensuring structural safety, it is necessary to reasonably control the procurement budget for large quantities of steel.

1. ASTM A36：

This model is the most commonly used carbon structural steel worldwide. The general standard for it is a yield strength of approximately 250 MPa, and the standard for ultimate tensile strength is about 400 to 550 MPa. Channel steel made of A36 material performs well in welding, cold bending, and mechanical cutting processing, and is sufficient to be suitable for most ordinary industrial plants, wall frameworks, and various secondary load-bearing components. This grade of steel has a low procurement threshold and outstanding cost performance, and is always stocked in the warehouses of small and medium-sized building materials traders and engineering general contractors.

2. ASTM A572 Grade 50：

It is a high-strength low-alloy structural steel with a yield strength increased to 345 MPa. By using this type of steel, without significantly increasing the weight of the structure itself, one can achieve stronger bending and shear resistance. For projects involving heavy equipment load-bearing, large-span cantilever components, or areas with excessive wind loads, A572 Gr50 should be the preferred choice. This can optimize the steel consumption, enhance the overall structural safety, and also reduce the cross-sectional dimensions of the main frame beams and columns.

3.ASTM A992:

Although this standard is mostly used for wide-flange heavy H-shaped steel, it is also widely recognized in some specially customized high-demand C-shaped channel steel. It has excellent yield strength range control and extremely high weldability, making it highly suitable for architectural node designs in high-intensity seismic defense areas. It can effectively ensure the plastic deformation capacity and safety of the structure under seismic loads.

II. Structural C Channel Dimensions, Section Parameters and Theoretical Weight Table

In engineering procurement and structural design, the specifications of C-channel steel are usually precisely expressed as "height × theoretical weight per foot" or "height × leg width × waist thickness". Understanding these parameters is crucial for logistics transportation packing, calculating the load limit of ocean shipping containers, and planning the on-site lifting load, as it directly affects the overall transportation cost of overseas projects.

The following is a reference table of the most commonly used American standard C-channel steel sizes and theoretical weights in overseas engineering procurement:

Designation Depth (in / mm) Flange Width (in / mm) Web Thickness (in / mm) Weight (lb/ft) Weight (kg/m)
C3 × 4.1 3.00 / 76.2 1.41 / 35.8 0.170 / 4.32 4.10 6.10
C4 × 5.4 4.00 / 101.6 1.58 / 40.1 0.184 / 4.67 5.40 8.04
C6 × 8.2 6.00 / 152.4 1.92 / 48.8 0.200 / 5.08 8.20 12.20
C8 × 11.5 8.00 / 203.2 2.26 / 57.4 0.220 / 5.59 11.50 17.11
C10 × 15.3 10.00 / 254.0 2.60 / 66.0 0.240 / 6.10 15.30 22.77
C12 × 20.7 12.00 / 304.8 2.94 / 74.7 0.282 / 7.16 20.70 30.81

Procurement Risk Warning: During actual delivery, the tolerance range (positive and negative deviations) of the steel produced by the steel mill usually follows the ASTM A6/A6M standard. When overseas buyers enter into business contracts with suppliers, they must clearly specify in advance whether the settlement method is based on "theoretical weight pricing" or "actual weighing for weight calculation" to avoid disputes over weighing and settlement during the performance process and the risk of overloading during maritime transportation.



III. Typical Application Scenarios and Systematic Coordination of Steel Structure Components

Due to the asymmetric cross-section characteristic of C-shaped channel steel, it demonstrates extremely high space utilization efficiency and installation convenience in single-directional loading, edge sealing, and support structures. In modern industrial buildings, it is rarely used alone but is instead used as part of the overall envelope and support framework, forming efficient synergy with various types of steel sections, significantly accelerating the on-site assembly progress:

1.Roof trusses and wall beams of factory buildings: C-shaped channel steel and cold-formed C/Z-shaped steel are often selected as secondary support networks for industrial factories. They are fixed on the outside of H-shaped steel or I-beam main frames to secure coated sheets or composite sandwich panels, bear wind loads and snow loads, and ensure the structural flatness and wind resistance of the entire factory enclosure system.

2.Heavy equipment bases and edge guard frames: In the manufacturing of bases for generators, large water pumps, box-type substations, and industrial operation platforms, the slots of C-shaped channel steel can be arranged inward or outward. They are connected to steel plates or steel grating plates by bolts or welding to form a flat and high-strength edge enclosure layer, effectively enhancing the overall stiffness of the base platform.

3.Staircase inclined beams and platform supports: When C-shaped channel steel is used in back-to-back combination or on one side, its lateral stiffness is excellent, making it an ideal material for manufacturing industrial staircase inclined beams. It can be conveniently combined with angle steel to support treads and connection plates for nodes, achieving factory prefabrication and rapid on-site modular installation, saving a lot of on-site cutting and welding time.

4.Prefabricated drilled channel steel can be combined with pipe hangers: The channel steel is pre-drilled in the factory, and can be conveniently assembled into cable trays, high-pressure pipe hangers and duct support systems. Generally speaking, the on-site construction workers can complete the adjustment and fixation of the steel structure with the help of standard fasteners, eliminating the cumbersome procedures of drilling holes on site and the need for secondary welding. This can effectively save the working hours for the installation process.

VII. Key Points of Core Quality Control and Inspection for Overseas Purchases

1.Material Certification and Product Traceability：

The cooperating supplier must be able to provide the original factory material documents of the steel mill that meet the requirements of EN 10204 3.1. The report should fully include the batch number of the smelting furnace, the test values of various elements (such as carbon, manganese, silicon, sulfur, phosphorus, etc.), and also attach the mechanical performance test records of tensile strength, yield strength, impact energy, etc., to ensure that each batch of steel can be traced back to the corresponding smelting furnace batch.

2.Surface Protection and Coating Process：

● Black steel: After the supplier delivers the goods, the buyer can independently complete cutting, welding and assembly operations. After all components are processed and formed, they will be uniformly subjected to coating or surface protection treatment.

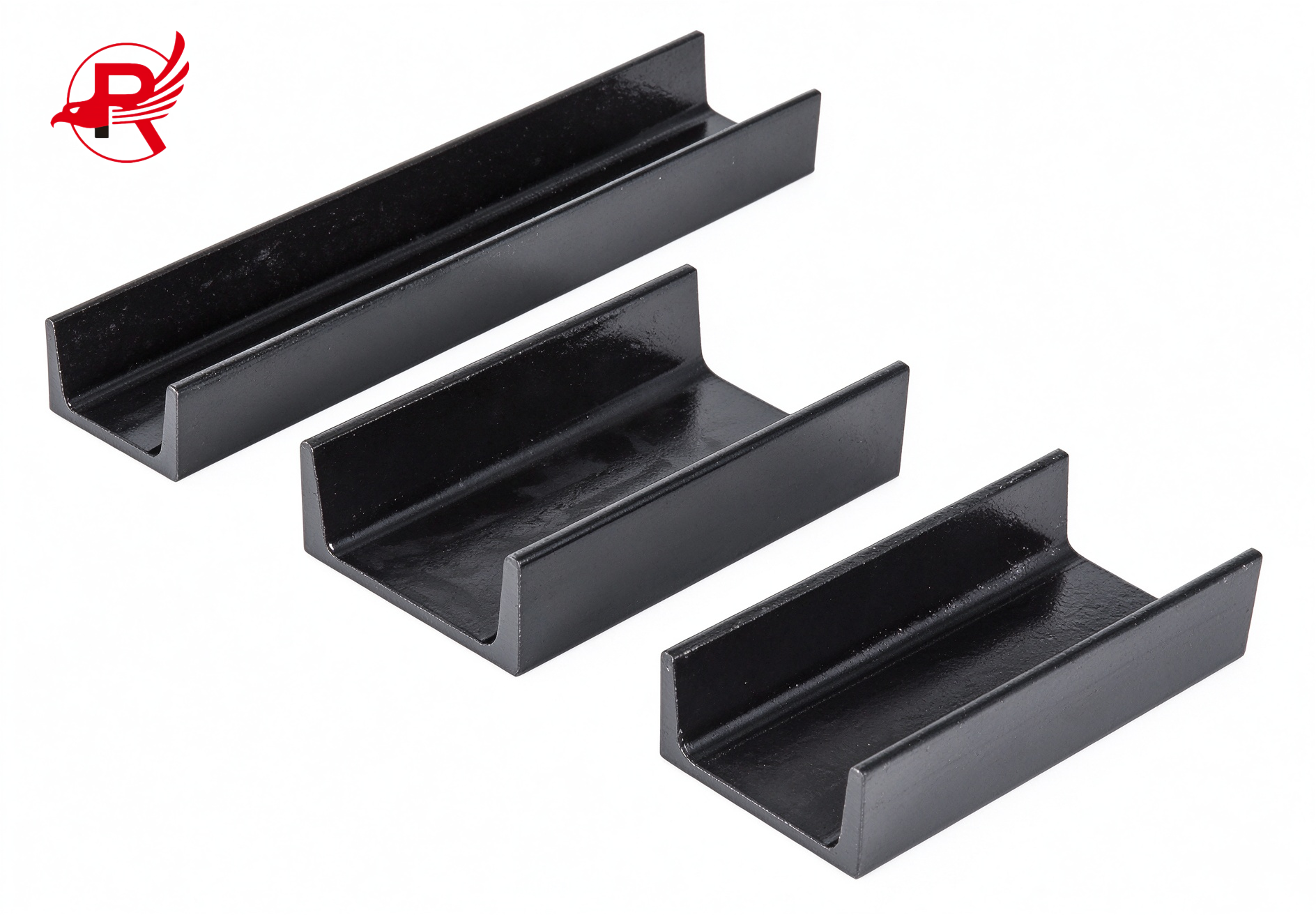

Structural C Channel

● The hot-dip galvanizing processing of the product must be controlled in accordance with the ASTM A123/A123M standard regarding the coating indicators. The minimum zinc adhesion per square meter should be 610 grams, and the corresponding coating thickness is approximately 85 micrometers. In the face of coastal salt spray attacks, humid environments, and various chemical corrosion scenarios, the coating's protective ability is durable and reliable, with a long-term protection period that can reach 20–50 years.

● Pre-coated anti-rust primer: The steel is automatically sprayed with red lead paint or epoxy zinc-rich primer on the production line, with the dry film thickness controlled at 25–40 micrometers. It can protect the steel surface from rusting during the transoceanic shipping stage and can be directly painted on the original paint film after arriving at the project site.

3.Advanced Processing Support Services

Verify whether the supplier has the capacity for prefabrication processing, including fixed-length precision cutting, end slant cutting, long round hole / round hole punching, CNC drilling, etc. The pre-processing capabilities at the factory end not only ensure processing accuracy but also significantly reduce the high labor costs at overseas construction sites and minimize on-site waste, thereby enhancing the overall return on investment of the project.
