Q235 Q355 Scaffold Gi Steel Pipe for Construction Frame Scaffolding System

Q235 Q355 Scaffold Gi Steel Pipe for Construction Frame Scaffolding System Featured Image
  • Q235 Q355 Scaffold Gi Steel Pipe for Construction Frame Scaffolding System
  • Q235 Q355 Scaffold Gi Steel Pipe for Construction Frame Scaffolding System
  • Q235 Q355 Scaffold Gi Steel Pipe for Construction Frame Scaffolding System
  • Q235 Q355 Scaffold Gi Steel Pipe for Construction Frame Scaffolding System
  • Q235 Q355 Scaffold Gi Steel Pipe for Construction Frame Scaffolding System
  • Q235 Q355 Scaffold Gi Steel Pipe for Construction Frame Scaffolding System

Short Description:

Scaffold pipes are strong and durable steel pipes which are meant for use in temporary scaffolding requires directly related to building construction, maintenance and industrial work such as in oil rigs and pipelines. They are most commonly used to construct scaffolding systems that allow safe access to work at height for people and materials. Made out of good quality carbon steel and with galvanized or painted finishing, scaffold pipe has high load bearing, corrosion resistance and long life.


  • Standard: GB
  • Material: Galvanized Mild Steel (GI Pipe)
  • Surface Treatment: Hot-dip galvanization
  • Type: Seamless or Welded Steel Tube
  • Outer Diameter: 48.3 mm / 1.90 in (common), other diameters customizable
  • Applications: Temporary scaffolding and work platforms ,Shoring and structural supports in construction,Industrial platforms and maintenance access
  • Quality Certification: ISO 9001
  • Payment Terms: T/T 30% Advance + 70% Balance
  • Delivery Time: 7–15 days
    • Send email to us WhatsApp

    Product Detail

    Product Tags

    Product Detail

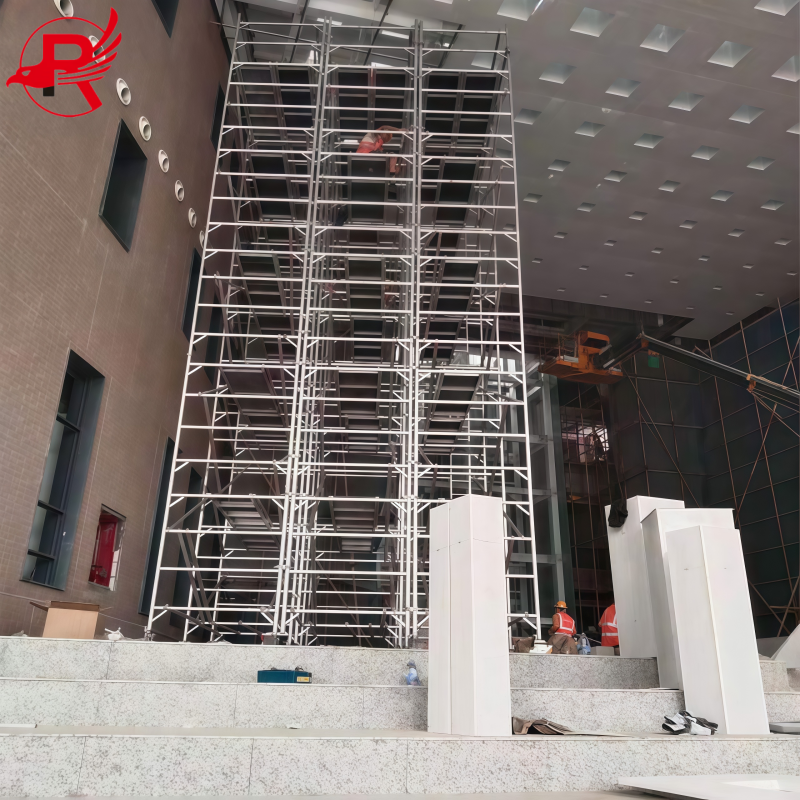

    scaffold pipe1 (1) (1)

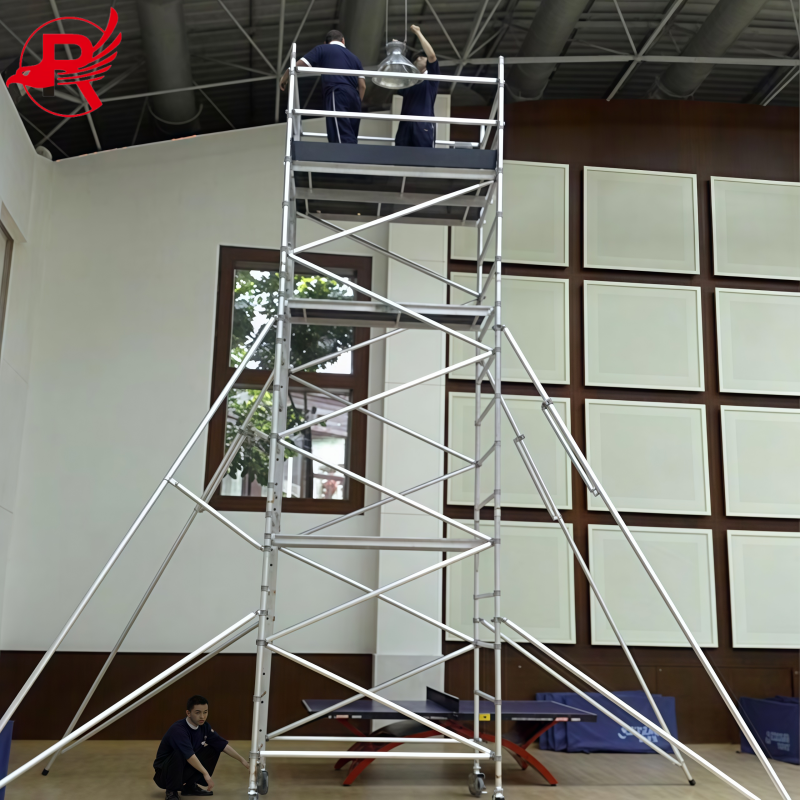

    scaffold pipe2 (1) (1)

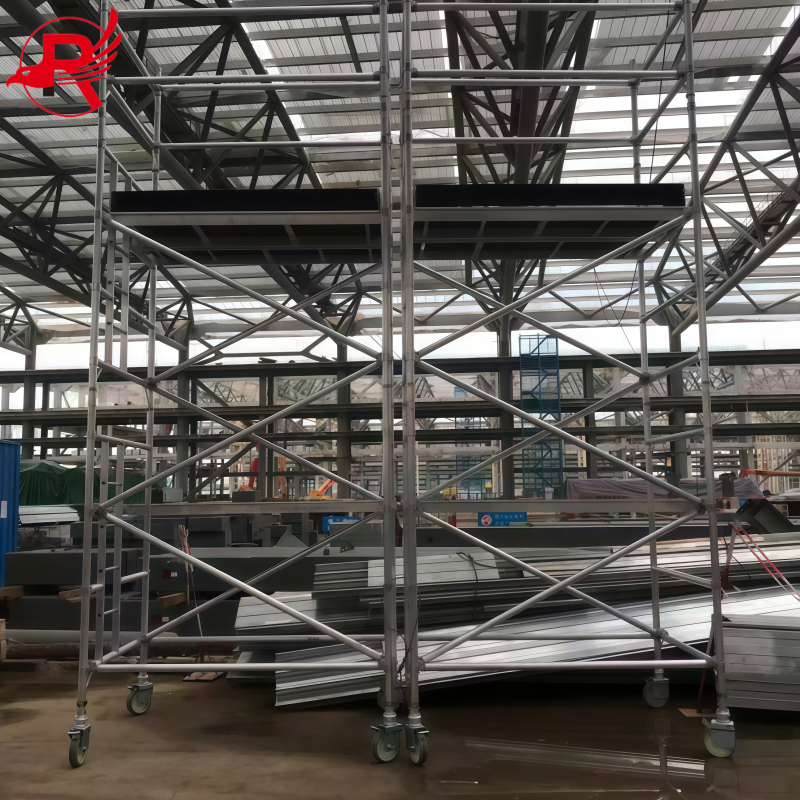

    scaffold pipe5 (1) (1)
    Product Name Galvanized Scaffold Pipe / Structural Steel Tube Type ERW (Electric Resistance Welded) or Seamless Tube
    Material Mild Carbon Steel Surface Treatment Hot-Dip Galvanized (HDG), Electro-Galvanized, Black Steel, Painted or Epoxy coating optional
    Standards Q235/Q355 Mechanical Properties Yield Strength: ≥235–275 MPa; Tensile Strength: 360–510 MPa; Elongation ≥20%
    Dimensions Outer Diameter: 48.3–60 mm (customizable); Wall Thickness: 1.6–3.0 mm; Length: 6 m, 12 m, or customized Applications Construction scaffolding, industrial platforms, shoring systems, building framework support, temporary structures
    Check Latest Stock & Price

    GB Scaffold Pipe Size

    48.6mm scaffold pipe
    48.3mm scaffold pipe
    48.6mm scaffold pipe
    O.D(mm) W.T(mm) Length(mm) Weight(KG)
    48.6 2.1 6000 14.45
    48.6 2.2 6000 15.1
    48.6 2.3 6000 15.76
    48.6 2.1 6000 16.41
    48.6 2.5 6000 17.05
    48.6 2.6 6000 17.7
    48.6 2.7 6000 18.34
    48.3mm scaffold pipe
    O.D(mm) W.T(mm) Length(mm) Weight(KG)
    48.3 2.75 6000 18.53
    48.3 3 6000 20.11
    48.3 3.2 6000 21.35
    48.3 3.6 6000 23.81
    48.3 3.75 6000 24.72
    48.3 3.8 6000 25.02
    48.3 4 6000 26.22

    Click the button on the right

    Get all specifications of GB Hot Dip Galvanized scaffolding pipes

    CLICK HERE

    GB Scaffold Pipe Customized Content

    Customization Category Available Options Description / Notes
    Dimensions OD, Wall Thickness, Length OD: 48–60 mm; Wall Thickness: 1.6–4.5 mm; Length: 6–12 m customizable to project needs
    Processing Cutting, Threading, Bending Pipes can be cut, bent, or prefabricated to meet on-site requirements
    Surface Finish Black Steel, Hot-Dip Galvanized (HDG), Epoxy, Painted Finish selected according to corrosion resistance, environmental conditions, or project specification
    Marking & Packing Tags, Project Codes, Transport-Ready Labels include size, grade, and standard; bundled and secured for truck, flatbed, or container shipment

    Surface Finish

    carbon steel scoffold pipe
    galvanized scaffold-tube-72
    painted scoffold pipe

    Carbon steel surface

    Galvanized surface

    Painted surface

    Application

    1.Building Construction Application: A good working platform and structural support for home, commercial and high-rise building work in the building process.

    2.Bridge & Infrastructure Works: In bridge construction, road, tunnel, seaports, and all other infrastructure work your best needs are for stowing safely and standing well.

    3.Industry Plant & Maintenance: Plant, power generation, Oil & Gas and industrial service companies use them extensively for plant equipment installation and upkeep.

    4.Work with Elevation Renovating and Outdoor Application: Suitable for home improvement, façade maintenance, painting, cleaning and reparative application in the field of the height working.

    savab (7)

    Our Advantages

    1.Tailored Solutions: After being inspected for sizes and quality and according to project specifications and customer's need, customized sizes, thicknesses, surface treatment and packing can be provided.

    2.Professional Export: Experience Experience in International Trade with customers from South-East Asia, Middle East, Africa, Europe and America.

    3.Strict Quality Inspection: Ultrasound testing and full inspection (critical dimension checks, surface quality, mechanical property testing) before shipment.

    4.One Stop Service: We are capable of supplying you with one-stop procurement solutions from quotation, production, inspection, packaging, shipping, etc.

    5.OEM & ODM Support: Custom branding, labeling and product specifications available to suit different market needs.

    GET A QUOTE WITHIN 24 HOURS

    Packaging & Shipping

    Standard Export Packaging: Bundled with steel strips and packed according to international export standards to ensure safe transportation.

    Protective Packaging: Waterproof materials, plastic caps, woven bags, or protective covers available to prevent moisture, rust, and damage during transit.

    Custom Packaging: Customized packaging solutions, labels, and markings supported based on customer requirements.

    Container Loading: Suitable for 20GP, 40GP, and 40HQ containers, with optimized loading plans to maximize shipping efficiency.

    Complete Documentation Support: Provide Mill Test Certificate (MTC), Certificate of Origin (CO), SGS inspection, packing list, commercial invoice, and customs documents as required.

    scaffolding tube (6)

    FAQ

    Q1: What sizes are available? Can you customize specifications?
    A: Yes, we support customized diameter, wall thickness, length, and surface treatment according to customer drawings or project needs.

    Q2: What surface treatments do you provide?
    A: Available options include black steel, pre-galvanized, hot dip galvanized, and anti-corrosion coatings for different environments and durability requirements.

    Q3: How long is the service life of galvanized scaffold pipes?
    A: Depending on the environment, hot dip galvanized scaffold pipes can provide long-term corrosion resistance and extended service life, especially for outdoor use.

    Q4: What is the load-bearing capacity of your scaffold pipes?
    A: Load capacity depends on pipe size, wall thickness, material grade, and scaffolding system design. Technical support can be provided based on project requirements.

    Q5: Can you provide quality certificates and inspection reports?
    A: Yes, we can provide Mill Test Certificate (MTC), SGS inspection reports, material certificates, and other required export documents.
