ASTM A36 A572-50 Gusset Plate | Structural Steel Connection Plates
PRODUCT DETAIL
Each Gusset plate can be custom cut, drilled and fabricated to your engineering or fabrication drawings with the hole locations being accurate and having clean edges to allow for efficient assembly in the field and/or shop.
PRODUCT SPECIFICATION
| Item | Specification |
| Product | Gusset Plate / Connection Plate |
| Material | ASTM A36, ASTM A572 Grade 50 |
| Standard | ASTM |
| Manufacturing | Laser / Plasma / Flame Cutting |
| Shape | Custom shapes according to drawings |
| Thickness | Custom thickness available |
| Dimensions | Custom sizes available |
| Holes | Custom hole diameter, quantity & positioning |
| Surface | Mill finish, shot blasted, painted or galvanized |
| Fabrication | Cutting, drilling, welding and edge processing |
| Quality | Dimensional and material inspection |
| Standards Reference | ASTM / AISC project requirements |
KEY FEATURES
1.High-Strength Structural Steel
ASTM A36 and ASTM A572 Grade 50 steel have been found to offer reliable mechanical properties for the use in structural joints and the bearing of loads.
2. Precision Cutting
Advanced cutting techniques ensure that dimensions are exact, edges are clean and shapes are consistent as per fabrication drawings.
3. Correct Hole Positioning
Accurately located bolt holes help to increase installation productivity and guarantee correct alignment of connected structural members.
4.Custom Fabrication
We can produce gusset plates in any shape, size, thickness, hole pattern and edge shape in accordance with customer drawings.
5. Project-Ready Supply
Gusset plates can be furnished in a cut-to-size form or with additional fabrication and surface coating based on your job needs.
MANUFACTURING & FABRICATION
Our steel gusset plates are roll formed to customer drawings and project specifications. Modern cutting and machining methods provide precise dimensions, hole locations, and clean edges for structural connection you can trust.

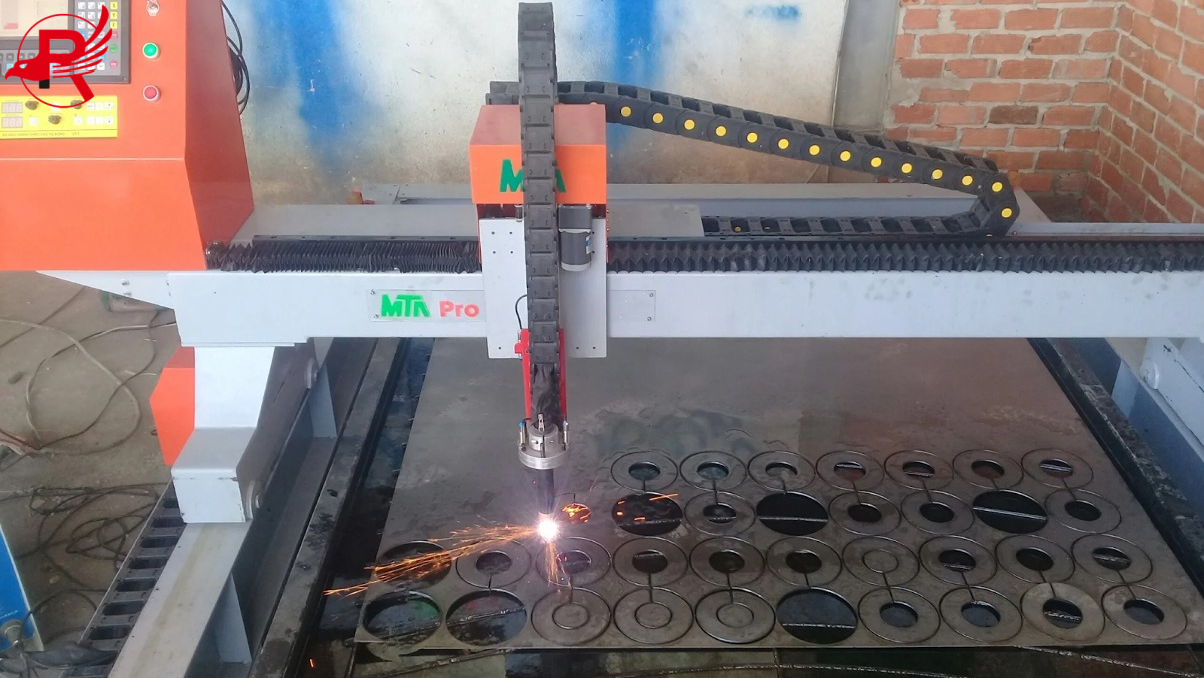

1.CNC Cutting: Laser cutting, plasma cutting and flame cutting for your custom designs and sizes.
2.CNC Drilling: Accurate bolt-hole size and location.
3.Edge Processing: Deburring, cropping, beveling and edging finishing service available.
4.Custom fabrication: Shapes, thicknesses, dimensions and hole pattern are made to drawing.
5.Surface Treatment: Song was you want painting, hot-dip galvanizing.etc.
6.Quality Inspection: Material, size, thickness, hole position and fabrication quality are checked before shipment.
7.Drawing support: We can produce from your CAD/PDF or engineering drawing.
APPLICATION
Our ASTM steel gusset plates are popularly utilized for joining and supporting the structural members of steel in the building and industrial applications.
Beam Column Connections: Flush beams or L-beams are connected to the top, bottom, or mid-height of columns.
Bracing Connections: Attach diagonal bracing to columns, beams and plate frames.

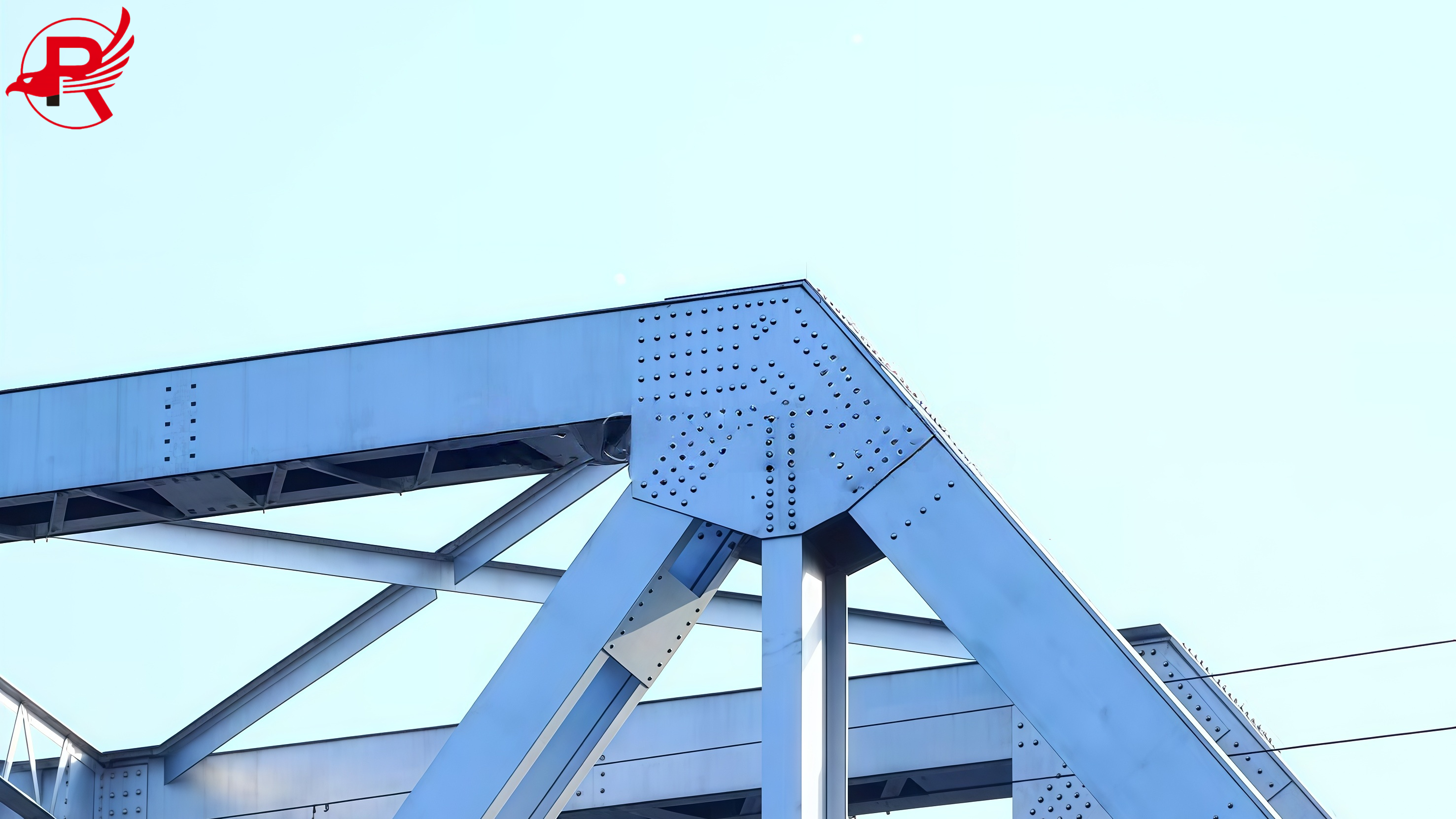

Steel Truss Joints: At the truss nodes to connect the chord and web members.
Steel Frame Structures: Ideal for Warehouses, Workshops, Commercial buildings, and Industrial buildings.
Roof Structures: Employed in roof trusses and structural framing.

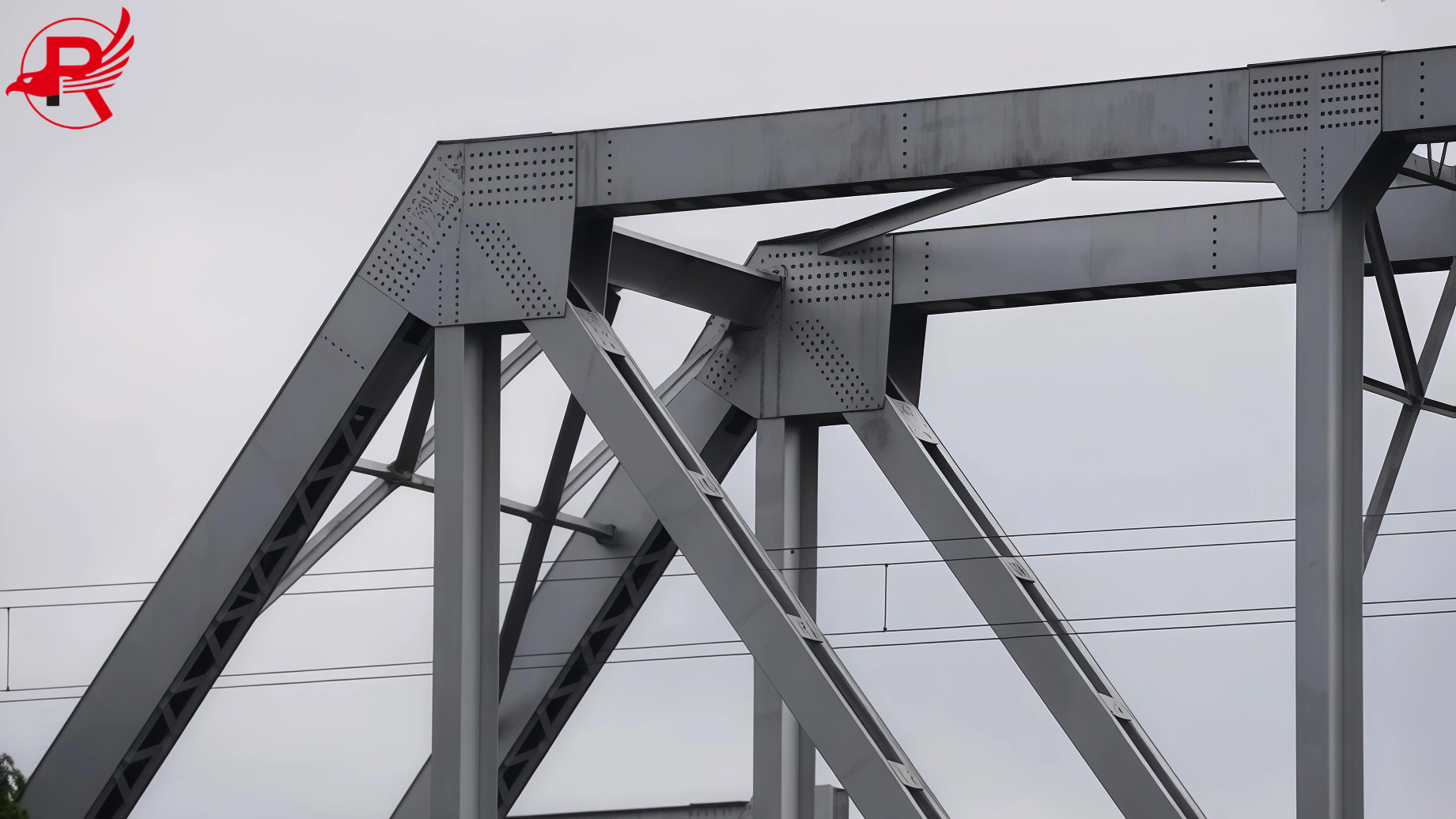

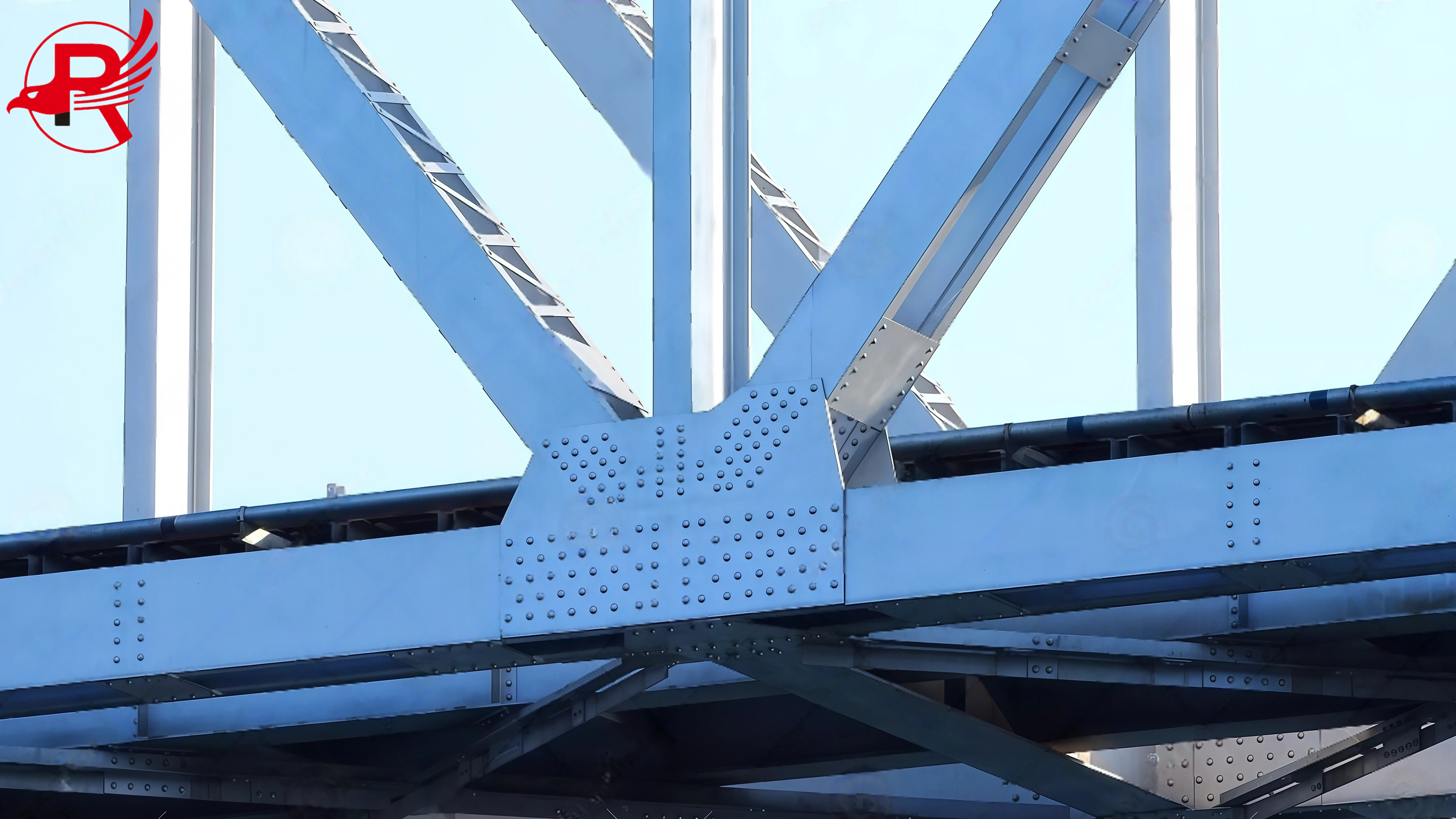

Bridge & Infrastructure: Structural steel bridges and other heavy infrastructure projects.
QUALITY CONTROL
We conduct inspections throughout production to help ensure reliable fabrication quality, including:
1.Raw material verification
2.Steel grade and thickness inspection
3.Dimensional tolerance inspection
4.Hole diameter and positioning inspection
5.Cut-edge quality inspection
6.Visual inspection
7.MTC and inspection documentation
8.Third-party inspection support when required
WHY CHOOSE US?
1.ASTM Materials – ASTM A36 and ASTM A572 Grade 50 are offered for predictable structural quality.
2.Custom Fabrication – We can produce all profiles to your drawings in shape, size, thickness and hole pattern.
3.Accurate Cutting and Drilling – Cutting to size, hole positioning and hole length and width are accurate to speed up installation and ensure correct structural alignment.
4.High Quality Control - Material, size, thickness, hole position and fabrication quality inspected before shipment.
5.Project-Ready Supply – Ideal for beam-column connections, bracing systems, trusses, steel frames, and civil engineering work.
PACKAGING AND SHIPPING
Our steel gusset plates are securely packed and prepared for safe international transportation, helping prevent deformation, surface damage, and moisture exposure during handling and transit.
Steel Bundles: Plates are securely bundled with steel straps according to size and weight.
Protective Packing: Waterproof material can be used to protect products from moisture and contamination.
Wooden Pallets: Suitable for smaller or specially fabricated gusset plates when required.
Marking: Each bundle is clearly marked with product name, size, grade, quantity, and shipping information.
Container Loading: Products can be loaded in containers or shipped by bulk cargo according to order quantity and dimensions.
Export Packaging: Packing is designed for international sea transportation and efficient unloading.
Shipping Terms: FOB, CFR, CIF, and other international trade terms are available according to customer requirements.
FAQ
Q1: What steel grades are available for gusset plates?
A: We commonly supply ASTM A36 and ASTM A572 Grade 50 steel gusset plates. Other grades can be discussed according to project requirements.
Q2: Can gusset plates be manufactured according to drawings?
A: Yes. Custom shapes, dimensions, thicknesses, hole locations, and bolt-hole patterns can be fabricated according to customer drawings.
Q3: Can you provide drilled gusset plates?
A: Yes. CNC drilling is available for accurate bolt-hole diameter and positioning.
Q4: Can gusset plates be galvanized or painted?
A: Yes. Mill finish, painted, shot-blasted, and hot-dip galvanized options are available depending on the project requirements.
Q5: What documents can you provide?
A: Material Test Certificates (MTC), inspection reports, packing documents, and third-party inspection support can be provided when required.
