Short Description:

A36 H-beam is a popular structural steel with good mechanical properties, good weld-ability and stable performance for building, bridge and industry applications.


  • Place of Origin:: China
  • Brand Name:: Royal Steel Group
  • Model Number:: RY-H2510
  • Material Standard: ASTM
  • Grade: A36
  • Dimensions: W6×9, W8×10, W12×30, W14×43, etc.
  • Length: Stock for 6 m & 12 m, Customized Length
  • Delivery period: 10- 25 working days
  • Payment Terms: T/T,Western Union
  • Quality Certification: ISO 9001, SGS/BV Third-Party Inspection Report
    • Send email to us WhatsApp

    Product Detail

    Product Tags

    Product Introduction

    Item Description
    Material Standard ASTM A36
    Yield Strength ≥345 MPa
    Sizes W6×9, W8×10, W12×30, W14×43, etc.
    Length 6 m & 12 m in stock, customized length
    Tolerance ASTM A6 / GB/T 11263
    Certification ISO 9001, SGS / BV inspection
    Surface Hot-dip galvanized, painted, or customized
    Applications Plants, warehouses, buildings, bridges
    GET A QUOTE

    Technical Data

    ASTM A36 W-beam (or H-beam) Chemical Composition

    Steel grade Carbon, Manganese, Phosphorus, Sulfur, Silicon,
    max,% % max,% max,% %
    A36 0.26 -- 0.04 0.05 ≤0.40
    NOTE:Copper content is available when your order is specified.

    ASTM A36 W-beam (or H-beam) Mechanical Property

    Steel Grade Tensile strength,
    ksi[MPa]    		 Yield pointmin,
    ksi[MPa]    		 Elongation in 8 in.[200
    mm],min,%    		 Elongation in 2 in.[50
    mm],min,%
    A36 58-80 [400-550] 36[250] 20.00 21





    ASTM A36 Wide Flange H-beam Sizes - W Beam

    Designation  Dimensions  Static Parameters
     Moment of Inertia  Section Modulus
     Imperial(in x lb/ft)  Depthh (in)  Widthw (in)  Web Thicknesss (in)  Sectional Area(in2)  Weight(lb/ft)  Ix(in4)  Iy(in4)  Wx(in3)  Wy(in3)
     W 27 x 178  27.8  14.09  0.725  52.3  178  6990  555  502  78.8
     W 27 x 161  27.6  14.02  0.660  47.4  161  6280  497  455  70.9
     W 27 x 146  27.4  14  0.605  42.9  146  5630  443  411  63.5
     W 27 x 114  27.3  10.07  0.570  33.5  114  4090  159  299  31.5
     W 27 x 102  27.1  10.02  0.515  30.0  102  3620  139  267  27.8
     W 27 x 94  26.9  10  0.490  27.7  94  3270  124  243  24.8
     W 27 x 84  26.7  9.96  0.460  24.8  84  2850  106  213  21.2
     W 24 x 162  25  13  0.705  47.7  162  5170  443  414  68.4
     W 24 x 146  24.7  12.9  0.650  43.0  146  4580  391  371  60.5
     W 24 x 131  24.5  12.9  0.605  38.5  131  4020  340  329  53.0
     W 24 x 117  24.3  12.8  0.55  34.4  117  3540  297  291  46.5
     W 24 x 104  24.1  12.75  0.500  30.6  104  3100  259  258  40.7
     W 24 x 94  24.1  9.07  0.515  27.7  94  2700  109  222  24.0
     W 24 x 84  24.1  9.02  0.470  24.7  84  2370  94.4  196  20.9
     W 24 x 76  23.9  9  0.440  22.4  76  2100  82.5  176  18.4
     W 24 x 68  23.7  8.97  0.415  20.1  68  1830  70.4  154  15.7
     W 24 x 62  23.7  7.04  0.430  18.2  62  1550  34.5  131  9.8
     W 24 x 55  23.6  7.01  0.395  16.2  55  1350  29.1  114  8.3
     W 21 x 147  22.1  12.51  0.720  43.2  147  3630  376  329  60.1
     W 21 x 132  21.8  12.44  0.650  38.8  132  3220  333  295  53.5
     W 21 x 122  21.7  12.39  0.600  35.9  122  2960  305  273  49.2
     W 21 x 111  21.5  12.34  0.550  32.7  111  2670  274  249  44.5
     W 21 x 101  21.4  12.29  0.500  29.8  101  2420  248  227  40.3
     W 21 x 93  21.6  8.42  0.580  27.3  93  2070  92.9  192  22.1
     W 21 x 83  21.4  8.36  0.515  24.3  83  1830  81.4  171  19.5
     W 21 x 73  21.2  8.3  0.455  21.5  73  1600  70.6  151  17.0
     W 21 x 68  21.1  8.27  0.430  20.0  68  1480  64.7  140  15.7
     W 21 x 62  21  8.24  0.400  18.3  62  1330  57.5  127  13.9
     W 21 x 57  21.1  6.56  0.405  16.7  57  1170  30.6  111  9.4
     W 21 x 50  20.8  6.53  0.380  14.7  50  984  24.9  94.5  7.6
     W 21 x 44  20.7  6.5  0.350  13.0  44  843  20.7  81.6  6.4

    Click the Button on The Right

    Download the Latest W beam Specifications and Dimensions.

    Click Here

    ASTM A36 H-Beam Dimensions and Tolerances Comparison Table

    Dimension Typical Range Tolerance (ASTM A6/A6M) Notes
    Height H 100–600 mm ±3 mm Can be customized per customer request
    Flange Width B 100–300 mm ±3 mm —
    Web Thickness t_w 6–16 mm ±10% or ±1 mm Larger value applies
    Flange Thickness t_f 8–25 mm ±10% or ±1 mm Larger value applies
    Length L 6–12 m ±12 mm (6 m), ±24 mm (12 m) Adjustable per contract

    ASTM A36 H-Beam Customized Content

    Customization Type Options Description / Range Minimum Order Quantity (MOQ)
    Dimension Height (H), Flange Width (B), Web Thickness (t_w), Flange Thickness (t_f), Length (L) H: 100–600 mm; B: 100–300 mm; t_w: 6–16 mm; t_f: 8–25 mm; Length cut to requirement 20 tons
    Processing Drilling, Hole Cutting, End Processing, Prefabricated Welding Can be processed per project needs; ends can be beveled, grooved, or welded into frames 20 tons
    Surface Treatment Hot-Dip Galvanizing, Anti-Corrosion Coating (Paint / Epoxy), Sandblasting, Smooth Surface Choose treatment for corrosion resistance, rust protection, or plain finish 20 tons
    Marking & Packaging Customized Marking, Transport Method Project number or model marked; packaging for flatbed or container shipping 20 tons

    Surface Finish

    carbon-steel-h-beam
    galvanized-surface-h-beam
    black-oil-surface-h-beam-royal

    Ordinary Surface

    Galvanized Surface (hot-dip galvanizing thickness ≥ 85μm, service life up to 15-20 years),

    Black Oil Surface

    Main Application

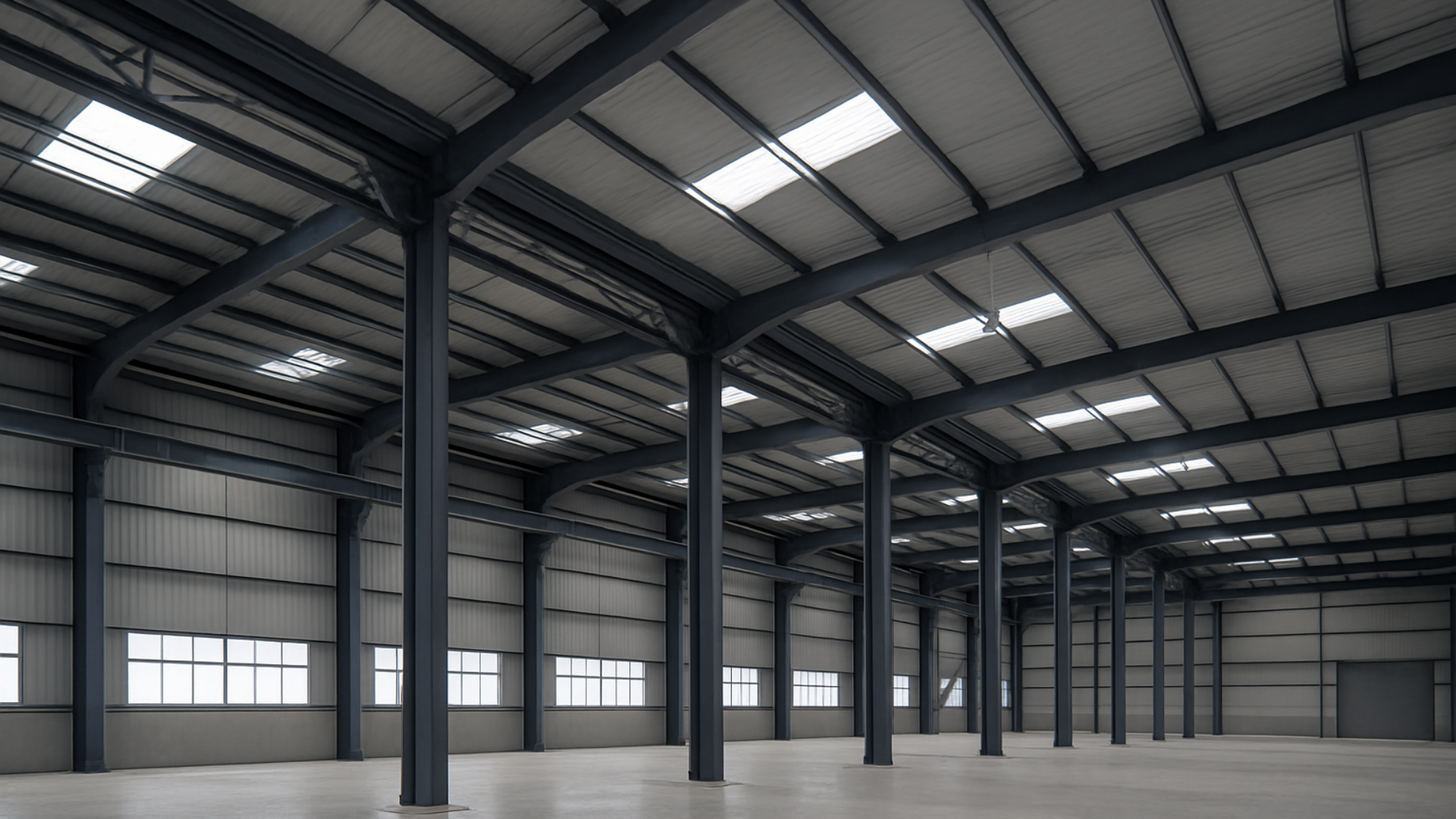

    Construction: Served as frame beam and column and high-rise office, apartment, shopping mall and other building construction; also used in building industrial plant and crane beam.

    Bridge Applications: Used for small- and medium-span highway and railroad bridges in the deck system and in the substructure.

    Municipal & Special Structures: Employed in subway stations, city pipeline carriers, tower crane bases, and temporary construction strut work.

    Industrial Plant Supports: The vertical support beam is a critical element for stability, that enhances the framework of an industrial building by providing stability in both the vertical and horizontal planes.

    astm-a992-a572-h-beam-application-royal-steel-group-2
    astm-a992-a572-h-beam-application-royal-steel-group-3
    astm-a992-a572-h-beam-application-royal-steel-group-4
    ChatGPT Image Nov 18, 2025, 03_28_30 PM (1)

    Royal Steel Group Advantage（Why Royal Group Stands Out for Americas Clients?）

    ROYAL-GUATEMALA
    ASTM A36 wide flange H beam supplier

    1) Branch Office - Spanish-speaking support, customs clearance assistance, etc.

    2) Over 5,000 tons of stock in stock, with a wide variety of sizes

    ROYAL-H-BEAM
    ROYAL-H-BEAM-21

    3) Inspected by authoritative organizations such as CCIC, SGS, BV, and TUV, with standard seaworthy packaging

    Packing And Delivery

    Packing:

    • Basic Protection: Bundles wrapped in tarpaulin with 2–3 desiccant packs; covered with heat-sealed rainproof cloth.

    • Bundling: Secured with 12–16 mm steel straps, compatible with 2–3 ton lifting equipment at American ports.

    • Labeling: Bilingual (English + Spanish) labels showing material, specifications, HS code, batch number, and test report.

    Delivery Options:

    • Road Transport: Ideal for short distances or direct delivery to sites; trucks equipped with anti-slip measures.

    • Rail Transport: Cost-effective for long-distance, high-tonnage shipments.

    • Sea Transport: Suitable for international shipping; supports bulk or open-top container transport of long products.

    • Inland Waterway / Barge: Efficient for moving large H-beams along rivers or internal waterways.

    • Special Transport: Oversized or overweight beams moved with multi-axle low-bed trailers or combination trailers.

    Americas Market Transportation Solution:ASTM I Beams are primarily shipped to the Americas via containerized sea freight with steel strapping, end protection, and optional anti-rust treatment to ensure safe and efficient transport.

    h-beam-delivery
    H型钢发货1
    H beam2

    FAQ

    Q: Which standards do your H-beams comply to for Central American countries?
    A: Our h beam confirm to astm a36 and a572 grade 50 which is widely used in central america. We also offer local norm beams like NOM in Mexico.

    Q: How long is the delivery time for Panama?
    A: Sea freight from Tianjin Port to Panama/Colon Free Trade Zone takes normally 28–32 days. About 45–60 days for delivery including production and customs clearance. Rush shipping is available.

    Q: Do you help with customs clearance?
    A: Yes, we have professional customs brokers in central america to take care of declarations, taxes, and all of that, so that your delivery is smooth and timely.
