ASTM A588 Angle Steel Hot Rolled Corten Weathering Structural Angle Bar
Product Overview
ASTM A588 Angle Steel is a hot-rolled high-strength low alloy steel angle, it is an atmospheric corrosion resistant steel. Although more commonly identified with Corten weathering steel, when subjected to appropriate outdoor exposure, ASTM A588 angle steel forms a very stable protective rust patina that significantly retards additional surface rusting and extends maintenance cycles.
For its combination of structural strength, durability, and weathering good-performance, A588 Angle Steel is popular across a diverse range of uses including bridges, steel structures, industrial plants, infrastructure projects, outdoor decks, and architectural applications.
Royal Steel Group offers ASTM A588 weathering steel angle bars in broad range of sizes and lengths along with services of customized cutting, drilling, fabrication, inspection, packaging and shipping across the globe.
Product Detail
| Item | Details |
| Product | ASTM A588 Angle Steel |
| Product Type | Structural Angle Bar |
| Material | ASTM A588 Weathering Steel |
| Manufacturing | Hot Rolled |
| Shape | Equal / Unequal Angle |
| Standard | ASTM A588 |
| Surface | Hot Rolled / Weathered / Customized |
| Length | 6 m, 9 m, 12 m or Customized |
| Processing | Cutting, Drilling, Welding, Fabrication |
| Inspection | MTC / Third-Party Inspection Available |
| Application | Bridges, Infrastructure, Buildings, Industrial Structures |
ASTM Angle Steel Bar Chemical Composition
| Steel grade | Carbon, max, % | Manganese, % | Phosphorus, max, % | Sulfur, max, % | Silicon, % | Nickel, max, % | Chromium, % | Copper | Vanadium, % |
|---|---|---|---|---|---|---|---|---|---|
| A588 Grade A | 0.19 | 0.80 - 1.25 | 0.04 | 0.05 | 0.30 - 0.65 | 0.40 | 0.40 - 0.65 | 0.25 - 0.40 | 0.02 - 0.10 |
ASTM Angle Steel Bar Mechanical Properties
| Steel grade | Styles | Tensile strength, ksi [MPa] | Yield point, min, ksi [MPa] | Elongation in 8 in. [200 mm], min, % | Elongation in 2 in. [50 mm], min, % |
|---|---|---|---|---|---|
| A588 Grade A | Steel angles | 70 [485] | 50 [345] | 18 | 21 |
ASTM A36 Angle Steel Bar Size
A588 equal angle steel specification
A588 unequal angle steel specification
A588 equal angle steel specification
| Item | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) | Item | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) |
| EA588001 | 20 | 20 | 3 | 0.889 | EA588045 | 80 | 80 | 7 | 8.525 |
| EA588002 | 20 | 20 | 4 | 1.145 | EA588046 | 80 | 80 | 8 | 9.658 |
| EA588003 | 25 | 25 | 3 | 1.124 | EA588047 | 80 | 80 | 10 | 11.874 |
| EA588004 | 25 | 25 | 4 | 1.459 | EA588048 | 90 | 90 | 6 | 8.35 |
| EA588005 | 30 | 30 | 3 | 1.373 | EA588049 | 90 | 90 | 7 | 9.656 |
| EA588006 | 30 | 30 | 4 | 1.786 | EA588050 | 90 | 90 | 8 | 10.946 |
| EA588007 | 35 | 35 | 3 | 1.578 | EA588051 | 90 | 90 | 10 | 13.476 |
| EA588008 | 35 | 35 | 4 | 2.072 | EA588052 | 90 | 90 | 12 | 15.94 |
| EA588009 | 35 | 35 | 5 | 2.551 | EA588053 | 100 | 100 | 6 | 9.5296 |
| EA588010 | 40 | 40 | 3 | 1.852 | EA588054 | 100 | 100 | 7 | 10.83 |
| EA588011 | 40 | 40 | 4 | 2.422 | EA588055 | 100 | 100 | 8 | 10.276 |
| EA588012 | 40 | 40 | 5 | 1.976 | EA588056 | 100 | 100 | 10 | 15.12 |
| EA588013 | 44 | 44 | 3 | 2.002 | EA588057 | 100 | 100 | 12 | 17.898 |
| EA588014 | 44 | 44 | 4 | 2.638 | EA588058 | 100 | 100 | 14 | 20.611 |
| EA588015 | 38 | 38 | 3 | 1.719 | EA588059 | 100 | 100 | 16 | 23.257 |
| EA588016 | 38 | 38 | 4 | 2.261 | EA588060 | 110 | 110 | 7 | 11.928 |
| EA588017 | 48 | 48 | 3 | 2.19 | EA588061 | 110 | 110 | 8 | 13.532 |
| EA588018 | 48 | 48 | 4 | 2.889 | EA588062 | 110 | 110 | 10 | 16.69 |
| EA588019 | 48 | 48 | 5 | 3.572 | EA588063 | 110 | 110 | 12 | 19.782 |
| EA588020 | 50 | 50 | 3 | 2.332 | EA588064 | 110 | 110 | 14 | 22.809 |
| EA588021 | 50 | 50 | 4 | 3.059 | EA588065 | 125 | 125 | 8 | 15.504 |
| EA588022 | 50 | 50 | 5 | 3.77 | EA588066 | 125 | 125 | 10 | 19.133 |
| EA588023 | 50 | 50 | 6 | 4.465 | EA588067 | 125 | 125 | 12 | 22.692 |
| EA588024 | 56 | 56 | 3 | 2.624 | EA588068 | 125 | 125 | 14 | 26.193 |
| EA588025 | 56 | 56 | 4 | 3.446 | EA588069 | 140 | 140 | 10 | 21.488 |
| EA588026 | 56 | 56 | 5 | 4.251 | EA588070 | 140 | 140 | 12 | 25.522 |
| EA588027 | 56 | 56 | 6 | 6.568 | EA588071 | 140 | 140 | 14 | 29.49 |
| EA588028 | 63 | 63 | 4 | 3.907 | EA588072 | 140 | 140 | 16 | 33.393 |
| EA588029 | 63 | 63 | 5 | 4.822 | EA588073 | 160 | 160 | 10 | 24.724 |
| EA588030 | 63 | 63 | 6 | 5.721 | EA588074 | 160 | 160 | 12 | 29.391 |
| EA588031 | 63 | 63 | 8 | 7.469 | EA588075 | 160 | 160 | 14 | 33.987 |
| EA588032 | 63 | 63 | 10 | 9.151 | EA588076 | 160 | 160 | 16 | 38.518 |
| EA588033 | 70 | 70 | 4 | 4.372 | EA588077 | 180 | 180 | 12 | 33.159 |
| EA588034 | 70 | 70 | 5 | 5.397 | EA588078 | 180 | 180 | 14 | 35.383 |
| EA588035 | 70 | 70 | 6 | 6.406 | EA588079 | 180 | 180 | 16 | 43.452 |
| EA5880529 | 70 | 70 | 7 | 7.398 | EA588080 | 180 | 180 | 18 | 48.634 |
| EA588037 | 70 | 70 | 8 | 8.373 | EA588081 | 200 | 200 | 14 | 42.894 |
| EA588038 | 75 | 75 | 5 | 5.818 | EA588082 | 200 | 200 | 16 | 48.56 |
| EA588039 | 75 | 75 | 6 | 6.905 | EA588083 | 200 | 200 | 18 | 54.501 |
| EA588040 | 75 | 75 | 7 | 7.976 | EA588084 | 200 | 200 | 20 | 60.056 |
| EA588041 | 75 | 75 | 8 | 9.03 | EA588085 | 200 | 200 | 22 | 71.168 |
| EA588042 | 75 | 75 | 10 | 11.089 | Length = 6 - 12 meters | ||||
| EA588043 | 80 | 80 | 5 | 6.211 | |||||
| EA588044 | 80 | 80 | 6 | 7.376 | |||||
A588 unequal angle steel specification
| A588-50 unequal angle steel specification | |||||||||
| Item no. | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) | Item no. | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) |
| UEA588001 | 30 | 20 | 3 | 1.14 | UEA588045 | 100 | 50 | 6 | 6.98 |
| UEA588002 | 30 | 20 | 4 | 1.49 | UEA588046 | 100 | 50 | 8 | 9.16 |
| UEA588003 | 40 | 20 | 3 | 1.38 | UEA588047 | 100 | 50 | 10 | 11.3 |
| UEA588004 | 40 | 20 | 3 | 1.8 | UEA588048 | 100 | 65 | 7 | 8.96 |
| UEA588005 | 40 | 25 | 4 | 1.97 | UEA588049 | 100 | 65 | 8 | 10.2 |
| UEA588006 | 45 | 30 | 4 | 2.3 | UEA588050 | 100 | 65 | 9 | 11.3 |
| UEA588007 | 45 | 30 | 5 | 2.82 | UEA588051 | 100 | 65 | 10 | 12.5 |
| UEA588008 | 50 | 30 | 5 | 3.02 | UEA588052 | 100 | 75 | 7 | 9.52 |
| UEA588009 | 50 | 30 | 6 | 3.58 | UEA588053 | 100 | 75 | 8 | 10.8 |
| UEA588010 | 50 | 40 | 4 | 2.77 | UEA588054 | 100 | 75 | 9 | 12.1 |
| UEA588011 | 50 | 40 | 5 | 3.42 | UEA588055 | 100 | 75 | 10 | 13.3 |
| UEA588012 | 50 | 40 | 6 | 4.03 | UEA588056 | 100 | 75 | 11 | 14.6 |
| UEA588013 | 60 | 30 | 5 | 3.43 | UEA588057 | 100 | 75 | 12 | 15.8 |
| UEA588014 | 60 | 30 | 6 | 4.06 | UEA588058 | 120 | 80 | 8 | 12.4 |
| UEA588015 | 60 | 30 | 7 | 4.68 | UEA588059 | 120 | 80 | 10 | 15.3 |
| UEA588016 | 60 | 40 | 5 | 3.83 | UEA588060 | 120 | 80 | 12 | 18.2 |
| UEA588017 | 60 | 40 | 6 | 4.54 | UEA588061 | 130 | 65 | 8 | 12.1 |
| UEA588018 | 60 | 40 | 7 | 5.24 | UEA588062 | 130 | 65 | 10 | 14.9 |
| UEA588019 | 65 | 50 | 5 | 4.43 | UEA588063 | 130 | 65 | 12 | 17.7 |
| UEA588020 | 65 | 50 | 6 | 5.26 | UEA588064 | 130 | 75 | 8 | 12.7 |
| UEA588021 | 65 | 50 | 7 | 6.08 | UEA588065 | 130 | 75 | 10 | 15.7 |
| UEA588022 | 65 | 50 | 8 | 6.88 | UEA588066 | 130 | 75 | 12 | 18.6 |
| UEA588023 | 75 | 50 | 5 | 4.83 | UEA588067 | 130 | 90 | 10 | 17 |
| UEA588024 | 75 | 50 | 6 | 5.75 | UEA588068 | 130 | 90 | 12 | 20.1 |
| UEA588025 | 75 | 50 | 7 | 6.65 | UEA588069 | 150 | 75 | 9 | 15.7 |
| UEA588026 | 75 | 50 | 8 | 7.53 | UEA588070 | 150 | 75 | 10 | 17.4 |
| UEA588027 | 75 | 50 | 9 | 8.4 | UEA588071 | 150 | 75 | 11 | 18.9 |
| UEA588028 | 75 | 55 | 5 | 5.04 | UEA588072 | 150 | 75 | 12 | 20.6 |
| UEA588029 | 75 | 55 | 7 | 6.93 | UEA588073 | 150 | 90 | 10 | 18.6 |
| UEA588030 | 75 | 65 | 6 | 6.49 | UEA588074 | 150 | 90 | 12 | 22 |
| UEA588031 | 75 | 65 | 8 | 8.48 | UEA588075 | 150 | 90 | 15 | 27.1 |
| UEA588032 | 75 | 65 | 10 | 10.5 | UEA588076 | 150 | 100 | 10 | 19.3 |
| UEA588033 | 80 | 40 | 6 | 5.51 | UEA588077 | 150 | 100 | 12 | 23 |
| UEA588034 | 80 | 40 | 8 | 7.21 | UEA588078 | 150 | 100 | 14 | 26.6 |
| UEA588035 | 80 | 60 | 6 | 6.49 | UEA588079 | 160 | 80 | 10 | 18.5 |
| UEA5880529 | 80 | 60 | 7 | 7.5 | UEA588080 | 160 | 80 | 12 | 22 |
| UEA588037 | 80 | 60 | 8 | 8.48 | UEA588081 | 160 | 80 | 14 | 25.4 |
| UEA588038 | 80 | 65 | 6 | 6.73 | UEA588082 | 200 | 100 | 10 | 23.4 |
| UEA588039 | 80 | 65 | 8 | 8.82 | UEA588083 | 200 | 100 | 12 | 27.8 |
| UEA588040 | 80 | 65 | 10 | 10.9 | UEA588084 | 200 | 100 | 15 | 34.4 |
| UEA588041 | 90 | 65 | 6 | 7.22 | UEA588085 | 250 | 90 | 10 | 26.6 |
| UEA588042 | 90 | 65 | 7 | 8.32 | Material: ASTM A588 Length = 6 - 12 meters | ||||
| UEA588043 | 90 | 65 | 8 | 9.44 | |||||
| UEA588044 | 90 | 65 | 10 | 11.7 | |||||
Click the Button on The Right
Main Features
1.Performance of the weathering steel: ASTM A588 is intended to form a protective patina when exposed to the atmosphere that provides superior resistance to atmospheric corrosion when compared to normal carbon steel.
2.High Structural Strength: The high-strength, low alloy nature of this steel part makes it capable of supporting heavy loads and is ideal for industrial applications.
3.Hot-Rolled Manufacturing: Hot-rolling ensures a uniform structure with good dimensional tolerance and with good suitability for further processing and utilization.
4.Less Maintenance: In some suitable outdoor conditions, the patina formed naturally in outdoor might even reduce the need of over-coating or maintenance treatment of the surface.
5.Multipurpose Structural Shape: The L-shape is an effective support and reinforcement for structural elements such as framing, beams, brackets, towers and much more.
6.Custom Processing: Cutting, drilling, welding, machining and other processing on the basis of customer's drawings and project description.
ASTM A588 Weathering Steel Material
ASTM A588 is a high strength low alloy (HSLA) steel which has been designed for use in structural applications where a higher level of corrosion resistance is required.
The alloying elements of A588 allow a protective surface layer to be formed under suitable atmospheric exposure. What happens over time is the original hot-rolled surface transforms to a typical brown or rust colored patina that offers both function and aesthetics.
The weathering action is most efficient in atmosphere of frequent wetting and drying and sufficient exposure.
MAIN APPLICATION
ASTM Angle Steel Service is employed in many structural and industrial applications, such as warehouses and manufacturers because of its superior strength, high weldability and dependable quality.
Bridge Construction: Selected bridge components and supporting structures exposed to atmospheric conditions.
Steel Buildings: Suitable for structural frames, bracing systems, supports, and reinforcement components.
Industrial Structures: Used in factories, workshops, platforms, equipment supports, and other industrial steel structures.
Infrastructure Projects: Suitable for selected outdoor infrastructure applications where weathering performance is beneficial.

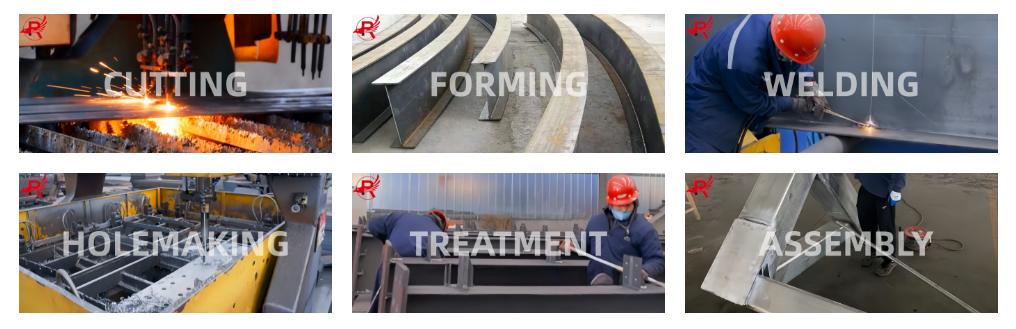

Processing Services
Royal Steel Group provides customized processing services for ASTM A588 Angle Steel.
Available services include:
1.Cutting to required lengths
2.Drilling and hole making
3.Welding
4.Bending where applicable
5.Steel fabrication
6.Surface treatment
7.Dimensional inspection
8.Material testing
9.Bundle marking
10.Custom fabrication according to drawings
These services can help international buyers reduce additional processing requirements after receiving the material.
Why Choose Royal Steel Group?
1.ASTM Supply-Compliant Supply
The products of us are in line with related standards of ASTM, EN, JIS, GB and so on.
2.Professional Export Service
Our team assists international customers with quotes, technical, production, inspection, documentation, packaging and shipping logistics.
3.Customized Steel Processing
Cut to size, Drilling, Welding, Fabrication and more value added services available as per customers drawings.
4.All Documentation
Based on the project, documents may include MTC, inspector reports, Certificate of Origin, packing list, commercial invoice and shipping documentation.
5.Sure Quality Control
Material traceability and inspection procedures at the angle steel suppliers make sure that the supplied angle steel is as per agreed specifications.
6.Worldwide Project Assistance
We deliver international solutions for construction, infrastructure, industrial, energy and more through our expertise in structural steel.
Packaging & Shipping
ASTM A588 Angle Bars are securely bundled for international transportation to minimize movement, deformation, and surface damage during handling.
Typical export packaging includes:
1.Steel straps
2.Protective wrapping when required
3.Clearly marked bundles
4.Product specifications and heat numbers
5.Waterproof protection for sea transportation where applicable
Depending on order quantity, dimensions, destination, and customer requirements, shipments can be arranged by container, bulk vessel, or other suitable transportation methods.
FAQ
Q1: Are you a manufacturer or steel trading company?
A: We are a professional steel supplier with extensive export experience and strict quality control.
Q2: Can you provide a competitive price for bulk orders?
A: Yes. We offer competitive prices based on specifications, quantity, and destination.
Q3: What quality certificates can you provide?
A: We can provide MTC, chemical composition, mechanical test, and inspection reports.
Q4: Can you arrange SGS or third-party inspection?
A: Yes. SGS and other third-party inspections can be arranged before shipment.
Q5: How long is the delivery time?
A: Delivery time depends on stock, quantity, specifications, and processing requirements.
