Competitive Prices ASTM A588 Steel I-Beams

Short Description:

ASTM A588 steel beams not only possess high tensile and yield strength, but also exhibit excellent resistance to atmospheric corrosion due to their low copper content. Despite their high strength, they are lighter than A36 steel without compromising strength. Furthermore, they are ideal for outdoor applications and have an orange-brown surface.

Place of Origin:: China

Brand Name:: China Royal Steel

Dimensions: IPE/IPN 80-600

Length: Stock for 6 m & 12 m, Customized Length

Delivery Time: 10-25 working days

Payment Term: T/T,Western Union

Quality Certification: SGS/BV/ISO 9001

Send email to us WhatsApp

Product Detail

Product Tags

Product Introduction

Brand Name	Royal
Technique	Hot Rolled
Application	Construction building
Processing Service	Bending, Welding, Punching, Cutting
Grade	A588
Length	6-12m
DELIVERY TIME	Within 10-15 Days
Payment Term	T/T (30% Deposit)
Size	150x150x7x10mm, 300x300x10x15mm, 400x400x13x21mm

Check Latest Stock & Price

Chemical Composition & Mechanical Properties

ASTM A588 steel beam chemical composition (heat analysis)
Steel grade	Carbon, max, %	Manganese, %	Phosphorus, max, %	Sulfur, max, %	Silicon, %	Nickel, max, %	Chromium, %	Copper	Vanadium, %
A588 grade A	0.19	0.80 - 1.25	0.04	0.05	0.30 - 0.65	0.4	0.40 - 0.65	0.25 - 0.40	0.02 - 0.10

ASTM A588 steel beam mechanical property
Steel grade	Styles	Tensile Sstrength, ksi [MPa]	Yield point, min, ksi [MPa]	Elongation in 8 in. [200 mm], min, %	Elongation in 2 in. [50 mm], min, %
A588 grade A	Steel angles	70 [485]	50 [345]	18	21

IPE/IPN Size

IPE dimension

IPN dimension

IPE dimension

Item	Weight (kg/m)	Depth (mm)	Width (mm)	Web thickness (mm)	Flange thickness (mm)
IPE 80	6	80	46	3.8	5.2
IPE 100	8.1	100	55	4.1	5.7
IPE 120	10.4	120	64	4.4	6.3
IPE 140	12.9	140	73	4.7	6.9
IPE 160	15.8	160	82	5	7.4
IPE 180	18.8	180	91	5.3	8
IPE 200	22.4	200	100	5.6	8.5
IPE 220	26.2	220	110	5.9	9.2
IPE 240	30.7	240	120	6.2	9.8
IPE 270	36.1	270	135	6.6	10.2
IPE 300	42.2	300	150	7.1	10.7
IPE 330	49.1	330	160	7.5	11.5
IPE 360	57.1	360	170	8	12.7
IPE 400	66.3	400	180	8.6	13.6
IPE 450	79.1	450	190	9.4	14.6
IPE 500	90.7	500	200	10.2	16
IPE 550	106	550	210	11.2	17.2
IPE 600	124.4	600	220	12	19

IPN dimension

Item	Weight (kg/m)	Depth (mm)	Width (mm)	Web thickness (mm)	Flange thickness (mm)
IPN 80	5.9	80	42	3.9	5.9
IPN 100	8.3	100	50	4.5	6.8
IPN 120	11.1	120	58	5.1	7.7
IPN 140	14.3	140	66	5.7	8.6
IPN 160	17.9	160	74	6.3	9.5
IPN 180	21.9	180	82	6.9	10.4
IPN 200	26.2	200	90	7.5	11.3
IPN 220	31.1	220	98	8.1	12.2
IPN 240	36.2	240	106	8.7	13.1
IPN 260	41.9	260	113	9.4	14.1
IPN280	47.9	280	119	10.1	15.2
IPN 300	54.2	300	125	10.8	16.2
IPN320	61	320	131	11.5	17.3
IPN 340	68	340	137	12.2	18.3
IPN 360	76.1	360	143	13	19.5

Ready to discover more sizes?

Download the complete I Beam size chart!

CLICK HERE

Surface Finish

Hot Rolled Black:Standard state

Hot-dip galvanizing: ≥85μm (compliant with ASTM A123), salt spray test ≥500h

Coating: Liquid paint was evenly sprayed onto the surface of the steel beam using a pneumatic spray gun.

Customized Content

Category	Options	Description	MOQ	Lead Time	Inspection
Dimensions	Height (H), Width (B), Web Thickness, Flange Thickness, Length	Available in standard specifications or customized dimensions	20 Tons	7–15 Days	Dimensional accuracy and length tolerance
Surface Finish	Black Steel, Shot Blasted, Oiled, Painted, Hot-Dip Galvanized	Various surface treatments for corrosion protection and project requirements	20 Tons	10–20 Days	Surface quality and coating thickness inspection
Processing Services	Cutting, Drilling, Beveling, Welding, Prefabrication	Value-added fabrication according to customer drawings and specifications	20 Tons	15–30 Days	Drawing compliance and weld quality verification
Packaging & Marking	Custom Labels, Steel Bundling, End Protection, Waterproof Wrapping	Export-standard packaging for safe transportation and easy identification	20 Tons	3–7 Days	Packaging condition and marking inspection

Main Application

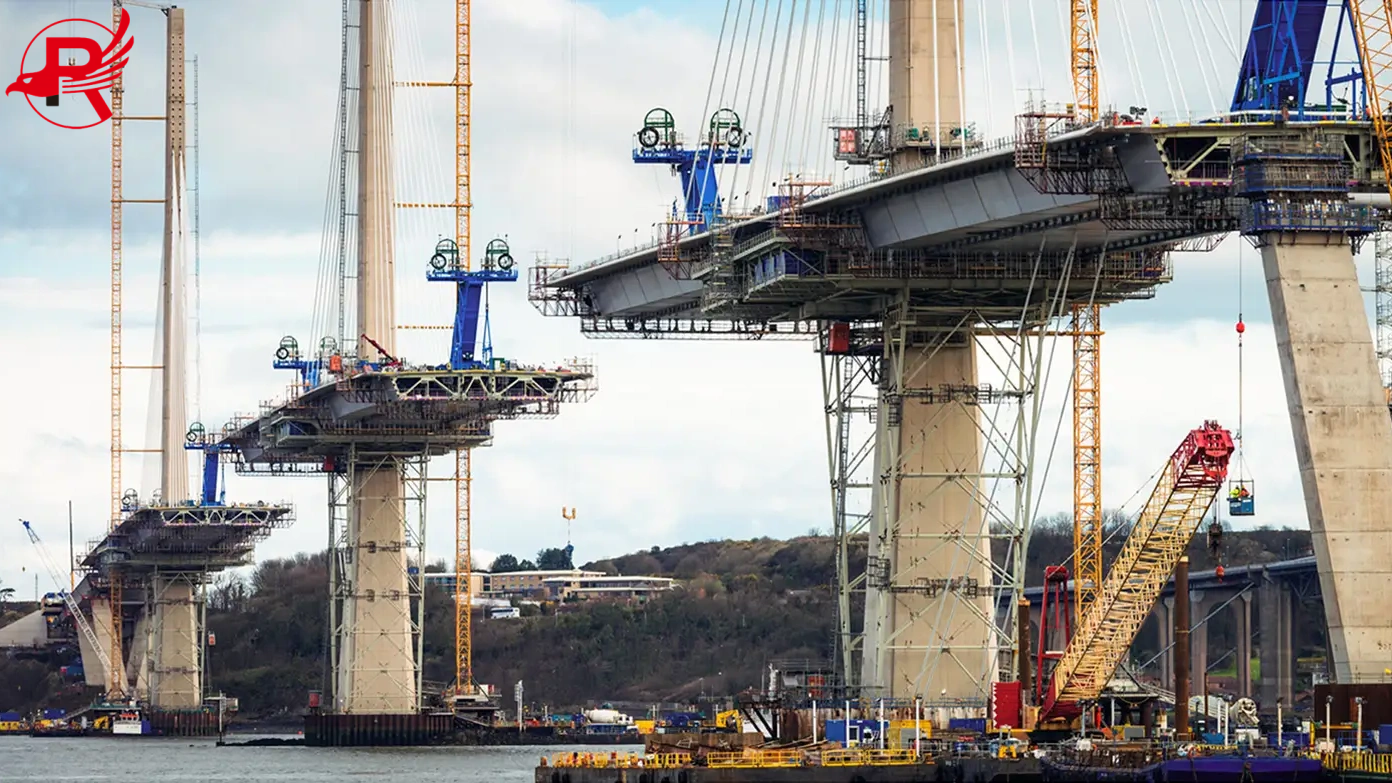

1. Bridge Construction
ASTM A588 I-Beams are widely used in highway bridges, railway bridges, and pedestrian bridges. Their weathering steel properties provide excellent atmospheric corrosion resistance, reducing maintenance costs and extending service life.

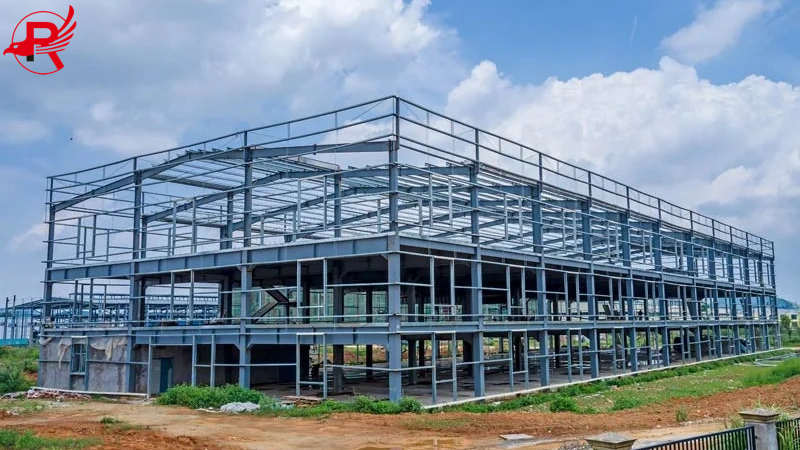

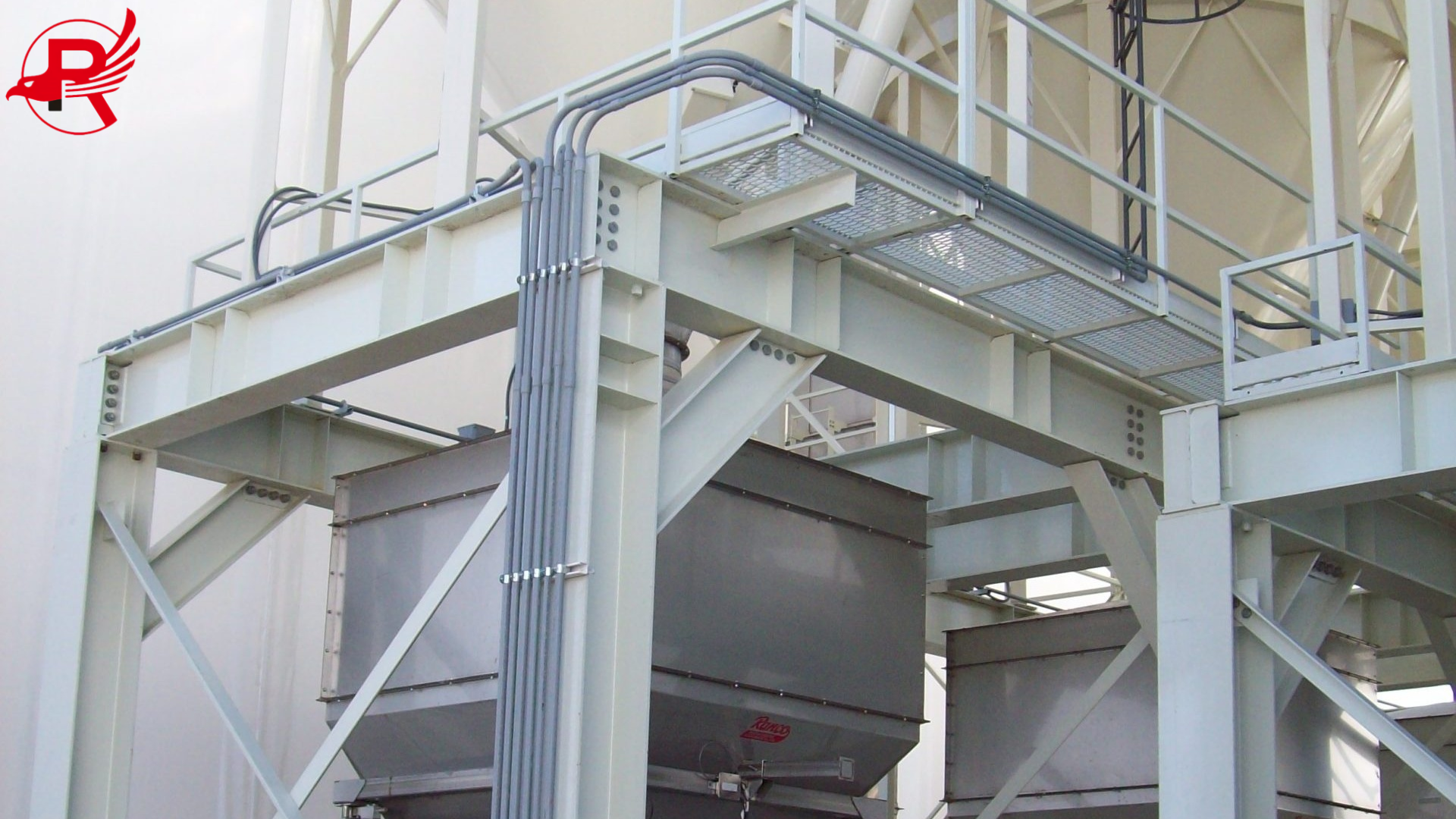

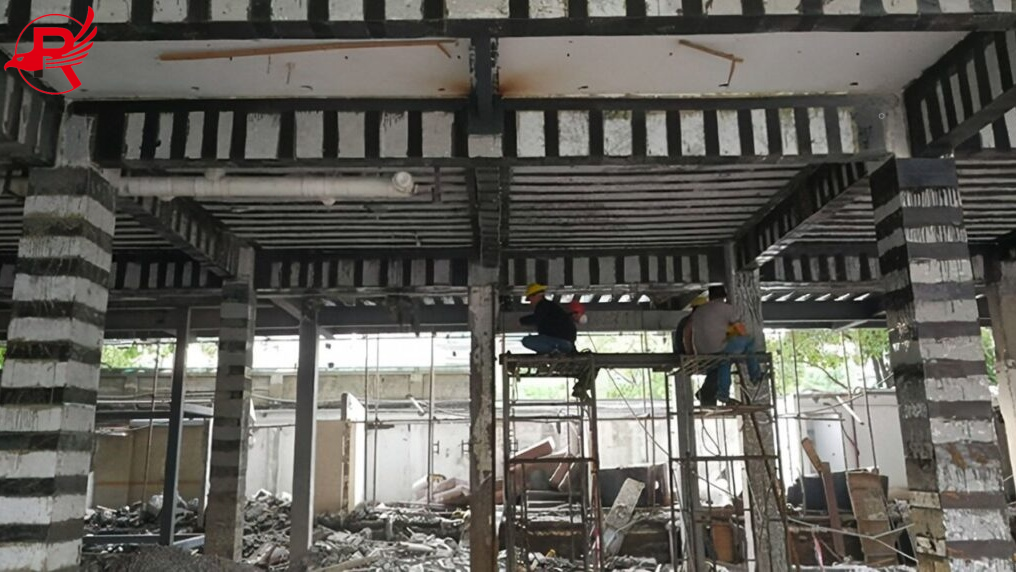

2. Industrial and Commercial Buildings
Used as primary structural members in factories, warehouses, power plants, and commercial buildings. A588 I-Beams offer high strength and durability, especially in exposed outdoor environments.

3. Transportation Infrastructure
Commonly applied in overpasses, sign support structures, transportation terminals, and utility structures where long-term corrosion resistance is required without frequent repainting.

4. Marine and Coastal Structures
Suitable for ports, docks, waterfront facilities, and coastal infrastructure. The alloying elements in A588 steel help improve resistance to harsh weather conditions, making it an economical choice for outdoor structural applications.

China Royal Steel Advantage（Why Royal Group Stands Out for Golbal Clients?）

1) There are branches in the United States and Guatemala

2)5,000 tons of inventory ensures timely delivery.

3)We have complete export certifications to ensure safe export, and provide ISO 9001, CE, MEC, and other certificates.

Packaging and Shipping

Packaging

ASTM A588 I-Beams are produced with high strength steel strapping which are heat treated then tightly wrapped with waterproof cloth to prevent moisture and rust. Wooden blocks and reinforced ends are used to avoid the beam from bending and impact while transporting.Custom marking are available according to customer requirements.

Shipping

ASTM A588 I-Beams can be sent either in container or bulk vessel according to size of beam and quantity. The cargo is tightly packed and fastened for safe transportation. We support FOB, CFR, CIF and DDP terms, pre delivery inspection by third party like SGS, BV and TUV optional to guarantee product quality and compliance.

FAQ

Q1: What is the advantage of ASTM A588 I-Beam compared to standard carbon steel I-Beams?

A: ASTM A588 contains alloying elements that form a protective rust-like patina, providing superior atmospheric corrosion resistance and reducing long-term maintenance costs.

Q2: Does ASTM A588 I-Beam require painting or galvanizing?

A: In many outdoor applications, A588 can be used unpainted due to its weathering properties. However, painting or additional coatings may be recommended for highly corrosive environments.

Q3: Is ASTM A588 I-Beam suitable for bridge and infrastructure projects?

A: Yes. Its high strength and excellent weather resistance make it a popular choice for bridges, transportation infrastructure, and other exposed structural applications.

Q4: Can you provide customized lengths and fabrication services?

A: Yes. We offer custom lengths, cutting, drilling, welding, beveling, and prefabrication services based on project drawings and specifications.

Q5: What documents and certifications can you provide?

A: We can supply Mill Test Certificates (MTC), packing lists, certificates of origin, and third-party inspection reports from SGS, BV, or TUV upon request.
