EN HEA300 / HEA400 / HEA500 Beam Structural Steel Components
EN HEA300, HEA400 and HEA500 beams are standard European wide flange beams for structural use and mainly intended for the bearing part of the industrial and warehouse building, bridges and heavy steel construction. Their wide flange profile allows an efficient load distribution, makes them structurally stable and provides them high bending resistance.
Royal Steel Group offer HEA beams under the EN 10025 grades S235JR, S275JR and S355JR, we can cater to your requirements whether you need standard lengths or customised cutting services.
| Item | Details |
| Product | HEA / HEB / HEM H Beam |
| Standards | EN 10365, EN 10025 |
| Main Grades | S235JR, S275JR, S355JR |
| Common Sizes | HEA100–HEA1000, HEB100–HEB1000, HEM100-HEM1000 |
| Length | Standard or Customized |
| Surface | Black, Shot Blasted, Painted or Galvanized |
| Processing | Cutting, Drilling, Welding and Customized Fabrication |
Chemical Composition
| Grade | C ≤ % | Si ≤ % | Mn % | P ≤ % | S ≤ % | N ≤ % | Cu ≤ % |
| S235JR | 0.17 | 0.35 | 1.4 | 0.035 | 0.035 | 0.012 | 0.55 |
| S275JR | 0.21 | 0.35 | 1.5 | 0.035 | 0.035 | 0.012 | 0.55 |
| S355JR | 0.23 | 0.55 | 1.6 | 0.035 | 0.035 | 0.012 | 0.55 |
Note: Chemical composition requirements may vary according to product thickness and applicable EN 10025 requirements. The final chemical composition shall be confirmed by the Mill Test Certificate (MTC) for each batch.
Mechanical Properties
| Grade | Yield Strength (ReH) | Tensile Strength (Rm) | Elongation (A) | Impact Energy |
| S235JR | ≥235 MPa | 360–510 MPa | ≥26% | ≥27 J at +20°C |
| S275JR | ≥275 MPa | 410–560 MPa | ≥23% | ≥27 J at +20°C |
| S355JR | ≥355 MPa | 470–630 MPa | ≥22% | ≥27 J at +20°C |
Note: Yield strength values may vary with product thickness according to EN 10025-2. Final mechanical properties should be verified against the applicable standard and the Mill Test Certificate (MTC) for each production batch.
HEA SIZE
HEB SIZE
HEM SIZE
HEA SIZE
| Item | Weight (kg/m) | Height (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) |
|---|---|---|---|---|---|
| HEA100 | 17.1 | 96 | 100 | 5 | 8 |
| HEA120 | 20.3 | 114 | 120 | 5 | 8 |
| HEA140 | 25.2 | 133 | 140 | 5.5 | 8.5 |
| HEA160 | 31 | 152 | 160 | 6 | 9 |
| HEA180 | 36.2 | 171 | 180 | 6 | 9.5 |
| HEA200 | 43.2 | 190 | 200 | 6.5 | 10 |
| HEA220 | 51.5 | 210 | 220 | 7 | 11 |
| HEA240 | 61.5 | 230 | 240 | 7.5 | 12 |
| HEA260 | 69.5 | 250 | 260 | 7.5 | 12.5 |
| HEA280 | 77.9 | 270 | 280 | 8 | 13 |
| HEA300 | 90 | 290 | 300 | 8.5 | 14 |
| HEA320 | 99.5 | 310 | 320 | 9 | 15.5 |
| HEA340 | 107.1 | 330 | 340 | 9.5 | 16.5 |
| HEA360 | 114.2 | 350 | 360 | 10 | 17.5 |
| HEA400 | 127.4 | 390 | 400 | 11 | 19 |
| HEA450 | 142.7 | 440 | 450 | 11.5 | 21 |
| HEA500 | 158 | 490 | 500 | 12 | 23 |
| HEA550 | 169.2 | 540 | 550 | 12.5 | 24 |
| HEA600 | 181.4 | 590 | 600 | 13 | 25 |
HEB SIZE
| Item | Weight (kg/m) | Height (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) |
|---|---|---|---|---|---|
| HEB100 | 20.8 | 100 | 100 | 6 | 10 |
| HEB120 | 27.3 | 120 | 120 | 6.5 | 11 |
| HEB140 | 34.4 | 140 | 140 | 7 | 12 |
| HEB160 | 43.5 | 160 | 160 | 8 | 13 |
| HEB180 | 52.2 | 180 | 180 | 8.5 | 14 |
| HEB200 | 62.5 | 200 | 200 | 9 | 15 |
| HEB220 | 72.9 | 220 | 220 | 9.5 | 16 |
| HEB240 | 84.8 | 240 | 240 | 10 | 17 |
| HEB260 | 94.8 | 260 | 260 | 10 | 17.5 |
| HEB280 | 105 | 280 | 280 | 10.5 | 18 |
| HEB300 | 119.3 | 300 | 300 | 11 | 19 |
| HEB320 | 129.5 | 320 | 300 | 11.5 | 20.5 |
| HEB340 | 136.6 | 340 | 300 | 12 | 21.5 |
| HEB360 | 144.8 | 360 | 300 | 12.5 | 22.5 |
| HEB400 | 158 | 400 | 300 | 13.5 | 24 |
| HEB450 | 174.3 | 450 | 300 | 14 | 26 |
| HEB500 | 190 | 500 | 300 | 14.5 | 28 |
| HEB550 | 202.8 | 550 | 300 | 15 | 29 |
| HEB600 | 216.1 | 600 | 300 | 15.5 | 29 |
HEM SIZE
| Item | Weight (kg/m) | Height (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) |
|---|---|---|---|---|---|
| HEM 100 | 42.6 | 120 | 106 | 12 | 20 |
| HEM 120 | 53.1 | 140 | 126 | 12.5 | 21 |
| HEM 140 | 64.5 | 160 | 146 | 13 | 22 |
| HEM 160 | 77.8 | 180 | 166 | 14 | 23 |
| HEM 180 | 90.6 | 200 | 186 | 14.5 | 24 |
| HEM 200 | 105 | 220 | 206 | 15 | 25 |
| HEM 220 | 119.3 | 240 | 226 | 15.5 | 26 |
| HEM 240 | 160 | 270 | 248 | 18 | 32 |
| HEM 260 | 175.3 | 290 | 268 | 18 | 32.5 |
| HEM 280 | 192.7 | 310 | 288 | 18.5 | 33 |
| HEM 300 | 242.6 | 340 | 310 | 21 | 39 |
| HEM 320 | 249.7 | 359 | 309 | 21 | 40 |
| HEM 340 | 252.8 | 377 | 309 | 21 | 40 |
| HEM 360 | 254.8 | 395 | 308 | 21 | 40 |
| HEM 400 | 260.9 | 432 | 307 | 21 | 40 |
| HEM 450 | 268.1 | 478 | 307 | 21 | 40 |
| HEM 500 | 275.1 | 524 | 306 | 21 | 40 |
| HEM 550 | 283.4 | 572 | 306 | 21 | 40 |
| HEM 600 | 290.5 | 620 | 305 | 21 | 40 |
Learn more about sizes
Ordinary Surface
Galvanized Surface (thickness of the hot-dip galvanizing ≥ 85μm, life span of 15-20 years),
Black Oil Surface
Wide Flange Shape: Good for load spread out and structural support.
Heavy-Duty Performance: For heavy load bearing applications.
Uniform Size: Can be used in manufacturing or accurately installed on-site.
Special Processing: Cutting, drilling, welding and more services are offered.
Materials with Certification: EN 10204 3.1 MTC is available for the materials upon.
Industrial Buildings – Main structural beams for factories, workshops, and production buildings.
Steel Warehouses – Roof and floor framing for storage and logistics centers.
Building Structures – Load-bearing beams for commercial and multi-story buildings.
Heavy-Duty Structures – Designed for applications with high load-bearing requirements.

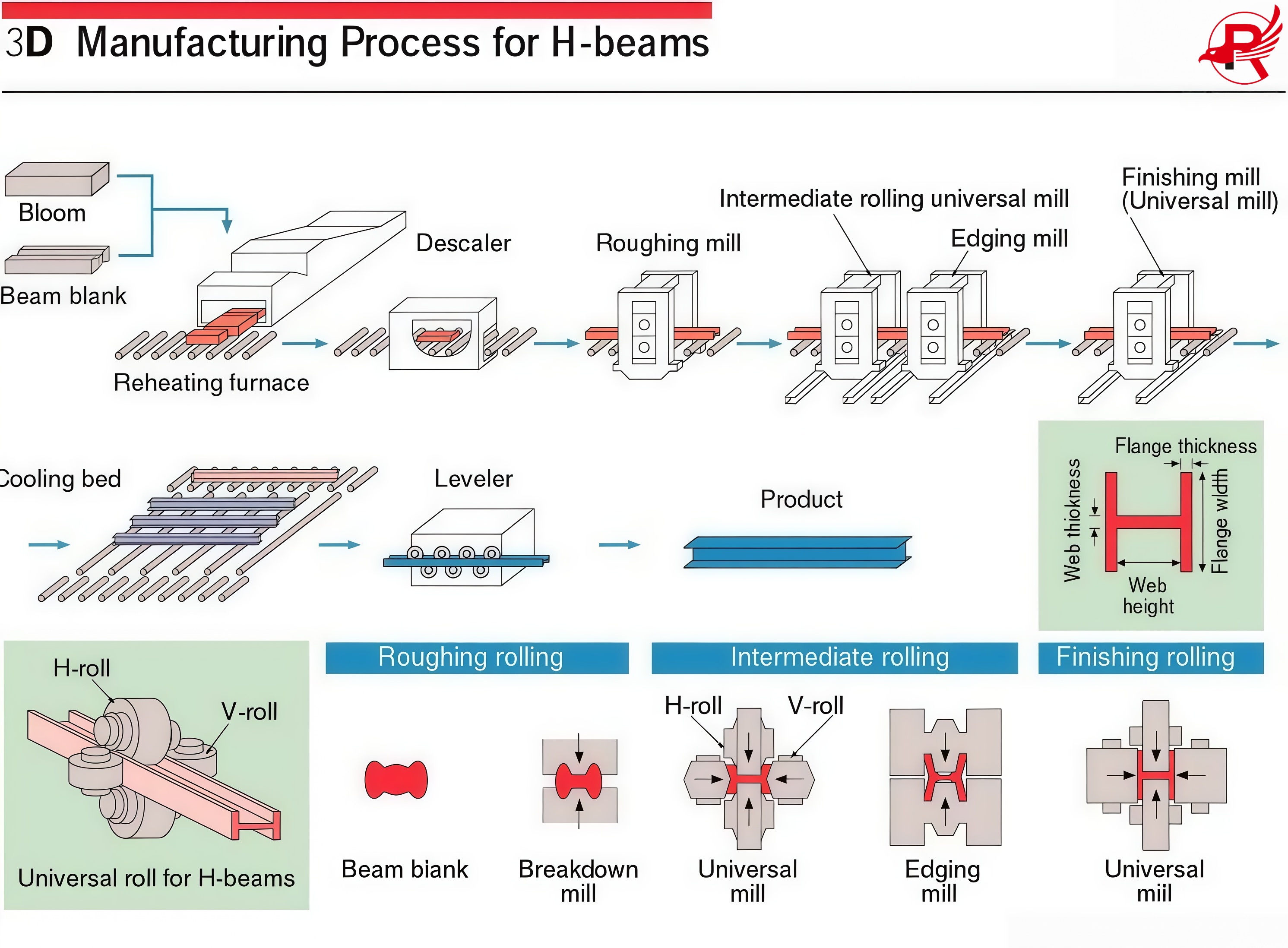

Royal Steel Group manufactures and supplies hot-rolled HEA structural beams with controlled production and inspection. Each batch can be checked for chemical composition, mechanical properties, dimensions, straightness, and surface quality.
For international projects, beams can be supplied with mill test certificates, third-party inspection, custom cutting, export packing, and container loading according to project requirements.
1.15+ Years of Experience – Professional structural steel manufacturer serving global projects.
2.Custom Services – Cutting, drilling, welding, and customized lengths available.
3.Quality Documentation – EN 10204 3.1 MTC and third-party inspection support.
4.Reliable Delivery – Professional export packing, container loading, and global logistics.
5.Technical Support – Experienced team provides product selection and project-based steel solutions.
1.Standard Export Packing: HEA beams are bundled together with steel straps for easy and safe transportation.
2.Surface Protection: For long distance sea transportation, beams can be wrapped with waterproof materials if required.
3.Container Loading: Relevant sizes can be loaded in 20ft or 40ft containers, depending on beam length and weight of the consignment.
4.Custom Requirements: Marking, bundling, packing, and loading methods can be customized as per customer needs.
5.Shipping Documents: Commercial invoice, packing list, MTC, inspection documents, and other export documentation are available.
6.Global Delivery: Royal Steel Group offers worldwide delivery to ports and project locations.
Q1: What EN standards apply to your EN H‑beam?
A: Our EN H‑beams follow EN 10034 (dimension) and EN 10025 (material), available in S235JR, S275JR, S355JR grades. MTR documents are supplied for every batch.
Q2: Do you offer third‑party inspection for EN H‑beam?
A: Yes. SGS, BV, CCIC, TUV third‑party inspection is acceptable before shipment.
Q3: What sizes of EN H‑beam are in stock?
A: We stock HEA, HEB, HEM profiles including 150×150 and other standard sections. Custom cut‑to‑length (6m,9m,12m or project‑specific sizes) is supported for small & bulk orders.
Q4: Can you cut EN H‑beam to custom lengths?
A: Sure. We provide cut‑to‑length service according to your construction drawings.
Q5: What packaging do you use for ocean shipment?
A: Seaworthy steel‑strapped packaging to prevent rust and deformation during long‑sea transit. Full export documents are provided.
