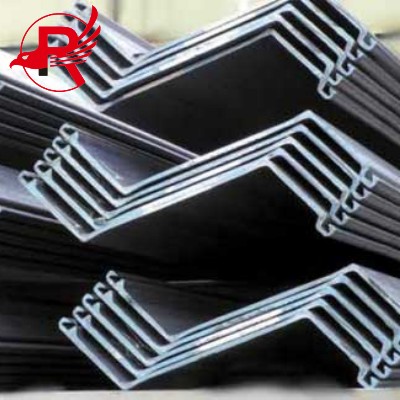

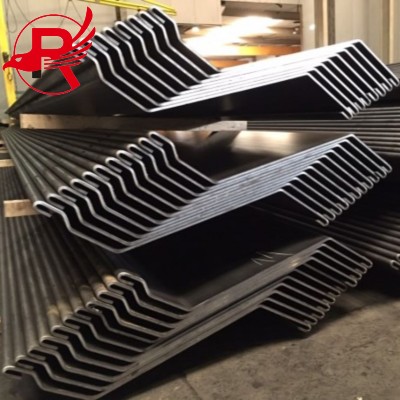

Hot Rolled Z-Shaped Pz22 Water-Stop Steel Sheet Pile

Short Description:

Z-shaped steel sheet pile is a type of steel with lock, its section has straight plate shape, groove shape and Z shape, etc., there are various sizes and interlocking forms. Common ones are Larsen style, Lackawanna style and so on. Its advantages are: high strength, easy to penetrate into the hard soil; Construction can be carried out in deep water, and diagonal supports are added to form a cage if necessary. Good waterproof performance; It can be formed according to the needs of various shapes of cofferdams, and can be reused many times, so it has a wide range of uses.

Grade: S355,S390,S430,S235 JRC,S275 JRC,S355 JOC or others

Standard: ASTM, bs, GB, JIS

Tolerance: ±1%

Shapes/profile: U,Z,L,S,Pan,Flat,hat profiles

Contact us: +86 13652091506

Email: [email protected]

Send email to us WhatsApp

Product Detail

Product Tags

Product Detail

Product Name	sheet pile z type
Technique	cold rolled / hot rolled
Shape	Z Type / L Type / S Type / Straight
Standard	GB/JIS/DIN/ASTM/AISI/EN ect.
Material	Q234B/Q345B
Material	JIS A5523/ SYW295,JISA5528/SY295,SYW390,SY390 ect.
Application	Cofferdam /River flood diversion and control/
	Water treatment system fence/Flood protection /Wall/
	Protective embankment/Coastal berm/Tunnel cuts and tunnel bunkers/
	Breakwater/Weir Wall/ Fixed slope/ Baffle wall
Length	6m,9m,12m,15m or customized
Length	Max.24m
Diameter	406.4mm-2032.0mm
Thickness	6-25mm
Sample	Paid provided
Lead time	7 to 25 working days after the receipt of 30% deposit
Payment terms	30%TT for deposit
Packing	Standard export packing or according to customer's request
MOQ	1 Ton
Package	Bundled
Size	Customer's Requst

Cold-formed steel sheet piles have two types: non-biting cold-formed steel sheet piles (also known as channel plates) and biting cold-formed steel sheet piles (divided into L-shaped, S-shaped, U-shaped and Z-shaped).

Production Process:
Thin strips, generally ⅜ to 9/16 inches (8–14 mm) thick, are continuously cold-rolled, then formed into sheet pile.Advantages:
Low investment in production line
Lowers production costs
Adjustable product dimensions
Disadvantage:
Thickness is constant from top to bottom, and this does not allow for the optimization of the sections which leads to a greater use of steel.
Hard to control the lock shape, turn to loose lock-joints.
Bad water-tightness and more possibility in pile ripping while using.

Main Application

Steel sheet piles z type commonly used in deep excavation projects like roads, bridges, and building foundations, valued for durability, strength, and easy installation.

Note:
1.Free sampling, 100% after-sales quality assurance, Support any payment method;
2.All other specifications of round carbon steel pipes are available according to your requirement (OEM&ODM)! Factory price you will get from ROYAL GROUP.

Process of production

Production line of Steel sheet pile rolling line

Z shaped sheet piles are produced from high quality steel in cut lengths and then roll formed into the iconic Z shape. The sheets have interlocking edges that enable them to connect, forming a continuous wall. Throughout, QC is exercised to ensure that final output meets with all the standards.

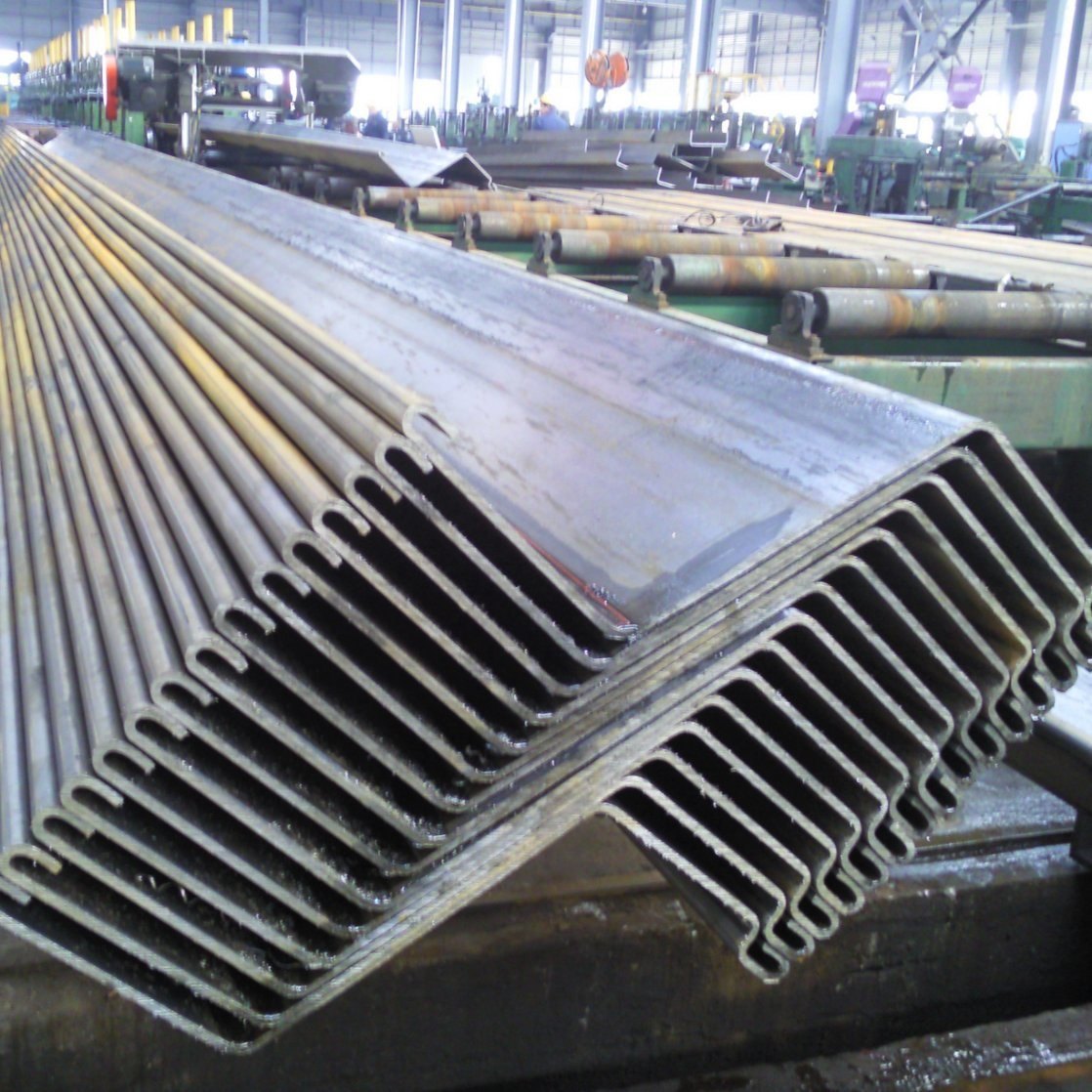

Product Inventory

Packing and Transportation

Standard packaging uses steel wire binding for strength and stability. For special requirements, rust-proof and more visually appealing packaging options are available.
