Prefabricated Steel Structure Gas Station Building Steel Frame Fuel Station
APPLICATION
Steel Structure Warehouse: Widely used for logistics centers and storage facilities. Steel warehouses offer large clear spans, fast construction, and cost-effective operation.
Steel Structure Workshop: Ideal for manufacturing and processing plants. The open layout provides flexible space for machinery installation and future expansion.
Steel Structure Industrial Plant: Used in factories, power plants, and heavy industrial facilities. Steel structures provide high load-bearing capacity and excellent durability for demanding environments.

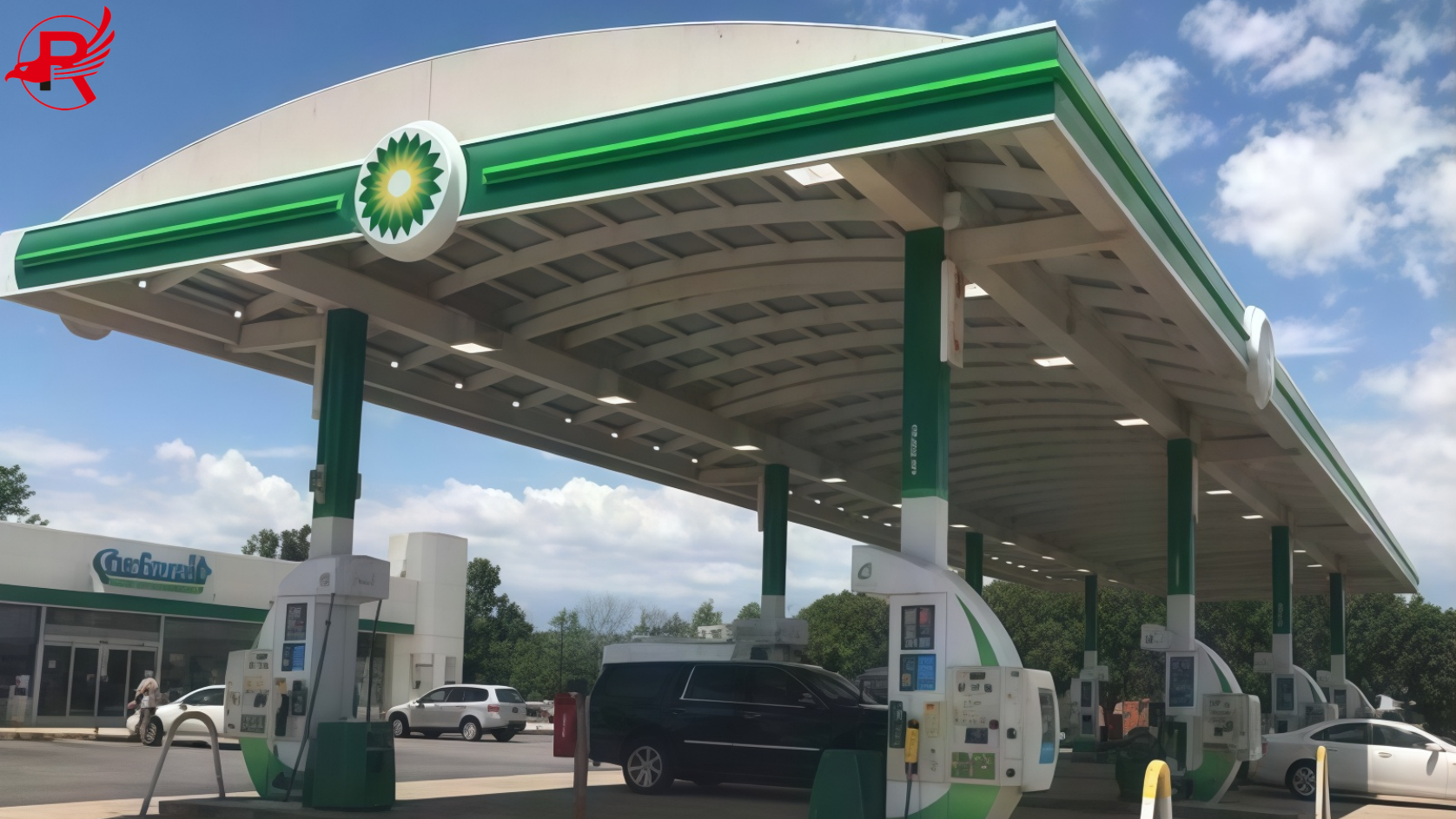

Steel Structure Gas Station: Applied in gas stations, fuel stations, highway service areas, vehicle service centers, and roadside commercial facilities.
PRODUCT OVERVIEW
The steel frame fuel station can be customized according to the site layout, local building requirements, and customer specifications. The system can include steel columns, beams, roof structures, canopies, wall panels, and other supporting components.
PRODUCT DETAIL
| Steel Structure Building/Warehouse/Poultry | ||||
| 1. Main Framing | Welded/ Hot rolling H section column and beam | |||
| Steel Column | Wide Flange Column / W-shape Column H,Built-up Column,HSS Column | |||
| Steel Beam | A36/A572/A992 W beam | |||
| 2. Secondary Framing | ||||
| Steel Purlin | Roof Purlin /Roof Girder/Roof Truss/Eave Strut /Ridge Support | |||
| Knee brace | A36 and A572 angle steel, galvanized | |||
| Tie bar | A36 and A572 round steel,painted | |||
| Bracing | Cross Bracing / X-Bracing/Diagonal Bracing/Vertical Bracing/Horizontal Bracing/Portal Bracing/Brace Connection Plate /Gusset Plate | |||
| 3. Roof and Wall panels | Steel sheet and insulated sandwich panels | |||
| Single steel sheet | 0.5/0.6/0.7 color steel sheet | |||
| Sandwich panel | EPS/PU/Fiber glass wool/ rock wool sandwich panel | |||
| 4. Steel Decking Floor | V-688 Decking floor | |||
| 5.Structural subsystem | Canopies, Fascias, Partitions, etc. | |||
| 6.Mezzanines, Platforms | H beam | |||
| 7.Other Building Accessories | Sliding Doors, Roll Up Doors, Windows, Louvers, etc. | |||
KEY FEATURES
1.Strong Steel Frame: Provides reliable structural support and stability.
2.Prefabricated Design: Factory-fabricated components help reduce installation time.
3.Customizable Size: Length, width, height, and layout can be designed according to the project.
4.Durable Construction: Suitable for outdoor and commercial environments.
5.Modern Appearance: Flexible roof and canopy designs create a clean and professional appearance.
6.Easy Installation: Prefabricated components are designed for efficient on-site assembly.
STEEL STRUCTURE DESIGN
We offer professional steel structure CAD design according to the project size, application and the local loading conditions. The CAD drawings include the steel frame, columns, beams, roof, connections, and the layout to ensure accurate fabrication and efficient installation.
CAD Drawing Design-1
CAD Drawing Design-2
CAD Drawing Design-3
STEEL STRUCTURE PROCESSING
Royal Steel Group offers full service steel fabricating in cutting, welding, drilling, punching, assembly, surface treatment and galvanizing.
Each part has got to be marked in accordance with the approved shop drawings, ensuring more efficiency for the transport and the installation on site.
STEEL STRUCTURE TESTING
In order to achieve excellent performance, rust prevention, and long service life, all the steel structures, steel pipes, steel coils, and structural steel products are subjected to the whole process of quality testing based on the international standards.
1. Salt Spray Test
Standards: ASTM B117 / ISO 11997-1, Part 1
Test the corrosion resistance of galvanized and coated steel, making sure of good performance in seashore, marine, and high-humidity environments.
2. Test of coat adhesion
Standards: ASTM D3359 / ASTM D4541 / ISO 2409 / ISO 4624
During the wet adhesion test, the coating's adhesion to the steel substrate is evaluated to avoid delamination, flaking, and early coating breakdown.
3. Humidity Resistance Test
Standard: ASTM D2247 (40°C / 95% RH) / (ASTM D2247)
Test HTHH (Coating Stability In High Temperature And Humid Climate) - Used to check the stability of coating in high temperature and humidity to achieve good moisture proofing and long life.
4. UV Weathering Test
Standard: ASTM G154 - Equivalent
It emulates prolonged UV exposure to assess color, chalk, and weather-related deterioration resistance.
5. Coating Thickness Inspection
Standards:: ASTM D7091 (DFT) / ASTM D1212 (WFT)
Ensure the thickness of the coating layer complies with your project requirements for best corrosion protection and product stability.
6. Impact Resistance Test
Standard: ASTM D2794
Quantifies the toughness of a coating to resist chipping, cracking, and other damage during shipping, handling, or field application.
SURFACE TREATMENT

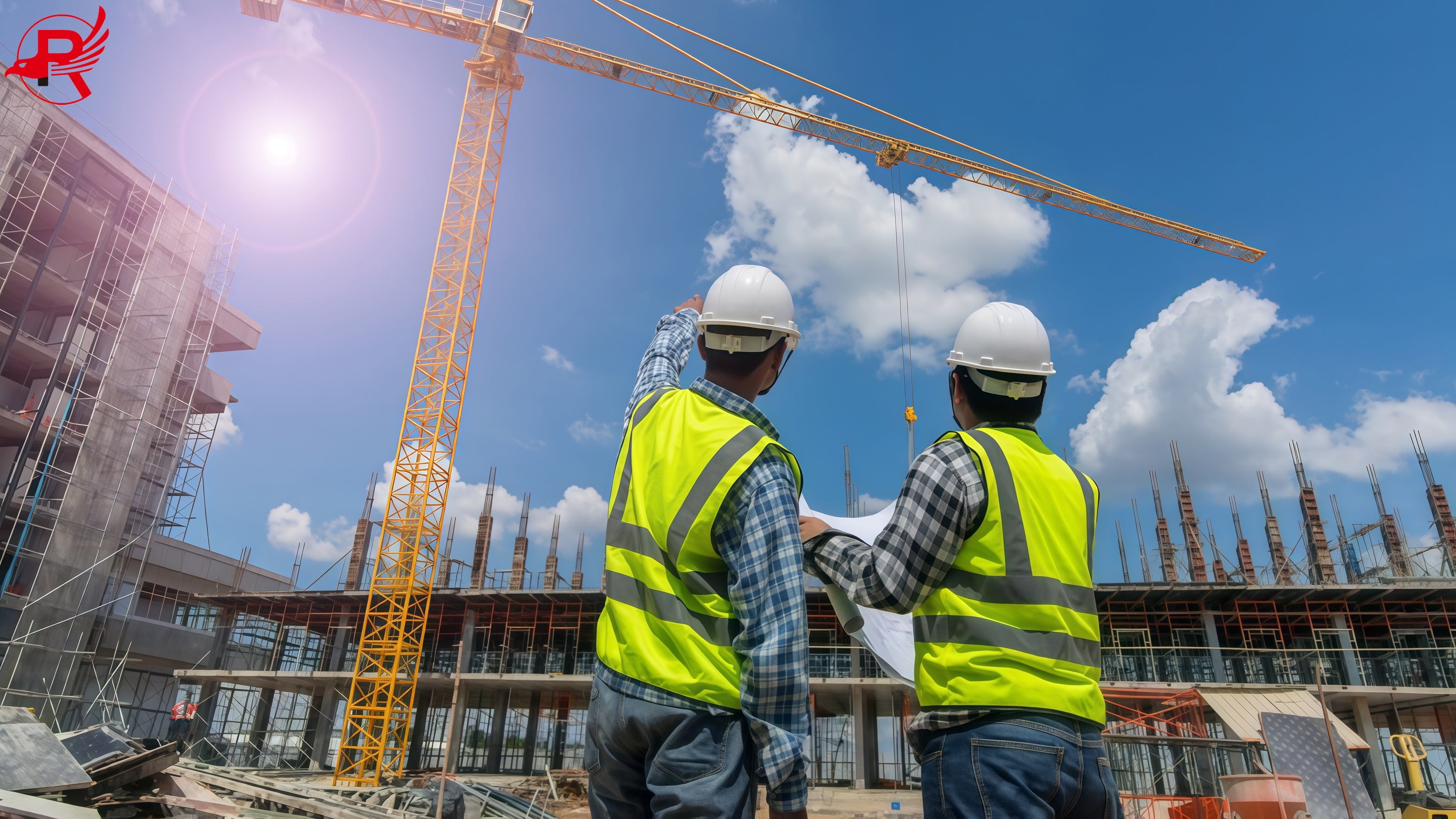

INSTALLATION GUIDANCE
For overseas projects, Royal Steel Group can provide steel structure installation drawings, component identification, technical documents, and installation guidance to support local contractors.
The prefabricated design helps reduce on-site processing and allows major structural components to be assembled efficiently.
PACKAGING AND SHIPPING
Steel components are bundled, labeled, and securely packed for international transportation. Waterproof protection can be added according to shipping requirements. Container and bulk shipping options are available.
WHY CHOOSE OUR STEEL STRUCTURES?
1.Custom Design: Steel structures can be customized to meet different project requirements.
2.Quality Materials: Reliable steel materials ensure strength and durability.
3.Professional Fabrication: Advanced processing and strict quality control ensure accurate components.
4.Fast Installation: Prefabricated components help reduce construction time.
5.Global Shipping: Secure packaging and international shipping support are available.
Ready to start your project?
FAQ
Q: What information is required for a quotation?
A: Please provide product type, specifications (size, thickness, grade), quantity, surface treatment, and destination port for an accurate quotation.
Q: Do you support customization?
A: Yes. We can customize dimensions, grades, surface treatment, and packaging according to project requirements.
Q: What is your delivery time?
A: Delivery time is usually 15–45 days depending on order quantity and specifications.
Q: Can you provide quality certificates?
A: Yes. We provide Mill Test Certificates (MTC) and third-party inspection reports such as SGS, BV, or DNV if required.
Q: How do you ensure product quality?
A: We follow strict quality control procedures including raw material inspection, production testing, and final inspection before shipment.
