Know more about the specifications and dimensions of z type steel sheet piles?
Top Quality Sheet Pile Manufacture Hot Rolled Z Type Steel Sheet Pile
Product Overview
Royal Steel Group delivers hot rolled Z steel sheet pile for high demand foundation, marine, port, flood-control and infrastructure applications. With a broad flange and efficient Z-profile these Z shaped sheet piles achieve a high section modulus, resistance to bending and material efficiency for deep retaining walls as well as permanent or temporary earth retaining structures.
Our Z type steel sheet piles can be produced with different steel grades, profiles, lengths and interlock types according to international standards as well as based on your project specifications. MTC Dimensional Inspection and Third Party Inspection are Available.
Product Detail
| Item | Specification |
| Product Name | Hot Rolled Z Type Steel Sheet Pile |
| Profile | Z Type |
| Production Process | Hot Rolled |
| Common Standards | EN 10248, ASTM A328, JIS A5528 |
| Common Grades | S355GP, S390GP, SY295, SY390 |
| Width | Approx. 400–800 mm, profile dependent |
| Height | Approx. 140–500 mm, profile dependent |
| Thickness | Approx. 8–25 mm, profile dependent |
| Length | 6 m, 9 m, 12 m, 15 m, 18 m or Customized |
| Surface | Mill Finish / Anti-Corrosion Coating |
| Interlock | Hot Rolled Interlock |
| Inspection | MTC / Dimensional Inspection / Third-Party Inspection |
| Processing | Cutting, Welding, Punching, Customized Fabrication |
Z Type Steel Sheet Pile Chemical Composition
Hot Rolled Z Type Steel Sheet Pile Chemical Composition is different for each Grade and Standard. Typical grades are EN 10248 S355GP/S390GP and JIS A5528 SY295/SY390 for sheet pile.
EN 10248 S355GP / S390GP
| Grade | C (%) | Si (%) | Mn (%) | P (%) | S (%) |
| S355GP | ≤0.25 | ≤0.50 | ≤1.60 | ≤0.035 | ≤0.035 |
| S390GP | ≤0.25 | ≤0.50 | ≤1.60 | ≤0.035 | ≤0.035 |
JIS A5528 SY295 / SY390
| Grade | C (%) | Si (%) | Mn (%) | P (%) | S (%) |
| SY295 | ≤0.20 | ≤0.35 | ≤1.50 | ≤0.030 | ≤0.030 |
| SY390 | ≤0.20 | ≤0.35 | ≤1.50 | ≤0.030 | ≤0.030 |
Note: The values above are typical reference values. The applicable standard, mill specification, and final Mill Test Certificate (MTC) should be used to confirm the chemical composition for each production batch.
Z Type Steel Sheet Pile Mechanical Properties
Mechanical properties differ based on the norm and steel grade for the Hot Rolled Z Type Steel Sheet Pile. Typical grades are EN 10248 S355GP/S390GP and JIS A5528 SY295/SY390.
EN 10248 S355GP / S390GP
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) |
| SY295 | ≥295 | ≥450 | ≥18 |
| SY390 | ≥390 | ≥490 | ≥17 |
JIS A5528 SY295 / SY390
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) |
| SY295 | ≥295 | ≥450 | ≥18 |
| SY390 | ≥390 | ≥490 | ≥17 |
Note: The above values are typical reference requirements. Final mechanical properties should be confirmed against the applicable standard, selected sheet pile thickness/profile, and the Mill Test Certificate (MTC) for each production batch.

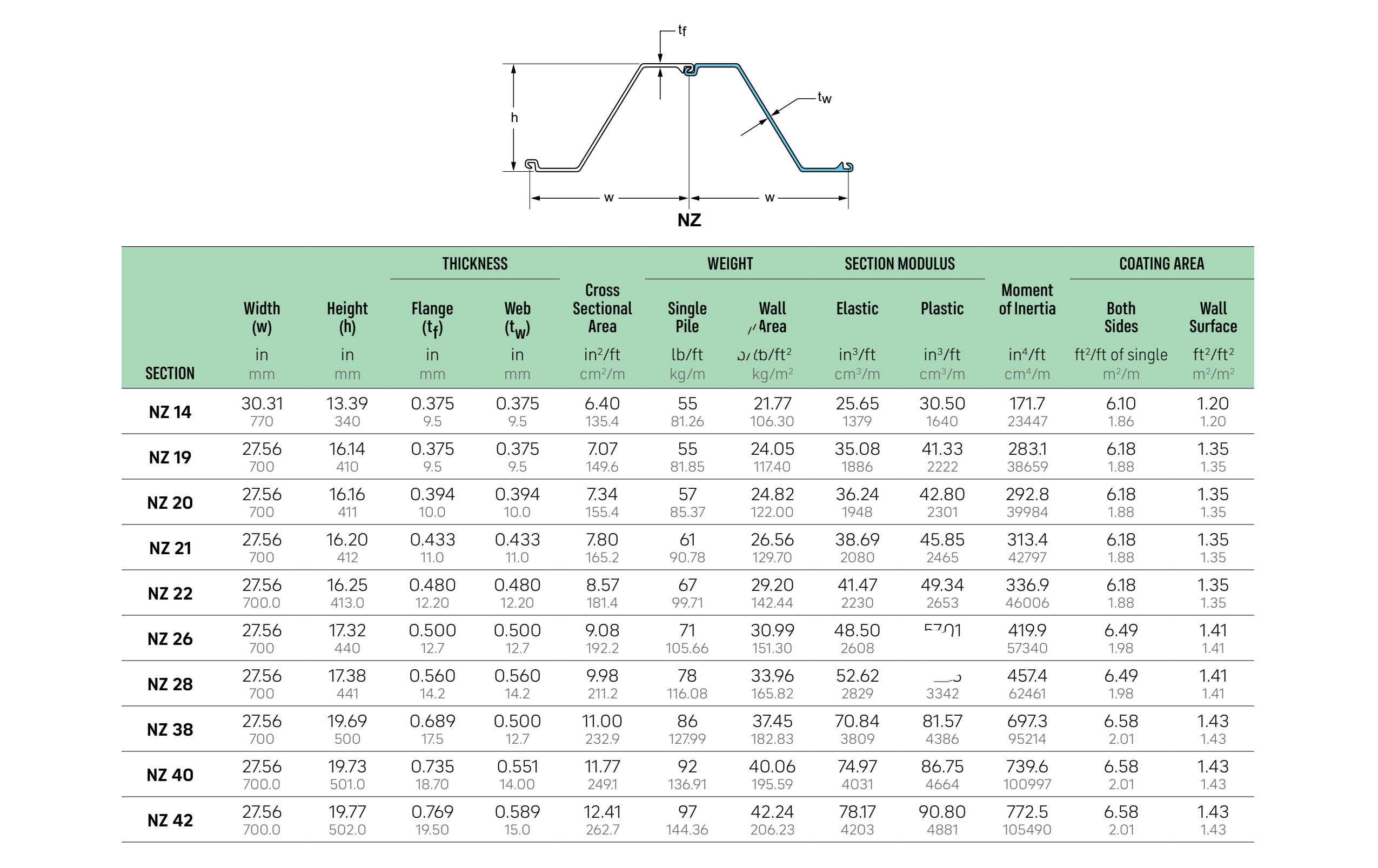

Z Type Steel Sheet Pile Specification
Download the full size chart
Z Type Steel Sheet Pile Corrosion prevention solution
Americas: HDG (ASTM A123, zinc coating thickness ≥85μm) + optional 3PE coating, marked "Environmentally friendly RoHS compliant ".
Southeast Asia: The hot-dip galvanizing (zinc layer >100μm) combined with the epoxy coal tar coating has a better corrosion performance, the salt spray test failures were always 0 at 5,000 hours, is the best use for tropical marine atmosphere.
Z Type Steel Sheet Pile Locking
Design: Detail of z-shape interlock, permeability ≤1×10⁻⁷cm/s.
America: Complies with the provisions of ASTM D5887, the standard test method for water penetration through foundation and retaining walls.
Southeast Asia: Superior resistance to high ground water and flood-seepage in tropical and monsoonal areas.
Z Type Steel Sheet Pile Production Process
Steel Selection:
Select the quality grade of structural steel based on some mechanical property demands.
Heating:
Heat billets/slabs to ~1,200°C for malleability.
Hot Rolling:
Shape steel into Z-profile with rolling mills.
Cooling:
Cool or tap water spray dote until the target water content was obtained.
Straightening & Cutting:
Keep the tolerance accuracy when cutting material to standard or custom lengths.
Quality Inspection:
Carry out dimensional, mechanical and visual tests.
Surface Treatment (Optional):
If required, apply paint, galvanize or protect from rust.
Packaging & Shipping:
Pack, protect, and pick up for shipping.
Z Type Steel Sheet Pile Quality Control
Royal Steel Group applies strict quality control throughout the production of Hot Rolled Z Type Steel Sheet Piles to ensure reliable structural performance, accurate dimensions, and consistent interlock quality.
1.Raw Material Inspection – Verify steel grade, heat number, chemical composition, and material quality before production.
2.Chemical Composition Testing – Check key elements such as C, Si, Mn, P, and S according to the specified standard.
3.Mechanical Testing – Test yield strength, tensile strength, and elongation to confirm compliance with S355GP, S390GP, SY295, or SY390 requirements.

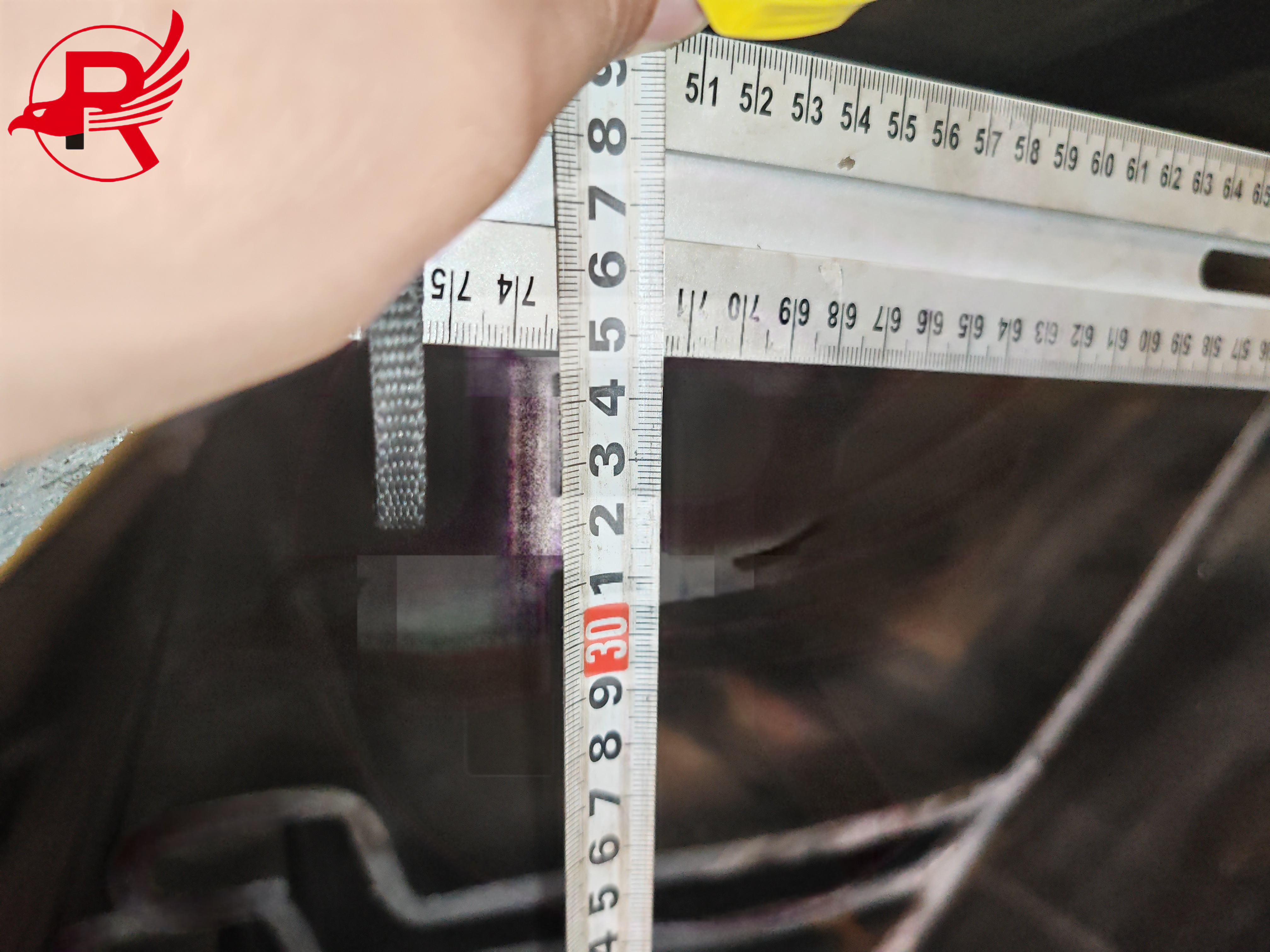

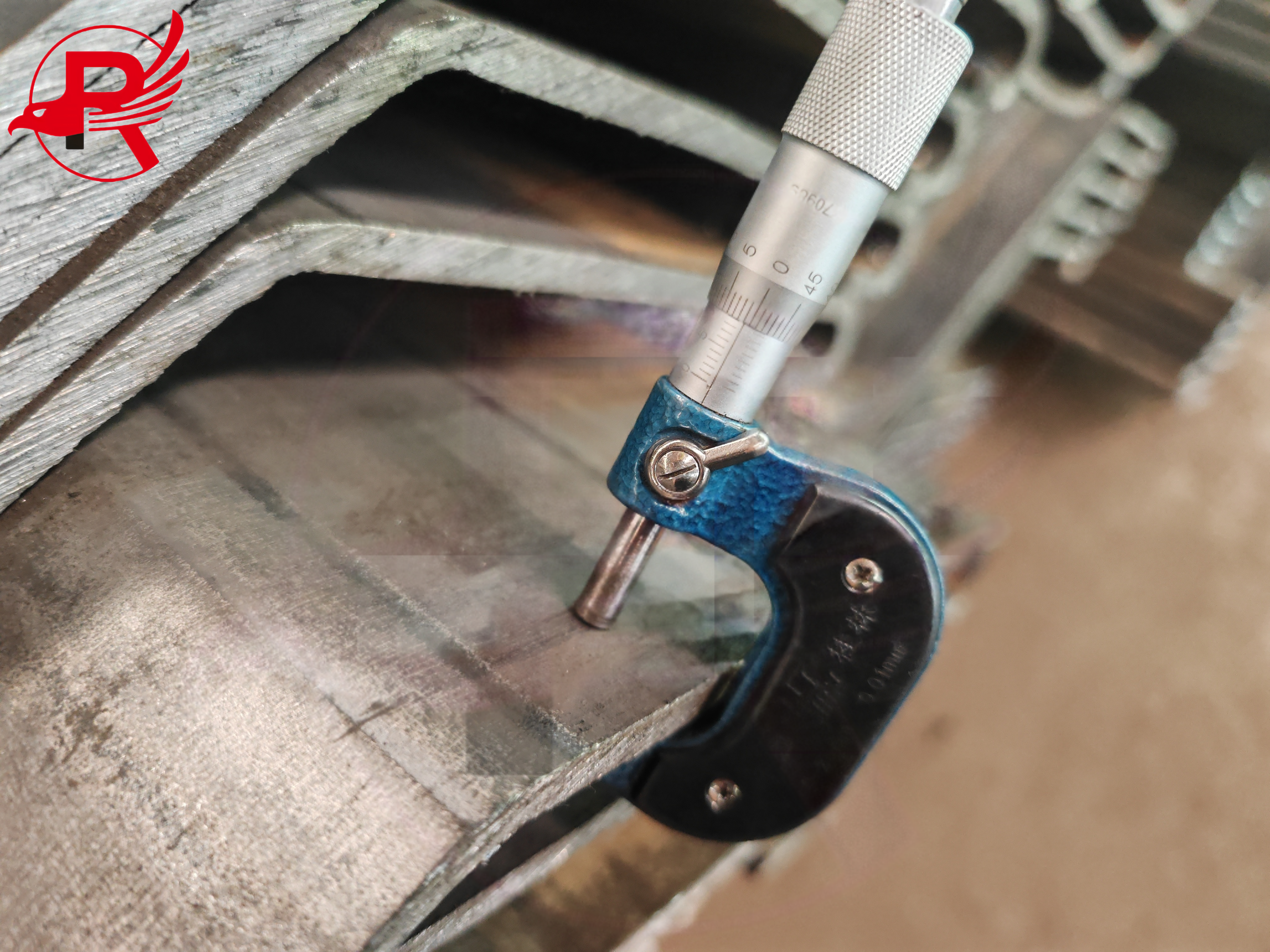

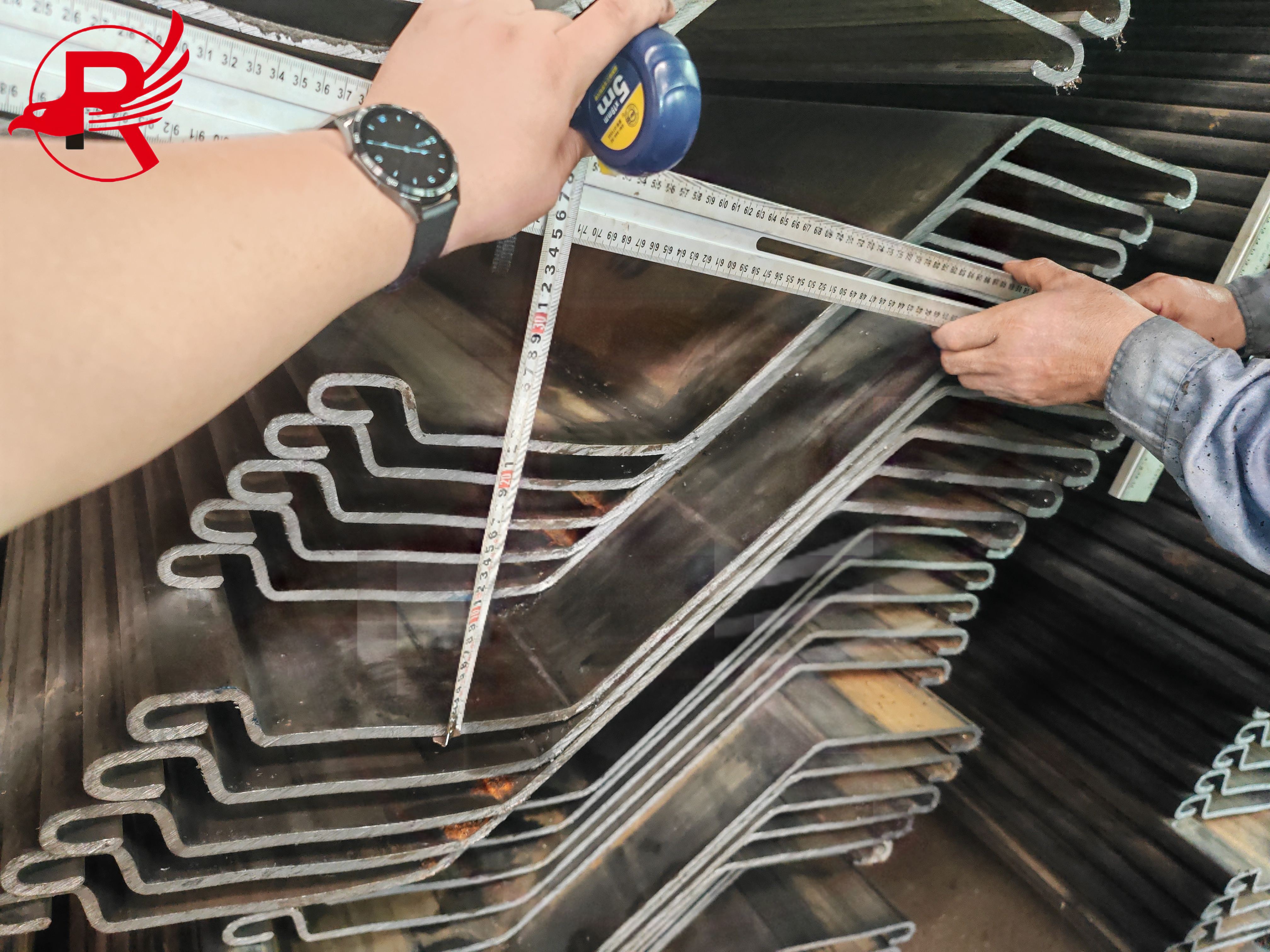

4.Dimensional Inspection – Check sheet pile width, height, thickness, length, and sectional dimensions.
5.Straightness Inspection – Control profile straightness and deformation to facilitate efficient installation.
6.Interlock Inspection – Verify interlock geometry, fit, and connection performance between adjacent sheet piles.
7.Surface Inspection – Check for cracks, excessive rolling defects, deformation, and other surface imperfections.
8.Weight & Quantity Verification – Confirm actual weight, bundle quantity, and order specifications before shipment.
9.MTC & Traceability – Provide Mill Test Certificates (MTC) with heat numbers and test results for material traceability.
10.Third-Party Inspection – SGS, BV, CCIC, TUV, or other independent inspections can be arranged according to customer requirements.
Z Type Steel Sheet Pile Main Application
Port & Marine Engineering: Applicable on quay walls, port facilities, marine retaining walls, seawalls, and embankment foundations.
Flood Protection: Applicable for flood control, river bank protection, coastal protection and water holding structures.
Deep Foundation Pits: Z sheet piles are ideal for earth retention for deep soil excavation, underground construction.
Cofferdams: Utilized for building temporary enclosed work spaces on rivers, ocean harbor walls and in marine locations.
Bridge & Infrastructure Projects: Ideal for bridge approach tunnels, tunnel abutments, road work, railway work and general civil work.
Permanent Retaining Walls: High strength Z sheet piles may be used for permanent retaining walls as well, if they are designed with suitable corrosion protection and service life considerations taken into account.
Why Choose Royal Steel Group?
1.International Standards – the Products may be provided in accordance with EN 10248, ASTM A328 or JIS A5528 as a project specific requirement.
2.Efficient Interlocking - Hot rolled interlocks are precisely rolled to ensure continuous and uniform walling with a uniform stop angle.
3.Variety of Profiles & Lengths - The popular Z profiles come with standard or customized lengths, to adapt to different engineering needs.
4.Stringent Quality Control — Chemical composition, mechanical properties, dimensional, straightness, surface finish and interlock geometry are tested.
5.Full Documentation - Includes MTC, dimensional inspection reports and can be third party inspected.
Packaging & Shipping
Packaging:
All the steel sheet pile products are securely packaged with high strength steel strips, and it is reinforced with wooden bearings or steel frames to prevent distortion during transport. If necessary, oil for prevent rust, or waterproof protection may be used, which could be protected from rust for a long time.
Freight Options:
Depending on the destination and the demand of the project, we provide sea freight service, etc. We ensure the safety of shipment by using containers, bulk carriers or flat racks.
Aided by professional packaging systems and trustworthy worldwide logistics support, we never fail in delivering the steel products in a safe, prompt, and good-holding manner.
FAQ
Q1: What standards can you supply?
A: We can supply Z sheet piles according to EN 10248, ASTM A328, JIS A5528, and project-specific requirements.
Q2: Can you supply customized lengths?
A: Yes. Standard lengths and customized lengths can be supplied according to project requirements and transportation conditions.
Q3: Can you provide MTC and third-party inspection?
A: Yes. Mill Test Certificates and third-party inspection reports can be provided according to customer requirements.
Q4: How do I select the correct Z sheet pile profile?
A: Selection should consider required section modulus, bending moment, wall height, soil conditions, groundwater pressure, corrosion allowance, pile length, and installation method. Final profile selection should be confirmed by the project's qualified structural or geotechnical engineer.
Q5: Can you provide a complete sheet pile solution?
A: Yes. We can support profile selection, material supply, customized processing, quality inspection, packaging, documentation, and international shipping according to project requirements.
