American Steel Structure Accessories ASTM A1011 Steel Grating

Short Description:

ASTM A1011 Steel Grating is a low-carbon hot-rolled steel grating with good weldability and machinability. It is suitable for industrial platforms, stair treads, and general load-bearing applications and can be galvanized or sprayed for corrosion protection.

Standard: ASTM

Grade: ASTM A1011

Type: Welded Steel Grating,Press-Locked/Swage-Locked Grating,Bar Grating/Interlocking Grating,Bearing Bar Grating

Load Bearing Capacity: Customizable based on bearing bar spacing and thickness; available in Light, Medium, Heavy duty

Opening Size: 25×25 mm,30×30 mm, 38×38 mm,50×50 mm,75×75 mm

Corrosion Resistance: Hot-dip galvanizing, Painted/Powder Coating

Applications: Industrial plants, warehouses, chemical platforms, outdoor walkways, pedestrian bridges, stair treads

Quality Certification: ISO 9001

Payment Terms: T/T 30% Advance + 70% Balance

Delivery Time: 7–15 days

Send email to us WhatsApp

Product Detail

Product Tags

Product Detail

Property	Details
Material	ASTM A1011 Hot-Rolled Carbon Steel
Type	Flat Bar Grating, Heavy-Duty Grating, Press-Locked Grating
Load Bearing Capacity	Customizable based on bearing bar spacing and thickness; available in Light, Medium, Heavy duty
Mesh / Opening Size	Common sizes: 1" × 1", 1" × 4"; can be customized
Corrosion Resistance	Depends on surface treatment; galvanized or painted for enhanced corrosion protection
Installation Method	Fixed with support bars or bolted; suitable for flooring, platforms, stair treads, walkways
Applications / Environment	Industrial plants, warehouses, chemical platforms, outdoor walkways, pedestrian bridges, stair treads
Weight	Varies depending on grating size, bearing bar thickness, and spacing; calculated per square meter
Customization	Supports custom dimensions, mesh openings, surface finishes, and load-bearing specifications
Quality Certification	ISO 9001 Certified
Payment Terms	T/T: 30% Advance + 70% Balance
Delivery Time	7–15 Days

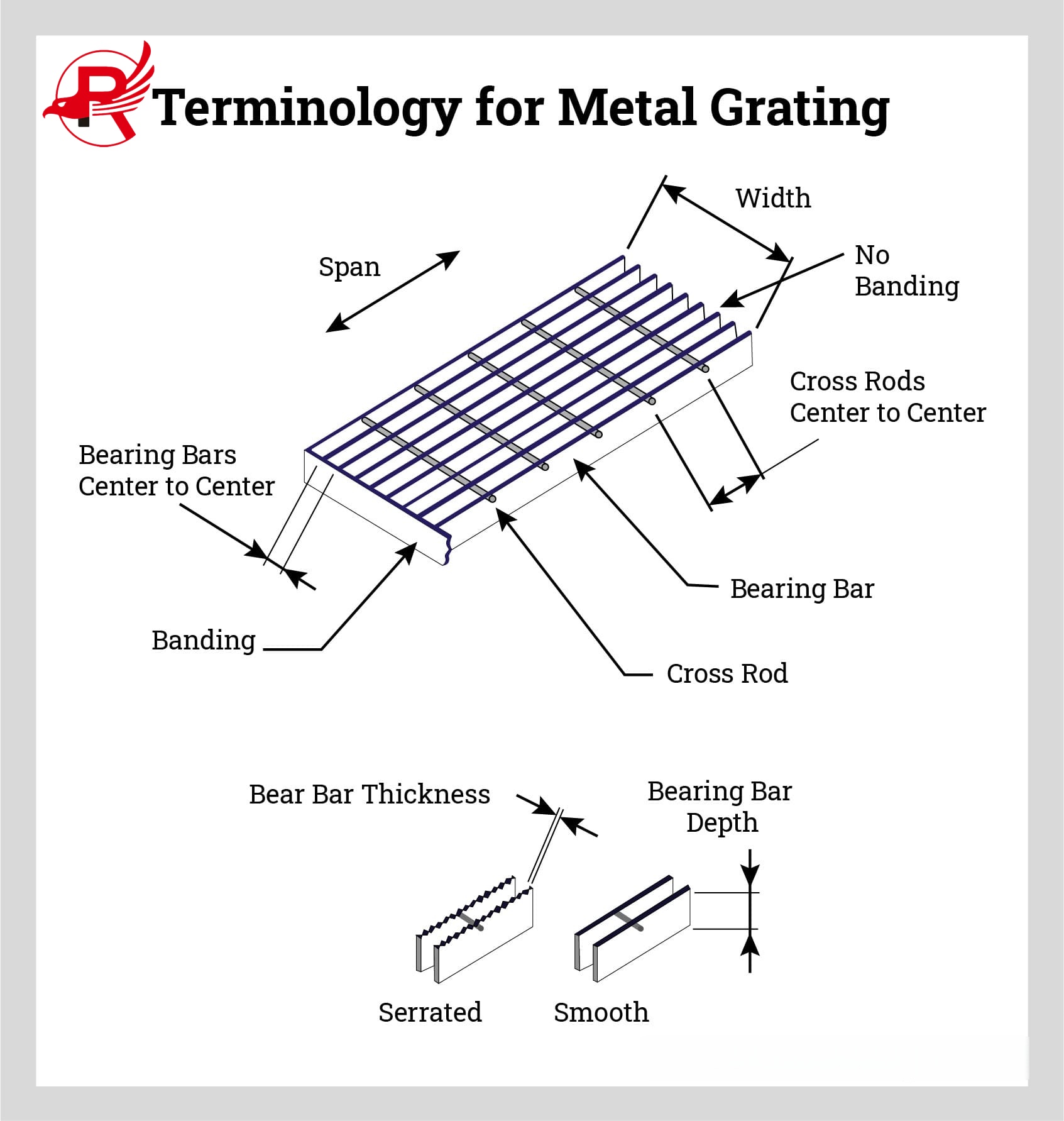

ASTM A1011 Steel Grating Size

Grating Type	Bearing Bar Pitch / Spacing	Bar Width	Bar Thickness	Cross Bar Pitch	Mesh / Opening Size	Load Capacity
Light Duty	19 mm – 25 mm (3/4"–1")	19 mm	3–6 mm	38–100 mm	30 × 30 mm	Up to 250 kg/m²
Medium Duty	25 mm – 38 mm (1"–1 1/2")	19 mm	3–6 mm	38–100 mm	40 × 40 mm	Up to 500 kg/m²
Heavy Duty	38 mm – 50 mm (1 1/2"–2")	19 mm	3–6 mm	38–100 mm	60 × 60 mm	Up to 1000 kg/m²
Extra Heavy Duty	50 mm – 76 mm (2"–3")	19 mm	3–6 mm	38–100 mm	76 × 76 mm	>1000 kg/m²

ASTM A1011 Steel Grating Customized Content

Customization Category	Options Available	Description / Range
Dimensions	Length, Width, Bearing Bar Spacing	Length: 1–6 m per section (adjustable); Width: 500–1500 mm; Bearing bar spacing: 25–100 mm, depending on load requirements
Load & Bearing Capacity	Light, Medium, Heavy, Extra Heavy Duty	Load capacity customizable based on project needs; bearing bars and mesh opening designed to meet structural specifications
Processing	Cutting, Drilling, Welding, Edge Treatment	Grating panels can be cut or drilled to specification; edges can be trimmed or reinforced; prefabricated welding available for easier installation
Surface Treatment	Hot-dip Galvanizing, Powder Coating, Industrial Painting, Anti-slip Coating	Selected based on indoor, outdoor, or coastal environment for corrosion resistance and anti-slip safety
Marking & Packaging	Custom Labels, Project Coding, Export Packaging	Labels indicate material grade, dimensions, and project info; packaging suitable for container shipping, flatbed, or local delivery
Special Features	Anti-slip Serration, Custom Mesh Patterns	Optional serrated or perforated surfaces for enhanced safety; mesh size and pattern can be customized to meet project or aesthetic requirements

Surface Finish

D91F426C_45e57ce6-3494-43bf-a15b-c29ed7b2bd8a (1)

907C9F00_6b051a7a-2b7e-4f62-a5b3-6b00d5ecfc4a (1)

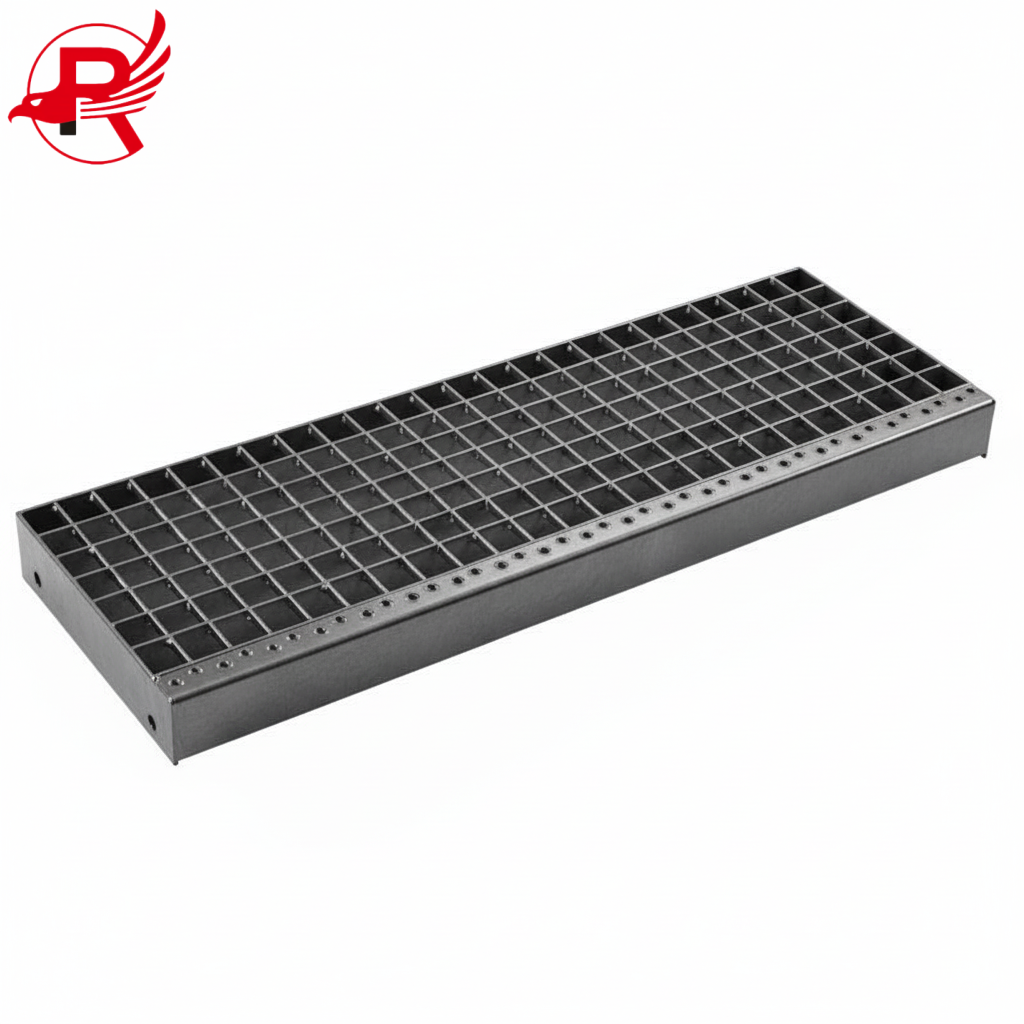

Initial Surface

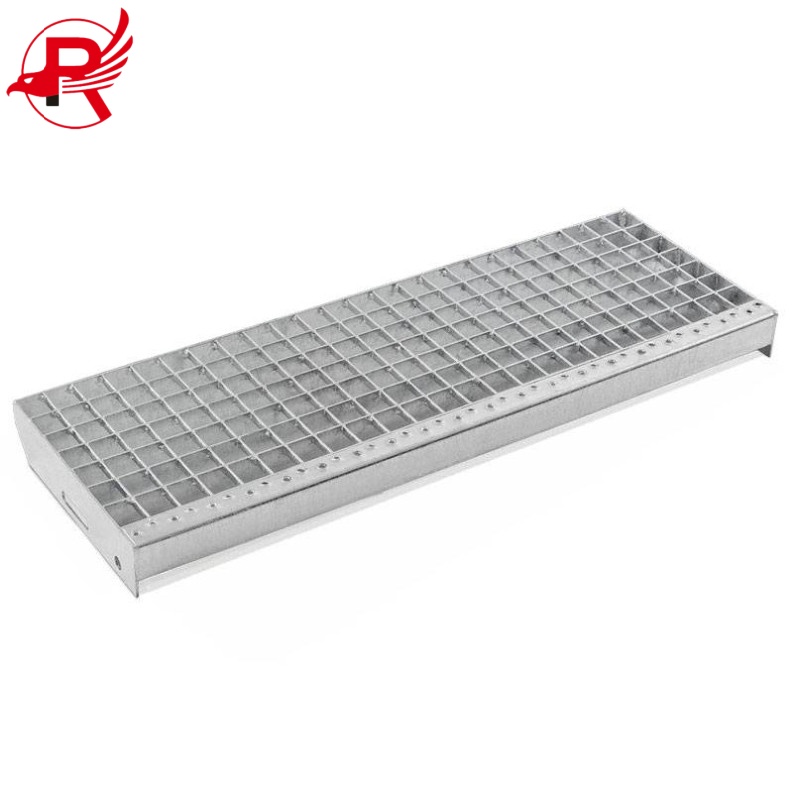

Galvanized Surface

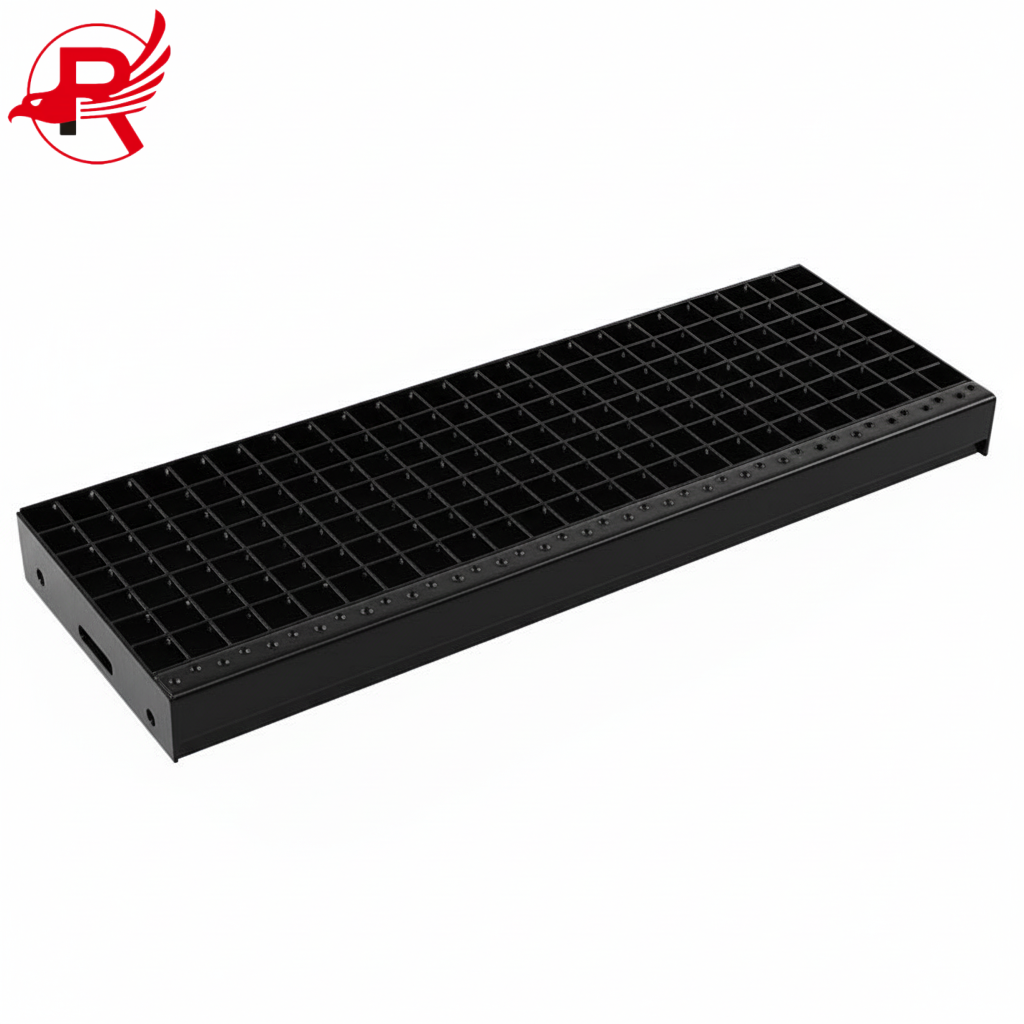

Painted Surface

Application

1.Walkways
Provides a safe walking surface in factories, warehouses, and industrial facilities. The slip resistant open grid design enables debris, liquids or dirt to fall through.

2.Steel Staircases
Suitable for industrial and commercial stair treads when strength and slip resistance are required. Serrated or non slip inserts are available on request for adding further safety.

3.Work Platforms
Accommodates people, machines, and tools in work shops or repair bays. Ventilation andshine-easy open pattern of design.

4.Drainage Areas
Open grating allows water, oils, and other fluids to pass through. Often used in factory floors, outdoors and running alongside drains channels.

Our Advantages

Stronger and More Durable
It is made of ASTM A1011 carbon steel which has good load-bearing capacity and long service life.

Customizable Design
Size, mesh size, bearing bar spacing and surface interest can be customized to meet the requirements of the project.

Corrosion-Proof & Weather-Resistant
Optional hot-dip galvanizing, powder coating, or painting for indoor, outdoor, or marine use.

Safe & Non-Slip
Drainage, ventilation and slip resistance for safer workplaces Open-grid promotes these 3 essential health and safety factors.

Applications
It is widely uses for walks, platforms stairs treads work areas and drainage systems in industrial and commercial applications.

Quality ISO 9001
Designed and manufactured from high grade material with ISO 9001 certified standards for trusted output.

Prompt Delivery & Support
Tailored to your needs Production and packaging are flexible, and delivery is within 7-15 days, supported by experienced customer service.

Packaging & Shipping

Packing:

Standard Export Packaging: Grating panels are tightly banded and braced to prevent damage in transit.

Custom Labels & Project Codes: You can label bundles with the material grade, dimensions, and project details to help identify them on site.

Securty: Additional protective covers or wooden pallets for sensitive surfaces or long distance shipping are also available.

Delivery:

Production Time:15 days for one piece, depending on quantity lead time would be shortened.

Transport Available: By container, by flat bed, by local truck.

Handling and Safety: Safe transport, loading and installation at your site is ensured by our packaging.

FAQ

Q1: What material is applied?
A: Constructed from heavy-duty ASTM A36 carbon steel, which allows for superior durability and load-bearing strength.

Q2::Is it customize able?
A: Yes, sizes, mesh size, bearing bar distance, surface finishing and load capacity can be customized according to your project.

Q3: What about surface treatment?
A: hot-dip galvanizing, powder coating or industrial coating for interiors, exteriors, or coastal environments.

Q4: Are there suggested applications?
A: Good for walkways, platforms, stair treads, work surfaces and drainage for use in commercial and industrial applications.

Q5: How to packaging and delivery?
A: Panels are strapped in bundles, optionally palletized, labeled with material and project information and shipped by container, flatbed, or local.
