American Steel Structure Accessories ASTM A53 Scaffold Pipe

Short Description:

ASTM A53 Scaffold Pipe is a high-strength carbon steel pipe that conforms to American standards. It is commonly used in construction scaffolding and temporary supports, and features weldability, corrosion resistance, and high load-bearing capacity.

Standard: ASTM

Grade: ASTM A53

Dimensions: Outer Diameter: 48–60 mm (standard) Wall Thickness: 2.5–4.0 mm Length: 6 m, 12 ft, or customized per project

Type: Seamless or Welded Steel Tube

Mechanical Properties: Grade A Yield Strength ≥ 205 MPa (30 ksi) 240–245 MPa (35 ksi) Grade B Tensile Strength ≥ 330 MPa (48 ksi) 415–450 MPa (60 ksi)

Applications: Construction scaffolding, industrial maintenance platforms, temporary support structures, event staging

Quality Certification: ISO 9001

Payment Terms: T/T 30% Advance + 70% Balance

Delivery Time: 7–15 days

Send email to us WhatsApp

Product Detail

Product Tags

Product Detail

Parameter	Specification / Details
Product Name	ASTM A53 Scaffold Pipe / Carbon Steel Tube for Scaffolding
Material	ASTM A53 Carbon Steel
Standards	ASTM A53 Grade A / Grade B
Dimensions	Outer Diameter: 33.7–60.3 mm (standard) Wall Thickness: 2.5–4.0 mm Length: 6 m, 12 ft, or customized per project
Type	Seamless or ERW (Electric Resistance Welded) Steel Tube
Surface Treatment	Black steel, Hot-Dip Galvanized (HDG), optional paint or epoxy coating
Mechanical Properties	Grade A: Yield Strength ≥205 MPa, Tensile Strength 330–450 MPa Grade B: Yield Strength ≥245 MPa, Tensile Strength 415–550 MPa
Features & Advantages	High strength and load-bearing capacity; corrosion-resistant if galvanized; uniform diameter and thickness; easy to assemble and dismantle; suitable for construction and industrial scaffolding
Applications	Construction scaffolding, industrial maintenance platforms, temporary support structures, event staging
Quality Certification	ISO 9001, ASTM compliance
Payment Terms	T/T 30% Advance + 70% Balance
Delivery Time	7–15 days

ASTM A53 Scaffold Pipe Size

Outer Diameter (mm / in)	Wall Thickness (mm / in)	Length (m / ft)	Weight per Meter (kg/m)	Approx. Load Capacity (kg)	Notes
48 mm / 1.89 in	2.5 mm / 0.098 in	6 m / 20 ft	4.5 kg/m	500–600	Black steel, HDG optional
48 mm / 1.89 in	3.0 mm / 0.118 in	12 m / 40 ft	5.4 kg/m	600–700	Seamless or welded
50 mm / 1.97 in	2.5 mm / 0.098 in	6 m / 20 ft	4.7 kg/m	550–650	HDG coating optional
50 mm / 1.97 in	3.5 mm / 0.138 in	12 m / 40 ft	6.5 kg/m	700–800	Seamless recommended
60 mm / 2.36 in	3.0 mm / 0.118 in	6 m / 20 ft	6.0 kg/m	700–800	HDG coating available
60 mm / 2.36 in	4.0 mm / 0.157 in	12 m / 40 ft	8.0 kg/m	900–1000	Heavy-duty scaffolding

ASTM A53 Scaffold Pipe Customized Content

Customization Category	Options	Description / Notes
Dimensions	Diameter, Wall Thickness, Length	Diameter: 48–60 mm; Wall Thickness: 2.5–4.5 mm; Length: 6–12 m (adjustable)
Processing	Cutting, Threading, Bending, Fittings	Pipes can be cut, threaded, bent, or fitted per project needs
Surface Treatment	Black Steel, Hot-Dip Galvanized, Epoxy, Painted	Selected based on indoor/outdoor use and corrosion protection
Marking & Packaging	Custom Labels, Project Info, Shipping	Labels show size, standard, batch; packaging suitable for container or local delivery

Surface Finish

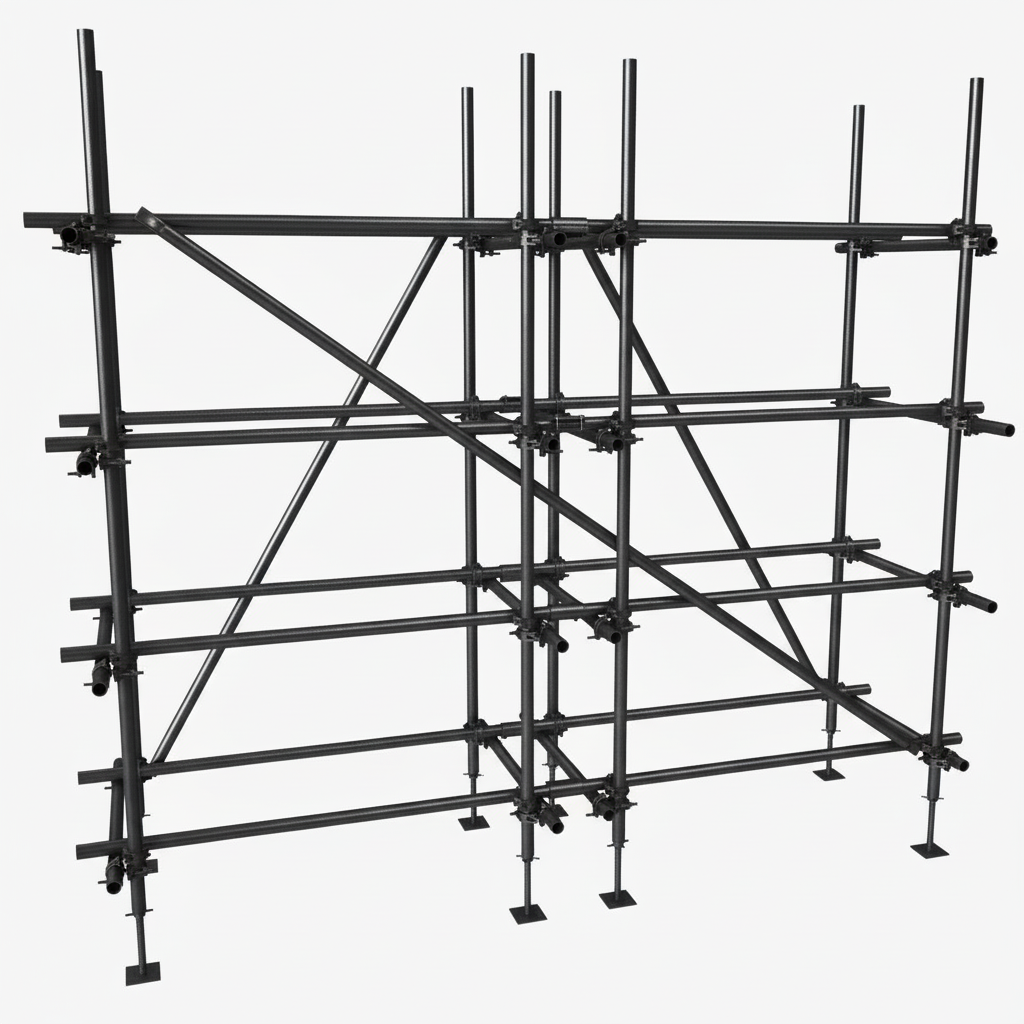

Carbon steel surface

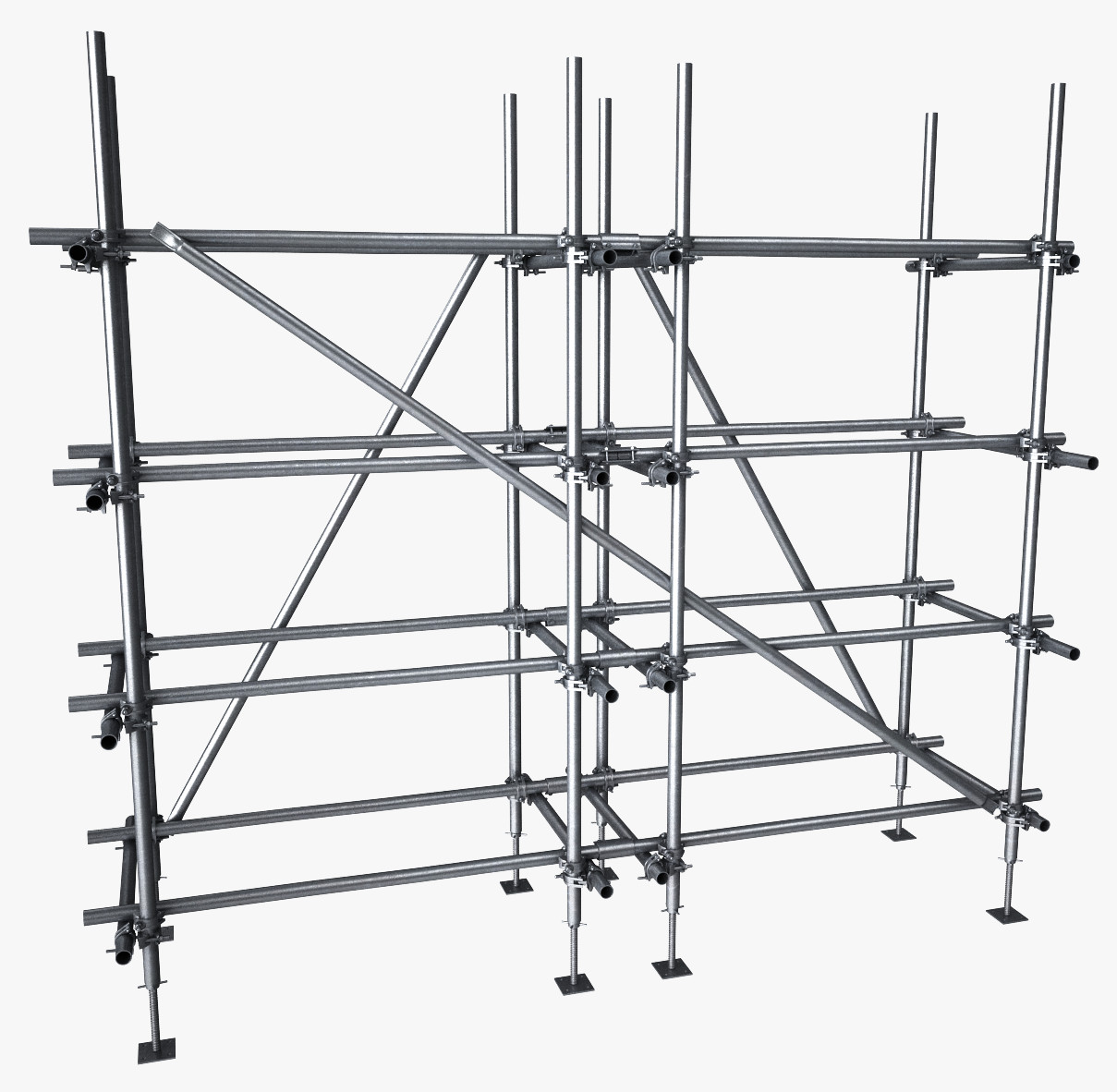

Galvanized surface

Painted surface

Application

1.Construction & Building Scaffolding
Used for temporary scaffolding in buildings, bridges, and factories, providing safe support for workers and materials.

2.Industrial Maintenance Platforms
Ideal for plant, warehouse, or industrial access platforms, offering durability and high load-bearing capacity.

3.Temporary Support Structures
Folding steel props can support formwork, shoring, or other temporary frameworks in construction projects.

4.Event Staging & Platforms
Suitable for temporary stages or platforms for concerts, outdoor events, and cultural activities.

5.Residential Projects
Perfect for small-scale scaffolding in houses, repair, or maintenance work.

Our Advantages

1.High Strength & Load Bearing
Made of ASTM A36 carbon steel, the scaffold tubes are lightweight and strong enough to hold heavy loads.

2.Rust Resistant
Options Hot-dip galvanizing, painting, or powder coating options are available to prevent rust and environmental effects, prolonging the life of the service.

3.Custom Sizes & Lengths
Offered in a broad range of diameters, wall thickness and lengths according to the needs of your project.

4.Simple to Assemble
Seamless or welded pipe are standard sizes for quick and easy assembly.

5.Quality & Compliance
Manufactured to the ASTM and ISO 9001 certified standards for assured quality.

6.Low Maintenance
Durable coat of finish minimizes the requirement of inspection or replacement.

7.Broad Applications
Construction scaffolds, industrial platforms, temporary shoring, event stages and diy.

Packaging & Shipping

PACKING

Protection
Scroll tubes are wrapped in a waterproof tarpaulin to avoid moisture, scratches and rust in the process of handling and transportation. Foam, padding or cardboard may be added for additional protection.

Strapping
The bundles are tightly secured by steel or plastic straps for stability and safe handling.

Marking & Labeling
Each bundle has a tag with the material grade and size under which it was manufactured, the batch number, and the applicable test or inspection report to facilitate traceability.

DELIVERY

Road Transport
The Bundles with Edge protection are loaded on trucks or trailers and tied up with anti slip materials to avoid shifting while local delivery.

Rail Transport
Many scaffold pipe bundles can be effectively loaded into rail cars for maximum space and secure handling for long distance transport.

Sea Freight
Pipes can be delivered by sea in 20ft/40ft container, including open-top container when necessary. Within the container, bundles are lashed to prevent movement while in transit.

FAQ

Q1: What area or space is the void left by the decay measured?
A: They are made of carbon steel and comply with the strength and thickness requirements of the industry standards.

Q2: What surface finishes can you supply?
A: Hot-dip galvanizing and other anti-corrosion treatments according to the requirements of the project.

Q3: What are the dimensions?
A: We have different sizes for wall thickness and diameter for standard specifications, and customized size can be provided on requirement.

Q4: How are the pipes packed for the shipment?
A: Pipes are bundled, covered with waterproof tarpaulin, sometimes padded, strapped. Labels for size, grade, batch and inspection.

Q5: How long there is for the delivery time?
A: Usually 10-15 working days after the payment Confirm, depending on quantity and specification.
