American Steel Structures Galvanized Steel Profiles ASTM A36 Solar PV Mounting Structure
Product Detail
| Product Name | Solar PV Mounting Structure / Photovoltaic Mounting System |
| Standard | ASTM |
| Grade | A36 |
| Material Options | Hot-dip galvanized carbon steel C Channel (ASTM A36, A572) |
| Standard Sizes | C Channel profiles: C100–C200 |
| Installation Type | Rooftop solar mounting (flat roof / metal roof),Ground-mounted solar systems,Single-row and double-row structures,Fixed tilt or adjustable tilt design |
| Applications | Residential rooftop solar systems,Commercial & industrial solar PV projects，Off-grid and hybrid PV systems，Agricultural photovoltaic sheds (Agri-PV) |
| Delivery period | 10- 25 working days |
| Payment Terms | T/T,Western Union |
| Quality Certification | ISO 9001, SGS/BV Third-Party Inspection Report |
ASTM A36 Solar PV Mounting Structure Size
| Size | Width (B) mm | Height (H) mm | Thickness (t) mm | Length (L) m |
|---|---|---|---|---|
| C50 | 50 | 25 | 4–5 | 6–12 |
| C75 | 75 | 40 | 4–6 | 6–12 |
| C100 | 100 | 50 | 4–7 | 6–12 |
| C125 | 125 | 65 | 5–8 | 6–12 |
| C150 | 150 | 75 | 5–8 | 6–12 |
| C200 | 200 | 100 | 6–10 | 6–12 |
| C250 | 250 | 125 | 6–12 | 6–12 |
| C300 | 300 | 150 | 8–12 | 6–12 |
ASTM A36 Solar PV Mounting Structure Dimensions and Tolerances Comparison Table
| Parameter | Typical Range / Size | ASTM A36 Standard Tolerance | Remarks |
|---|---|---|---|
| Width (B) | 50–300 mm | ±2 mm | Standard Slotted C-Channel widths; varies by size series |
| Height (H) | 25–150 mm | ±2 mm | Height corresponds to web depth of channel |
| Thickness (t) | 4–12 mm | ±0.3 mm | Wall thickness; thicker channels provide higher load capacity |
| Length (L) | 6–12 m (customizable) | ±10 mm | Custom lengths available upon request |
| Flange Width | See specific section sizes | ±2 mm | Depends on channel series (C50, C100, etc.) |
| Web Thickness | See specific section sizes | ±0.3 mm | Critical for bending and load-bearing capacity |
ASTM A36 C Channel Customized Content
| Customization Category | Options Available | Description / Range | Minimum Order Quantity (MOQ) |
|---|---|---|---|
| Dimension Customization | Width (B), Height (H), Thickness (t), Length (L) | Width: 50–300 mm; Height: 25–150 mm; Thickness: 4–12 mm; Length: 6–12 m (cut to project requirements) | 20 tons |
| Processing Customization | Drilling / Hole Cutting, End Processing, Prefabricated Welding | Ends can be beveled, grooved, or welded; machining available to meet specific project connection standards | 20 tons |
| Surface Treatment Customization | Hot-Rolled, Painted, Hot-Dip Galvanizing | Surface treatment selected according to environmental exposure and corrosion protection requirements | 20 tons |
| Marking & Packaging Customization | Custom Marking, Transportation Method | Customized marking with project numbers or specifications; packaging options suitable for flatbed or container shipping | 20 tons |
Surface Finish
Conventional Surfaces

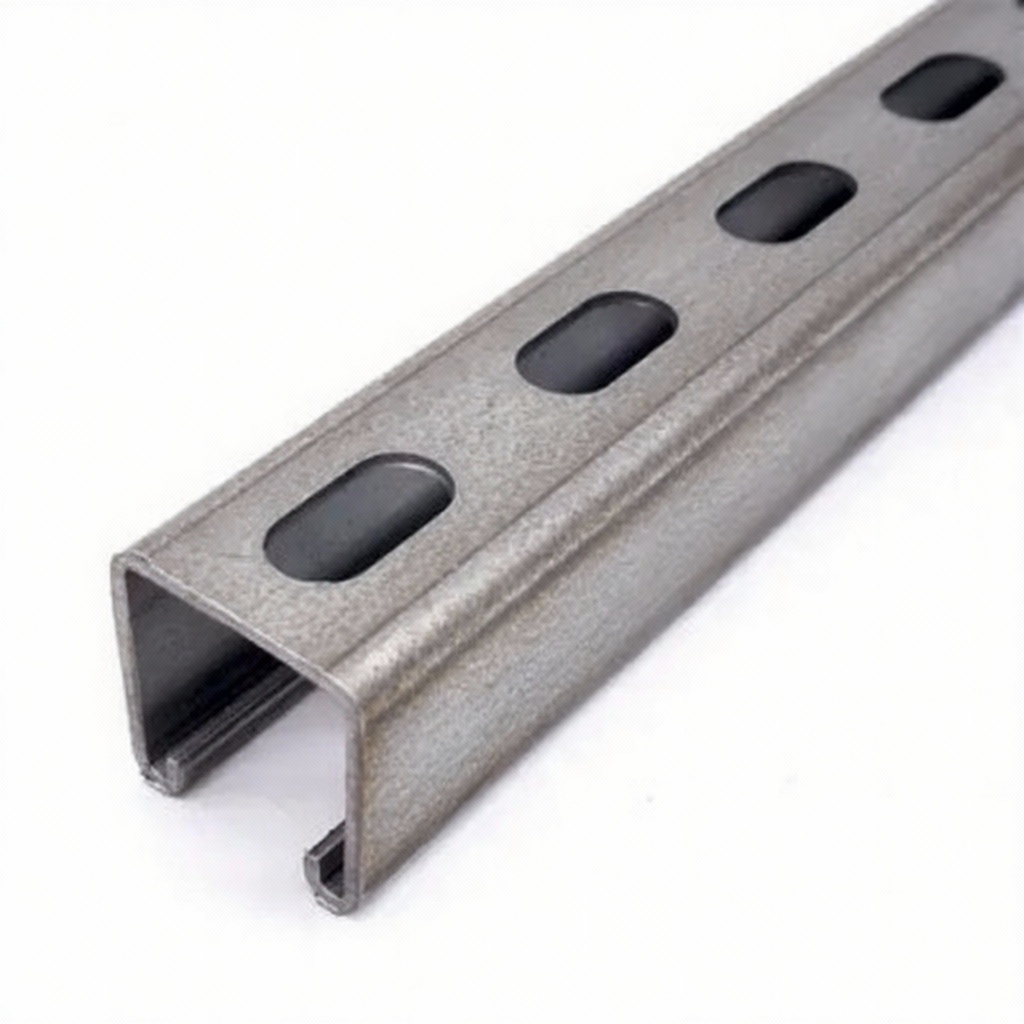

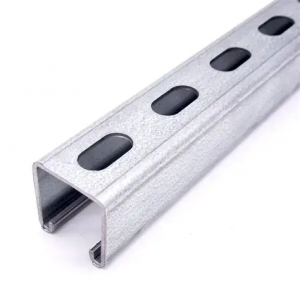

Hot-dip galvanizated (≥ 80–120 μm) Surface
Spray Paint Surface
Application
1. Residential Rooftop Solar Systems
Designed for household rooftops, offering reliable and space-efficient mounting solutions to maximize solar energy generation for home electricity needs.
2. Commercial & Industrial Solar PV Projects
Engineered for factories, warehouses, and commercial buildings, providing strong and durable structures to support large-scale solar installations with high power output.
3. Off-Grid and Hybrid PV Systems
Suitable for remote areas or locations with unstable grid access, supporting independent or hybrid solar power systems to ensure continuous and stable energy supply.
4. Agricultural Photovoltaic Sheds (Agri-PV)
Integrated structures combining solar panels with agricultural use, enabling shading, crop protection, and clean energy generation on farms simultaneously.
Our Advantages
Made in China, first-class service, cutting-edge quality, world-renowned
-
Scale Advantage: Large production and supply network ensures efficiency in procurement and transportation.
-
Diverse Products: Wide range of steel products including steel structures, rails, sheet piles, channel steel, silicon steel coils, and photovoltaic brackets to meet various needs.
-
Reliable Supply: Stable production lines and supply chain support large-volume orders.
-
Strong Brand: Well-known brand with significant market influence.
-
Integrated Service: One-stop solutions for production, customization, and logistics.
-
Competitive Pricing: High-quality steel at reasonable prices.
*Send the email to [email protected] to get a quotation for your projects
Packaging & Shipping
PACKING
Limited Protection: Each bundle of Solar PV Mounting Structure is covered with a water-resistant tarpaulin and includes 2–3 desiccant packs to prevent moisture and rust during storage and transit.
Binding: Tied with 12–16 mm steel straps, with a bundle weight between 2 and 3 tons, adjusted according to port or transport requirements.
Identification: Bilingual English–Spanish labels indicating material, ASTM standard, dimensions, HS Code, batch number, and test report number.
DELIVERY
Road: Bundles are secured with anti-slip materials and transported short distances or when direct access to the project site is available by truck.
Rail Transport: Economical long-distance solution for bulk shipments, ensuring safe handling of multiple Solar PV Mounting Structure bundles.
Freight Transport: For overseas shipment, bundles can be loaded in containers by sea or shipped in bulk/open-top containers, depending on the destination.
US Market Delivery: ASTM Solar PV Mounting Structure for the Americas are bundled with steel straps and the ends are protected, with an optional anti-rust treatment for the transit.
FAQ
Q:What materials are used for the Solar PV mounting structures?
A:We commonly use hot-dip galvanized carbon steel depending on project requirements and environmental conditions.
Q:Can the mounting structure be customized?
A:Yes. Dimensions, tilt angle, length, material, coating thickness, and foundation type can all be customized to match rooftop, ground-mounted, or specialized project needs.
Q:What installation types do you support?
A:We offer mounting systems for flat roofs, metal roofs, pitched roofs, ground-mounted solar farms, and agricultural PV sheds (Agri-PV).
