ASTM A106 A53 Gr.B Round Structure Steel Pipe Piles for Oil and Gas Transportation
| Chemical Composition | |||||||||
| Grade | Max,% | ||||||||
| Carbon | Manganese | Phosphorus | Sulfur | Copper | Nickel | Chromium | Molybdenum | Vanadium | |
| Type S(seamless pipe) | |||||||||
| Grade B | 0.3 | 1.2 | 0.05 | 0.045 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
| Type E(electric-resistance-welded) | |||||||||
| Grade B | 0.3 | 1.2 | 0.05 | 0.045 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
| Mechanical Properties | |
| Strength | Grade B |
| Tensile strength,min,psi [MPa] | 60000 [415] |
| Yield strength,min,psi[MPa] | 35000 [240] |
| Elongation in 2 in.or 50 mm | e=625000 [1940]A⁰²7U9 |

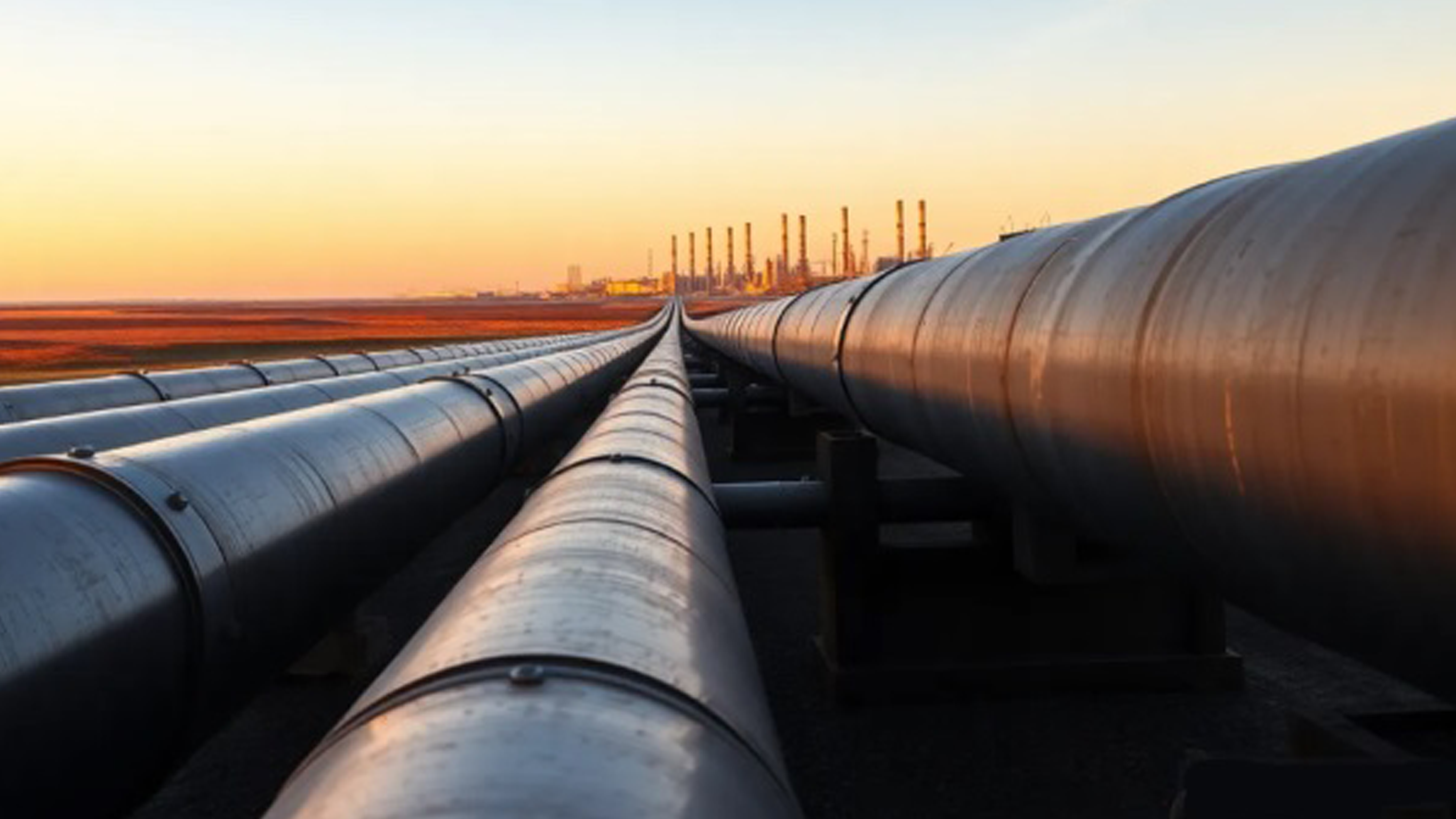

ASTM steel pipe refers to carbon steel pipe used in oil and gas transmission systems. It is also used to transport other fluids such as steam, water, and mud.
ASTM A53 Steel Pipe Guage |
|||
| Size | OD | WT (mm) | Length(m) |
| 1/2"x Sch 40 | 21.3 OD | 2.77 mm | 5To7 |
| 1/2"x Sch 80 | 21.3 mm | 3.73 mm | 5To7 |
| 1/2"x Sch 160 | 21.3 mm | 4.78 mm | 5To7 |
| 1/2" x Sch XXS | 21.3 mm | 7.47 mm | 5To7 |
| 3/4" x Sch 40 | 26.7 mm | 2.87 mm | 5To7 |
| 3/4" x Sch 80 | 26.7 mm | 3.91 mm | 5To7 |
| 3/4" x Sch 160 | 26.7 mm | 5.56 mm | 5To7 |
| 3/4" x Sch XXS | 26.7 OD | 7.82 mm | 5To7 |
| 1" x Sch 40 | 33.4 OD | 3.38 mm | 5To7 |
| 1" x Sch 80 | 33.4 mm | 4.55 mm | 5To7 |
| 1" x Sch 160 | 33.4 mm | 6.35 mm | 5To7 |
| 1" x Sch XXS | 33.4 mm | 9.09 mm | 5To7 |
| 11/4" x Sch 40 | 42.2 OD | 3.56 mm | 5To7 |
| 11/4" x Sch 80 | 42.2 mm | 4.85 mm | 5To7 |
| 11/4" x Sch 160 | 42.2 mm | 6.35 mm | 5To7 |
| 11/4" x Sch XXS | 42.2 mm | 9.7 mm | 5To7 |
| 11/2" x Sch 40 | 48.3 OD | 3.68 mm | 5To7 |
| 11/2" x Sch 80 | 48.3 mm | 5.08 mm | 5To7 |
| 11/2" x Sch XXS | 48.3mm | 10.15 mm | 5To7 |
| 2" x Sch 40 | 60.3 OD | 3.91 mm | 5To7 |
| 2" x Sch 80 | 60.3 mm | 5.54 mm | 5To7 |
| 2" x Sch 160 | 60.3 mm | 8.74 mm | 5To7 |
| 21/2" x Sch 40 | 73 OD | 5.16 mm | 5To7 |

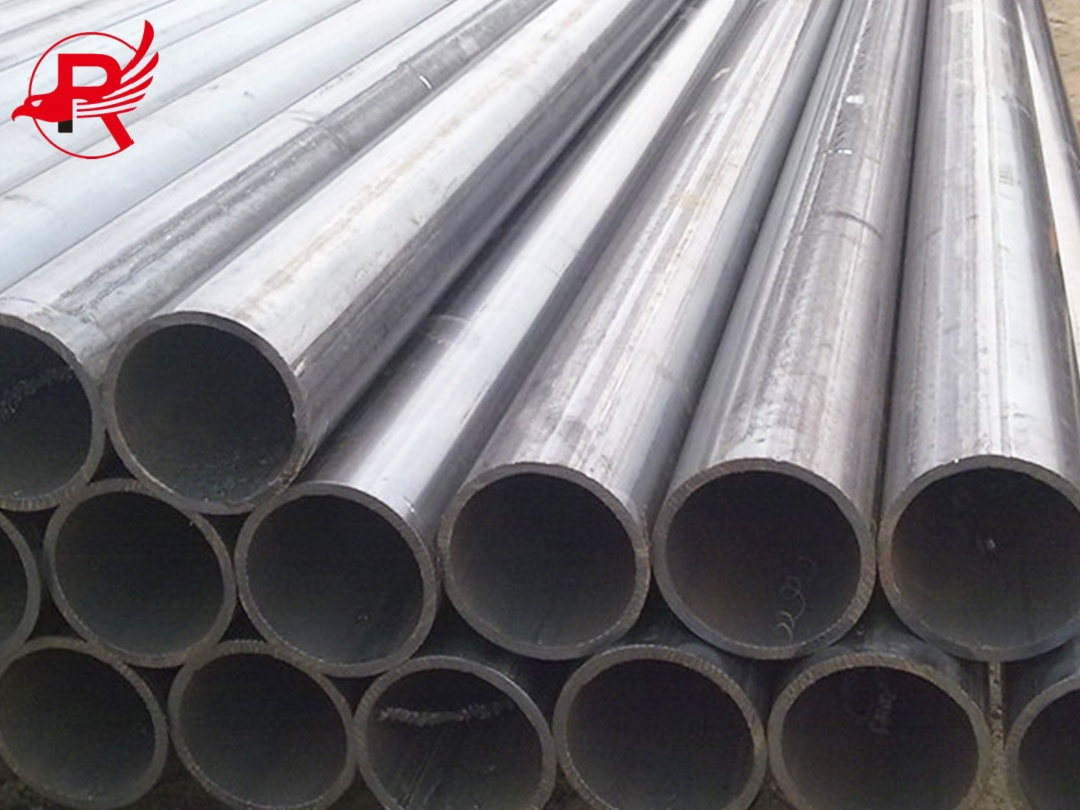

Ordinary Surface

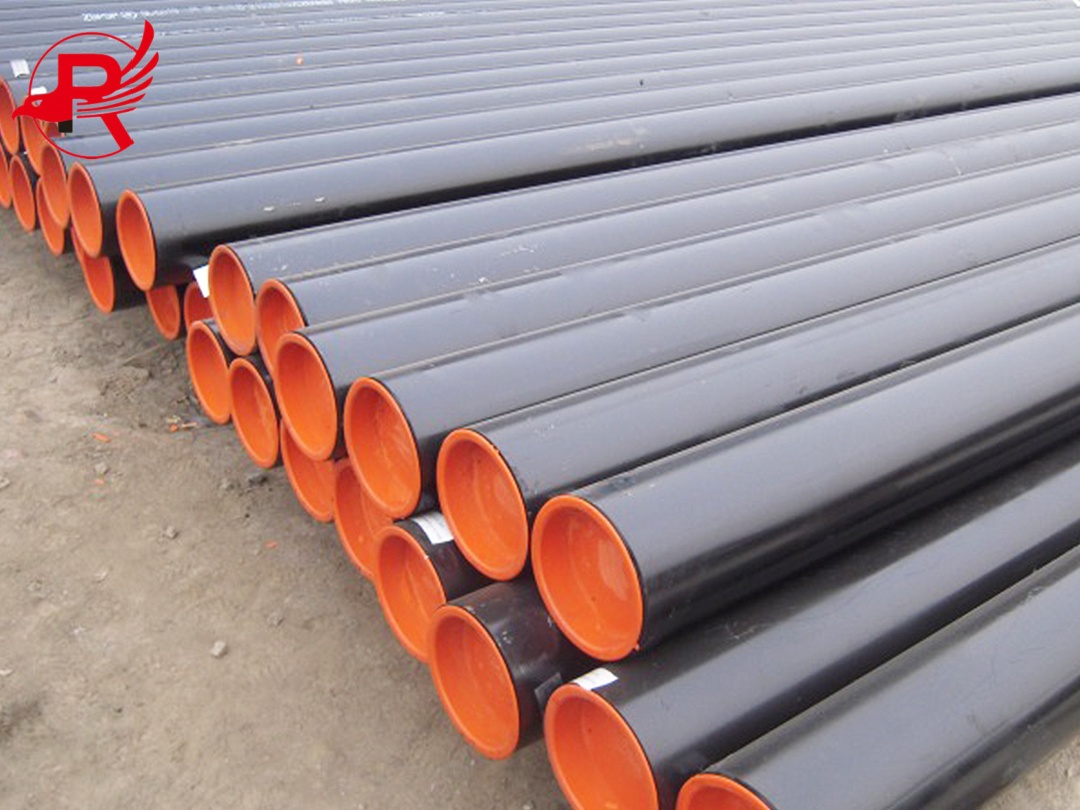

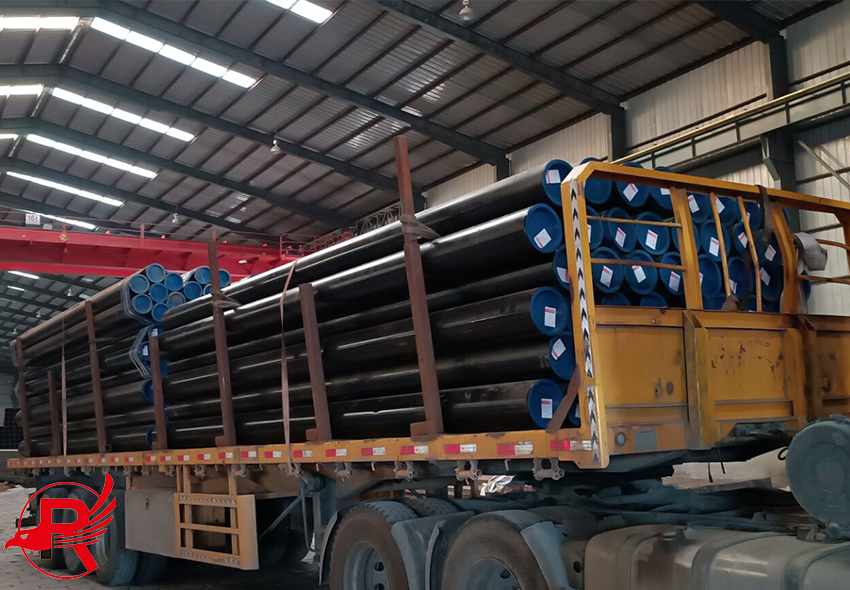

Black Oil Surface
| ASTM A53 Grade B Steel Pipe - Core Scenarios & Specification Adaptation | |||
| Recommended Specs (Wall Thickness/SCH) | Surface Treatment | Installation Method | Key Advantages |
| • Water supply: 2.77-5.59mm (SCH 40) • Sewage: 3.91-7.11mm (SCH 80) • Large OD (≥300mm): 5.59-12.7mm (SCH 40-SCH 120) |
• Underground: Hot-dip galvanizing (≥550g/m²) + coal tar epoxy • Overhead: Hot-dip galvanizing/anti-rust paint • Sewage: FBE internal coating + external anti-corrosion |

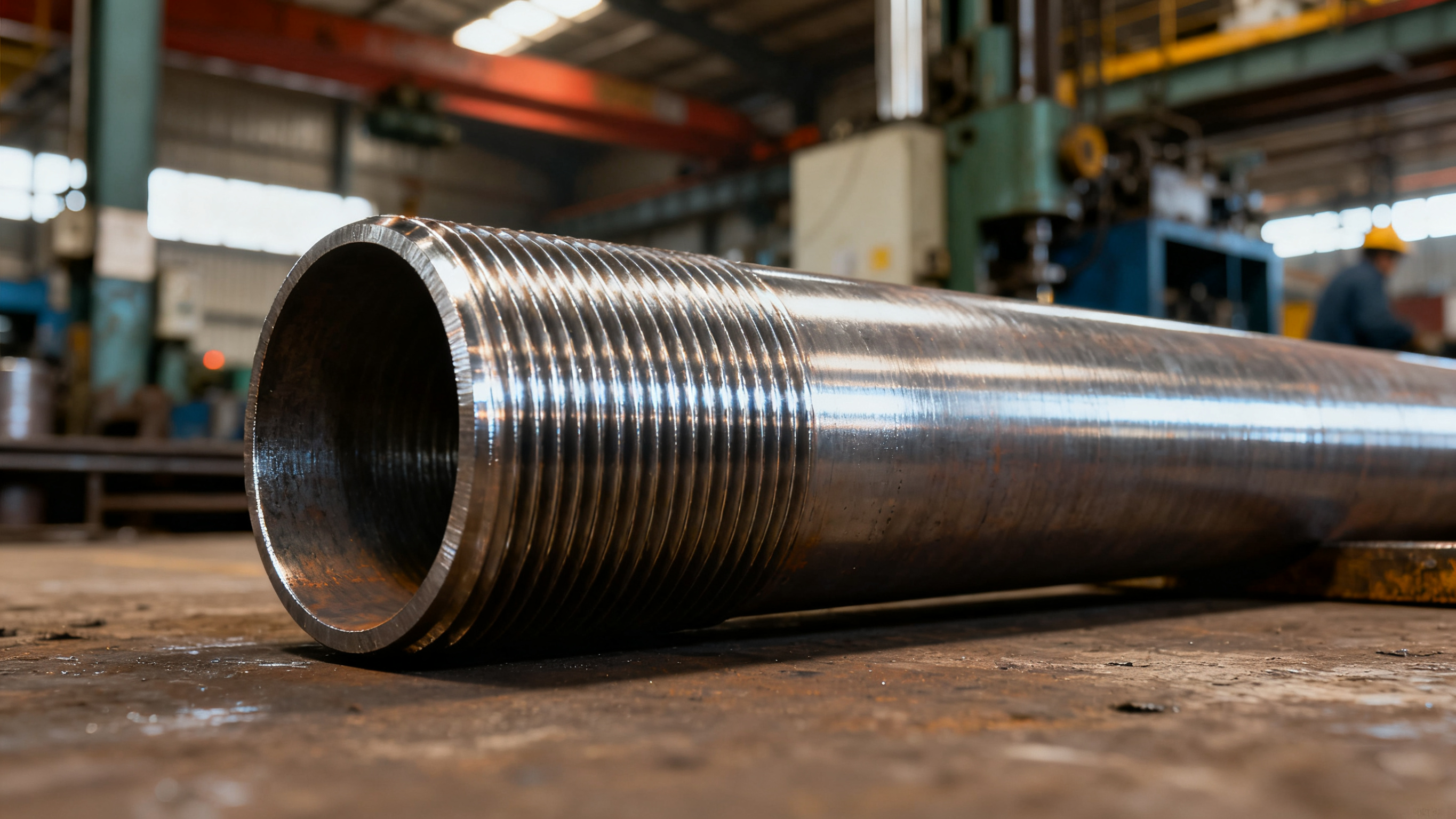

• OD≤100mm: Threaded + sealant • OD>100mm: Welding + flange • Underground: Weld anti-corrosion repair |
Low-pressure adaptability; corrosion resistance; strength-cost balance |
| • Branch/connection: 2.11-4.55mm (SCH 40) • Household (OD≤50mm): 1.65-2.77mm (SCH 10-SCH 40) • Outdoor main: 3.91-5.59mm (SCH 80) |
• General: Hot-dip galvanizing (ASTM A123) • Humid: Galvanizing + acrylic paint • Underground: Galvanizing + 3PE coating |
• Household: Threaded + gas gasket • Branch: TIG welding + union • Flange: Gas-resistant gasket + air tightness test |
Meets ≤0.4MPa pressure; anti-leakage; tight joint seal |
| • Air/cooling: 2.11-5.59mm (SCH 40) • Steam: 3.91-7.11mm (SCH 80) • Hydraulic: 1.65-3.05mm (SCH 10-SCH 40) |
• Workshop: Anti-rust oil + topcoat • Steam: High-temp paint (≥200℃) • Humid/oily: Hot-dip galvanizing/epoxy coating |
• OD≤80mm: Threaded + anaerobic adhesive • Medium OD: MIG/arc welding • Steam: Weld flaw detection + expansion joint |
Fits industrial welding; steam pressure resistance; long service life |
| • Embedded water supply: 2.11-3.91mm (SCH 40) • Steel structure (OD≥100mm): 4.55-9.53mm (SCH 80-SCH 120) • Fire pipes: 2.77-5.59mm (SCH 40, fire code compliant) |
• Embedded: Anti-rust paint + cement mortar • Steel structure: Hot-dip galvanizing/fluorocarbon paint • Fire pipes: Red anti-rust paint |
• Embedded: Sleeve + joint sealing • Steel structure: Full welding + flange fixation • Fire pipes: Threaded/grooved connection |
Low-pressure adaptability; high bearing strength; meets fire acceptance |
| • Irrigation: 2.11-4.55mm (SCH 40) • Biogas: 1.65-2.77mm (SCH 10-SCH 40) • Oilfield: 3.91-7.11mm (SCH 80, oil-resistant) |
• Irrigation: Hot-dip galvanizing/anti-corrosion paint • Biogas: Galvanizing + epoxy internal coating • Oilfield: Coal tar epoxy + anti-rust oil |
• Irrigation: Socket + rubber ring • Biogas: Threaded + gas sealant • Oilfield: Welding + weld anti-corrosion |
Low-cost; impact resistance; field/oilfield corrosion protection |
| • Factory: 2.11-5.59mm (SCH 40, 20ft/40ft container suitable) • Coastal: 3.91-7.11mm (SCH 80, sea breeze resistant) • Farm/municipal: 1.65-4.55mm (SCH 10-SCH 40, 8m/10m custom) |
• General: Hot-dip galvanizing (US CBP compliant) • Coastal: Galvanizing + fluorocarbon paint (salt spray resistant) • Farms: Black anti-rust paint |
• Factory: Threaded + quick union • Coastal: Welding + flange anti-corrosion • Farm: Socket connection |
Fits US transportation; coastal environment adaptability; cost-effective |
1) Branch Office - Spanish-speaking support, customs clearance assistance, etc.

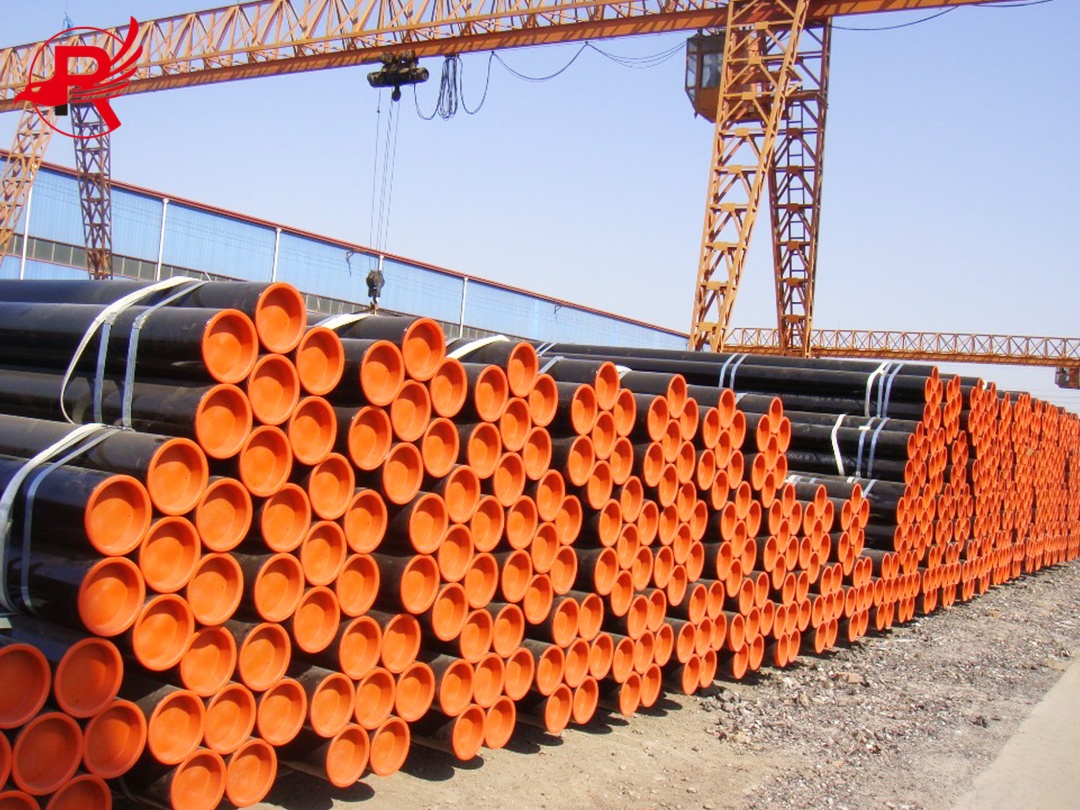

2) Over 5,000 tons of stock in stock, with a wide variety of sizes

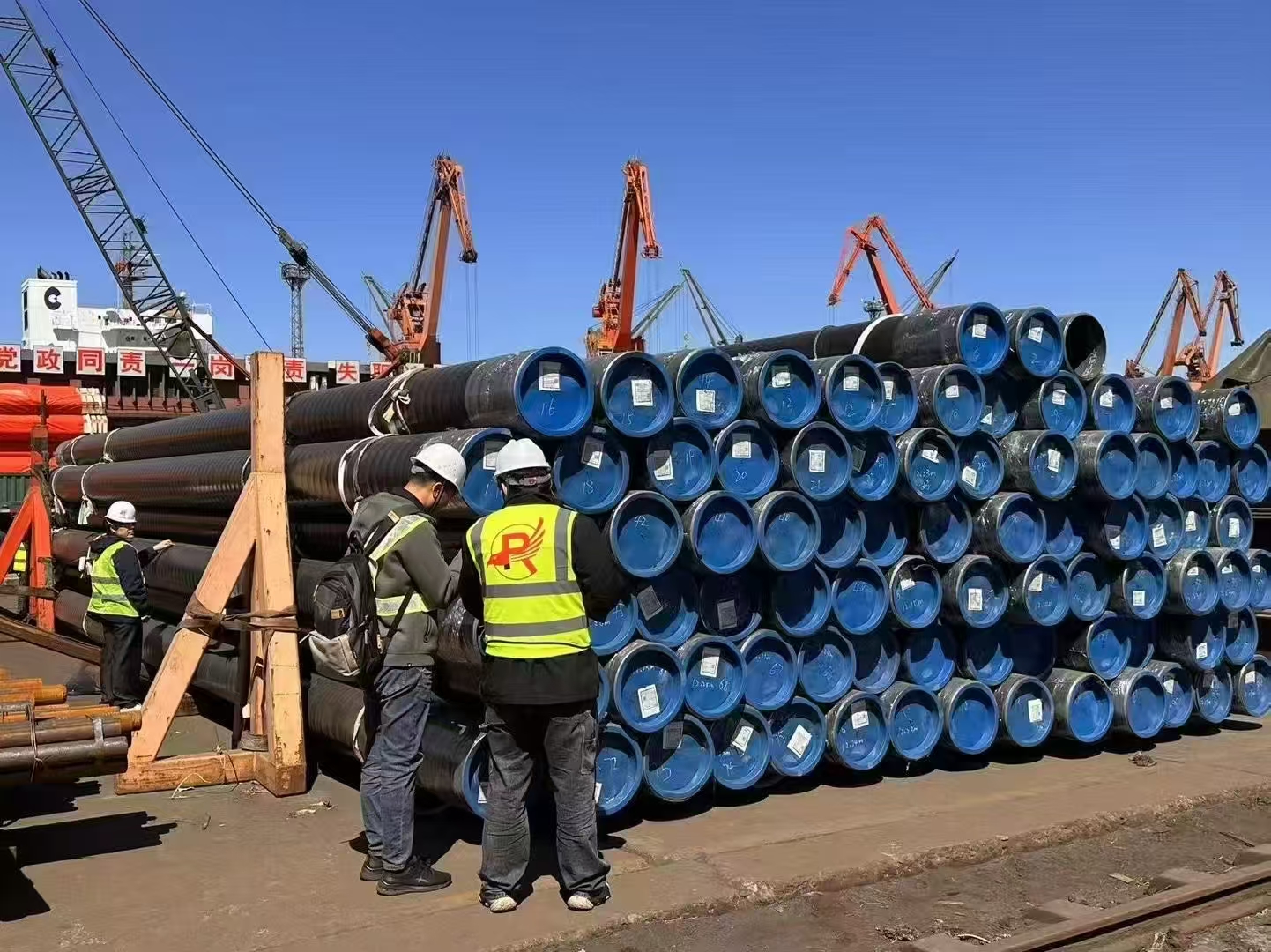

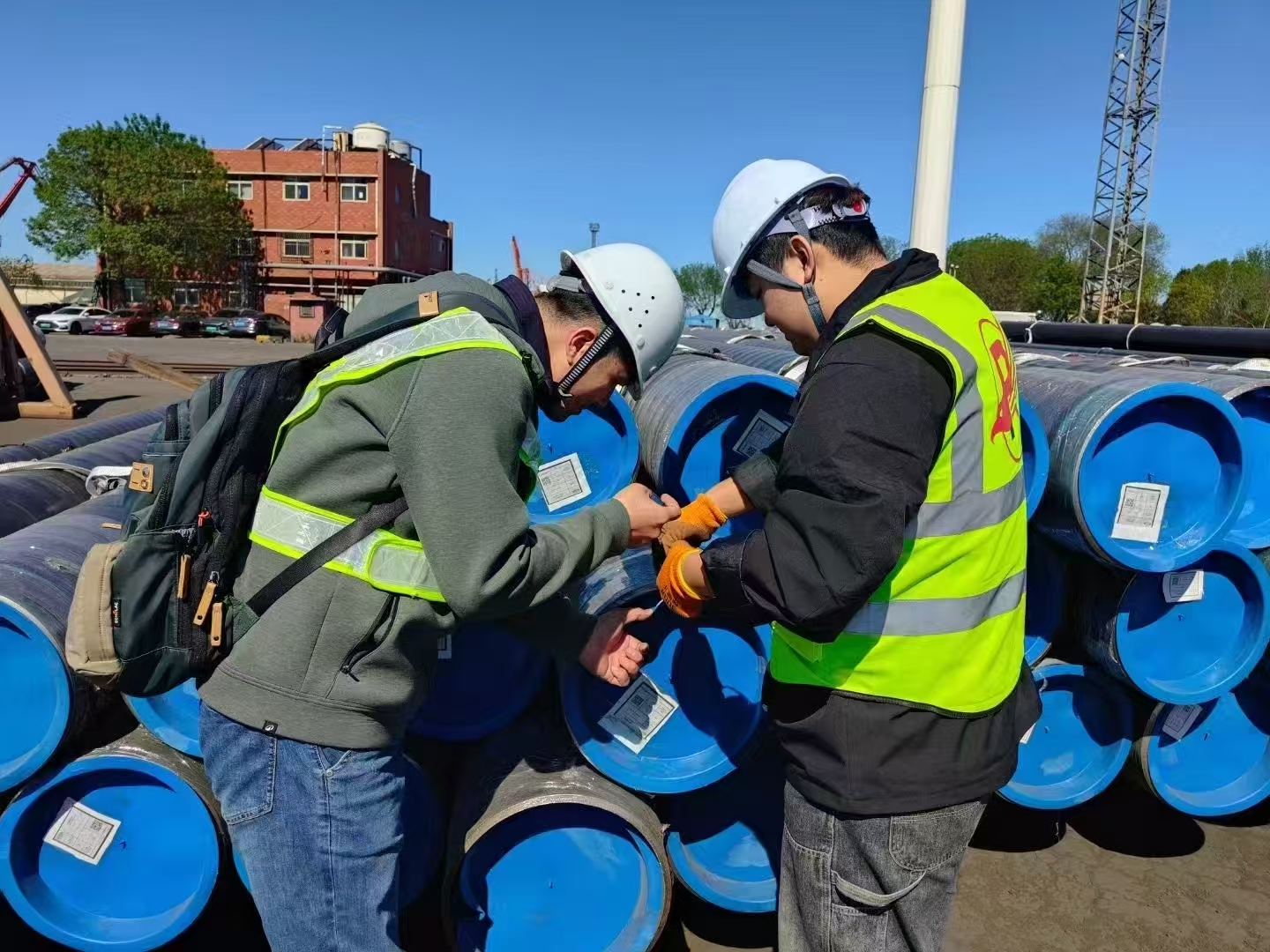

3) Inspected by authoritative organizations such as CCIC, SGS, BV, and TUV, with standard seaworthy packaging

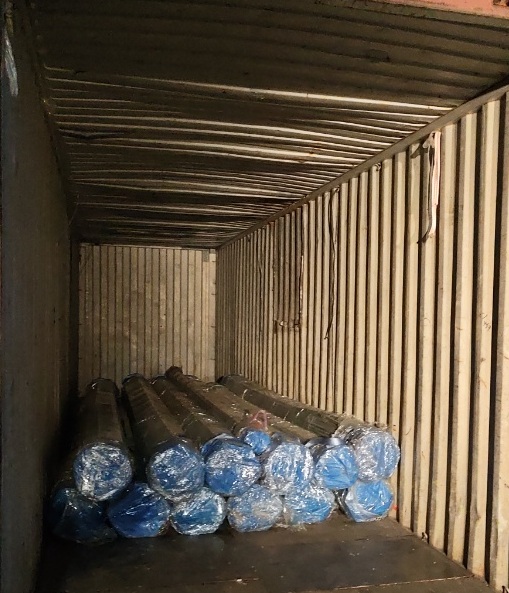

Basic Protection: Each bale is wrapped with tarpaulin, 2-3 desiccant packs are put in each bale, then bale is covered with heat sealed waterproof cloth.
Bundling: The strapping is 12-16mm Φ steel strap, 2-3 tons / bundle for lifting equipment in American port.
Conformance Labeling: Bilingual labels (English + Spanish) are applied with a clear indication of material, spec, HS code, batch and test report number.

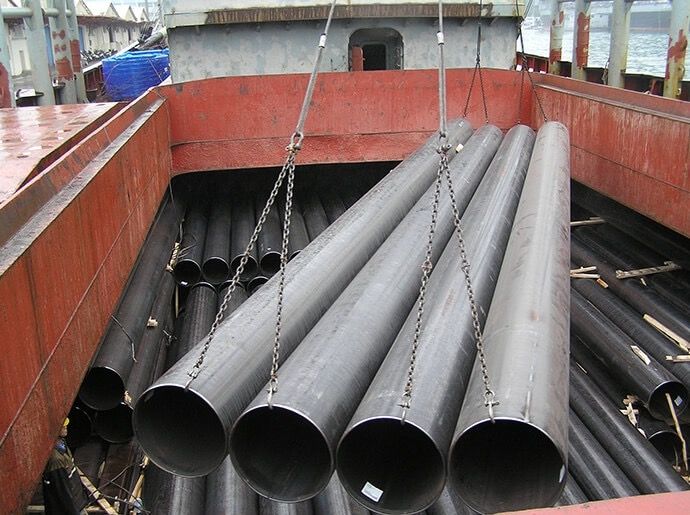

Stable cooperation with shipping companies such as MSK, MSC, COSCO efficiently logistics service chain, logistics service chain are we to your satisfaction.
We follow the standards of quality management system ISO9001 in all procedure, and have strict control from packaging material purchase to transport vehicle scheduling. This guarantees the steel pipes from the factory all the way to the project site, helping you build on a solid foundation for a trouble free project!
Q: What standards do your steel pipes meet for Central America?
A: They meet ASTM A53 Grade B and can also comply with local standards.
Q: Delivery time?
A: 45–60 days including production and customs; expedited shipping is available.
Q: Customs assistance?
A: Yes, we work with local brokers to handle customs, taxes, and paperwork for smooth delivery.
