ASTM A36 Hot Rolled U Type Steel Sheet Pile Type 2 U9(400x100x10.5mm) Section Piling
Product Detail
| Property / Parameter | Specification / Details |
|---|---|
| Standard | ASTM A36 |
| Material Type | Carbon Steel |
| Product Form | Hot Rolled Sheet Pile |
| Shape / Type | U-Type |
| Thickness (mm) | 6 – 25 (commonly) |
| Width (mm) | 150 – 400 (depends on section type) |
| Length (m) | 6 – 12 (customizable) |
| Weight per Meter (kg/m) | 30 – 100 (depends on cross-section) |
| Yield Strength | ≥ 250 MPa |
| Tensile Strength | 400 – 550 MPa |
| Elongation | ≥ 20% |
| Surface Finish | Hot Rolled, smooth surface |
| Coating / Protection | Optional: primer, galvanization |
| Applications | Retaining walls, cofferdams, marine structures, flood control |
ASTM A36 Hot Rolled Steel Sheet Pile Size
| JIS / Model | ASTM A36 Model | Effective Width (mm) | Effective Width (in) | Effective Height (mm) | Effective Height (in) | Web Thickness (mm) |
|---|---|---|---|---|---|---|
| HP400×100 | A36 Type 1 | 400 | 15.75 | 100 | 3.94 | 10 |
| HP400×125 | A36 Type 2 | 400 | 15.75 | 125 | 4.92 | 12 |
| HP400×150 | A36 Type 3 | 400 | 15.75 | 150 | 5.91 | 14 |
| HP500×200 | A36 Type 4 | 500 | 19.69 | 200 | 7.87 | 16 |
| HP500×225 | A36 Type 5 | 500 | 19.69 | 225 | 8.86 | 18 |
| HP600×130 | A36 Type 6 | 600 | 23.62 | 130 | 5.12 | 12.5 |
| HP600×210 | A36 Type 7 | 600 | 23.62 | 210 | 8.27 | 18 |
| HP750×225 | A36 Type 8 | 750 | 29.53 | 225 | 8.86 | 14.6 |
| Web Thickness (in) | Unit Weight (kg/m) | Unit Weight (lb/ft) | Material (Dual Standard) | Yield Strength (MPa) | Tensile Strength (MPa) | Americas Applications | Southeast Asia Applications |
|---|---|---|---|---|---|---|---|
| 0.39 | 48 | 32 | ASTM A36 / A36M | 250 | 400–550 | Small municipal pipelines & irrigation systems | Irrigation projects in Indonesia & Philippines |
| 0.47 | 60 | 40 | ASTM A36 / A36M | 250 | 400–550 | Reinforcing building foundations in U.S. Midwest | Drainage and channel works in Bangkok |
| 0.55 | 76 | 51 | ASTM A36 / A36M | 250 | 400–550 | Flood-protection levees along U.S. Gulf Coast | Small-scale land reclamation in Singapore |
| 0.67 | 106 | 71 | ASTM A36 / A36M | 250 | 400–550 | Seepage control at Houston Port & shale oil dikes in Texas | Deep-sea port construction in Jakarta |
| 0.43 | 76 | 51 | ASTM A36 / A36M | 250 | 400–550 | River regulation and bank protection in California | Coastal industrial reinforcement in Ho Chi Minh City |
| 0.57 | 116 | 78 | ASTM A36 / A36M | 250 | 400–550 | Deep foundation pits at Vancouver Port | Major land reclamation projects in Malaysia |
ASTM A36 Hot Rolled Steel Sheet Pile Corrosion prevention solution

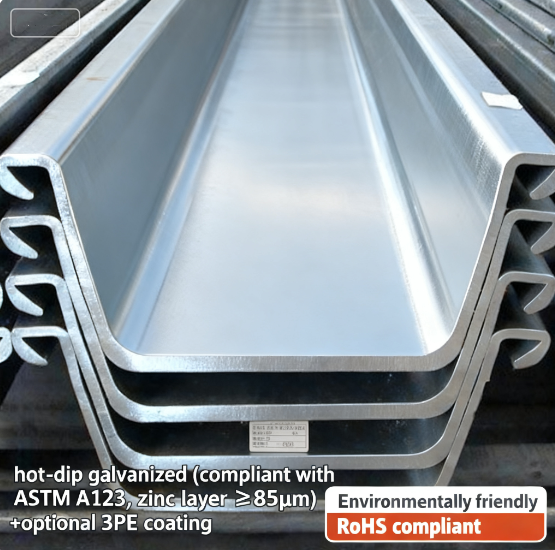

Americas:HDG to ASTM A123 (min zinc coat ≥85 µm); 3PE coating is optional; all finishes are RoHS qaulified.
Southeast Asia: With a thick layer of hot-dip galvanization (above 100μm) and 2 layers of epoxy coal tar coating, it can be tested by 5000 hours salt spray without rust, suitable for application in tropical marine atmosphere.
ASTM A36 Hot Rolled Steel Sheet Pile Locking and waterproof performance

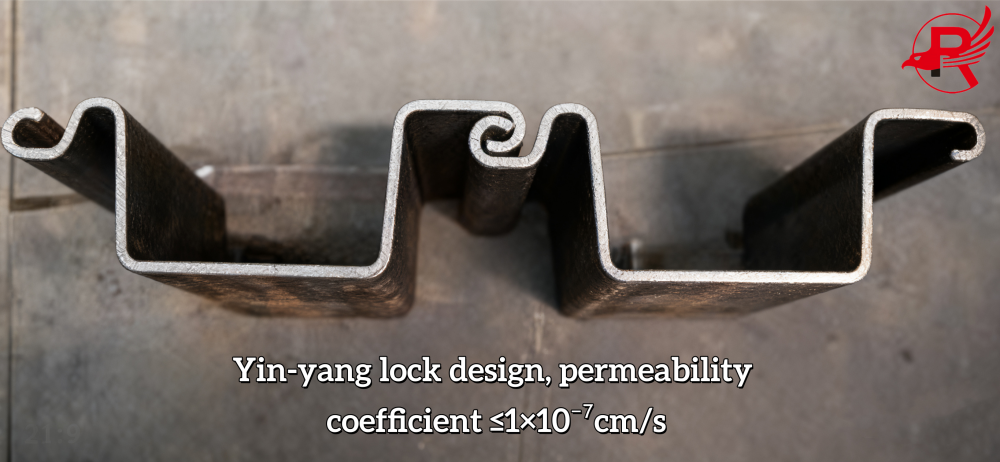

Design: Yin-yang interlock, permeability ≤1×10⁻⁷ cm/s
Americas: Complies with ASTM D5887 standard for prevention of seepage under drumming
Southeast Asia: Groundwater-seepage proof for tropical rainy seasons
ASTM A36 Hot Rolled Steel Sheet Pile Production Process
Selection of steel:
Choose high-quality structural steel (e.g., Q355B, S355GP, or GR50) based on your mechanical performance requirements.
Heating:
Heat billets/slabs to ~1,200°C for malleability.
Hot Rolling:
Roll steel into U channels with rolling mills.
Cooling:
Cool in air or fire cool in water to obtain the desired properties.
Straightening & Cutting:
Know the exact measurement, and cut to the standard size and length or make it custom size and length.
Quality Inspection:
Conduct dimensional, mechanical, and visual tests.
Surface Treatment (Optional):
Apply paints, galvanizing or rust-preventive oils as needful.
Packaging & Shipping:
Bundle, protect, and load for transport.
Harbor and Dock Construction: Steel sheet piles form a strong wall to support shore protection.
Bridge Engineering: They increase the load-carrying capacity, and act as scour protection for bridge piers when used as batter piles.
Underground Parking / Deep Foundation Support: Reliable, efficient lateral protection for your excavation.
Water Conservancy Projects: Give high-efficient water barriers for river training, dam strengthening and cofferdam construction.
APPLICATION
Our Advantages
Packaging of Steel Sheet Piles
Bundling: Piles are bundled tightly by steel or plastic strap.
End Protection: Ends are protected with plastic caps or wooden blocks.
Anti-Corrosion: The bundles are covered with waterproof paper, smeared with rust oil or enveloped in plastic.
Delivery of Steel Sheet Piles
Loading: Bundles can be lifted by forklifts or cranes and loaded onto trucks, flatbeds or into containers.
Balance: The stacks are compressed tightly so that they do not move during transportation.
Unloading: On the ground, the bundles are parted with care so as to allow for easy and safe handling of the individual packages.
Local support: Local offices with bilingual (English/Spanish) staff to facilitate communication.
Material availability: There is material available to do the work.
Protect Packaging: Sheet piles are tightly banded with padding and water seal.
On-Time Delivery: Safe and timely piles delivery as committed.
Ready to find out more?
PACKAGING AND SHIPPING
FAQ
1.How can I obtain a quote from you?
You can leave us message, and we will reply every message in time.
2.Will you delivery the goods on time?
Yes,we promise to supply the best quality products and delivery on time. Honesty is our company’s tenet.
3.Can I get samples before order ?
Yes, of course. Generally our samples are free, we can make by your samples or technical drawings.
4.What are your payment terms?
Payment Terms Our standard payment term is 30% deposit, balance against B/L. EXW,FOB,CFR, CIF.
5.Do you accept the third party inspection?
Yes absolutely we accept.
6.How do we trust your company?
We are professional steel supplier for years as golden supplier,headquarter locates In Tianjin province,welcome to investigate in any ways,by all means.
