Download the Latest W beam Specifications and Dimensions.
ASTM A36 / A992/A572 Wide Flange H Beam Supplier | W10 W12 W14 Structural Steel Beam Manufacturer China
| Material Standard | A36/A992/A572 | Yield Strength | ≥345MPa |
| Dimensions | W6,W8,W10,W12,W14,W16 | Length | Stock for 6 m & 12 m, Customized Length |
| Dimensional Tolerance | Conforms to GB/T 11263 or ASTM A6 | Quality Certification | ISO 9001, SGS/BV Third-Party Inspection Report |
| Surface Finish | Hot-dip galvanizing, paint, etc. Customizable | Applications | Industrial plants, warehouses, commercial buildings, residential buildings, bridges |
| Steel Grade | Carbon, max, % |
Manganese, % |
Silicon, max, % |
Vanadium, max, % |
Columbium, max, % |
Phosphorus, max, % |
Sulfur, max, % |
|
| ASTMA992 | 0.23 | 0.50 - 1.60 | 0.40 | 0.15 | 0.05 | 0.035 | 0.045 | |
| Item | Grade | Carbon,max, % |
Manganese,max, % |
Silicon,max, % |
Phosphorusmax, % |
Sulfur,max, % |
|
| A572 steel beams | 42 | 0.21 | 1.35 | 0.40 | 0.04 | 0.05 | |
| 50 | 0.23 | 1.35 | 0.40 | 0.04 | 0.05 | ||
| 55 | 0.25 | 1.35 | 0.40 | 0.04 | 0.05 | ||
ASTM A36/A992/A572 W-beam (or H-beam) Mechanical Property
| Steel Grade | Tensile strength, ksi[MPa] |
Yield pointmin, ksi[MPa] |
Elongation in 8 in.[200 mm],min,% |
Elongation in 2 in.[50 mm],min,% |
|
| A36 | 58-80 [400-550] | 36[250] | 20.00 | 21 | |
| Steel Grade | Tensile strength, ksi | Yield point, min, ksi | |
| ASTM A992 | 65 | 65 | |
| Item | Grade | Yield pointmin,ksi[MPa] | Tensile strength,min,ksi[MPa] | |
| A572 steel beams | 42 | 42[290] | 60[415] | |
| 50 | 50[345] | 65[450] | ||
| 55 | 55[380] | 70[485] | ||
ASTM A36 / A992 / A572 Wide Flange H-beam Sizes - W Beam
| Size | Weight (kg/m) | Standard |
|---|---|---|
| W10×12 | 17.9 | ASTM |
| W12×35 | 52.1 | ASTM |
| W14×22 | 32.8 | ASTM |
| W16×26 | 38.7 | ASTM |
| W18×35 | 52.0 | ASTM |
| W24×21 | 31.3 | ASTM |
Click the Button on The Right
| Item | Details |
|---|---|
| MOQ | 5 Tons |
| Length | 6m / 12m / Custom |
| Surface | Black / Painted / Galvanized |
| Delivery | 10–25 Days |
| Price | USD650–880/ton (Reference) |
| Export Markets | Americas / Southeast Asia / Middle East |

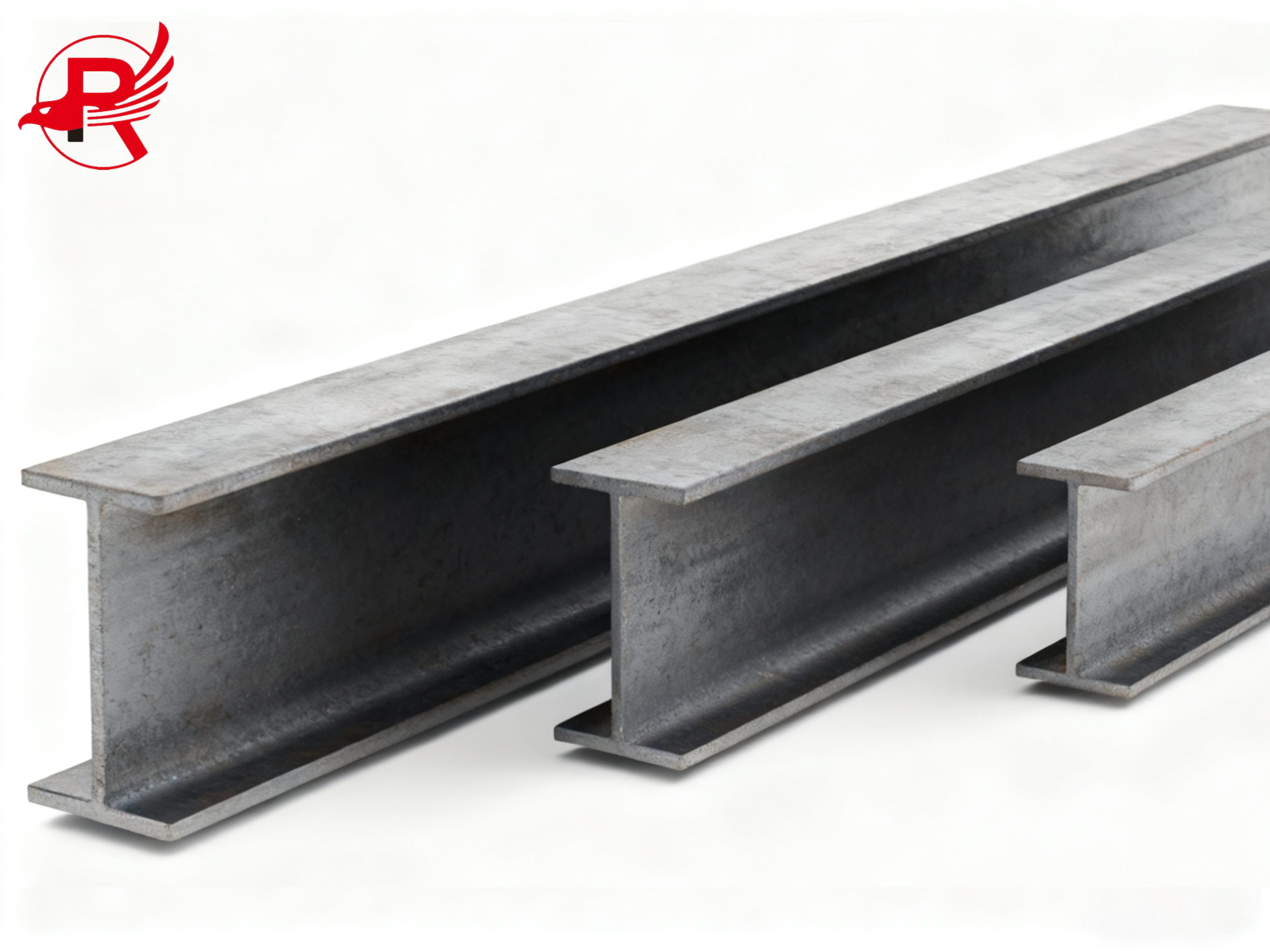

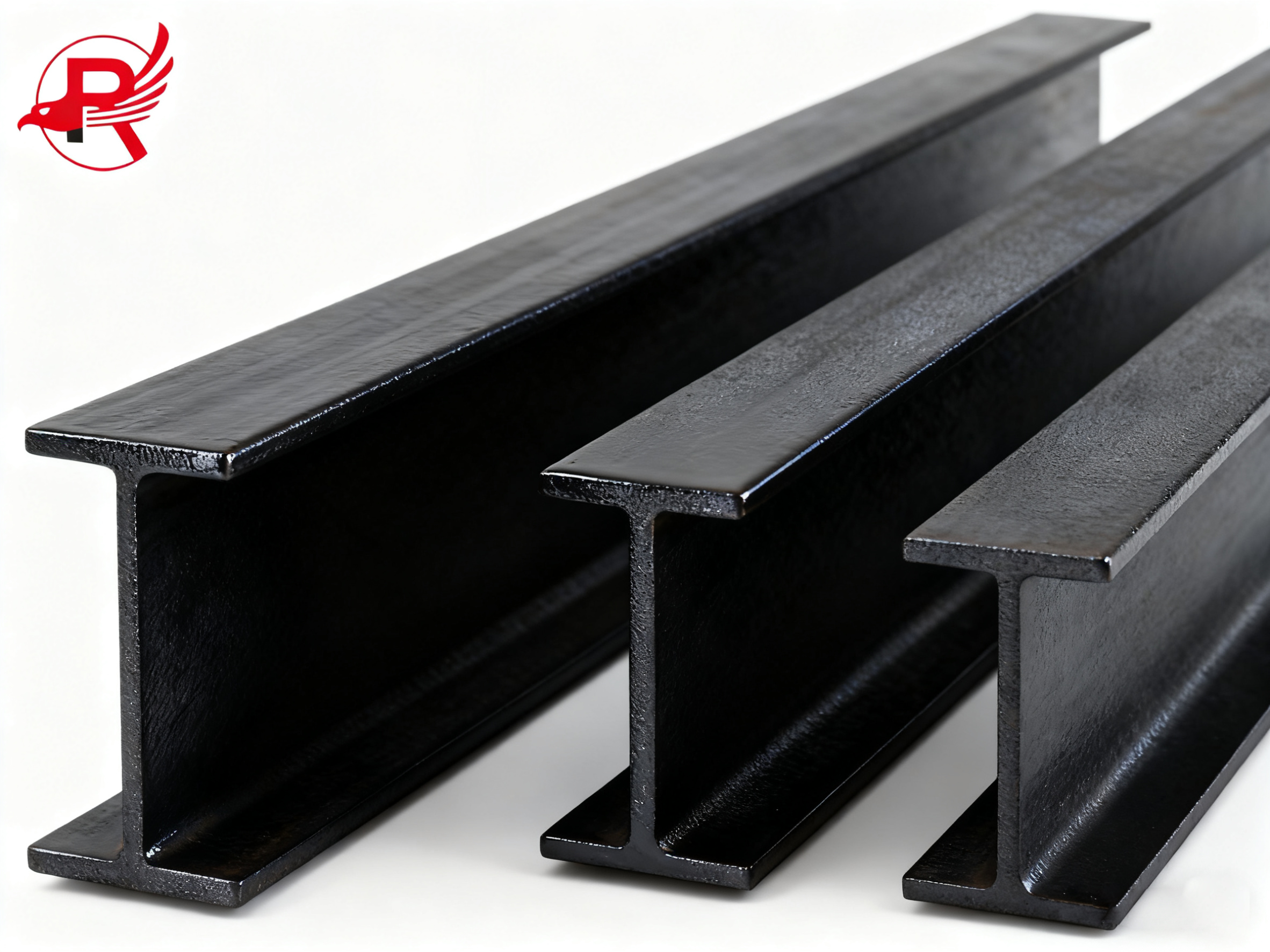

Ordinary Surface
Galvanized Surface (hot-dip galvanizing thickness ≥ 85μm, service life up to 15-20 years),

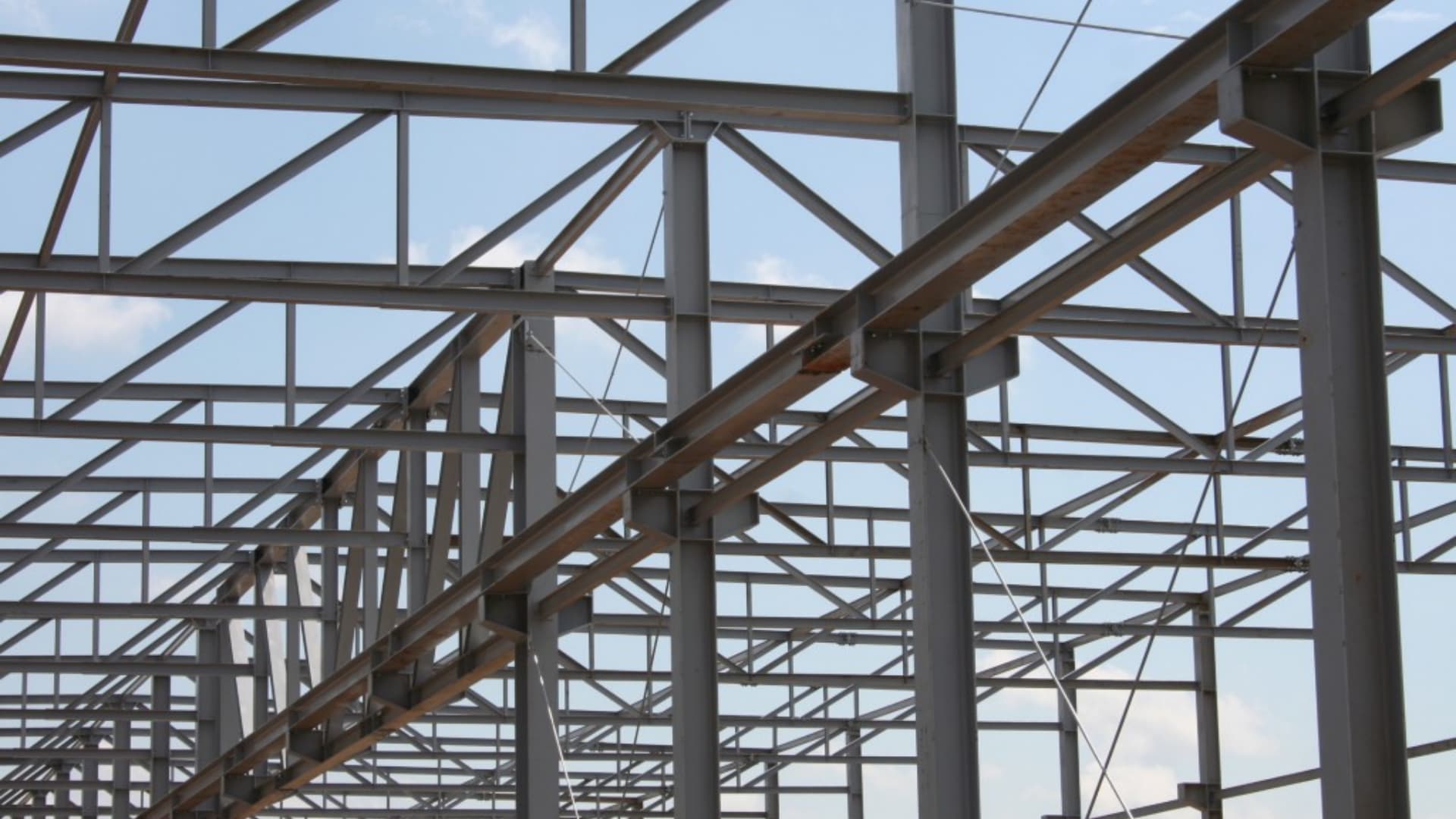

Building Steel Structures: Frame beams and columns for high-rise office buildings, residential buildings, shopping malls, and other structures; main structures and crane beams for industrial plants;

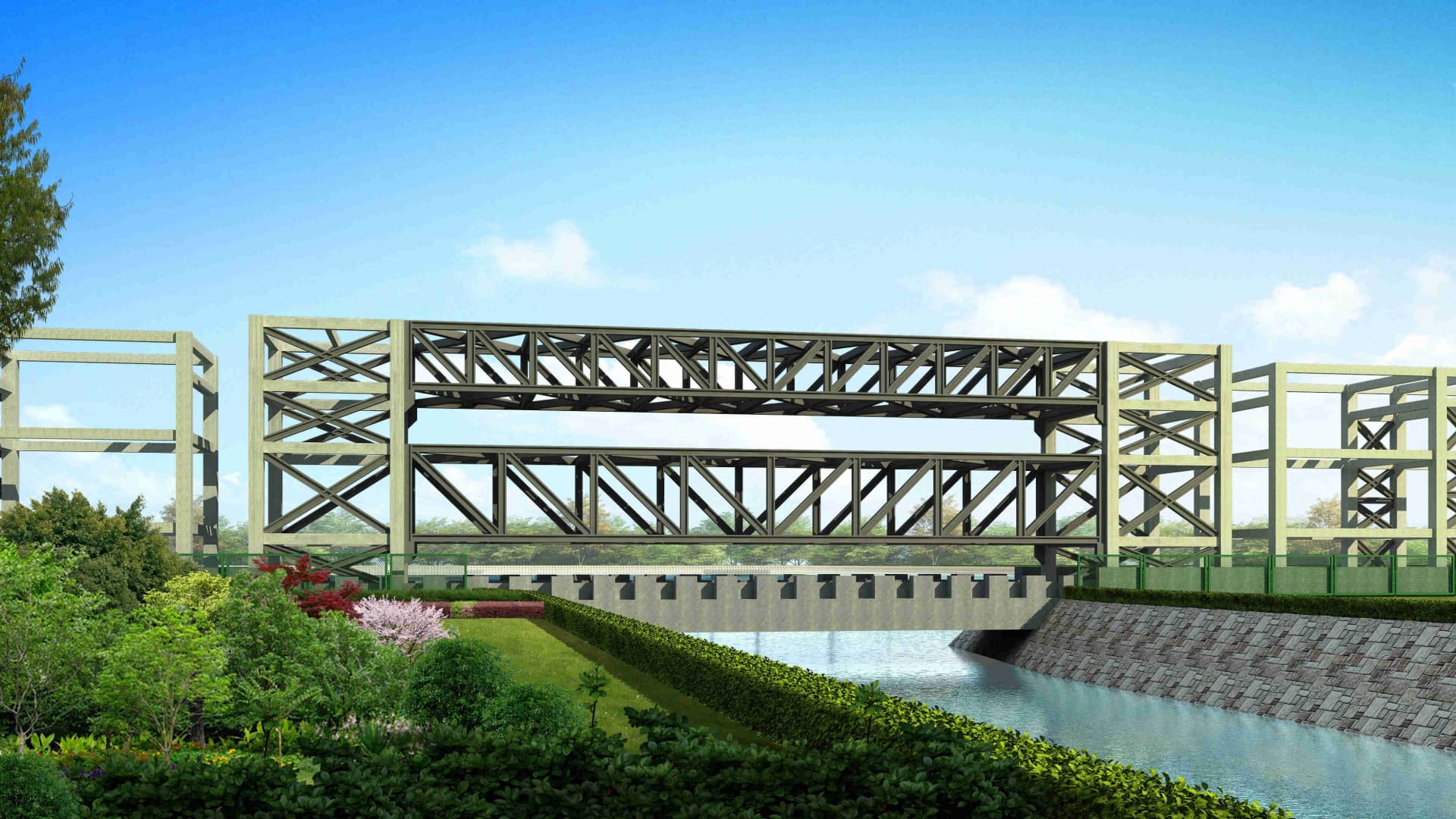

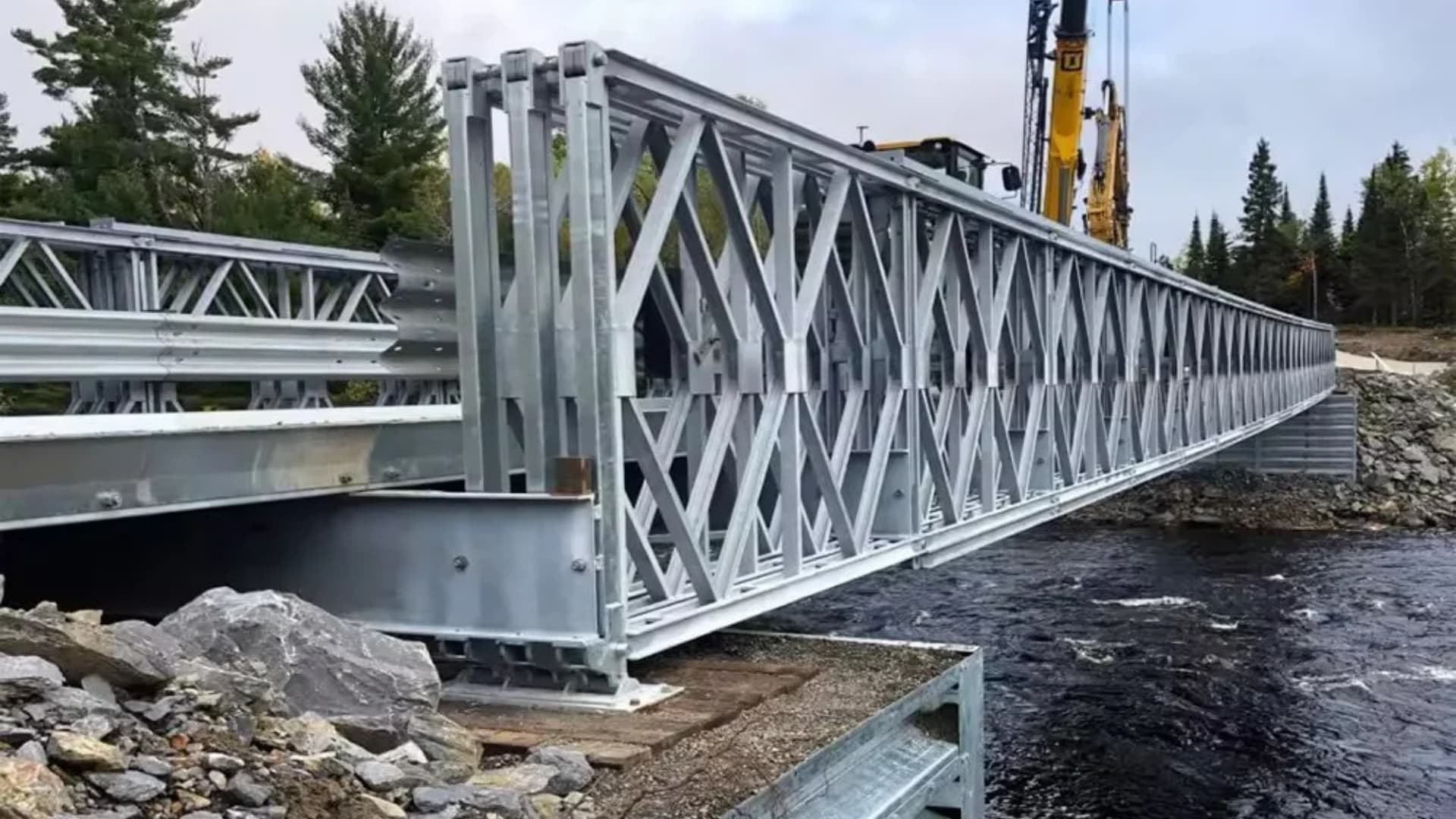

Bridge Engineering: Deck systems and support structures for small and medium-span highway and railway bridges;

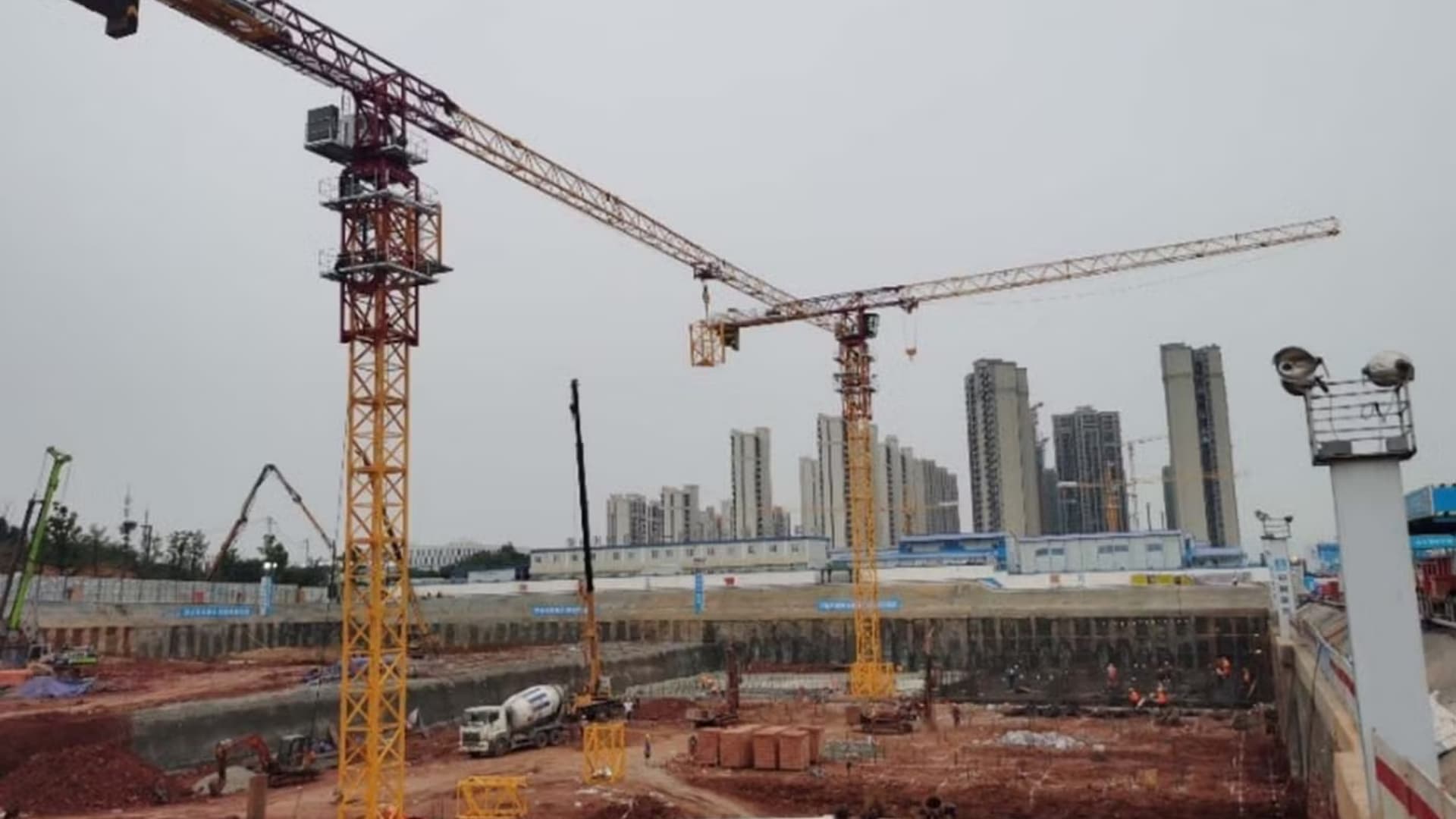

Municipal and Special Engineering: Steel structures for subway stations, urban pipeline corridor supports, tower crane foundations, and temporary construction supports;
Overseas Engineering: Our steel structures comply with North American and internationally recognized steel structure design codes and are widely used as steel structural components in multinational projects.
-
1.ASTM A36 / A992 certified
-
2.5000 tons stock
-
3.Fast delivery 10–25 days
-
4.Custom cutting service
-
5.Export to Central America
-
6.Professional export packaging
Basic Protection: Each bundle is wrapped in tarpaulin, with 2-3 desiccant packs placed in each bundle, and covered with heat-sealed rainproof cloth.
Bundling: Strapping is done with 12-16mm Φ steel straps, suitable for lifting equipment in American ports with a capacity of 2-3 tons per bundle.
Compliance Labeling: Bilingual (English + Spanish) labels are affixed, clearly indicating the material, specification, HS code, batch, and test report number.
We adhere to ISO9001 quality management system standards throughout the entire process, with a strict control mechanism in place from packaging material selection to transport vehicle allocation. This ensures the integrity of H-beams from factory to delivery, providing a solid foundation for smooth project construction!
Question 1: What is the price of ASTM A36 H-beams?
The price of ASTM A36 H-beams typically ranges from $600 to $880 per ton, depending on size, quantity, and market conditions.
Question 2: What sizes of W-beams do you supply?
We supply the full range of W-series steel, including W10, W12, W14, W16, W18, and W24.
Question 3: Can you customize the length of steel beams?
Yes, we support custom cutting services based on project requirements.
Question 4: What is the delivery time?
Delivery time is typically 10-25 days, depending on order quantity.
Question 5: Do you export structural steel beams worldwide?
Yes, China Royal Steel exports steel beams worldwide.
