ASTM A500 Grade B/C Wide Flange Beam | W Beam China Supplier | Structural Steel
| Item | Description |
|---|---|
| Product Name | ASTM A500 Grade B/C Wide Flange Beam |
| Shape | W Beam / H Beam |
| Steel Grade | ASTM A500 Grade B / C |
| Standard | ASTM A500 / ASTM A6 |
| Production Process | Cold-Formed / Hot Rolled |
| Depth (H) | 150 mm – 900 mm |
| Flange Width (B) | 75 mm – 300 mm |
| Length | 6 m / 9 m / 12 m or customized |
| Surface | Black / Shot Blasting / Galvanized |
| Application | Light to Medium Structural Buildings, Industrial Plants, Warehouses |
| Certification | ISO / SGS / Mill Test Certificate |
| Property | Grade B | Grade C |
|---|---|---|
| Yield Strength | 290 MPa | 345 MPa |
| Tensile Strength | 380–450 MPa | 460–620 MPa |
| Elongation | ≥23% | ≥20% |
Suitable for moderate load-bearing structures and precision fabrication.
| Designation | Depth h (in) | Width w (in) | Web Thickness s (in) | Sectional Area (in²) | Weight (lb/ft) | Ix (in⁴) | Iy (in⁴) | Wx (in³) | Wy (in³) |
|---|---|---|---|---|---|---|---|---|---|
| W 4×13 | 4.16 | 4.06 | 0.28 | 3.8 | 13 | 11.3 | 3.9 | 5.5 | 1.9 |
| W 5×16 | 5.01 | 5.00 | 0.24 | 4.7 | 16 | 21.3 | 7.5 | 8.5 | 3.0 |
| W 5×19 | 5.15 | 5.03 | 0.27 | 5.5 | 19 | 26.2 | 9.1 | 10.2 | 3.6 |
| W 6×12 | 6.03 | 4.00 | 0.23 | 3.6 | 12 | 22.1 | 3.0 | 7.3 | 1.5 |
| W 6×15 | 5.99 | 5.99 | 0.23 | 4.4 | 15 | 29.1 | 9.3 | 9.7 | 3.1 |
| W 6×16 | 6.28 | 4.03 | 0.26 | 4.7 | 16 | 32.1 | 4.4 | 10.2 | 2.2 |
| W 6×20 | 6.20 | 6.02 | 0.26 | 5.9 | 20 | 41.4 | 13.3 | 13.4 | 4.4 |
| W 6×25 | 6.38 | 6.08 | 0.32 | 7.3 | 25 | 53.4 | 17.1 | 16.7 | 5.6 |
| W 8×10 | 7.89 | 3.94 | 0.17 | 2.9 | 10 | 30.3 | 2.1 | 7.8 | 1.1 |
| W 8×13 | 7.99 | 4.00 | 0.23 | 3.8 | 13 | 39.6 | 2.7 | 9.9 | 1.4 |
| W 8×15 | 8.11 | 4.02 | 0.245 | 4.4 | 15 | 48.0 | 3.4 | 11.8 | 1.7 |
| W 8×18 | 8.14 | 5.25 | 0.23 | 5.3 | 18 | 61.9 | 8.0 | 15.2 | 3.0 |
| W 8×21 | 8.28 | 5.27 | 0.25 | 6.2 | 21 | 75.3 | 9.8 | 18.2 | 3.7 |
| W 8×24 | 7.93 | 6.495 | 0.245 | 7.1 | 24 | 82.8 | 18.3 | 20.9 | 5.6 |
| W 8×28 | 8.06 | 6.535 | 0.285 | 8.3 | 28 | 98.0 | 21.7 | 24.3 | 6.6 |
| W 8×31 | 8.00 | 7.995 | 0.285 | 9.1 | 31 | 110 | 37.1 | 27.5 | 9.3 |
| W 8×35 | 8.12 | 8.02 | 0.31 | 10.3 | 35 | 127 | 42.6 | 31.2 | 10.6 |
| W 8×40 | 8.25 | 8.07 | 0.36 | 11.7 | 40 | 146 | 49.1 | 35.5 | 12.2 |
| W 8×48 | 8.50 | 8.11 | 0.40 | 14.1 | 48 | 184 | 60.9 | 43.3 | 15.0 |
| W 8×58 | 8.75 | 8.22 | 0.51 | 17.1 | 58 | 228 | 75.1 | 52.0 | 18.3 |
| W 8×67 | 9.00 | 8.28 | 0.57 | 19.7 | 67 | 272 | 88.6 | 60.4 | 21.4 |
| W 10×12 | 9.87 | 3.96 | 0.19 | 3.5 | 12 | 53.8 | 2.2 | 10.9 | 1.1 |
| W 10×15 | 9.99 | 4.00 | 0.23 | 4.4 | 15 | 68.9 | 2.9 | 13.8 | 1.5 |
| W 10×17 | 10.11 | 4.01 | 0.24 | 5.0 | 17 | 81.9 | 3.6 | 16.2 | 1.8 |
| W 10×19 | 10.24 | 4.02 | 0.25 | 5.6 | 19 | 96.3 | 3.0 | 18.8 | 2.1 |
| W 10×22 | 10.17 | 5.75 | 0.24 | 6.5 | 22 | 118 | 11.4 | 23.2 | 4.0 |
| W 10×26 | 10.33 | 5.77 | 0.26 | 7.6 | 26 | 144 | 14.1 | 27.9 | 4.9 |
| W 10×30 | 10.47 | 5.81 | 0.30 | 8.84 | 30 | 170 | 16.7 | 32.4 | 5.8 |
| W 10×33 | 9.73 | 7.96 | 0.29 | 9.71 | 33 | 170 | 36.6 | 35.0 | 9.2 |
| W 10×39 | 9.92 | 7.985 | 0.315 | 11.5 | 39 | 209 | 45.0 | 42.1 | 11.3 |
| W 10×45 | 10.10 | 8.02 | 0.35 | 13.3 | 45 | 248 | 53.4 | 49.1 | 13.3 |
| W 10×49 | 9.98 | 10.00 | 0.34 | 14.4 | 49 | 272 | 93.4 | 54.6 | 18.7 |
| W 10×54 | 10.09 | 10.03 | 0.37 | 15.8 | 54 | 303 | 103 | 60.0 | 20.6 |
| W 10×60 | 10.22 | 10.08 | 0.42 | 17.6 | 60 | 341 | 116 | 66.7 | 23.0 |
| W 10×68 | 10.40 | 10.13 | 0.47 | 20.0 | 68 | 394 | 134 | 75.7 | 26.4 |
| W 10×77 | 10.60 | 10.19 | 0.53 | 22.6 | 77 | 455 | 154 | 85.9 | 30.1 |
| W 10×88 | 10.84 | 10.27 | 0.605 | 25.9 | 88 | 534 | 179 | 98.5 | 34.8 |
| W 10×100 | 11.10 | 10.34 | 0.68 | 29.4 | 100 | 623 | 207 | 112 | 40.0 |
| W 10×112 | 11.36 | 10.415 | 0.755 | 32.9 | 112 | 716 | 236 | 126 | 45.3 |
Click the Button on The Right
1.Light and medium-stiffness buildings: It is an ideal material for load-bearing structures in commercial office buildings, residential buildings, or warehouses because it provides a stable and robust working surface, is easy to construct, and is suitable for floors, walls, and roofs.
2.Industrial plants: Medium-load machine tools, production lines, shelving, etc., require support to easily withstand dynamic and static loads, while industrial production requires them to maintain perfect alignment.
3.Bridges and infrastructure: Maximum structural stability is achieved when used in short or medium-span bridges, and it can also be used for sidewalks, light traffic access, or other infrastructure. The structure has been proven not to bend and/or deform under traffic loads.
4.Platform and equipment support: HEX units provide flexible assembly methods and robust support for platforms, mezzanines, and heavy industrial equipment, ensuring superior safety, vibration resistance, and durability over long-term use.
1. Over 15 years of experience exporting structural steel
2. 5,000 tons of inventory in its warehouse
3. Technical support for structural engineering projects

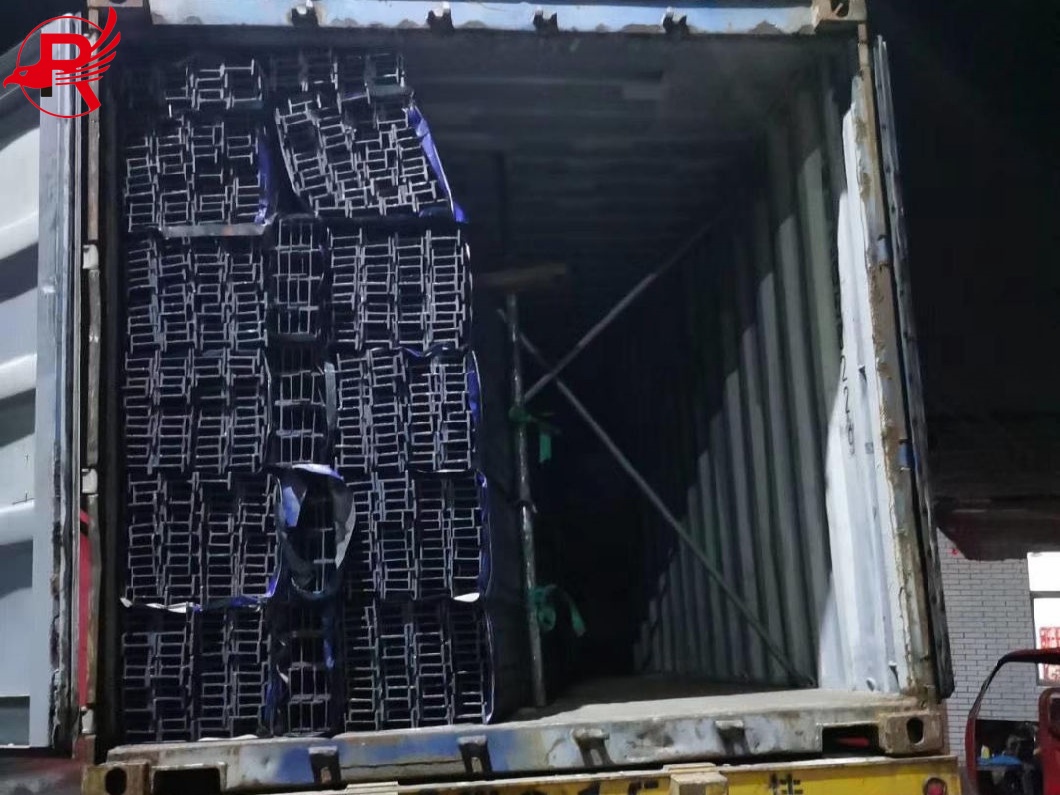

Steel strapping is used to prevent shifting and damage during transportation.
An outer waterproof membrane protects against moisture and salt spray corrosion; rust-preventive oil or galvanizing are optional.
Flexible shipping methods: small orders are shipped on wooden pallets, while large orders are shipped in bulk/container.
Quality: Certified by Material Testing Center (MTC) and meets ASTM A500 B/C standards.
Corner guards are used for safe loading to prevent flange crushing.
1. What is an ASTM A500 B/C grade W-beam?
A cold-formed wide-flange beam (W/H-beam) suitable for light to medium-duty structural applications such as buildings, warehouses, and factories.
2. What sizes are available?
Common sizes range from W6 to W24, with both length and width customizable.
3. Which industries use A500 W-beams?
Used in building structures, industrial plants, warehouses, bridges, and platform support.
4. Can W-beams be customized?
Yes, we offer custom sizing, cutting, drilling, welding, and galvanizing services.
5. Do you provide quality certificates?
Yes, all shipments include a Factory Test Certificate (MTC) and inspection report.
6. What is the delivery time?
Production and delivery typically take 10-25 days, depending on order quantity.
7. Which countries do you export to?
Our products are exported to Latin America, Southeast Asia, the Middle East, Europe, and North America.
