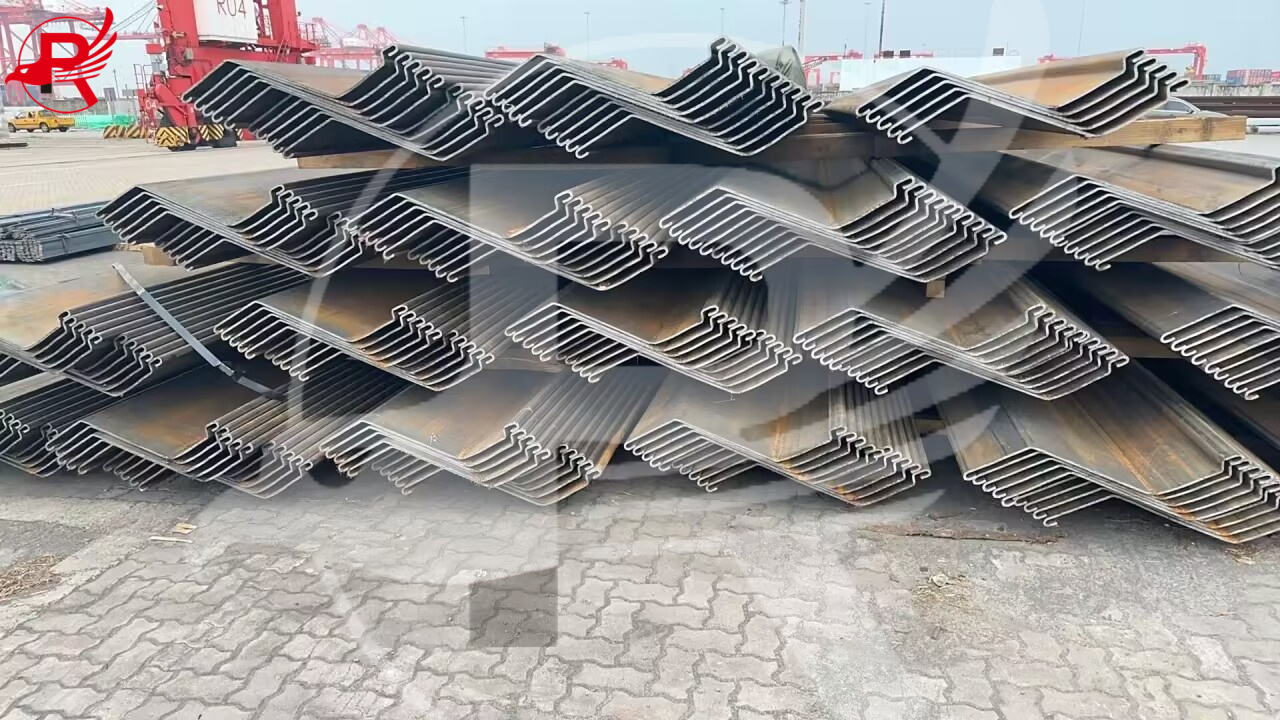

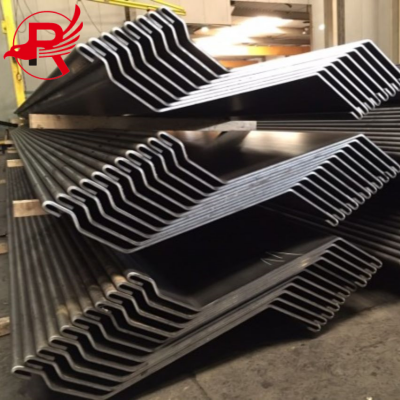

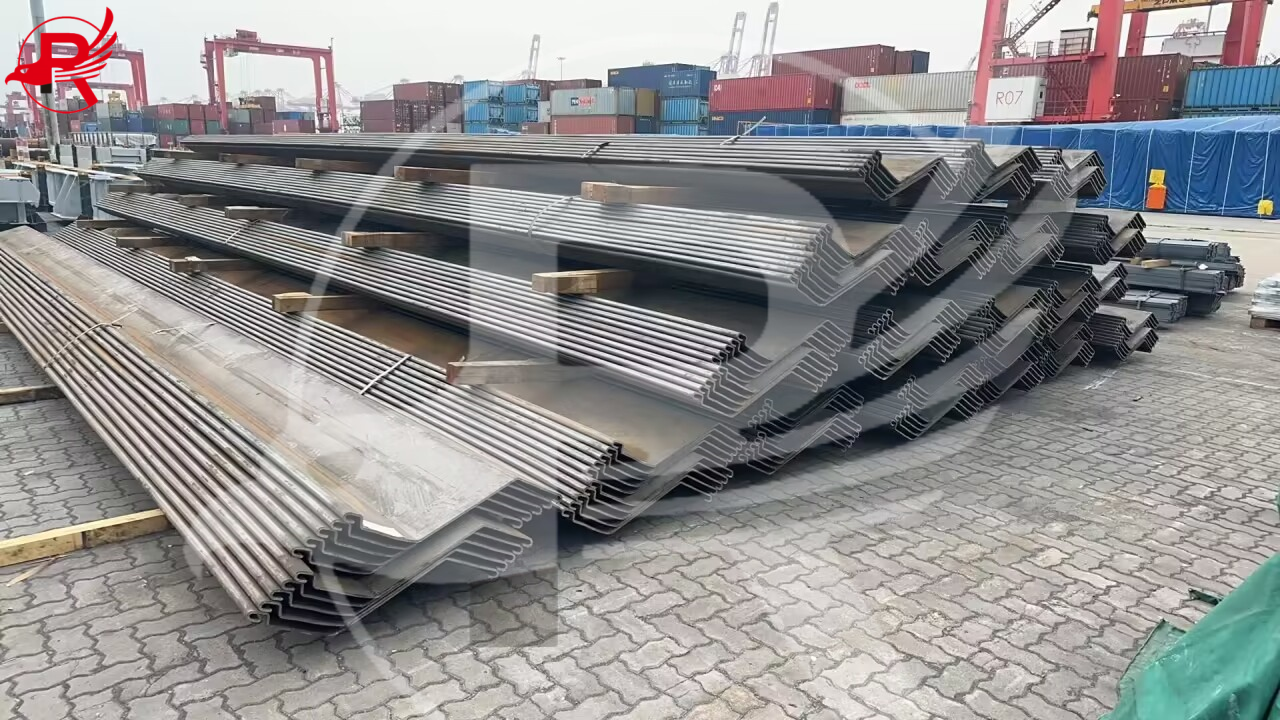

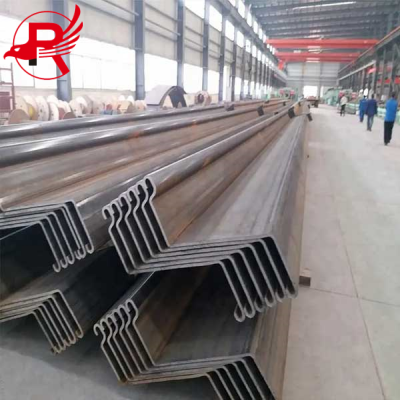

ASTM A572 Grade 50 A690 A588 Z Type Steel Sheet Pile High Strength Z Profile Piling for Deep Foundation

Short Description:

Z Type Steel Sheet Piles are hot-rolled steel sections with a unique Z-shaped cross-section, providing excellent interlock performance, high structural strength, and cost-efficient construction solutions.

Standard: JIS/ASTM/EN/GB

Grade: A572/A690/A588

Type: Z-shape

Technique: Hot Rolled

Length: 6m、9m、12m、15m,18m and custom

Delivery time: 10~20 Days

Application: Port wharves, riverbank protection, flood control dikes, foundation pit support, retaining walls

Certificates: JIS A5528, ASTM A328, CE, SGS certification badges

Payment Term: T/T,Western Union

Send email to us WhatsApp

Product Detail

Product Tags

Product Detail

Feature	Specification
Standard	ASTM A572 / ASTM A690 / ASTM A588
Grade	ASTM A572 Grade 50 / ASTM A690 / ASTM A588
Type	U-Type / Z-Type / Larssen Sheet Piles
Manufacturing	Hot-Rolled / Cold-Formed Steel Sheet Pile
Length	6m – 18m (Custom Length Available)
Width	200mm – 900mm (Depending on Profile)
Thickness	4mm – 12mm
Surface	Mill Finish / Coated / Hot-Dip Galvanized / Weathering Steel Finish (for A588)
Ready Stock	50,000+ Tons Available
Exported To	Southeast Asia / Middle East / Americas / Europe
Delivery	Factory Direct Price, 7–15 Days

Check Latest Stock & Price

ASTM Z Type Steel Sheet Pile Chemical Composition

Grade	C (%)	Mn (%)	P (%)	S (%)	Si (%)	Cu (%)	Ni (%)	Cr (%)	Mo (%)	Nb/Ti/V (%)	Remarks
ASTM A572 Grade 50	0.23 max	1.35 max	0.04 max	0.05 max	0.40 max	–	–	–	–	–	High-strength structural steel
ASTM A690	0.18–0.21	1.40 max	0.035 max	0.035 max	0.40 max	0.30–0.60	0.50–1.0	0.40–0.60	0.10–0.20	–	Marine corrosion resistant steel
ASTM A588	0.23 max	1.35 max	0.04 max	0.05 max	0.40 max	0.20–0.40	–	0.40–0.80	–	Nb 0.02–0.05 / V 0.01–0.10 / Ti 0.02–0.05	Weathering steel with natural rust protection

ASTM Z Type Steel Sheet Pile Mechanical Properties

Grade	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)
ASTM A572 Grade 50	345	450–620	20
ASTM A690	345	470–620	20
ASTM A588	345	470–630	20

NOTE:

1.All three grades have high yield strength (≥345 MPa) suitable for heavy structural applications.

2.ASTM A690 is optimized for marine and port environments.

3.ASTM A588 offers natural corrosion resistance due to its weathering properties.

4.Elongation around 20% ensures ductility for construction and installation.

ASTM Z Type Steel Sheet Pile Specification

Section	Dimensions				Mass		Moment	Modulus
	Width	Height	Thickness		Per pile	Wall	of inertia	of Section
	w	h	t	s	Per pile	Wall
	mm	mm	mm	mm	kg/m	kg/m2	cm4/m	cm3/m
GHZ 12-770	770	344	8.5	8.5	72.6	94	21 440	1 255
GHZ 13-770	770	344	9	9	76.1	99	22 370	1 310
GHZ 14-770	770	345	9.5	9.5	79.5	103	23 310	1 365
GHZ 14-770-10/10	770	345	10	10	82.9	108	24 250	1 415
GHZ 12-700	700	314	8.5	8.5	67.7	97	18 890	1 215
GHZ 13-700	700	315	9.5	9.5	74	106	20 550	1 315
GHZ 13-700-10/10	700	316	10	10	77.2	110	21 380	1 365
GHZ 14-700	700	316	10.5	10.5	80.3	115	22 200	1 415
GHZ 18	630	380	9.5	9.5	74.4	118	34 210	1 810
GHZ 18-10/10	630	381	10	10	77.8	123	35 530	1 880
GHZ 17-700	700	420	8.5	8.5	73.1	104	36 240	1 740
GHZ 18-80	700	420	9	9	76.5	109	37 810	1 810
GHZ 19-700	700	421	9.5	9.5	80	114	39 390	1 880
GHZ 20-700	700	421	10	10	83.5	119	40 970	1 955
GHZ 18-800	800	449	8.5	8.5	80.7	101	41 310	1 850
GHZ 20-800	800	450	9.5	9.5	88.6	111	45 060	2 010
GHZ 22-800	800	451	10.5	10.5	96.4	120	48 800	2 175
GHZ 23-800	800	474	11.5	9	94.6	118	55 270	2 340
GHZ 25-800	800	475	12.5	10	102.6	128	59 420	2 510
GHZ 27-800	800	476	13.5	11	110.5	138	63 580	2 680
GHZ 26	630	427	13	12.2	97.8	155	55 520	2 610
GHZ 24-700	700	459	11.2	11.2	95.7	137	55 830	2 440
GHZ 26-700	700	460	12.2	12.2	102.9	147	59 730	2 610
GHZ 28-700	700	461	13.2	13.2	110	157	63 630	2 770
GHZ 28-750	750	509	12	10	100.8	134	71 550	2 820
GHZ 30-750	750	510	13	11	108.8	145	76 680	3 015
GHZ 32-750	750	511	14	12	116.7	156	81 810	3 210
GHZ 36-700N	700	499	15	11.2	118.6	169	89 620	3 600
GHZ 38-700N	700	500	16	12.2	126.4	181	94 850	3 805
GHZ 40-700N	700	501	17	13.2	134.2	192	100 090	4 005
GHZ 42-700N	700	499	18	14	142.1	203	104 940	4 215
GHZ 44-700N	700	500	19	15	149.9	214	110 160	4 415
GHZ 46-700N	700	501	20	16	157.7	225	115 380	4 615
GHZ 46	580	481	18	14	132.6	229	110 460	4 605
GHZ 48	580	482	19	15	139.6	241	115 680	4 810
GHZ 50	580	483	20	16	146.7	253	121 070	5 025
GHZ 48-700	700	503	22	15	158.5	226	119 660	4 765
GHZ 50-700	700	504	23	16	166.3	238	124 900	4 965
GHZ 52-700	700	505	24	17	174.1	249	130 150	5 165

Download the full size chart

Know more about the specifications and dimensions of z type steel sheet piles?

CLICK HERE

ASTM Z Type Steel Sheet Pile Corrosion prevention solution

Americas: HDG (according to ASTM A123, zinc thickness ≥ 85μm) + optional 3PE coating, marked "Environmentally friendly RoHS compliant".

Southeast Asia: Adopting a combined process of hot dip galvanizing (zinc layer thickness ≥ 100μm) and epoxy coal tar coating, its core advantage lies in no rusting even after 5,000 hours of salt spray testing, making it suitable for tropical marine climate environments.

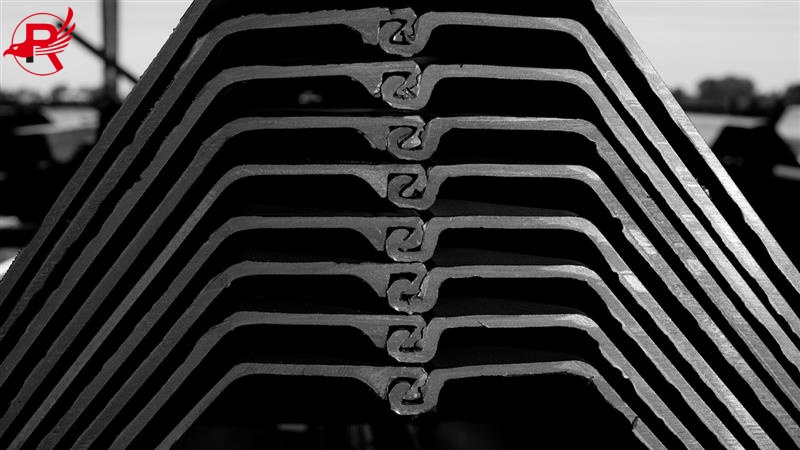

ASTM Z Type Steel Sheet Pile Locking

Design: Z-shape interlock, permeability ≤1×10⁻⁷cm/s
America: Meets the requirements of ASTM D5887, the standard test method for penetration of water through foundation and retaining walls.
Southeast Asia: High groundwater and flood-seepage resistance for tropical and monsoonal regions

ASTM Z Type Steel Sheet Pile Production Process

Steel Selection:

Choose high-quality structural steel according to certain mechanical property requirements.

Heating:

Heat billets/slabs to ~1,200°C for malleability.

Hot Rolling:

Shape steel into Z-profile with rolling mills.

Cooling:

Cool at Cool or tap water spray dote until the target water content was reached.

Straightening & Cutting:

Maintain the accuracy of the tolerance while cutting the material to standard or custom lengths.

Quality Inspection:

Perform dimensional, mechanical and visual inspections.

Surface Treatment (Optional):

If required, apply paint, galvanize or protect from rust.

Packaging & Shipping:

Pack, protect, and pick up for shipping.

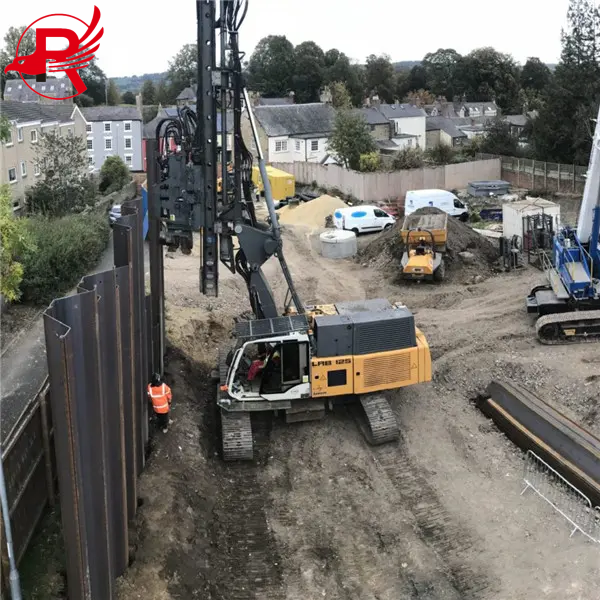

ASTM Z Type Steel Sheet Pile Main Application

Retaining Walls: Utilized for holding soil in digging and foundation works.

Cofferdams: Temporary constructions to control water in the working environment.

Port & Harbor Construction: Employed in quay walls, docks and marine construction.

Flood Control & Riverbank Protection: Used in embankment, levee and erosion control.

Retaining Walls

Cofferdams

Port & Harbor Construction

Flood Control & Riverbank Protection

Why Choose China Royal Steel for Steel Sheet Piles

Stringent Quality Standards: We are sure that all the products have passed the international standards such as/including ASTM, EN, JIS, and so on.

Strong Production Capacity: Stable supply and quality assurance for large amounts /quantity manufacturing.

Rich Export Experience: With professional export service, successfully exported to Southeast Asia, Middle East, North and South America and Europe.

Fast Delivery: More than 50 000 tons in stock,factory direct supply with 7~15 days delivery period.

Strict Quality Control: Complete inspection From raw materials to finishing shipment, to makesure that every batch can meet the specification.

Customized Solutions: We can also support customized size/length/coating and other project related technical solutions.

Competitive Pricing: The quality of the factory-direct-price is guaranteed and affordable to global contractors and distributor.

GET A QUOTE NOW

Packaging & Shipping

Standard Export Packaging: Secured with strong steel straps and reinforced with steel wires to guarantee the safety during transporting.

Seaworthy Protection: Rolling up with waterproof film to avoid rusting and damage in long distance sea shipment.

Loading Method: Bulk or container (20GP / 40GP) load according to length and quantity, cost effective.

Safe Handling: Stacked and secured to prevent damage and shifting during transport.

Flexible Delivery Options： FOB, CFR, CIF etc terms available for your different needs.

Fast Shipment: Sample ready stock with the delivery time 7-15 days from factory.

FAQ

Q1: What is the price of Z type steel sheet piles?

A: The price depends on steel grade, section type, thickness, and order quantity. Please contact us with your project specifications for a competitive, factory-direct quote.

Q2: What is the minimum order quantity (MOQ)?

A: Our MOQ starts from 25 ton for standard stock sizes. For custom lengths or grades, MOQ may vary—contact us to discuss your project needs.

Q3: What payment terms do you accept?

A: We accept T/T (30% deposit in advance, 70% balance before shipment) or other mutually agreed payment methods.

Q4: How do you ensure product quality?

A: All shipments include Mill Test Certificates (MTC), and we perform rigorous in-house inspections. Third-party inspections (BV, SGS, etc.) are welcome.

Q5: What after-sales support do you provide?

A: We offer technical guidance during installation, replacement support for quality issues, and responsive communication to resolve any concerns promptly.
