Customized Hot Rolled Carbon Steel ASTM A992 Wide Flange H Beam
| Item | Description |
|---|---|
| Standard | ASTM A992 |
| Size Range | HEA, HEB & HEM |
| Height (Depth) | 100 – 1100 mm |
| Length | 6 m / 9 m / 12 m / Custom |
| Surface | Black / Painted / Hot-Dip Galvanized |
| Processing | Cutting / Drilling / Welding |
| Application | Structural buildings, warehouses, bridges |
| Certification | Mill Test Certificate (MTC) |
| Steel grade | Styles | Carbon, max, % | Manganese, % | Silicon, max, % | Vanadium, max, % | Columbium, max, % | Phosphorus, max, % | Sulfur, max, % |
|---|---|---|---|---|---|---|---|---|
| A992 | Steel sections | 0.23 | 0.50 - 1.60 | 0.40 | 0.15 | 0.05 | 0.035 | 0.045 |
| Steel grade | Styles | Tensile strength, ksi | Yield point, min, ksi |
|---|---|---|---|
| A992 | Steel sections | 65 | 65 |
| Item | Weight (kg/m) | Height (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) |
|---|---|---|---|---|---|
| HEA100 | 17.1 | 96 | 100 | 5 | 8 |
| HEA120 | 20.3 | 114 | 120 | 5 | 8 |
| HEA140 | 25.2 | 133 | 140 | 5.5 | 8.5 |
| HEA160 | 31 | 152 | 160 | 6 | 9 |
| HEA180 | 36.2 | 171 | 180 | 6 | 9.5 |
| HEA200 | 43.2 | 190 | 200 | 6.5 | 10 |
| HEA220 | 51.5 | 210 | 220 | 7 | 11 |
| HEA240 | 61.5 | 230 | 240 | 7.5 | 12 |
| HEA260 | 69.5 | 250 | 260 | 7.5 | 12.5 |
| HEA280 | 77.9 | 270 | 280 | 8 | 13 |
| HEA300 | 90 | 290 | 300 | 8.5 | 14 |
| HEA320 | 99.5 | 310 | 320 | 9 | 15.5 |
| HEA340 | 107.1 | 330 | 340 | 9.5 | 16.5 |
| HEA360 | 114.2 | 350 | 360 | 10 | 17.5 |
| HEA400 | 127.4 | 390 | 400 | 11 | 19 |
| HEA450 | 142.7 | 440 | 450 | 11.5 | 21 |
| HEA500 | 158 | 490 | 500 | 12 | 23 |
| HEA550 | 169.2 | 540 | 550 | 12.5 | 24 |
| HEA600 | 181.4 | 590 | 600 | 13 | 25 |
| Item | Weight (kg/m) | Height (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) |
|---|---|---|---|---|---|
| HEB100 | 20.8 | 100 | 100 | 6 | 10 |
| HEB120 | 27.3 | 120 | 120 | 6.5 | 11 |
| HEB140 | 34.4 | 140 | 140 | 7 | 12 |
| HEB160 | 43.5 | 160 | 160 | 8 | 13 |
| HEB180 | 52.2 | 180 | 180 | 8.5 | 14 |
| HEB200 | 62.5 | 200 | 200 | 9 | 15 |
| HEB220 | 72.9 | 220 | 220 | 9.5 | 16 |
| HEB240 | 84.8 | 240 | 240 | 10 | 17 |
| HEB260 | 94.8 | 260 | 260 | 10 | 17.5 |
| HEB280 | 105 | 280 | 280 | 10.5 | 18 |
| HEB300 | 119.3 | 300 | 300 | 11 | 19 |
| HEB320 | 129.5 | 320 | 300 | 11.5 | 20.5 |
| HEB340 | 136.6 | 340 | 300 | 12 | 21.5 |
| HEB360 | 144.8 | 360 | 300 | 12.5 | 22.5 |
| HEB400 | 158 | 400 | 300 | 13.5 | 24 |
| HEB450 | 174.3 | 450 | 300 | 14 | 26 |
| HEB500 | 190 | 500 | 300 | 14.5 | 28 |
| HEB550 | 202.8 | 550 | 300 | 15 | 29 |
| HEB600 | 216.1 | 600 | 300 | 15.5 | 29 |
| Item | Weight (kg/m) | Height (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) |
|---|---|---|---|---|---|
| HEM 100 | 42.6 | 120 | 106 | 12 | 20 |
| HEM 120 | 53.1 | 140 | 126 | 12.5 | 21 |
| HEM 140 | 64.5 | 160 | 146 | 13 | 22 |
| HEM 160 | 77.8 | 180 | 166 | 14 | 23 |
| HEM 180 | 90.6 | 200 | 186 | 14.5 | 24 |
| HEM 200 | 105 | 220 | 206 | 15 | 25 |
| HEM 220 | 119.3 | 240 | 226 | 15.5 | 26 |
| HEM 240 | 160 | 270 | 248 | 18 | 32 |
| HEM 260 | 175.3 | 290 | 268 | 18 | 32.5 |
| HEM 280 | 192.7 | 310 | 288 | 18.5 | 33 |
| HEM 300 | 242.6 | 340 | 310 | 21 | 39 |
| HEM 320 | 249.7 | 359 | 309 | 21 | 40 |
| HEM 340 | 252.8 | 377 | 309 | 21 | 40 |
| HEM 360 | 254.8 | 395 | 308 | 21 | 40 |
| HEM 400 | 260.9 | 432 | 307 | 21 | 40 |
| HEM 450 | 268.1 | 478 | 307 | 21 | 40 |
| HEM 500 | 275.1 | 524 | 306 | 21 | 40 |
| HEM 550 | 283.4 | 572 | 306 | 21 | 40 |
| HEM 600 | 290.5 | 620 | 305 | 21 | 40 |
Building Structures: Served as main beams and columns in office and commercial buildings, multi-story complexes, and rack building warehouses for their great strength and load bearing capabilities.
Industrial & Warehouses: Heavy-duty frames, crane beams, and long-span structures that need to resist strong bending are perfect for this.
Bridges: Used in girder lines and primary load bearing members (those with greatest loads) to aid in uniform support.
Equipment & Platforms: Can be used for machinery supports, mezzanines, platforms and systems of roof framing.

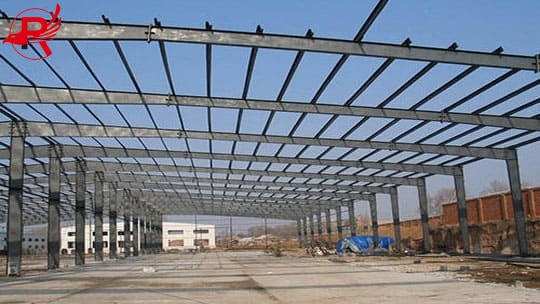

Structural Steel Buildings

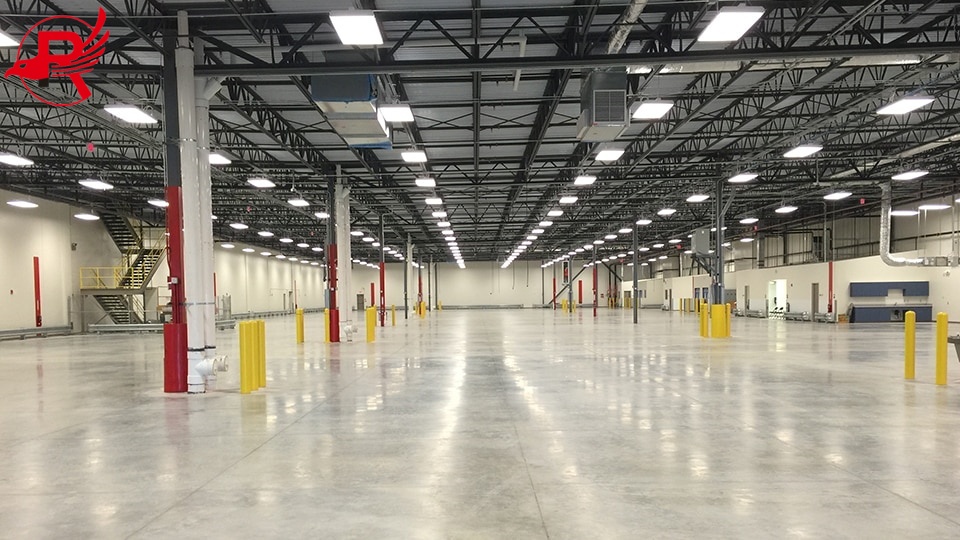

Industrial Plants & Warehouses

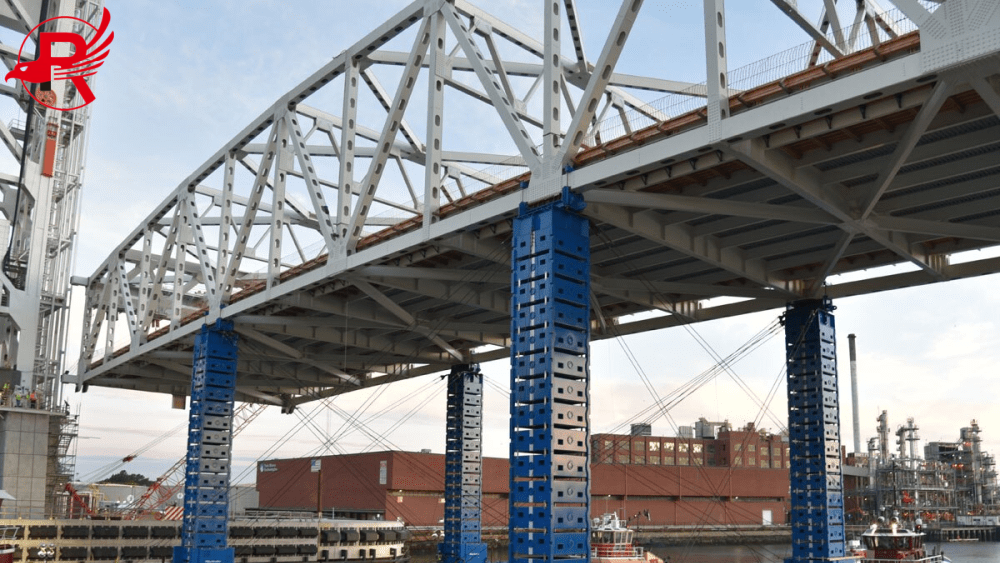

Bridge Construction

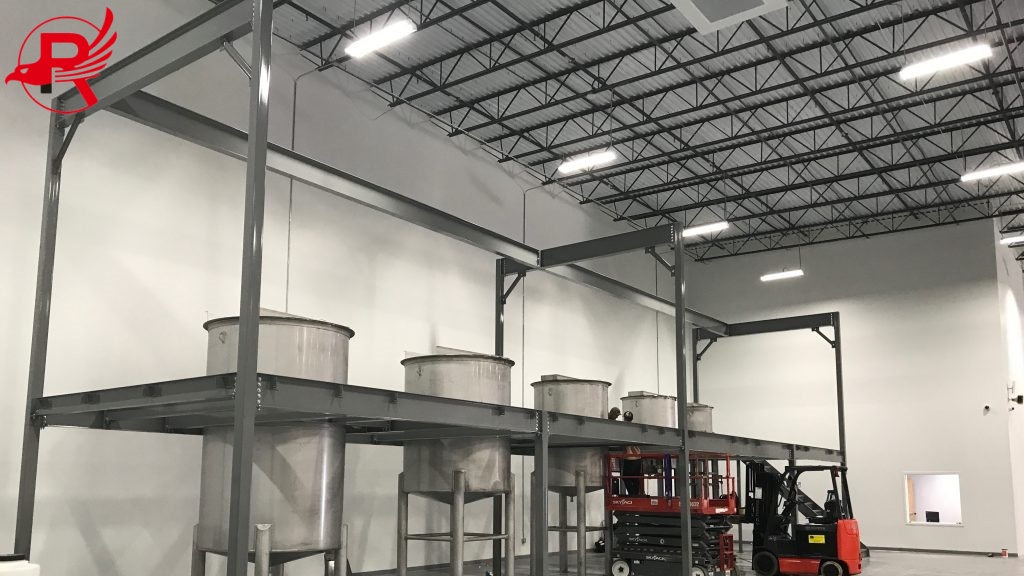

Equipment & Platform Support
1.Premium Quality Materials: We offer quality structural steel products such as ASTM A992, A36, and A572 beams, which are processed with high international standards in strength, durability, and performance.
2.Wide Range of H-Beam & Wide Flange Sizes: Large stocks are available across the full range of wide flange H beam sizes for all project types.
3.Competitive Global Pricing: Direct factory price and effective production bring the economical solution not only for the small order, but also for the bulk one.
4.Reliable Export Experience: Long time experience of exports to North America, Southeast Asia, Latin America and Europe, we know well about the way of informing our customers and the way of smooth shipping.
5.Customization & Value-Added Services: We provide customized cutting, drilling, painting, surface processing etc. to meet project requirements.
PACKING:
Normal export seaworthy packing with steel straps
Seal in rust proofing oil film with waterproof wrapping
Custom marking: grade, size, heat number, lot
Type of packing: container, bulk or bundle
SHIPPING:
Container Availability: 20GP / 40GP / 40HQ
Bulk shipment for bulk order
The loading is optimized to save freight
Delivery on time with full export documents(MTC, CO, BL etc)
1.Do you have quality assurance?
Yes, MTCs are provided and third party inspection is supported from SGS, BV and TUV.
2.How do you pack your steel?
Steel is strapped in bundles, sealed with rust-protecting oil or waterproof packaging, and is suitable for container or bulk carriage.
3.Which countries do you export to?
We sell all over the world, such as USA, UK, Australia, New Zealand, Malaysia, Philippines, Singapore, Hong Kong, Taiwan and so on.
4.What are your payment terms?
T/T, L/C at sight, or negotiable for long-term partners.
5.Can I request samples?
Yes, you can order some small samples for inspecting and testing before your bulk order.
